Cherry Lot 5 Cherry E63-04RP Miniature MicroSwitches, Normally Open & N Closed .1A 125V
$36.77
- Free US shipping
-
Arrives

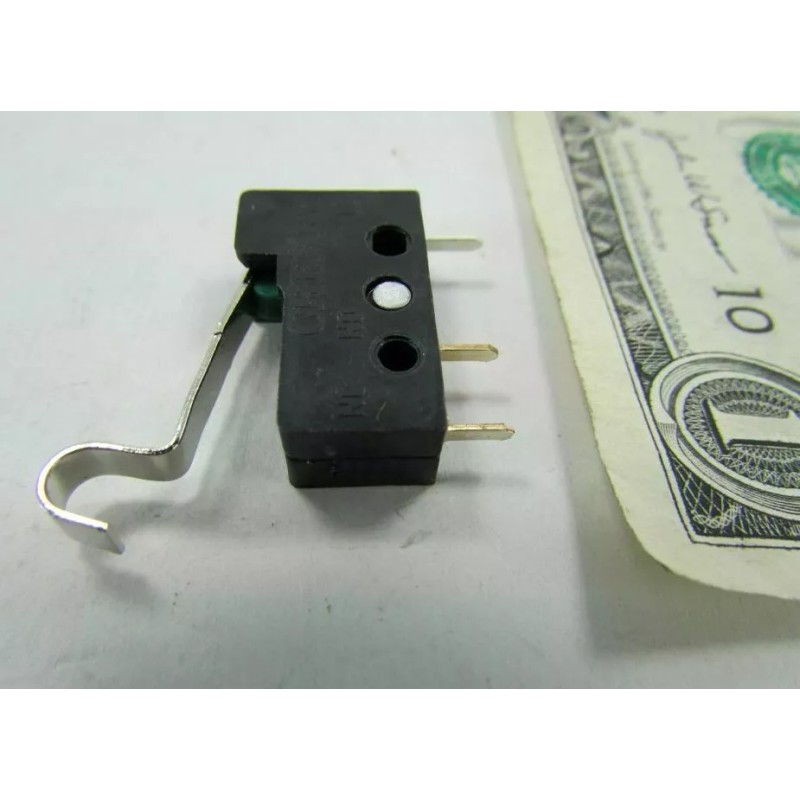

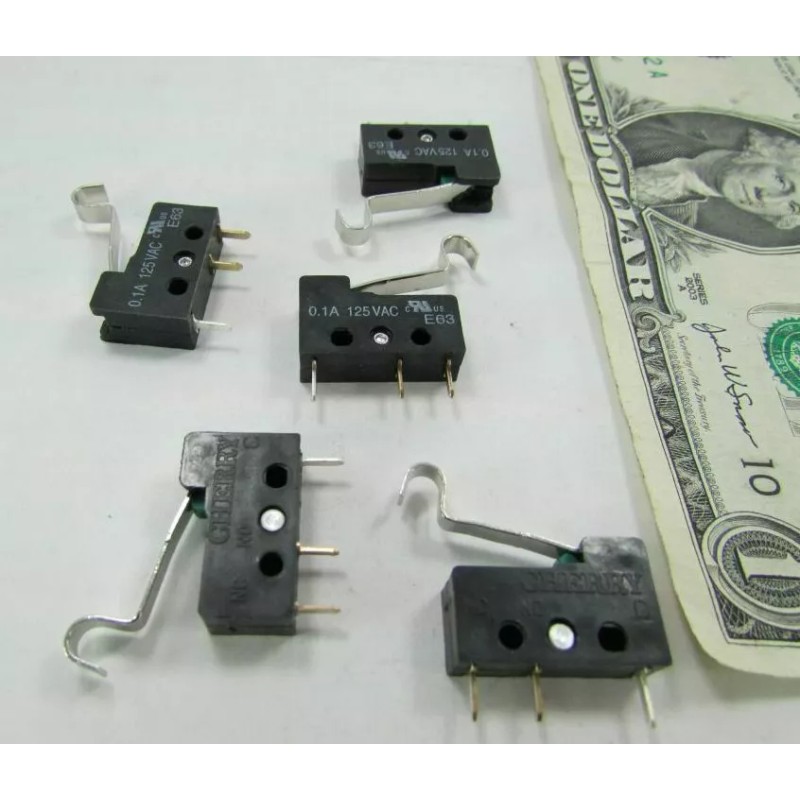

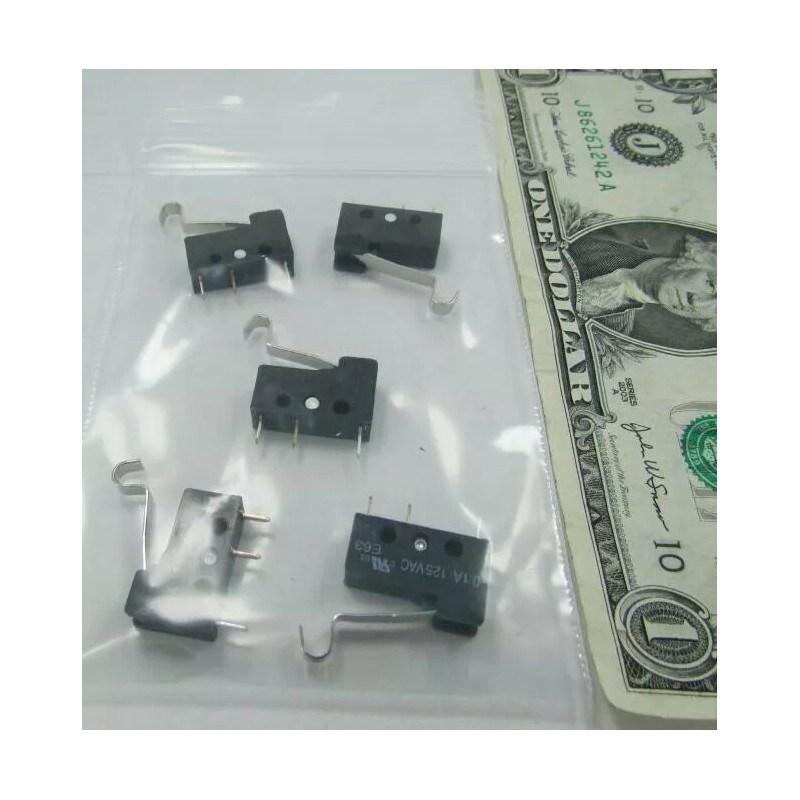

New Cherry Sub Miniature Lever Micro Switches, MicroSwitches, Normally Open or Normally Closed Operation, Gold Crosspoint Contacts Rated for up to .1 Amps and 125 Volts; for Compartment Doors, Circuit Board Mount, etc; Part Number E63-04RP. Each bid quantity is for a Lot of Five (5) Switches. You may bid / buy any number of lots, up to the total quantity available above.
This batch of switches was purchased at an industrial liquidation earlier this year, and they were brand new in the original factory boxes. We repackaged them in heavy Ziplok bags for resale. You will notice some minor darkening of the terminals because of the silver plating, and that's just what silver does. You don't find that (silver plating) on lower quality made-for-import stuff nowadays.

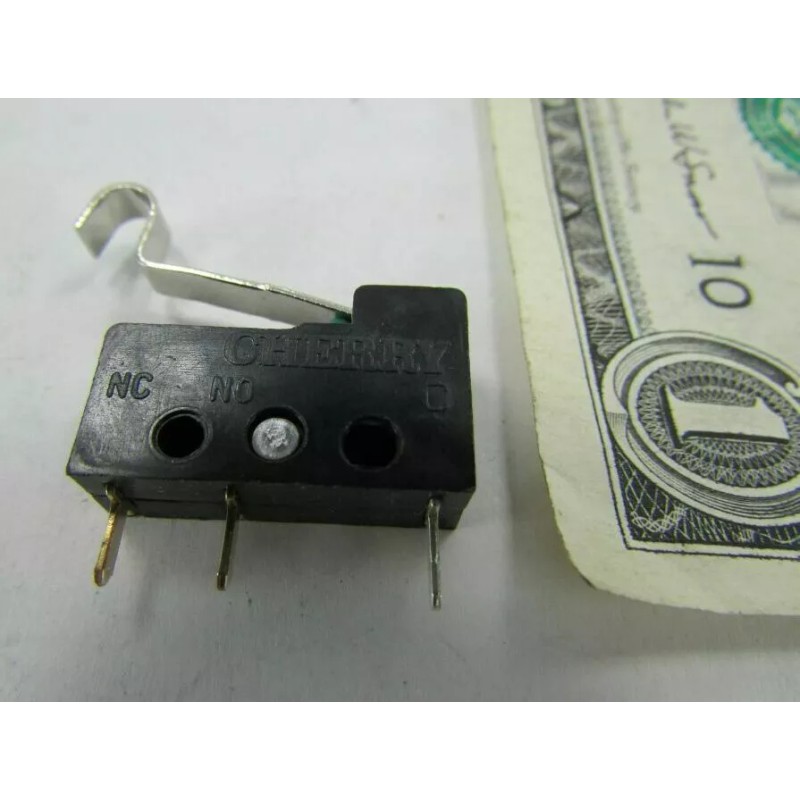

These switches have three terminals, and they can be wired either Normally Open (circuit is energized when lever is pressed) or Normally Closed (circuit is energized until lever is pressed. Two terminals on one end are marked "NO" and "NC." To reverse the operation, simply disconnect from one terminal and connect to the other.

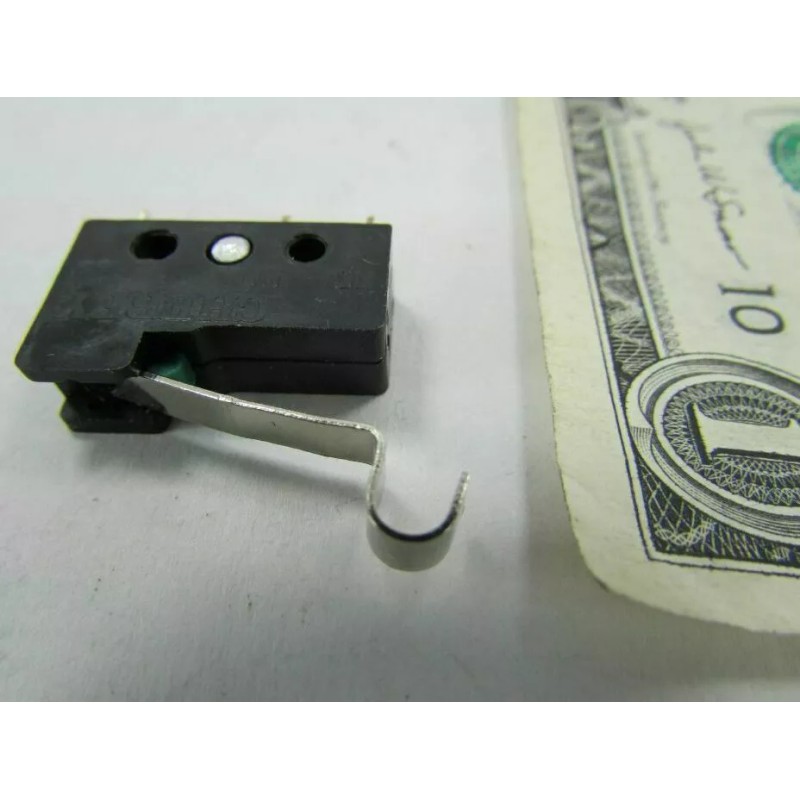

Actuation force at the end of the lever is (1) ounce, according to our scales. Contacts open/close about midway of the lever travel.
According to the calipers
Overall length: .954" / 24.23mm
Lever length: .854" / 21.70mm
Body length: .783" / 19.89mm
Body width: .490" / 12.46mm
Body thickness: .250" / 6.35mm
Terminal length: .158" / 4.01mm
Terminal width: .046" / 1.18mm
Mounting holes: .093" / 2.37mm diameter, spaced .375" / 9.52mm OC (on centers)

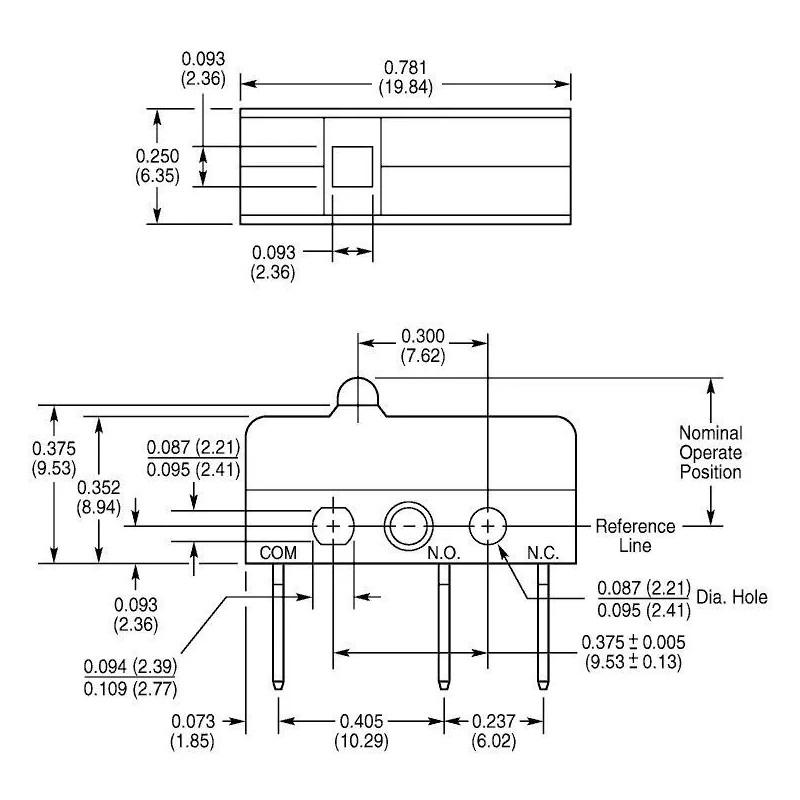

According to the manufacturer:
Specifications
Electrical
Temperature Rating: -40° to +85°C
Flammability Rating: UL94HB

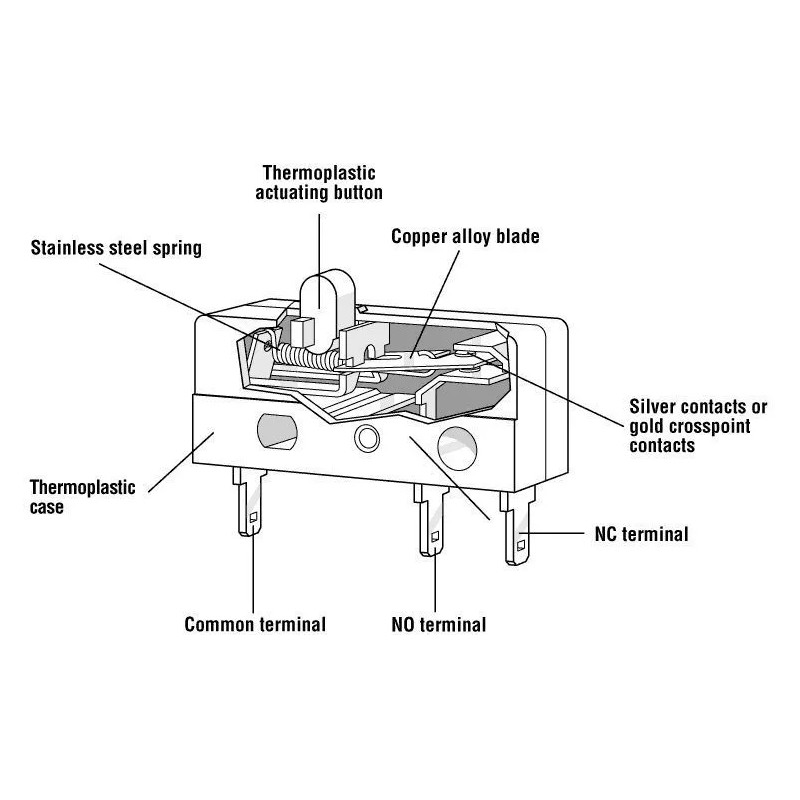

Materials
Case: Thermoplastic
Actuating Button: Thermoplastic Acetal
Terminals: Silver-Plated Commercial Bronze
Moving Blade: Beryllium Copper
Spring: Stainless Steel
Auxiliary Actuator: Cold Rolled Steel (Nickel-Plated)
Contacts: E63 -- Gold Crosspoint
Mounting:
Recommended screw: #2-56 round head
Recommended torque: 2 inch lbs. max
UL File Number: E23301
