Product Overview
- Assembled and tested PLC (Programmable Logic Controller) module for Espressif ESP32-C6-DevkitC, compatible with Arduino
- 4 analog inputs || 4 analog outputs 0-10V || I2C bus (standard 3.3V Qwiic / STEMMA QT connector) for sensors, displays etc.
- 4 digital inputs 3.3-24V || 6 digital relay outputs 5A || High-Precision RTC DS3231 with battery backup
- An Espressif ESP32-C6-DevKitC module (ASIN B0DGY39M3F) is required. A power supply >12V to 24V DC (0.5A) is required.
| Brand: | CANADUINO |
|---|---|
| Manufacturer: | UNIVERSAL-SOLDER Electronics |
| Part Number: | GY5F3CN |
| Isin: | IDOHZRSYACAL |
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
Product Overview
- Assembled and tested PLC (Programmable Logic Controller) module for Espressif ESP32-C6-DevkitC, compatible with Arduino
- 4 analog inputs || 4 analog outputs 0-10V || I2C bus (standard 3.3V Qwiic / STEMMA QT connector) for sensors, displays etc.
- 4 digital inputs 3.3-24V || 6 digital relay outputs 5A || High-Precision RTC DS3231 with battery backup
- An Espressif ESP32-C6-DevKitC module (ASIN B0DGY39M3F) is required. A power supply >12V to 24V DC (0.5A) is required.
| Brand: | CANADUINO |
|---|---|
| Manufacturer: | UNIVERSAL-SOLDER Electronics |
| Part Number: | GY5F3CN |
| Isin: | IDOHZRSYACAL |

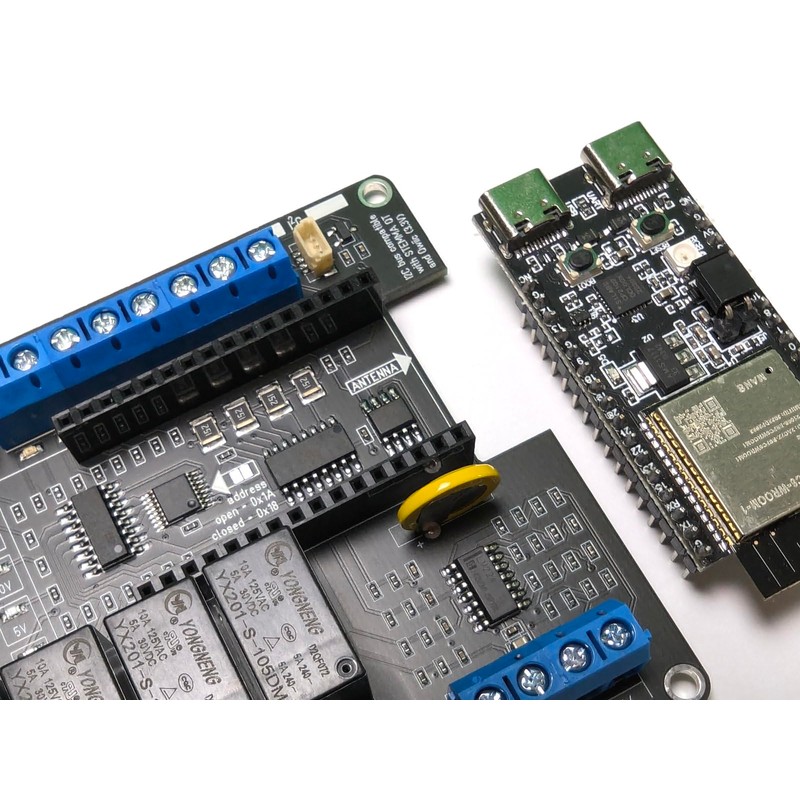

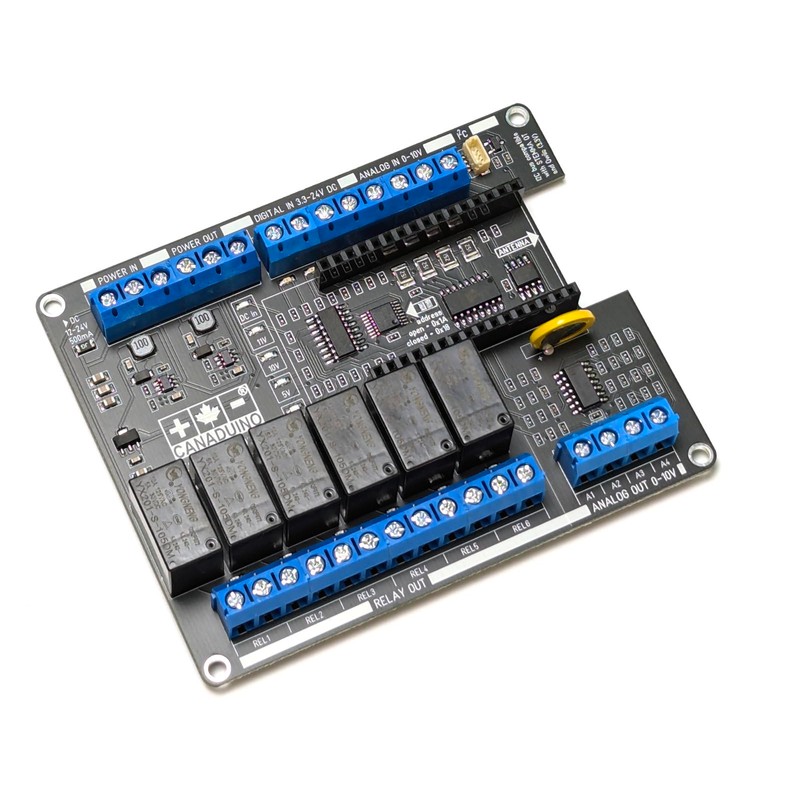

The CANADUINO ESP32 PLC-100 V1 is a fully fitted, tiny Programmable Logic Controller for the Espressif ESP32-C6-DevKitC module (sold separately) and comes with a footprint of just 100 x 80mm. It offers a very affordable opportunity to add programmable controls to different kinds of applications and supports the most common wireless communication protocols.
ESP32 PLC-100 can be programmed using Arduino IDE, Open-PLC, different ladder programming tools, or code-free applications like Visuino from Mitov.
ESP32 PLC-100 is extremely budget-friendly and provides a multitude of functions and power compared to much more expensive PLCs from oterh brands.

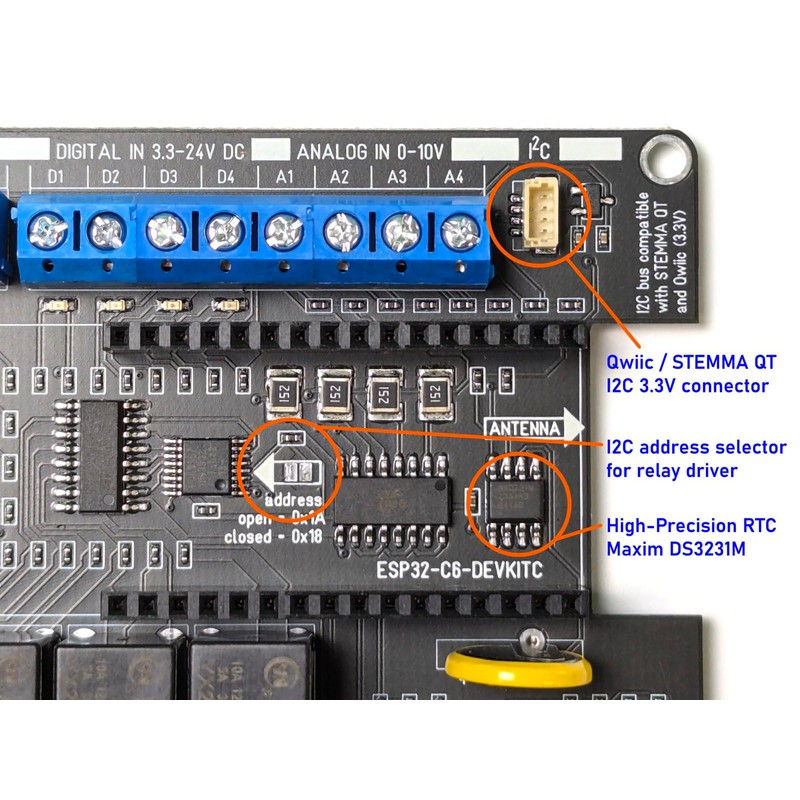

This version of our PLC-100 module has a Qwiic-compatible I2C connector (3.3V logic level) on board which allows for easy expansion with sensors, displays, or any other I2C compatible devices.
A high-precision RTC chip DS3231 supports you with scheduled and timer controlled applications.

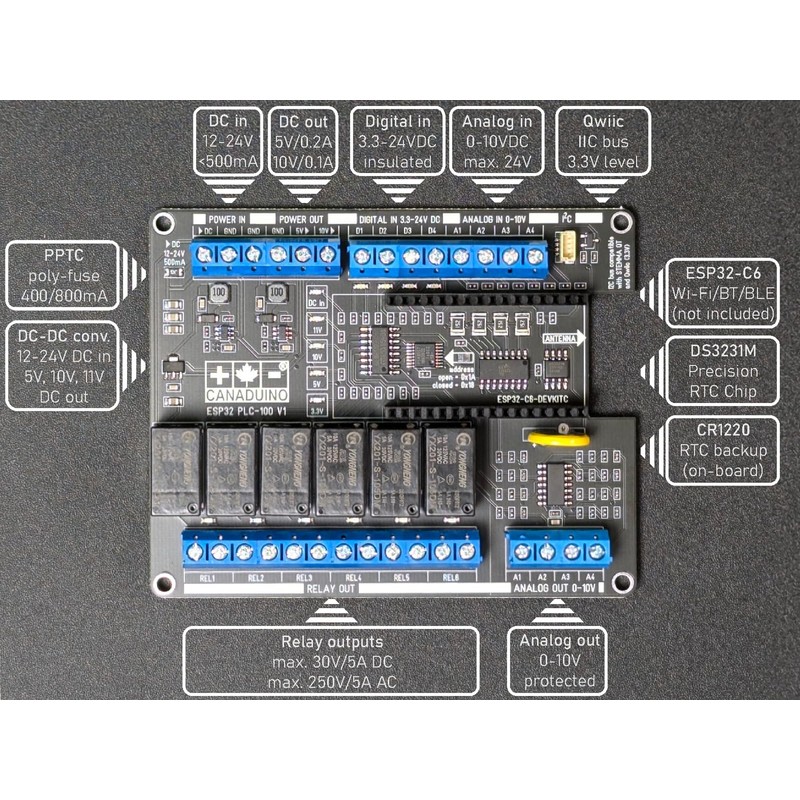

Basic features:
- Power supply 12*-24V DC, 0.5A
- 4 analog 0-10V inputs (adjustable res.)
- 4 analog 0-10V outputs (2.5mV res.)
- 4 digital inputs 3.3-24V
- 6 digital 250V/5A relay outputs
- I2C bus (3.3V) with Qwiic connector for sensors, displays etc.
- Supply voltages for auxiliary devices:
+ 3.3V (100mA, through I2C bus)
+ 5V (100mA) on terminal block
+ 10V (100mA for 0-10V devices, on terminal block)
- DS3231 real-time-clock with backup battery
- PCB dimensions: 100 x 80mm

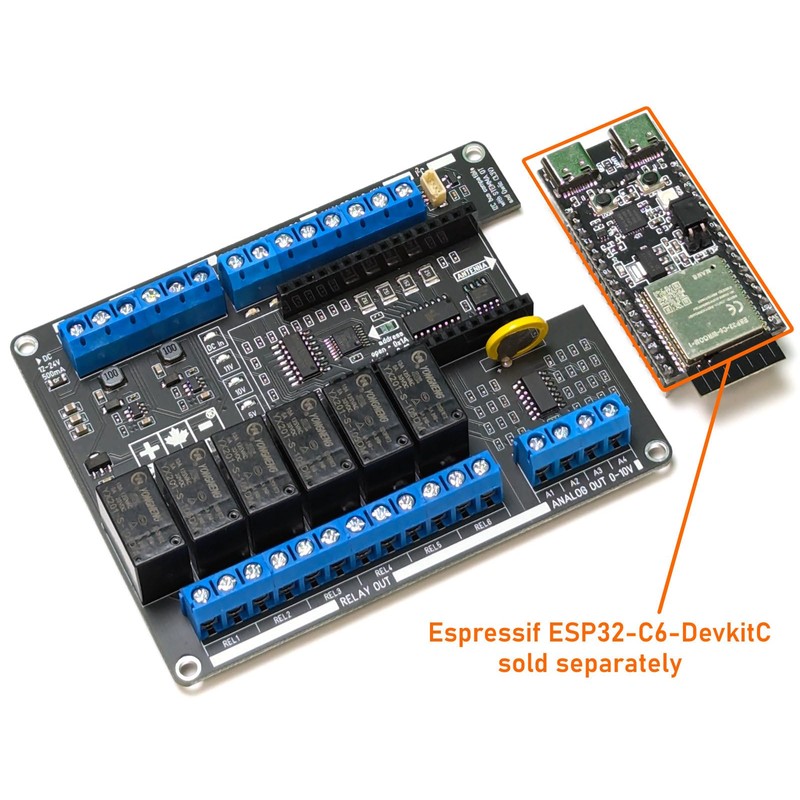

The module is assembled and only requires an Espressif ESP32-C6-DevKitC module (sold separately, ASIN B0DGY39M3F) to be ready for your program development.
*At 12V supply voltage, the maximum analog output voltage is limited to about 9.6V, which is still within the allowed tolerance for 0-10V systems. To achieve full 10V analog output voltage, the supply voltage must be at least 12.2V DC.
