Caltric Rear Control Arm Bushing Kit For Polaris Ranger 400 10-2014 / 500 Crew 2009-2013

$50.54

  • Free US shipping
  • Arrives

Tap here to read more about Rear Control Arm Bushing Kit For Polaris General 1000 16-2023 / 4 1000 17-2022



Premium Quality Replacement Part

Rear Upper or Lower Left or Right Control Arm Bushing Kit

Compatible with Polaris Models:

Ranger 400 4x4 HO 2010-2014
Ranger 500 2x4 4x4 2009
Ranger 500 4x4 2010-2013
Ranger Crew 500 4x4 2011-2013
Ranger 700 4x4 6x6 2009
Ranegr Crew 700 4x4 2009
Ranger 800 4x4 6x6 2010-2014
Ranger 800 6x6 2015-2017
Ranger Crew 800 4x4 2010-2014
Ranger XP 800 2012
Ranger 900 4x4 Diesel 2011-2014
Ranger Crew 900 4x4  Diesel 2012-2014
Ranger EV 4x4 2010-2022
LSV 4x4 2011-2012

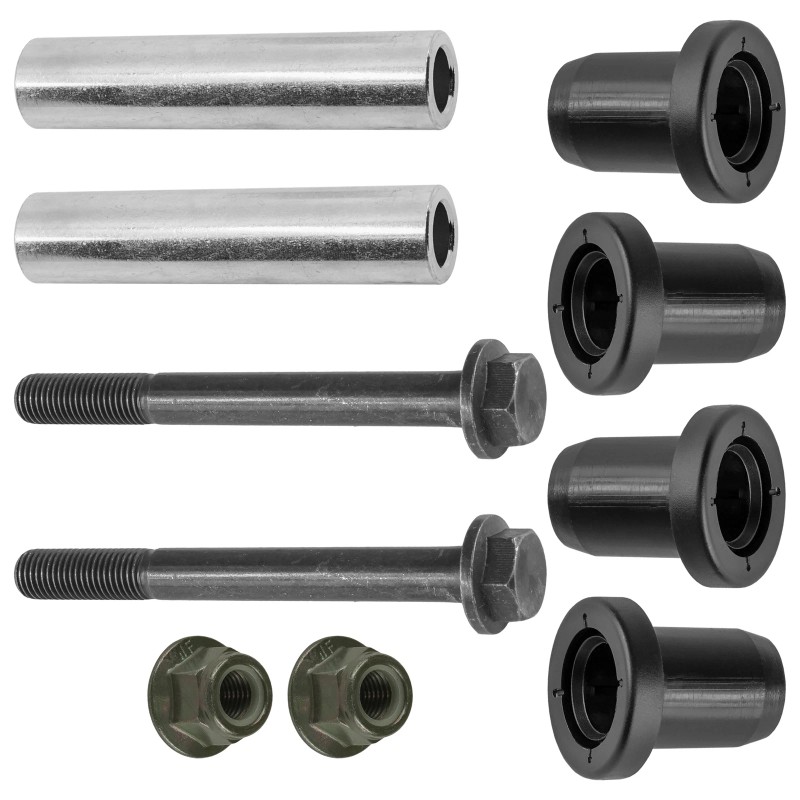

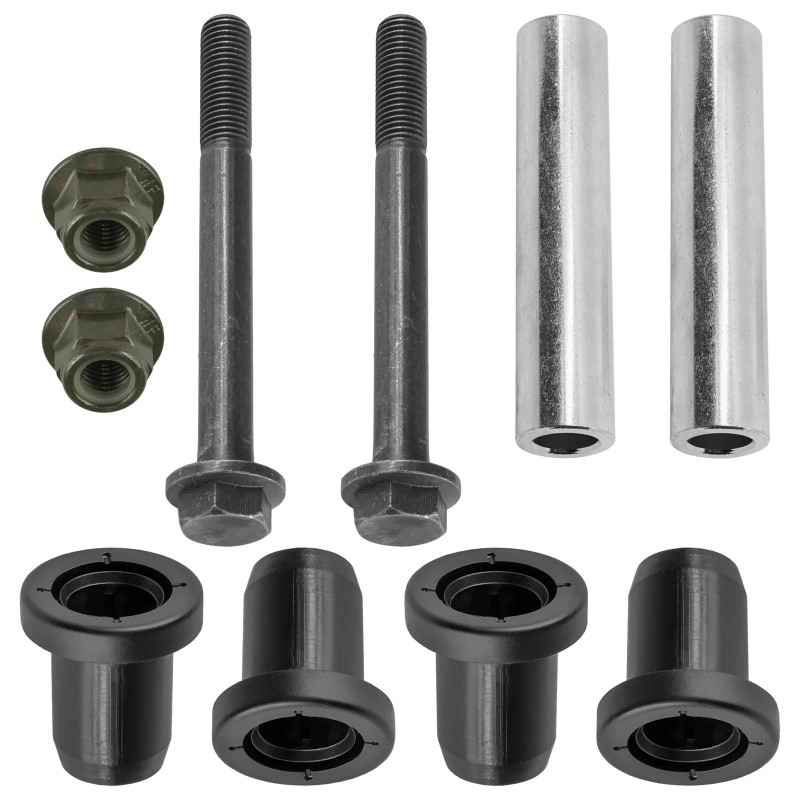

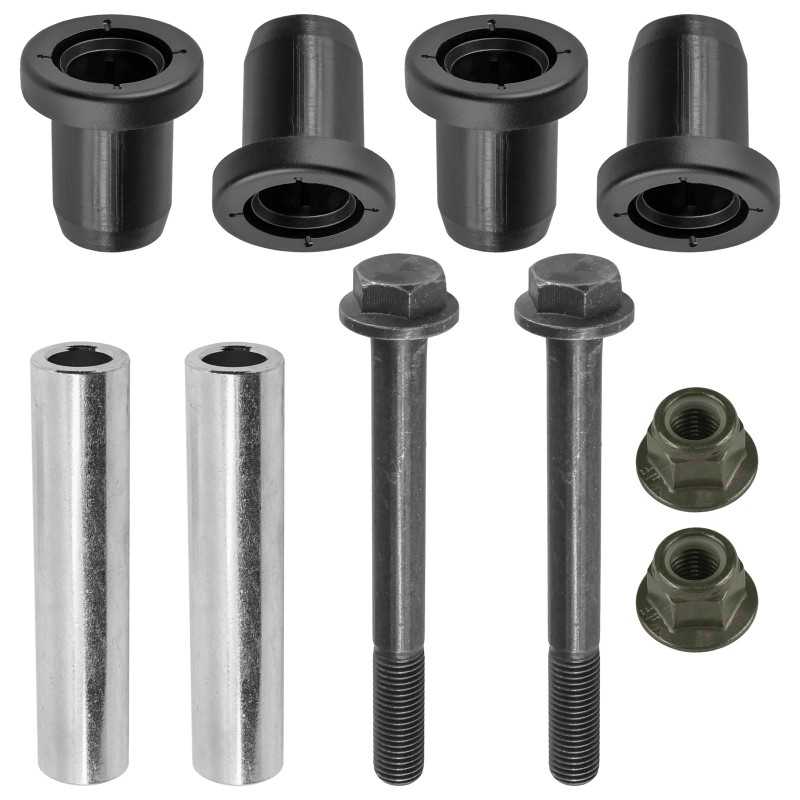

Order Includes:

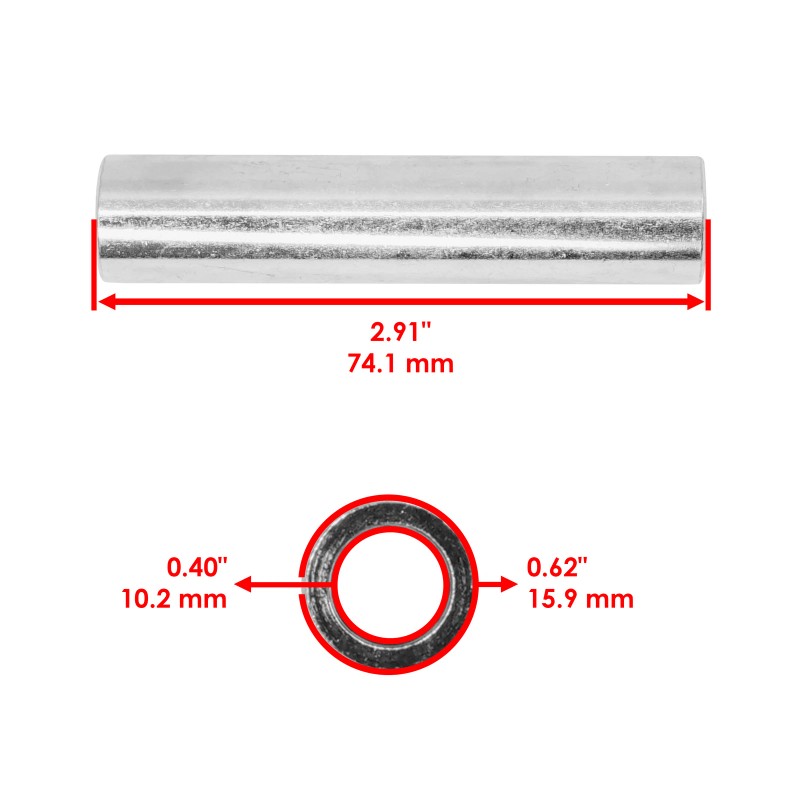

2 x Pivot Shaft: 5137591, 5335448

Length: 74․1 mm - 2.91 in
Inner Diameter: 10․2mm - 0.4 in
Outer Diameter: 15․9mm - 0.62 in
Material: Steel

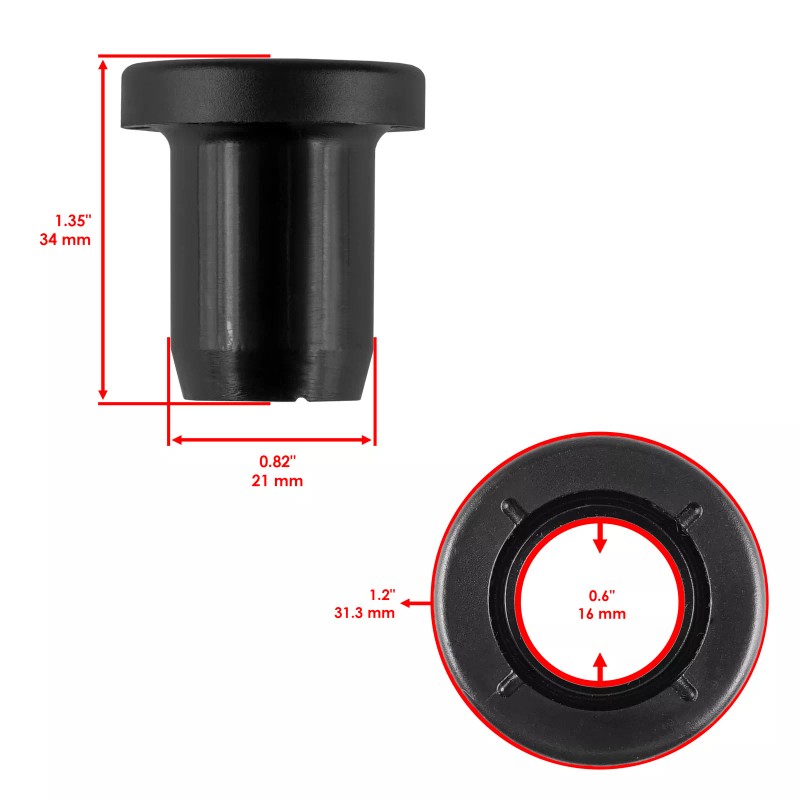

4 x Bushing : 5439270, 5436972, 5438895
5431846, 5432091, 5433063, 5434548

Length: 34mm - 1․35 in
Inner Diameter: 16mm - 0․6 in
Head Diameter: 31․3mm - 1․2 in
Tube Diameter: 21mm - 0․82 in
Material: Plastic

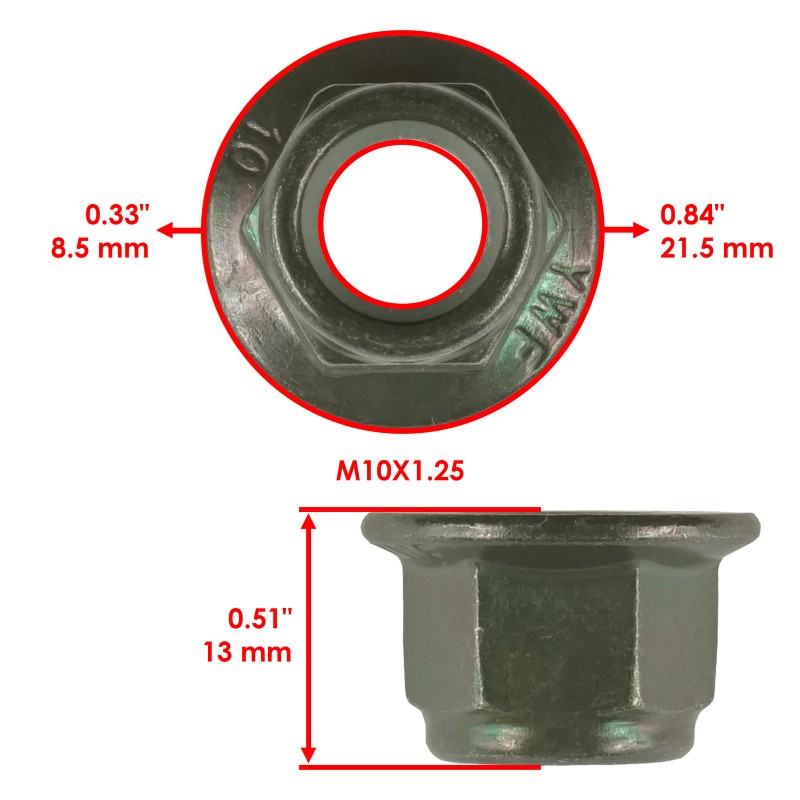

2 x Nut: 7547333

Width: 13mm - 0․51 in
Inner Diameter: 8․5mm - 0․33 in
Outer Diameter: 21․5mm - 0․84 in
Threads Size: M10-1․25
Material: Iron

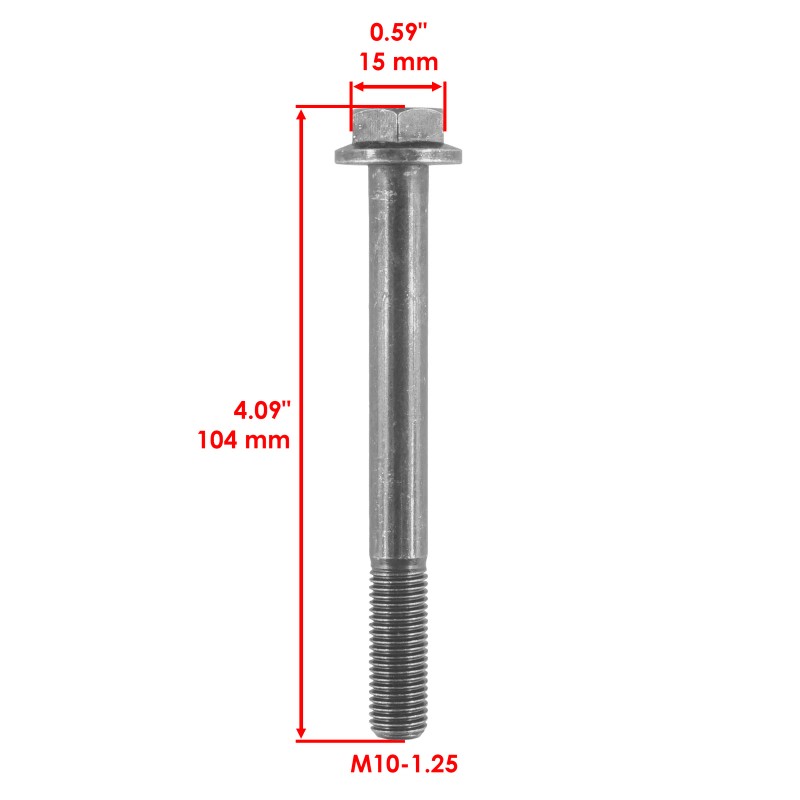

2 x Bolt: 7519043, 7518560

Length: 104mm - 4․09 in
Head Diameter: 15mm - 0․59 in
Threads Size: M10-1․25
Material: Iron

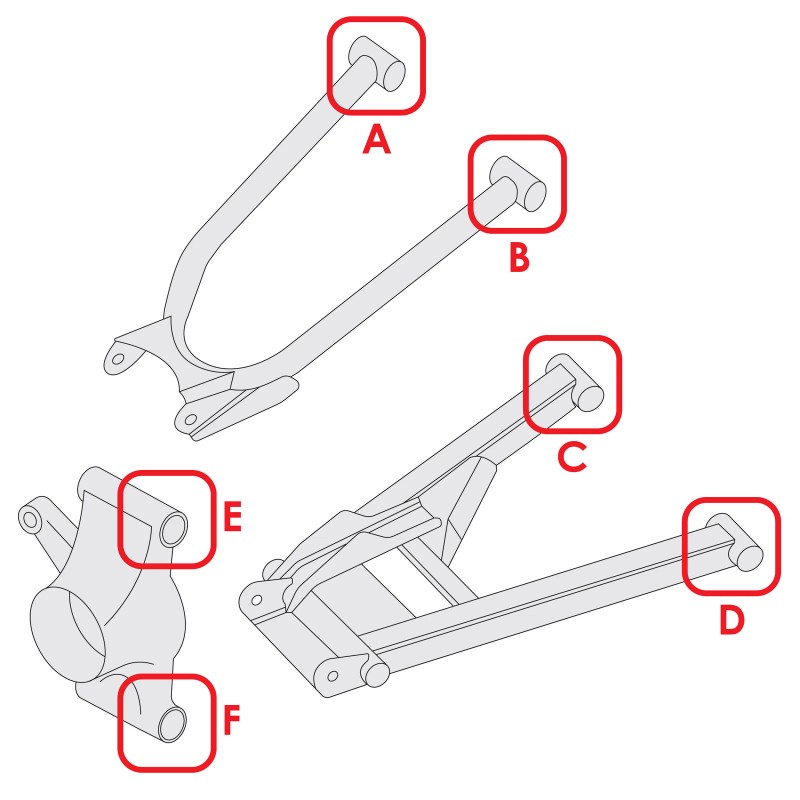

Note: Installs On Location (A) (B) or (C) (D) In Second Picture
Rear Upper Control Arm Part Number:
Left & Right 1016578-458, 1017727-458
1018189-458, 1016730-067, 1016730-385, 1017349-067
1018184-067, 1016816-067, 1018184-458

Rear Lower Control Arm Part Number:
Left: 1016552-458, 1017728-458, 1018190-458, 1016813-067
1016813-385, 1016350-067, 1017351-067, 1018185-067, 1016350-067
1016350-385, 1016817-067, 1018185-458, 1018190-458
Right: 1016552-458, 1018190-458, 1017728-458 1018190-458
1016814-067, 1016351-067, 1017351-067, 1018185-067, 1016351-385
1016351-067, 1016814-385, 1016817-067, 1018185-458

Knuckle Part Number:
Left: 5134741, 5138760, 5136544, 5136170, 5136914
Right: 5134531, 5138761, 5136543, 5136171, 5136915

Isin:
I16O2LRKPWQH

$50.54

  • Free US shipping
  • Arrives

In Stock

Sold by , Fulfilled by IBSPOT • Ships from US

IBSPOT Buyer Protection
  • Free 30-Day Returns
  • Full Refund for Damaged or Incorrect Items
  • Guaranteed Delivery or Money Back
  • Secure Checkout & Fast Support
