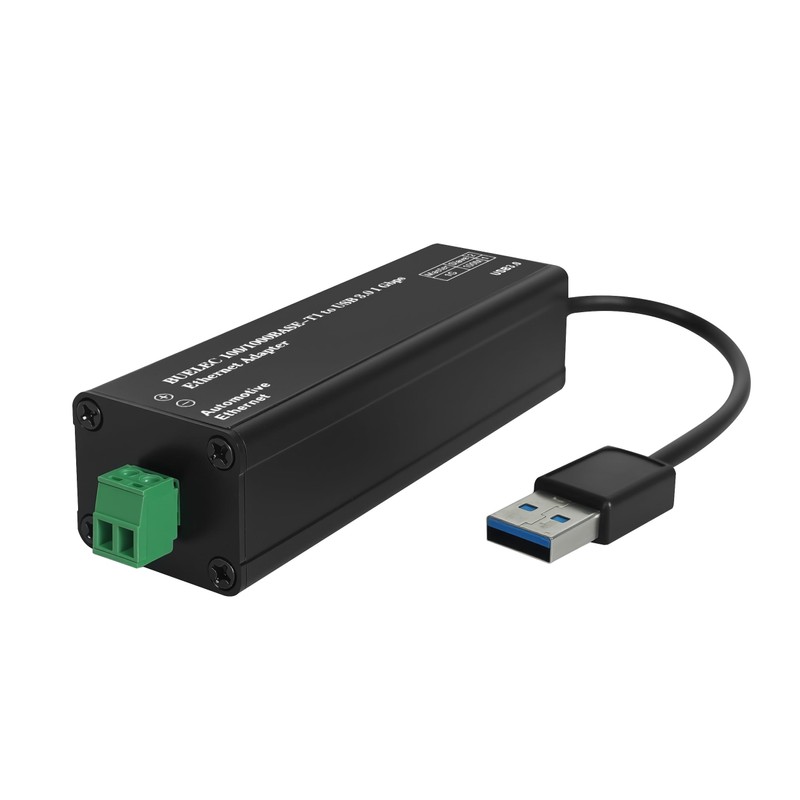

BUELEC USB 3.0 to Automotive Single-Pair Ethernet Adapter, 100/1000BASE-T1, Bus Powered, with MATEnet & HMTD Adapters, Plug and Play
$339.29
- $5.99 shipping from United States View details
-
Arrives
- USB 3.0 TO AUTOMOTIVE ETHERNET — No RJ45, no power adapter needed; plug directly into any PC or laptop USB port for instant access to 100BASE-T1 and 1000BASE-T1 networks. Fully bus-powered at max 1.65W and backward compatible with USB 2.0.
- 1 GBPS FULL-DUPLEX WITH HARDWARE DIP SWITCHES — Supports IEEE 802.3bw (100BASE-T1) and IEEE 802.3bp (1000BASE-T1) standards. Onboard DIP switches let you toggle between 100Mbps/1Gbps speed and Master/Slave mode instantly, with no software configuration required.
- UNIVERSAL T1 CONNECTOR WITH DUAL ADAPTER BOARDS INCLUDED — Features a 15EDG 3.81mm-2P screw terminal with auto polarity correction. Package includes both a TE MATEnet and a Rosenberger HMTD 150mm pigtail adapter, covering all major automotive Ethernet connector types.
- RUGGED DIE-CAST ALLOY ENCLOSURE — Compact 1.02 x 1.23 x 3.86 in body weighing only 2.1 oz delivers superior EMI shielding and thermal dissipation. Integrated overvoltage, overcurrent, and ESD protection; rated for 32°F to 122°F and 5–95% RH (non-condensing).
- BROAD OS SUPPORT AND PLUG AND PLAY — Auto-installs on Windows XP through 11, Linux kernel up to 6.17, and macOS 10.8–10.15. Dual status LEDs indicate link activity and system health. Ideal for DoIP diagnostics, ECU flashing, and ADAS development.
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- USB 3.0 TO AUTOMOTIVE ETHERNET — No RJ45, no power adapter needed; plug directly into any PC or laptop USB port for instant access to 100BASE-T1 and 1000BASE-T1 networks. Fully bus-powered at max 1.65W and backward compatible with USB 2.0.
- 1 GBPS FULL-DUPLEX WITH HARDWARE DIP SWITCHES — Supports IEEE 802.3bw (100BASE-T1) and IEEE 802.3bp (1000BASE-T1) standards. Onboard DIP switches let you toggle between 100Mbps/1Gbps speed and Master/Slave mode instantly, with no software configuration required.
- UNIVERSAL T1 CONNECTOR WITH DUAL ADAPTER BOARDS INCLUDED — Features a 15EDG 3.81mm-2P screw terminal with auto polarity correction. Package includes both a TE MATEnet and a Rosenberger HMTD 150mm pigtail adapter, covering all major automotive Ethernet connector types.
- RUGGED DIE-CAST ALLOY ENCLOSURE — Compact 1.02 x 1.23 x 3.86 in body weighing only 2.1 oz delivers superior EMI shielding and thermal dissipation. Integrated overvoltage, overcurrent, and ESD protection; rated for 32°F to 122°F and 5–95% RH (non-condensing).
- BROAD OS SUPPORT AND PLUG AND PLAY — Auto-installs on Windows XP through 11, Linux kernel up to 6.17, and macOS 10.8–10.15. Dual status LEDs indicate link activity and system health. Ideal for DoIP diagnostics, ECU flashing, and ADAS development.
PRODUCT DESCRIPTION
The BUELEC 100/1000BASE-T1-U30-TX is a high-performance USB 3.0 to automotive Ethernet converter purpose-built for automotive network development, diagnostics, and testing. Unlike traditional RJ45-based media converters that require external power adapters, the U30-TX connects directly to your computer's USB port — delivering both power and data through a single cable.
At its core, the converter bridges standard USB-equipped PCs and laptops to 100BASE-T1 and 1000BASE-T1 automotive Ethernet networks at up to 1 Gbps full-duplex. The onboard hardware DIP switches allow real-time selection of communication speed (100Mbps or 1Gbps) and Master/Slave role without any software setup. An automatic polarity correction feature on the T1 differential pair eliminates wiring orientation concerns.
The default T1 interface uses a 15EDG 3.81mm-2P screw terminal for maximum wiring flexibility. For direct-connect applications, the package includes both a TE MATEnet pigtail adapter and a Rosenberger HMTD pigtail adapter — enabling plug-and-play compatibility with all major automotive Ethernet connector standards used by OEMs worldwide.
Housed in a rugged die-cast alloy enclosure measuring just 25.8 × 31.3 × 98mm and weighing approximately 60g, the U30-TX delivers excellent EMI shielding and thermal dissipation in a truly pocket-sized form factor. Integrated overvoltage, overcurrent, and ESD protection circuitry ensures reliable operation even in demanding environments.
The converter supports Windows XP through 11 (auto-install), Linux kernel up to 6.17, and macOS 10.8–10.15. Dual status LEDs provide instant visual feedback on link status and system health for rapid troubleshooting.

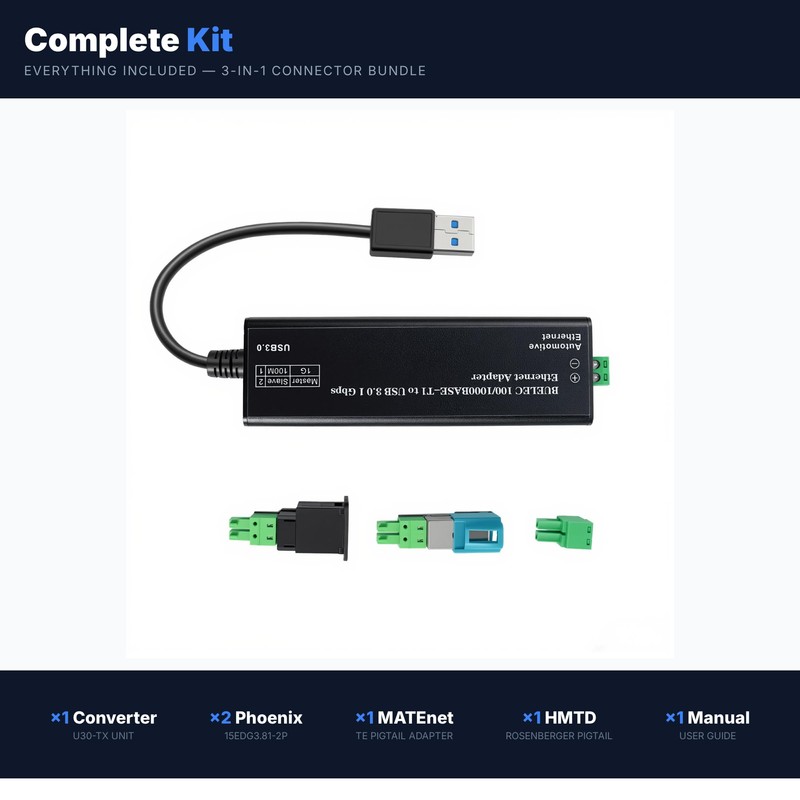

What's in the Box
- 1× 100/1000BASE-T1-U30-TX Converter Unit
- 2× 15EDG 3.81mm-2P Terminal Connectors
- 1× TE MATEnet 150mm Pigtail Adapter
- 1× Rosenberger HMTD 150mm Pigtail Adapter
- 1× User Manual
Technical Specifications
| USB Interface | USB 3.0 Type-A (USB 2.0 backward compatible) |
| Ethernet Standard | IEEE 802.3bw (100BASE-T1) / IEEE 802.3bp (1000BASE-T1) |
| Data Rate | 100Mbps / 1Gbps Full-Duplex |
| Power | USB bus powered, 4.7–5.5V input, max 1.65W |
| Dimensions | 25.8 × 31.3 × 98mm (W × H × L) |
| Weight | ~60g |
| USB Cable Length | 15cm |
| Operating Temp | 0°C to +50°C |
| Humidity | 5–95% RH (non-condensing) |
| OS Support | Windows XP–11, Linux (kernel ≤6.17), macOS 10.8–10.15 |
