BTMETER AC/DC 1000A Clamp Multimeter, 4000 Counts Digital Clamp-on Meter with Data Logging Measure Amp Volt Ohm Capacitance Frequency Temperature Continuity, Electrical Tester 570T-APP
$82.56
-
Arrives
- ⚡【DC AC Current Clamp Multimeter】This multifuctional clamp-on meter can accurately measures AC DC current with 400A/1000A ranges, 100mA/1A resolution；AC and DC Voltage to 1000V, Resistance to 60M ohms; Capacitor to 200μ farad; Frequency to 9.999m Hz; Temperarture -4~1832℉ (℃/℉ Optional), Test voltage 4V, can measure light-emitting diodes, and continuity test.
- ⚡【Sensitive Hall Effect Clamp Sensor】Engineered with hall effect sensor to ensure high precision measurement on DC/AC amperage testing. Built with big jaw caliber size 1.77 inches (45mm), allows you non-contact measuring multiple wires at the same time. ❗Please separate the hot and neutral conductors or they will cancel each other out and give zero amp reading, just clamp on the LIVE line for accurate amperage testing❗
- ⚡【Electrical Data Logger】Get rid of hand-written notes or complicated maths. With this intelligent clamp amp meter, all electric measurements will be displayed on your phone or tablet, auto graph a trend chart, support to sharing out in Excel, TXT format. This clamp-on ammeter is reliable on remotely troubleshoot electrical problems in HVAC, household, commercial, etc.
- ⚡【Clamp Meter with Temp Test】 Comes with thermocouple probe for high temperature measurement with range of -4 ~ 1832℉(℃/℉ optional). Designed with tough edge cover to withstand jobsite drops. Qualified with electrical IEC 61010-1, CAT IV 600V, CAT III 1000V, Class 2, Double insulation safety standards.
- ⚡【Easy to Use】With loads of functions to help you get the jobs done all in this one versatile digital clamp multitester. Data Hold to freeze reading for easy reading; Large backlight display ensures clear visibility in dark conditions; REL to zero out reading before measuring; Max/Min/Average value recording, etc. 12 months quality warranty and life-time technical support!
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- ⚡【DC AC Current Clamp Multimeter】This multifuctional clamp-on meter can accurately measures AC DC current with 400A/1000A ranges, 100mA/1A resolution；AC and DC Voltage to 1000V, Resistance to 60M ohms; Capacitor to 200μ farad; Frequency to 9.999m Hz; Temperarture -4~1832℉ (℃/℉ Optional), Test voltage 4V, can measure light-emitting diodes, and continuity test.
- ⚡【Sensitive Hall Effect Clamp Sensor】Engineered with hall effect sensor to ensure high precision measurement on DC/AC amperage testing. Built with big jaw caliber size 1.77 inches (45mm), allows you non-contact measuring multiple wires at the same time. ❗Please separate the hot and neutral conductors or they will cancel each other out and give zero amp reading, just clamp on the LIVE line for accurate amperage testing❗
- ⚡【Electrical Data Logger】Get rid of hand-written notes or complicated maths. With this intelligent clamp amp meter, all electric measurements will be displayed on your phone or tablet, auto graph a trend chart, support to sharing out in Excel, TXT format. This clamp-on ammeter is reliable on remotely troubleshoot electrical problems in HVAC, household, commercial, etc.
- ⚡【Clamp Meter with Temp Test】 Comes with thermocouple probe for high temperature measurement with range of -4 ~ 1832℉(℃/℉ optional). Designed with tough edge cover to withstand jobsite drops. Qualified with electrical IEC 61010-1, CAT IV 600V, CAT III 1000V, Class 2, Double insulation safety standards.
- ⚡【Easy to Use】With loads of functions to help you get the jobs done all in this one versatile digital clamp multitester. Data Hold to freeze reading for easy reading; Large backlight display ensures clear visibility in dark conditions; REL to zero out reading before measuring; Max/Min/Average value recording, etc. 12 months quality warranty and life-time technical support!
BTMETER BT-570T-APP Smart AC DC Clamp Amp Multimeter DMM

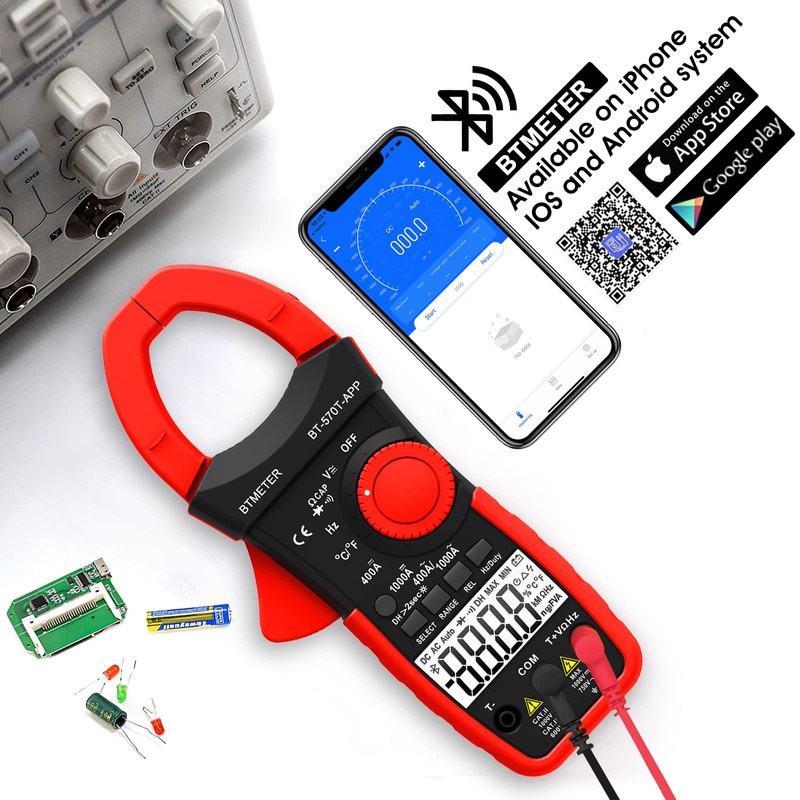

- The BT-570T-APP clamp ammeter is available to connect with your smart mobile phone/table, which can help HVAC technicians improve productivity in the field.

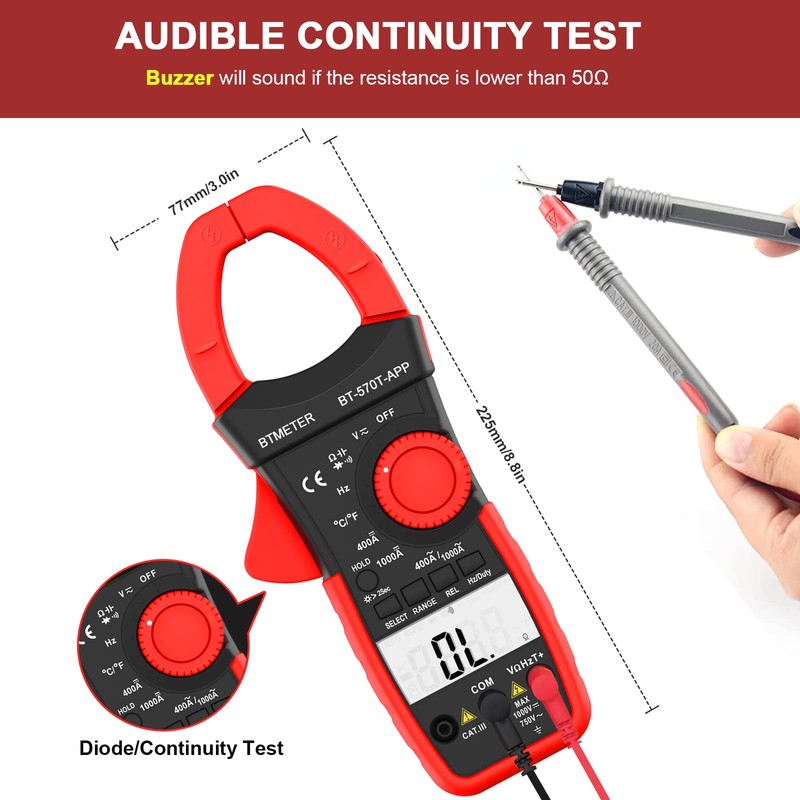

- The rugged dual-rated CAT III 1000 V, CAT IV 600 V meter equips you to perform many essential HVAC system measurements safely: AC/DC current, voltage, resistance, capacitance, contact temperature, frequency,duty cycle, continuity, diode test (4V output)
- Sensitive Hall Effect Sensor installed in the clamp jaw to ensure high precision measurements on AC and DC current all without contacting a live conductor.
Other useful features:
- Ergonomic design fits in your hand and can be used while wearing PPE
- Large, easy-to-read backlit display improves readings in low light settings

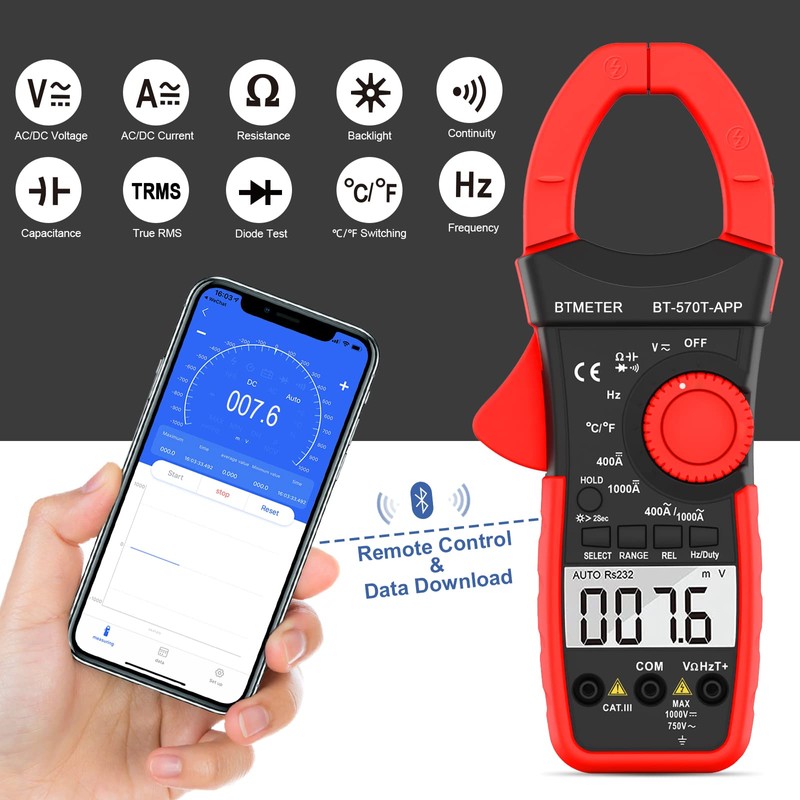

- Connects to your smartphone or tablet, so you can read measurements at a safer distance while doing a high-volt testing
- Offers Min/Max/Average value recording to capture variations automatically
Specifications:

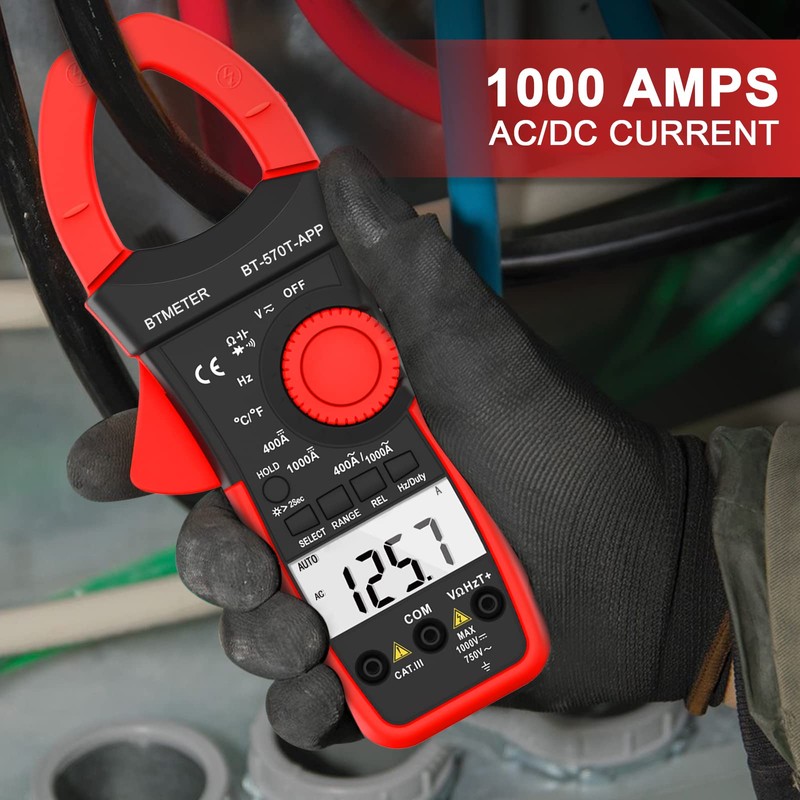

- DC & AC Current: 400A/1000A ±(2.5%/ 3.0% +10 digits)
- AC Voltage:4V/40V/400V/750V ±(1%~1.5% +3 digits)
- DC Voltage: 400mV/4V/40V//400V/1000V ±( 0.5%~ 0.8% + 2 digits)
- Resistance: 400Ω/4 kΩ/40 KΩ/400 KΩ/4 MΩ/40 MΩ
- Capacitance: 4nF/40nF/400nF/4uF/40uF/200uF
- Frequency: 9.999Hz~9.999mHz

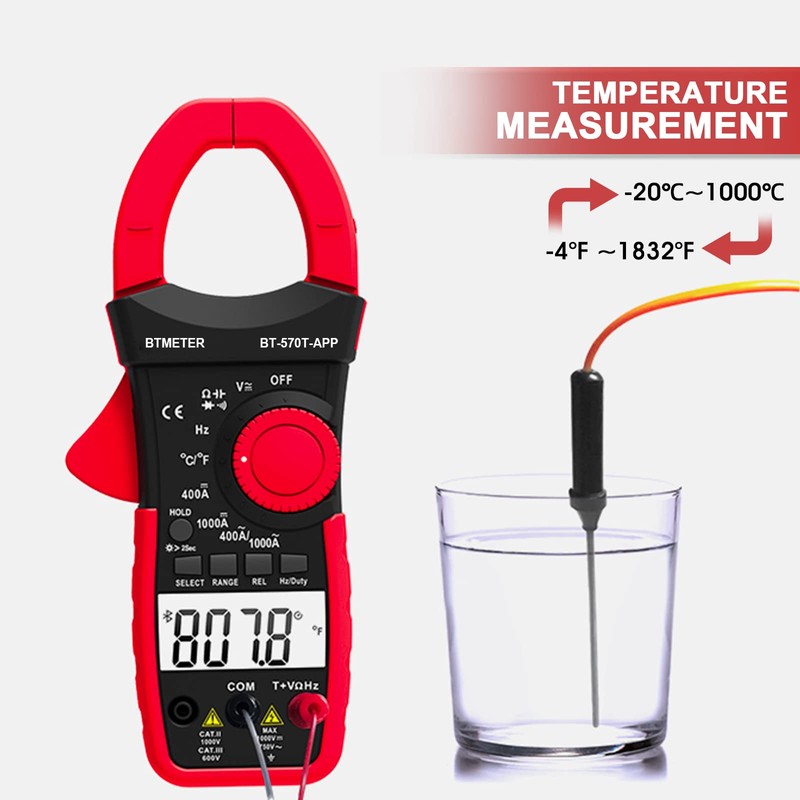

- LiquidTemperature Test: -20 °C to 1000 °C (-4 °F to 1832 °F),thermocouple included.

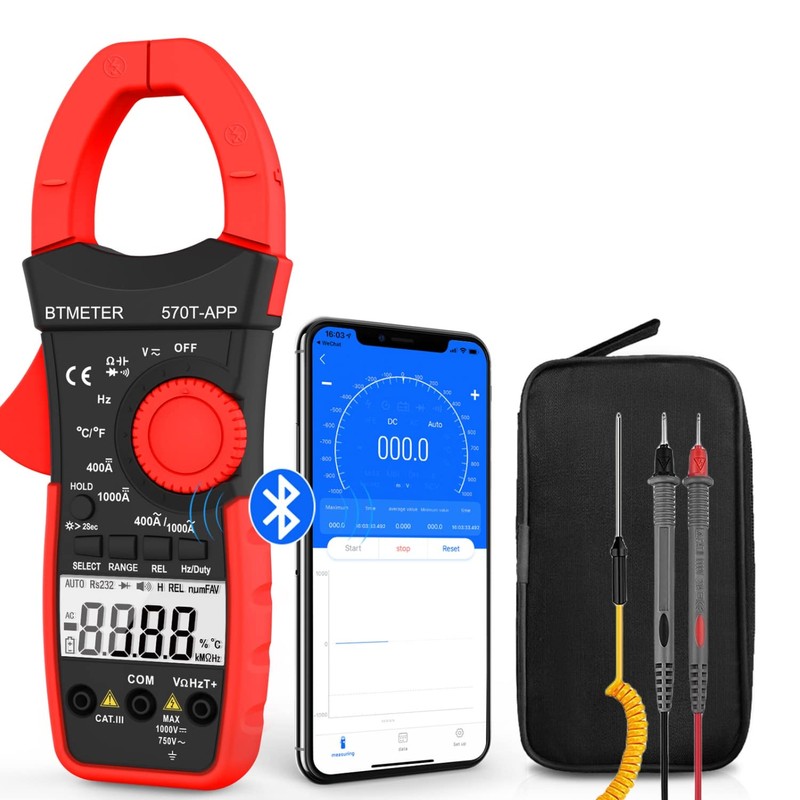

What's in the box:
- BT-570T-APP AC DC Clamp-on Meter
- (1 pair) test leads
- 1pcs temperature thermocouple
- 1pcs multimeter carrying case
