BTF-LIGHTING WS2815 Upgraded WS2812B Individually Addressable 16.4ft 150Pixels/LEDs RGB LED Flexible Strip Light 5050 SMD Programmable Magic Dream Color Dual Signal IP65 Waterproof DC12V Black PCB
$83.64
- $9.99 shipping from United Kingdom View details
-
Arrives

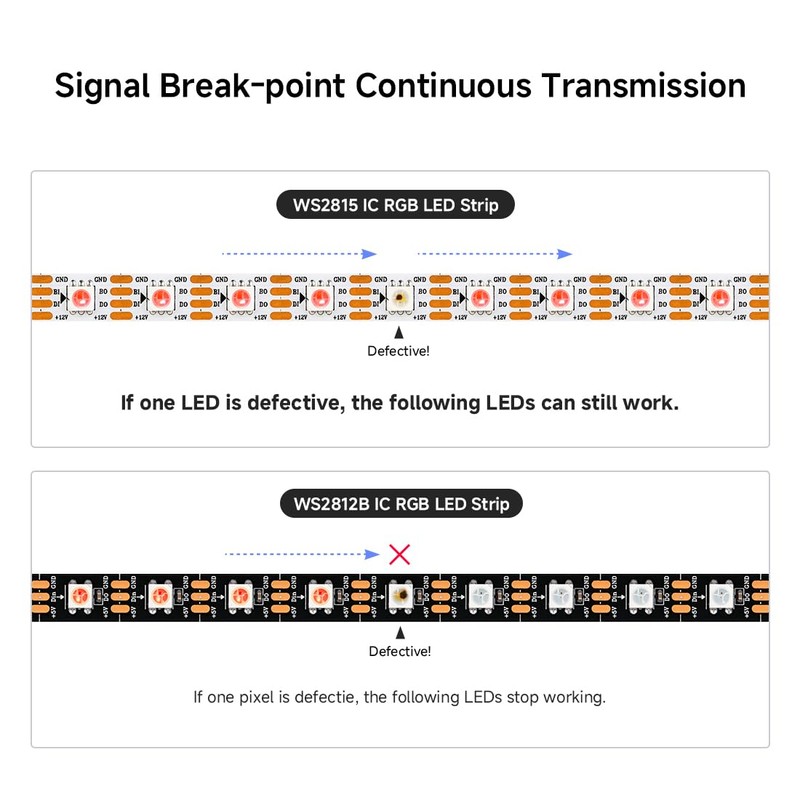

- Dual-Signal. Signal break-point continuous transmission. If one pixel is damaged, the following LEDs still work.WS2815 IC Built-in 5050SMD.256 brightness display and 24-bit color display. One IC controls one LED. Every LED can be cut. The static effect, Chasing effect, special effect, etc .256 brightness display, and 24-bit color display. Gold Wires better quality.Longer life, more stable quality.
- DC12V is Individually addressable. DC5V WS2812 Upgrade, Comes with backup data. Maximum white brightness, 16.4ft no voltage drops.Ultra-bright. 256 gray levels, 24 bits full-color display. Only support 12V power supply. Do not try the DC5V DC24V power supply. Recommend power supply: DC12V4A(48W).

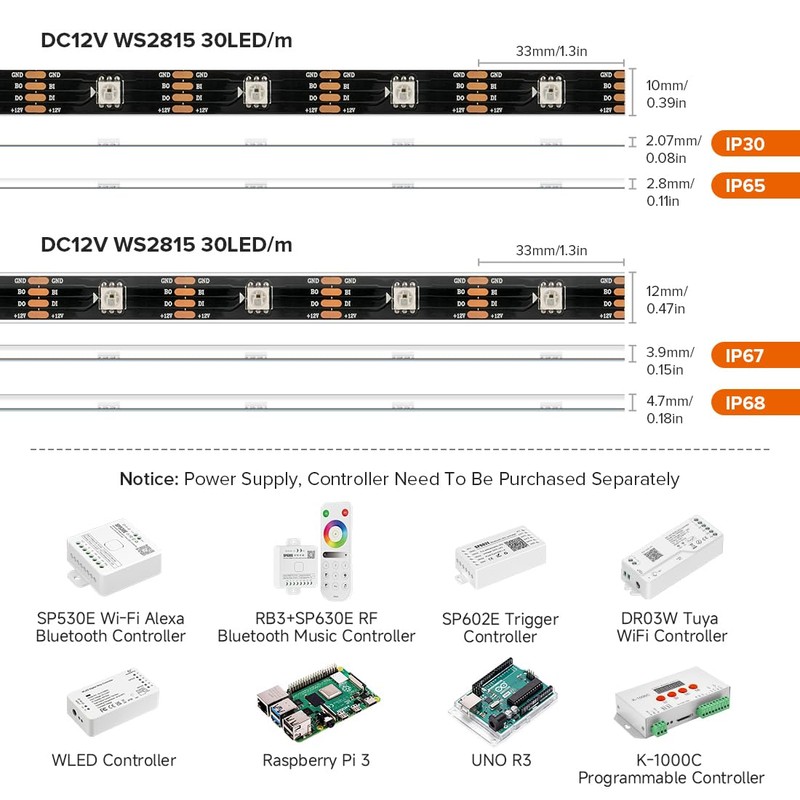

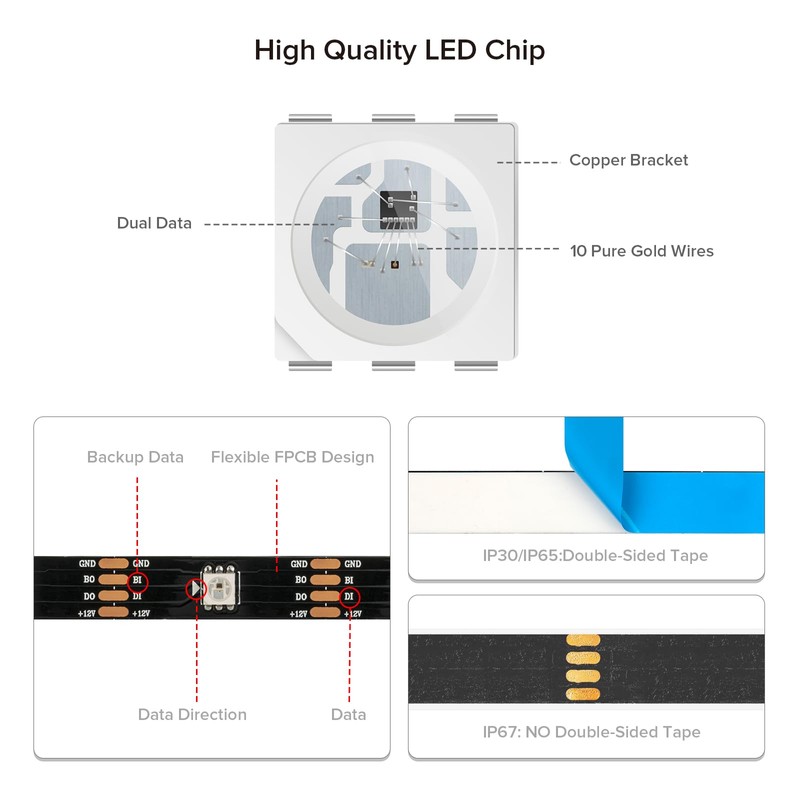

- High-LED Quality is made by a copper bracket and 10 gold wires. Wide compatibility. It works with CSY08, SP108E,SP105E,SP107E, K-1000C,Intelligent speech control etc .Match use controller can appear colorful curtain-up/ flow water/raindrop/jump flash and so on hundreds of lighting effect, you can also edit animation effect by Coreldraw/Flash/LedEdit software. The power adapter and controller need to be purchased separately.
- Easy installation. IP67 has no double side tape on its back. It comes with screws and clips instead of self-adhesive back tape. With a 4-pin male connector and separated power/ground wires on both ends, which makes it is easy to hook up each other and wire for power. There is adhesive tape on IP30/IP65 LED strip's back, so you can stick it to the wall or other items conveniently as you like.
- LED color change strip lights are widely used anywhere you want, you can decorate your TV, dining room, bedroom, cars, birthday party, and any more, which can enrich your life and make your life colorful. If you have any issues, please contact us without hesitation.
- 【New version】 Please note: This new version of the WS2815 LED Light Strip cannot be used with the old version of the WS2815 light strip.
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- Dual-Signal. Signal break-point continuous transmission. If one pixel is damaged, the following LEDs still work.WS2815 IC Built-in 5050SMD.256 brightness display and 24-bit color display. One IC controls one LED. Every LED can be cut. The static effect, Chasing effect, special effect, etc .256 brightness display, and 24-bit color display. Gold Wires better quality.Longer life, more stable quality.
- DC12V is Individually addressable. DC5V WS2812 Upgrade, Comes with backup data. Maximum white brightness, 16.4ft no voltage drops.Ultra-bright. 256 gray levels, 24 bits full-color display. Only support 12V power supply. Do not try the DC5V DC24V power supply. Recommend power supply: DC12V4A(48W).
- High-LED Quality is made by a copper bracket and 10 gold wires. Wide compatibility. It works with CSY08, SP108E,SP105E,SP107E, K-1000C,Intelligent speech control etc .Match use controller can appear colorful curtain-up/ flow water/raindrop/jump flash and so on hundreds of lighting effect, you can also edit animation effect by Coreldraw/Flash/LedEdit software. The power adapter and controller need to be purchased separately.
- Easy installation. IP67 has no double side tape on its back. It comes with screws and clips instead of self-adhesive back tape. With a 4-pin male connector and separated power/ground wires on both ends, which makes it is easy to hook up each other and wire for power. There is adhesive tape on IP30/IP65 LED strip's back, so you can stick it to the wall or other items conveniently as you like.
- LED color change strip lights are widely used anywhere you want, you can decorate your TV, dining room, bedroom, cars, birthday party, and any more, which can enrich your life and make your life colorful. If you have any issues, please contact us without hesitation.
- 【New version】 Please note: This new version of the WS2815 LED Light Strip cannot be used with the old version of the WS2815 light strip.
●Light source: 5050 RGB LED
●Led Qty: 144pcs per meter
●Wave length (NM): R,650nm ; G,520nm ; B,460nm
●Color order : G R B（NOT RGB
●The gray level: 256
●Color: full color (24-bit )
●View angle: 120°
●Voltage: DC 12V
●Power: 9W/M total 45W
●Waterproof:IP65Waterproof
●Recommend Power supply: 12V4A
●FPCB board color: Black
●Dimension: 1000*12*4mm
●Life span: ≥50000hrs
Pin Function
●12V: Power Voltage, connect to “+12V”
●DO: Control data signal output
●DI: Control data signal input
●BO: Backup control data signal output
●BI: Backup control data signal input
●GND: Data &Power Grounding
Technical Features
● The control circuit and RGB chip are integrated in a 5050 components, to form an external control pixel.
● The control circuit and the LED share the only power source.
● Using the built-in signal reshaping circuit to achieve the signal waveform shaping, and no distortion of waveform of signal takes place.
● Built-in power-on reset and brown-out reset circuits.
● Port scanning frequency reaches to 2KHz/s.
● Serial cascade interface. Data receiving and decoding depend on just one signal line.
● Dual-signal wires version, signal break-point continuous transmission.
● If the transmission distance between any two points is less than 3m, another circuit is not needed.
● When the refresh rate is 30fps, cascade numbers are far more than 1024 points.
● Data transmitting speed is up to 800Kbps.

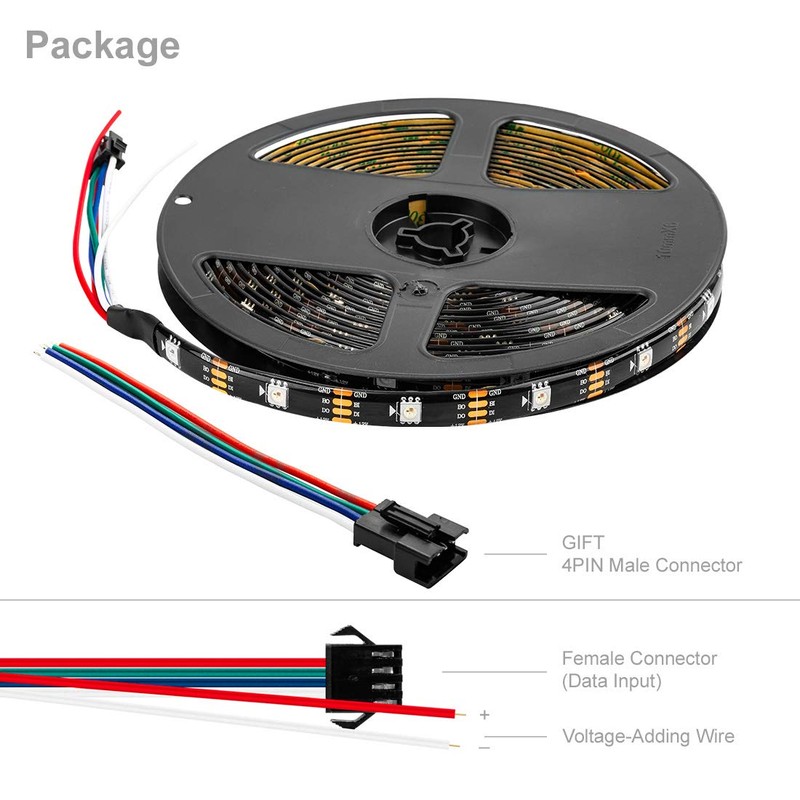

Package
●1x 3.2ft 144 pixels WS2815 led strip
●1x 4pin male connector
●Power supply and controller are not included
