BSIDE Portable Digital Multimeter 20000 Word mV Voltmeter Rechargeable 3.2'' TFT Screen Compact Multimeter with Recording Mode Measure Resistance Capacitance Diode Max Min Ave Calculation
$141.56
- $5.95 shipping from United States View details
-
Arrives
- Record Mode: S500 multimeter can plot the measured value ripple over time and observe the voltage/current/Resistance/Capacitance fluctuation over time. Sampling interval is adjustable, each voltage mode can record 5 groups of data respectively, each group can record 10000 data at most.
- 20,000 Word Multimeter: Digital multimeter features a high precision four and a half digit with spike mode. Flexible operation, can be used in a variety of measurement scenarios.
- Real-time Measurement: Photovoltaic multimeter can accurately measure AC and DC current/voltage resistance capacitance diode temperature and all support stopping or recalculating Max/Min/Ave values.
- 3.2-inch TFT ultra-clear color screen: Even in direct sunlight, you can clearly see the real-time readings, so that the field diagnosis becomes simple and clear. The screen is lockable and rotatable.
- 1200 mAh Li-ion Battery: Rechargeable Multimeter comes with a large 1200 mAh battery for long battery life. Never worry about the power depletion problem again.
- Lightweight and portable: the mini multimeter is lightweight and portable for scene use. Compared with traditional bulky multimeters, it is more convenient, lighter, and the data is more intuitive.
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- Record Mode: S500 multimeter can plot the measured value ripple over time and observe the voltage/current/Resistance/Capacitance fluctuation over time. Sampling interval is adjustable, each voltage mode can record 5 groups of data respectively, each group can record 10000 data at most.
- 20,000 Word Multimeter: Digital multimeter features a high precision four and a half digit with spike mode. Flexible operation, can be used in a variety of measurement scenarios.
- Real-time Measurement: Photovoltaic multimeter can accurately measure AC and DC current/voltage resistance capacitance diode temperature and all support stopping or recalculating Max/Min/Ave values.
- 3.2-inch TFT ultra-clear color screen: Even in direct sunlight, you can clearly see the real-time readings, so that the field diagnosis becomes simple and clear. The screen is lockable and rotatable.
- 1200 mAh Li-ion Battery: Rechargeable Multimeter comes with a large 1200 mAh battery for long battery life. Never worry about the power depletion problem again.
- Lightweight and portable: the mini multimeter is lightweight and portable for scene use. Compared with traditional bulky multimeters, it is more convenient, lighter, and the data is more intuitive.

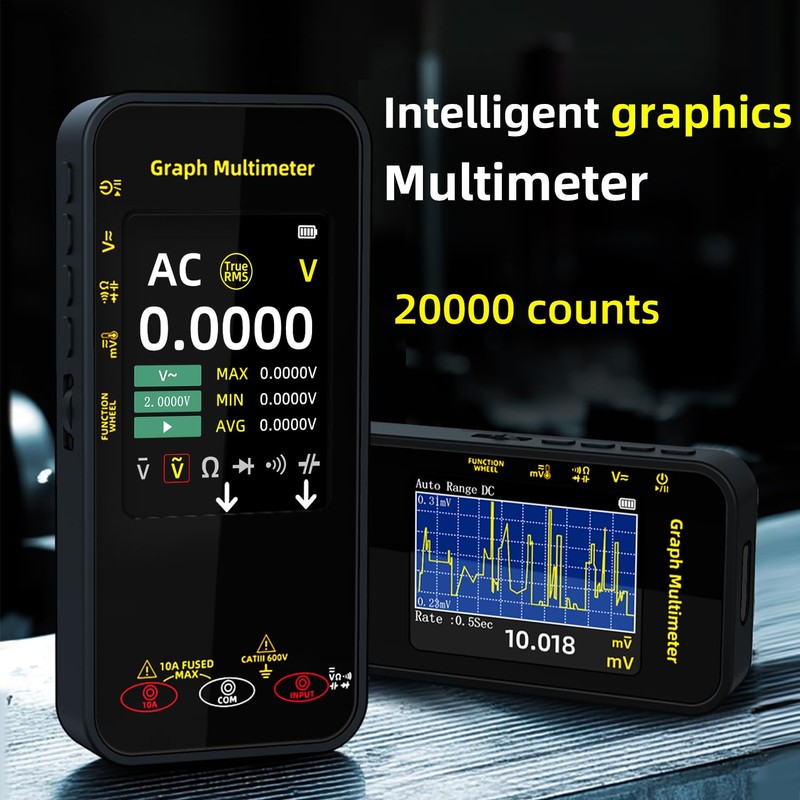

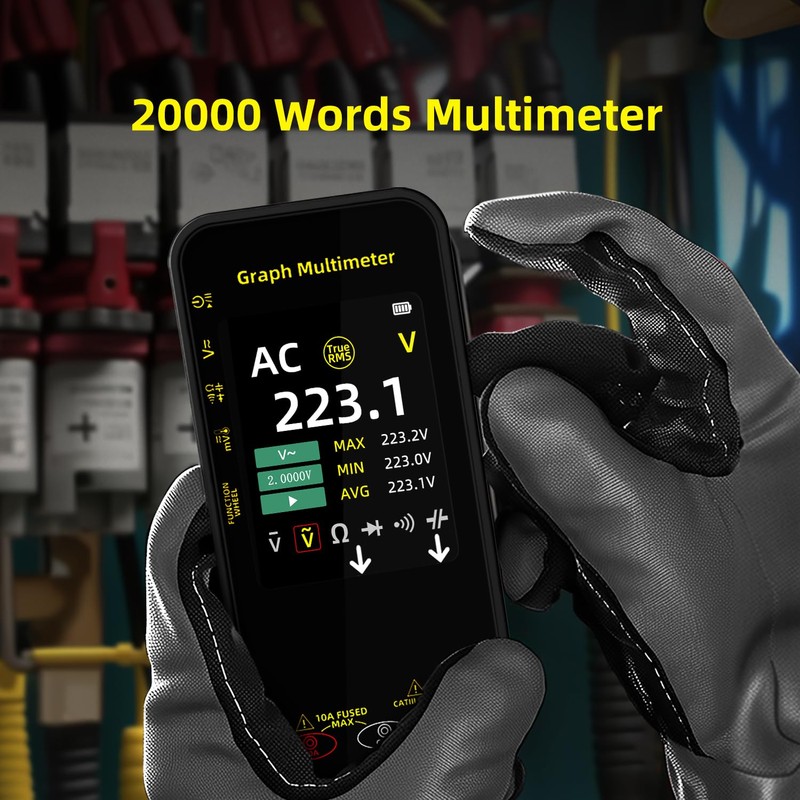

20,000 word photovoltaic portable multimeter

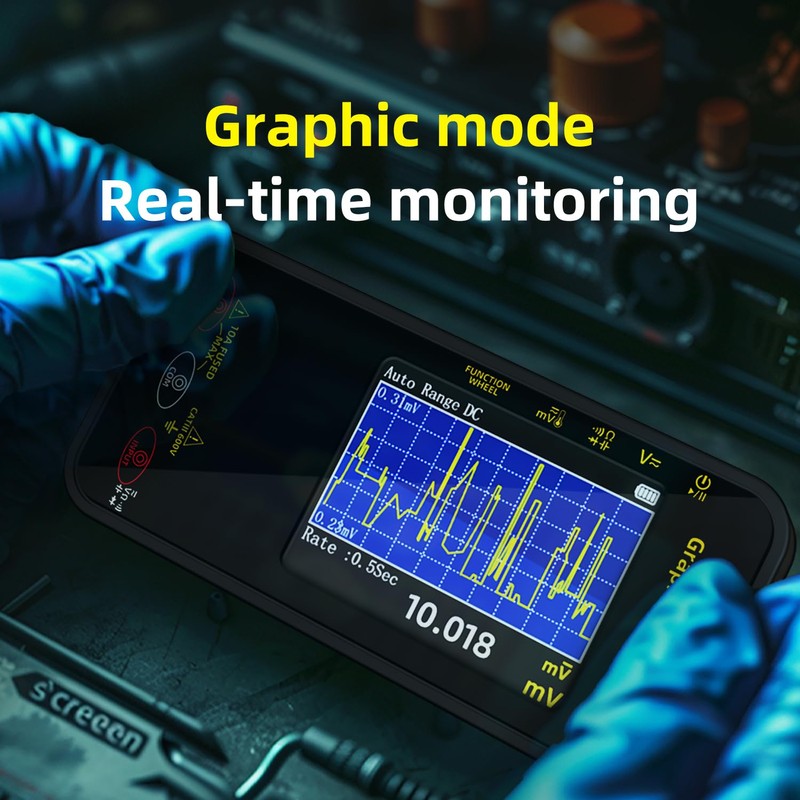

With recording mode (graphic mode) to plot ripple of voltage/current/resistance/capacitance values over time
Adjustable sampling intervals, data stored in memory, Voltage data can be viewed on a PC
DC/AC/mVDc/mVAC Each mode can record 5 groups of data respectively, and each group can record up to 10,000 data.

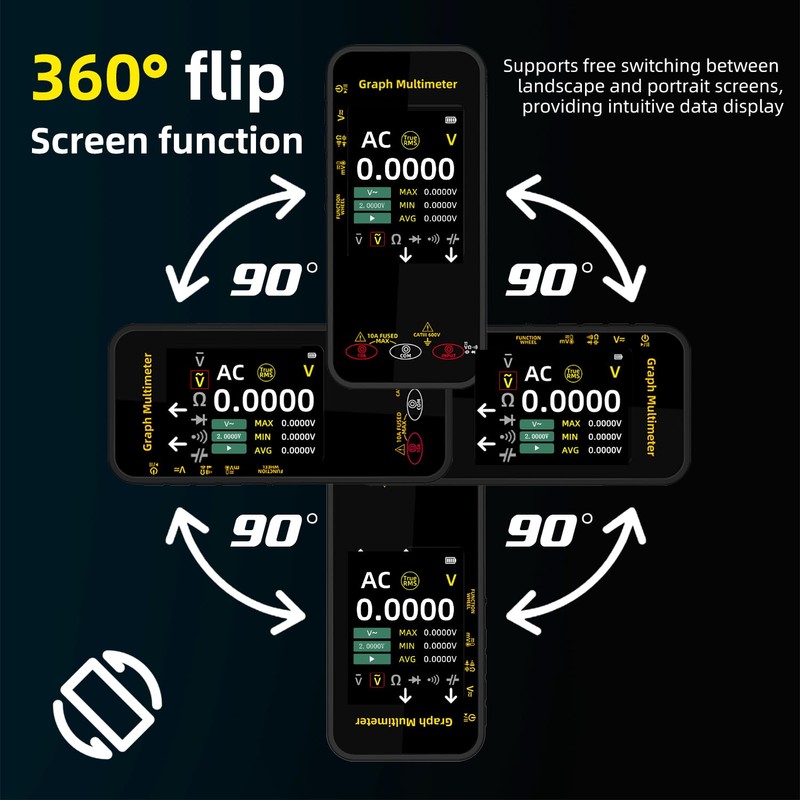

Multimeter screen can be rotated and locked
360° rotation in normal mode, 180° rotation in graphic mode
Individual pen holes for current gears, inserted into current gears, automatically distinguishing between AC and DC
High precision four and a half digits with spike mode

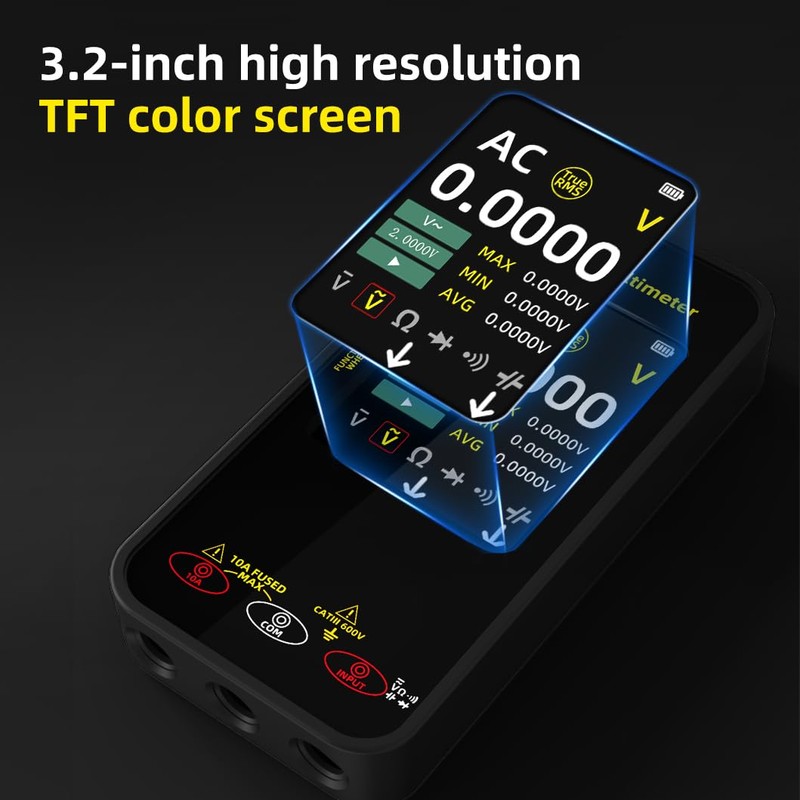

3.2 inch full view TFT color screen
AC voltage frequency response 40Hz~1KHz
Can measure peak voltage, AC and DC current/voltage, resistance, capacitance, diode, temperature and so on.
Can stop or recalculate the max/min/ave values
Statistical data, adjustable backlight brightness, low battery indicator, adjustable auto power off time, Chinese/English switching, ℃/℉ selectable, formatting
1200 mAh rechargeable lithium battery, long battery life.

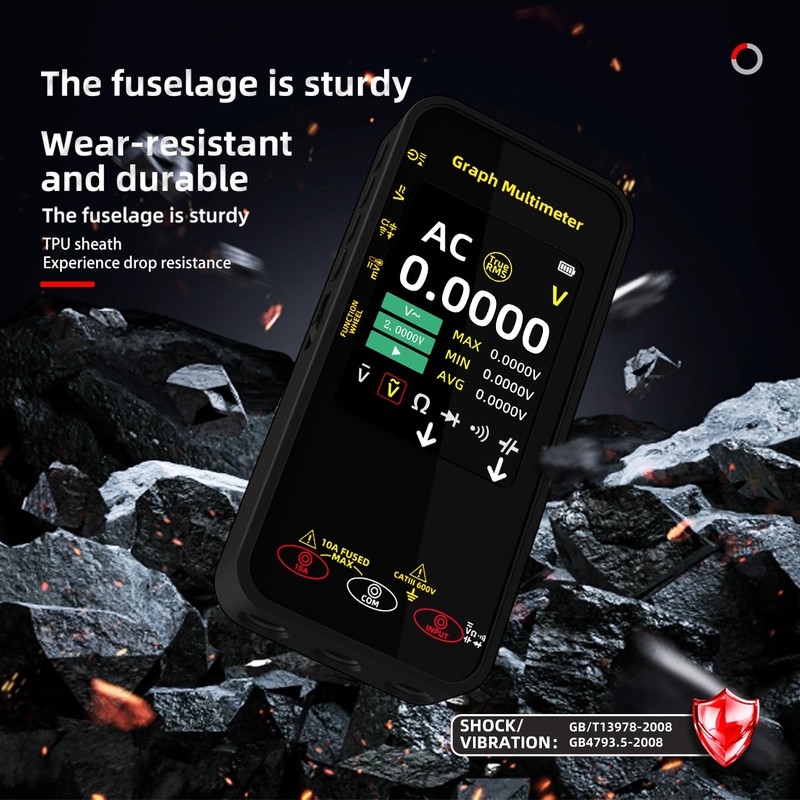

Silicone protection, shockproof and drop-resistant
With stand for easy placement
With 47-cell extra sharp silicone pen for better durability.
With EVA storage bag, easy to carry
Specification:
Display: 3.2 inch TFT color screen
Resolution: 320*240 pixels
DC Current(A):
2.0000A/0.0001A ±(0.8%+3)
10.000A/0.001A ±(0.8%+3)
AC Current(A):
2.0000A/0.0001A ±(0.8%+3)
10.000A/0.001A ±(0.8%+3)
DC Voltage(V):
2.0000V/0.0001V ±(0.1%+3)
20.000V/0.001V ±(0.1%+3)
200.00V/0.01V ±(0.5%+3)
1000V/0.1V ±(0.5%+3)
DC Voltage (mV):
20.000mV/0.001mV ±(0.1%+3)
200.00mV/0.01mV ±(0.1%+3)
AC Voltage (V):
2.0000V/0.0001V ±(0.5%+3)
20.000V/0.001V ±(0.5%+3)
200.00V/0.01V ±(0.5%+3)
750V/0.1V ±(0.5%+3)
AC Voltage (mV):
20.000mV/0.001mV ±(0.5%+3)
200.00mV/0.01mV ±(0.5%+3)
Resistance:
200.00Ω/0.01Ω ±(0.5%+3)
2.0000kΩ/0.0001kΩ ±(0.2%+3)
20.000kΩ/0.001kΩ ±(0.2%+3)
200.00kΩ/0.01kΩ ±(0.2%+3)
2.0000MΩ/0.0001MΩ ±(1.0%+3)
20.000MΩ/0.001MΩ ±(1.0%+3)
200.00M/ 0.01MΩ ±(5.0%+5)
Capacitance:
999.99nF/0.01nF ±(5.0%+20)
9.999μF/0.001μF ±(2.0%+5)
999.99μF/0.01μF ±(2.0%+5)
99.999mF/0.001mF ±(5.0%+10)
Temperature:
(-20~1300)°C/1°C ±(2.0%+5)
(-4~2372)℉/1℉ ±(2.0%+5)
Diode : Yes
continuity : Yes
Dimension: 143.02*66.62*21.16mm
Weight: 159.5g

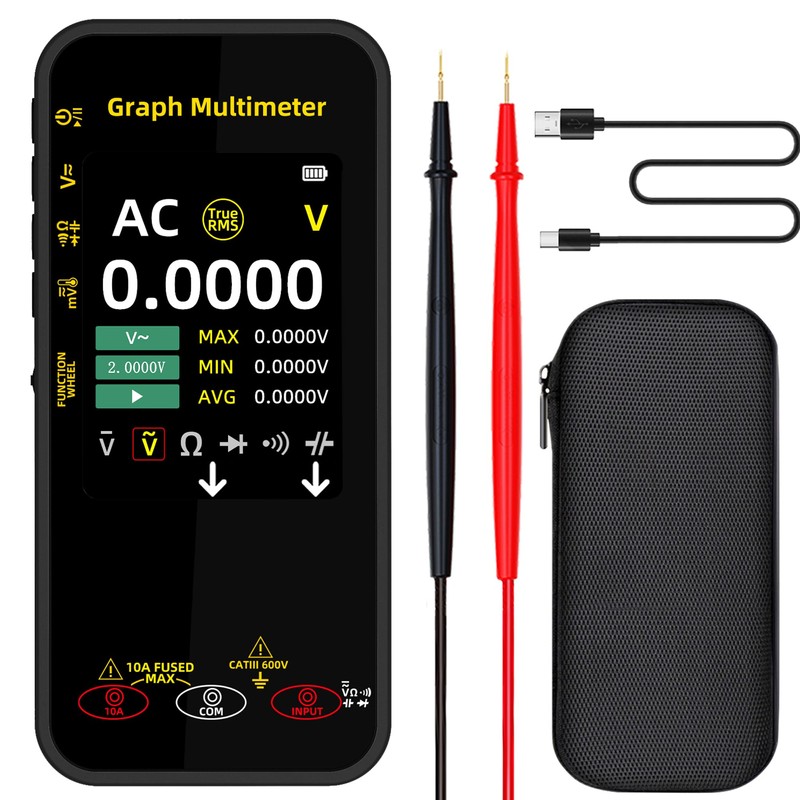

Package content:
S500 Multimeter
47-core extra-tip meter pen
EVA bag
Charging cable
Instruction manual
