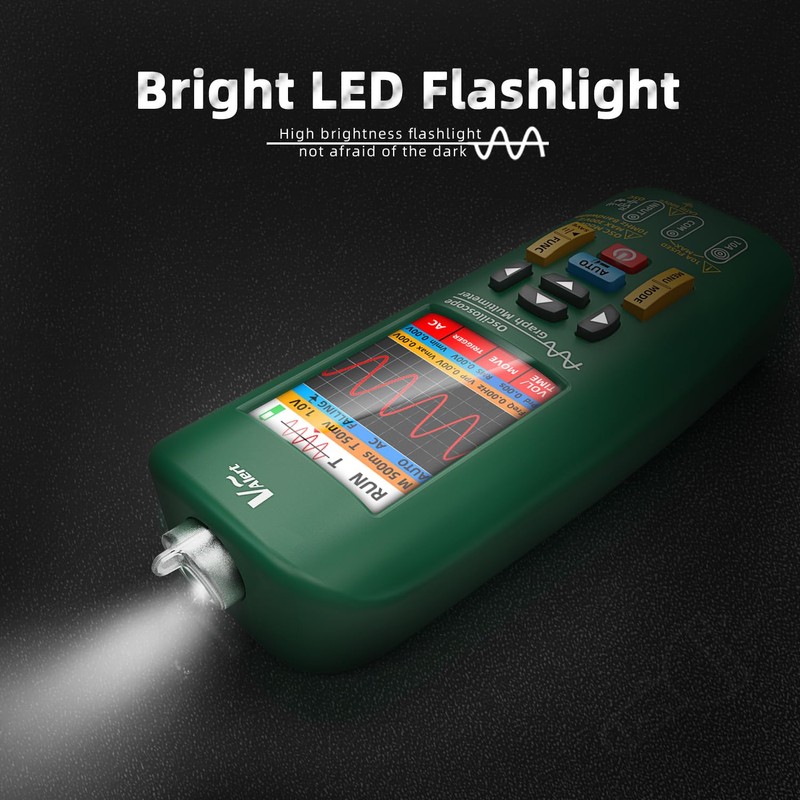

BSIDE O1 Digital Multimeter with Oscilloscope Signal Generator 4 Results Colour Display TRMS Handheld Oscilloscope 10 MHz Data Transfer Car Calibration Voltage Current Meter for DIY Audio Automotive
$144.37
-
Arrives
- [Multimeter True RMS]: BSIDE's latest high-precision and universal graphical multimeter, switches to multimeter mode by default when switched on. It measures AC DC voltage/current, millivolts, milliamps, resistance, diode, continuity, capacitance, and can also be a contactless voltage tester. One button guides you into oscilloscope mode.

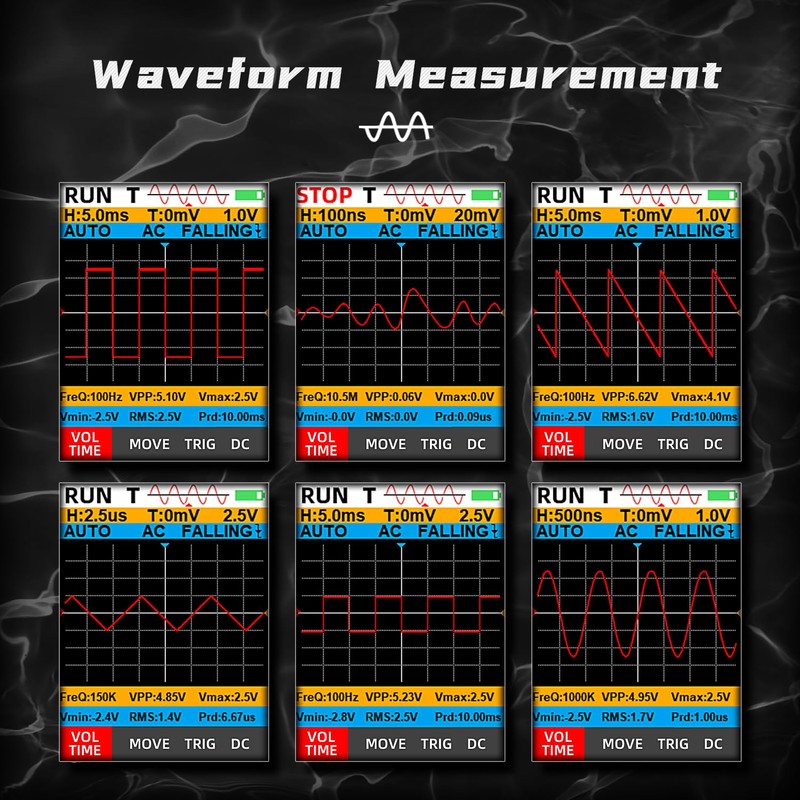

- [Oscilloscope Easy to Use]: With a single click on AUTO the digital oscilloscope automatically detects the waveform type and adjusts its amplitude and time base to allow accurate graphic display. The bandwidth is 10 MHz and the trigger mode is adjustable (auto, manual and normal). It can capture a single signal or automatically signals in real time, as well as display a specific range of waveforms, AC or DC pairing.
- [General purpose test leads]: Since the conventional BNC connector and the probe of the oscilloscope are omitted, all tests can be carried out with the included high-quality test leads. In combination with the portable design, the operation of this oziloscope multi-meter becomes easier and more convenient.

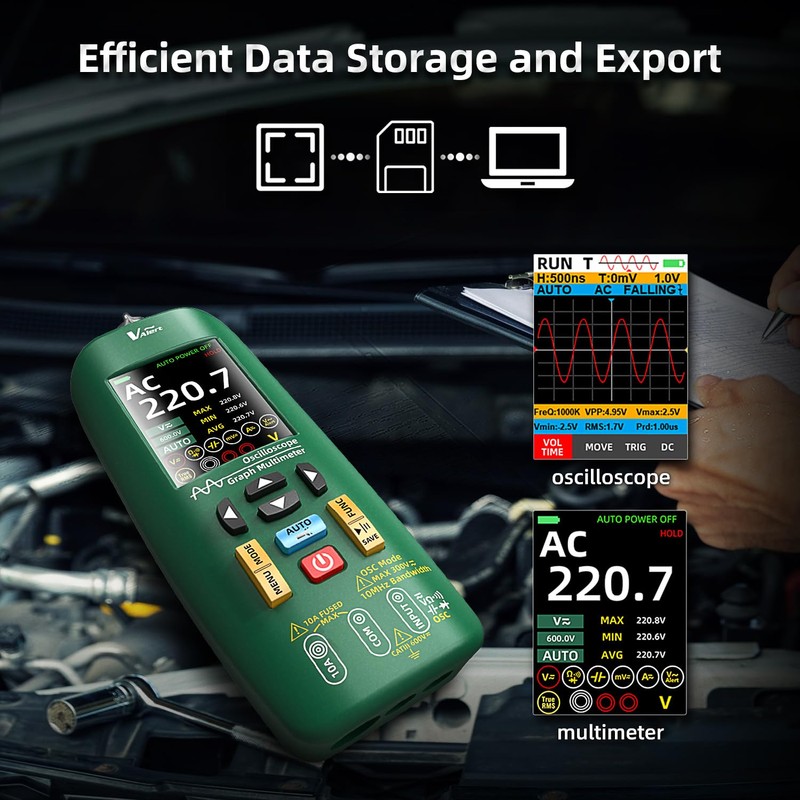

- [Data Storage and Transfer]: This portable oscilloscope multimeter can take screen photos at any time. The images are automatically saved and can be transferred to the PC for analysis and viewing, e.g. Frequency, VPP, Max/Min, Averages and RMS values, periods, etc.
- More advantages: the voltmeter amperemeter has a colour screen with intuitive and easy to read values. The backlight and power saving mode can be adjusted. With the built-in 2000mAh battery and brilliant flashlight, long working hours and wiring in the dark are no longer a problem. In addition, the built-in fuse can be replaced. It is an ideal tool for electrical engineers, electronics technicians and DIY enthusiasts.
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- [Multimeter True RMS]: BSIDE's latest high-precision and universal graphical multimeter, switches to multimeter mode by default when switched on. It measures AC DC voltage/current, millivolts, milliamps, resistance, diode, continuity, capacitance, and can also be a contactless voltage tester. One button guides you into oscilloscope mode.
- [Oscilloscope Easy to Use]: With a single click on AUTO the digital oscilloscope automatically detects the waveform type and adjusts its amplitude and time base to allow accurate graphic display. The bandwidth is 10 MHz and the trigger mode is adjustable (auto, manual and normal). It can capture a single signal or automatically signals in real time, as well as display a specific range of waveforms, AC or DC pairing.
- [General purpose test leads]: Since the conventional BNC connector and the probe of the oscilloscope are omitted, all tests can be carried out with the included high-quality test leads. In combination with the portable design, the operation of this oziloscope multi-meter becomes easier and more convenient.
- [Data Storage and Transfer]: This portable oscilloscope multimeter can take screen photos at any time. The images are automatically saved and can be transferred to the PC for analysis and viewing, e.g. Frequency, VPP, Max/Min, Averages and RMS values, periods, etc.
- More advantages: the voltmeter amperemeter has a colour screen with intuitive and easy to read values. The backlight and power saving mode can be adjusted. With the built-in 2000mAh battery and brilliant flashlight, long working hours and wiring in the dark are no longer a problem. In addition, the built-in fuse can be replaced. It is an ideal tool for electrical engineers, electronics technicians and DIY enthusiasts.

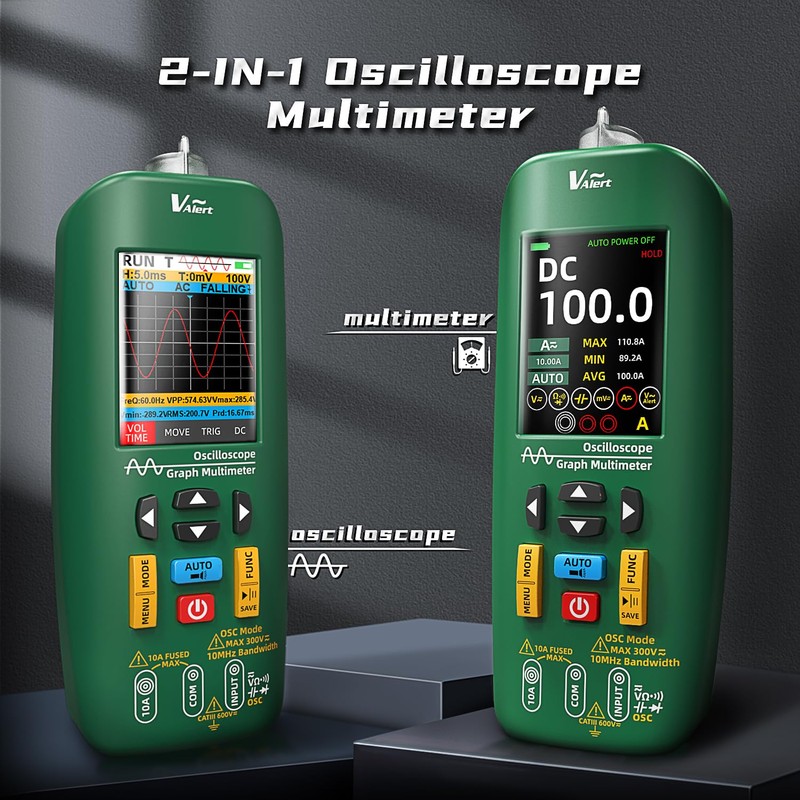

Multimeter oscilloscope waveform generator 3 in 1
Switch between multimeter and oscilloscope via one button.
48MSa/s real-time smaple rate, convenient auto adjustment
All-in-one test leads for multimeter and oscilloscope functions
Fast, stable display and responsiveness, e.g. B. Instant response during continuity tests.
Colour display shows the ports you need to insert the test leads into.
The firmware version can be upgraded afterwards. Just contact us
Replacement fuse type: 250 V/10 A, 5 x 20 mm.
Applications:

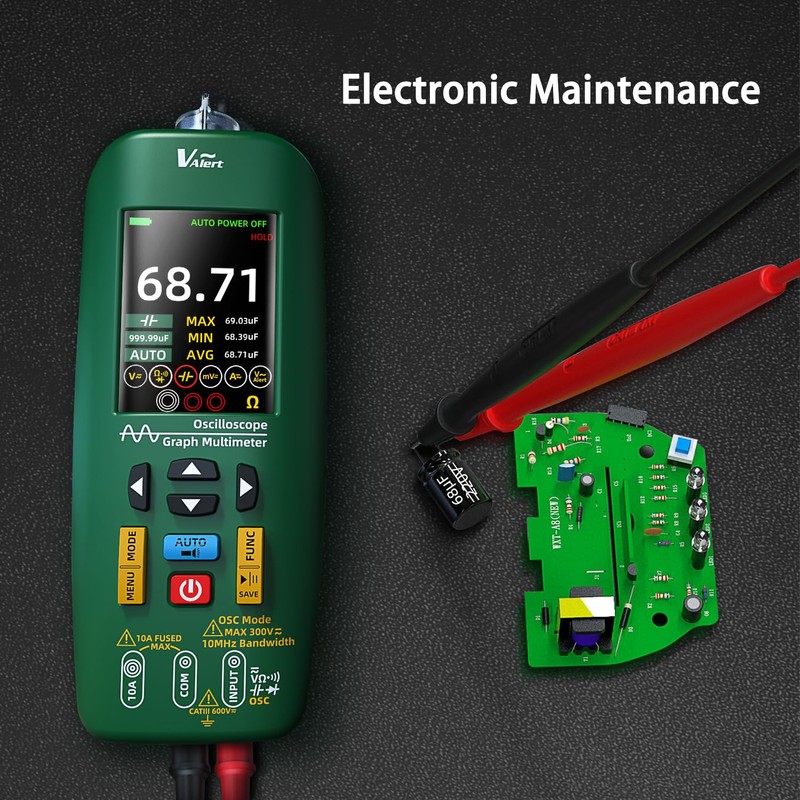

1. General overhaul of electrical devices (air conditioning, power supply, AC/DC switch, elevator, etc.).
2. Hardware/software debugging (RS232, RS485, I2C, CAN communication circuits, scanning drive circuits, brushless motor circuits, etc.).

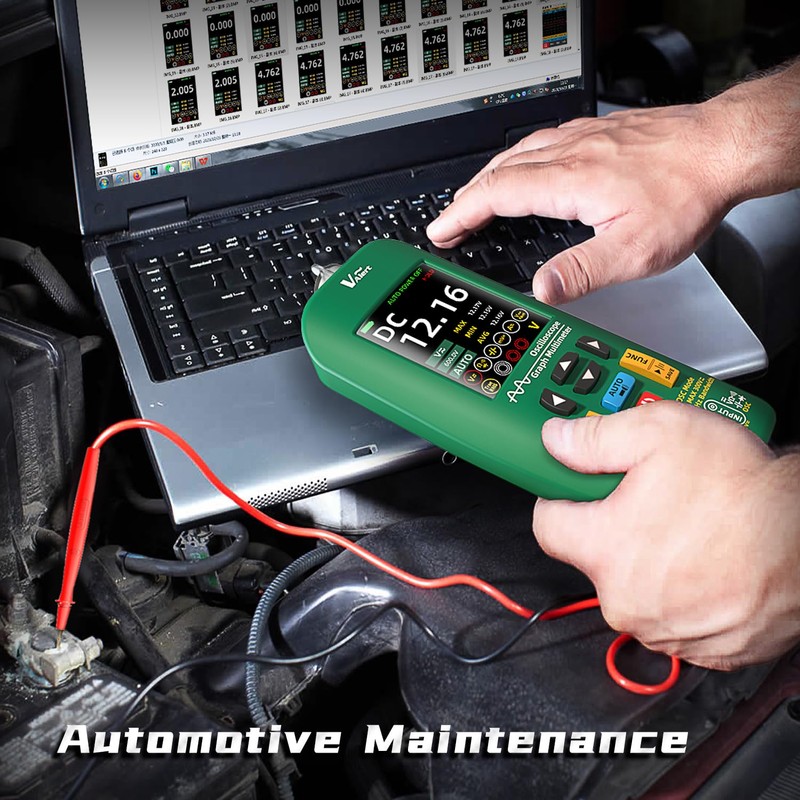

3. Overhaul of audio devices, remote control models, circuits in cars.
4. Observation of slow signal changes, e.g. Relays and switching contacts, charging and discharging batteries.
5. Power supply (power factor compensation, circuits for street lights, etc.).
Specifications:
Display: 6000 characters
Screen: 2.8 inch TFT colour.
Bandwidths: 10 MHz.
Real-time smaple rate: 48MSa/s
Horizontal time base scale: 100ns/div-20s/div
Vertical voltage scale: 20mV/div-100V/div
DC voltage: 0-600V 0.01mV ±(1%+5)
AC voltage: 0-600V 0.01mV ±(1.2%+5) True RMS.
DC current: 0-10A 0.001A ±(1.2%+3)
AC current: 0-10A 0.001A ±(1.2%+3) True RMS.
Max. Input voltage (OSC mode): 300V (DC + AC tip).
Resistors: 0Ω-60MΩ 0.1Ω ±(1.2%+5)
Capacity: 0-99.99mF 0.01nF ±(5.0%+10).
Diode: less than 3 V.

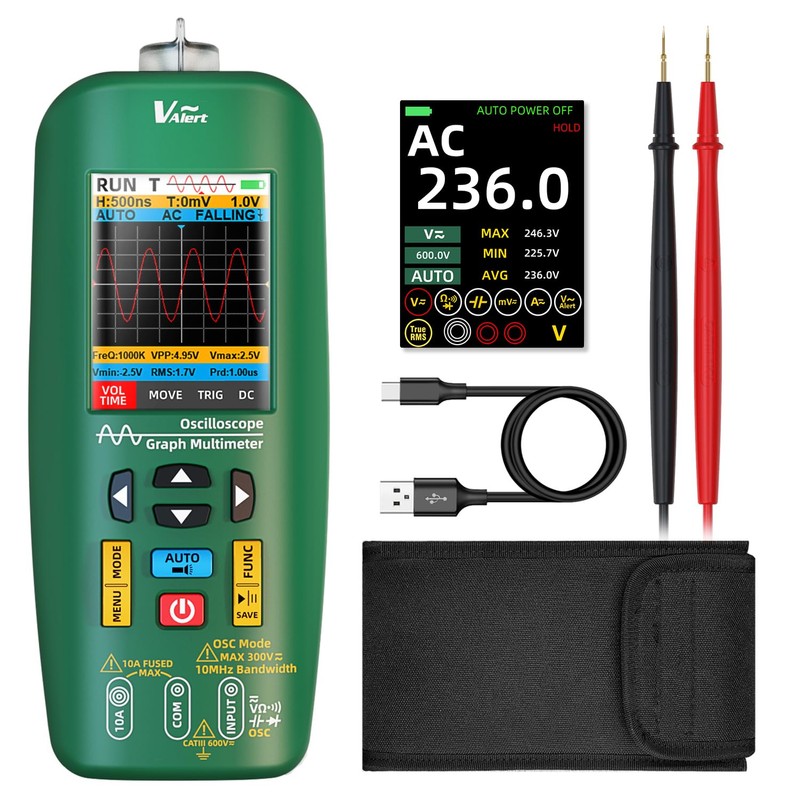

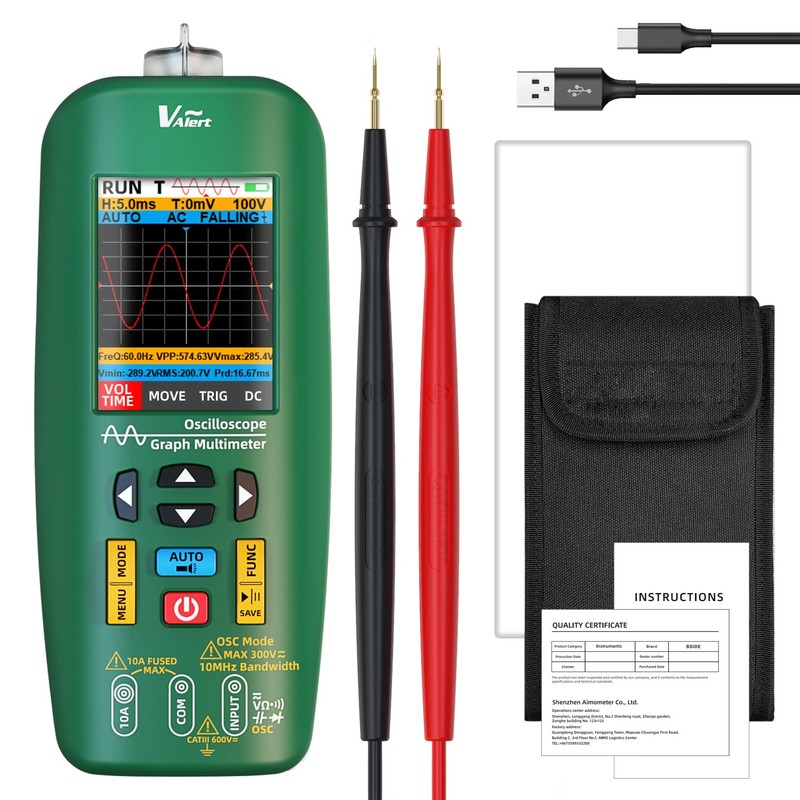

Package list:
Multimeter O1
Test leads
carry bag
Charging cable.
English user manual, German technical support
