Broan-NuTone 509 Through-the-Wall Ventilation Fan White Cover, 200 CFM, 8.5 Sones, 8"

Size Name: **8-Inch 180 CFM 6.5 Sones**

### Product Description

Make sure your home is comfortable with Broan-NuTone's Through-the-Wall Ventilation Fan! This ventilation fan does it all - from eliminating humidity or stubborn odors such as tobacco or garlic, the Through-the-Wall fan has got it covered. This unit is designed to fit walls from 4.5" - 9.5" thick and includes a built-in damper to minimize back drafts. It features a specially designed polymeric fan blade to always ensure the highest quality. It operates on 180 CFM with a 7.5 Sone rating and is powerful enough for 170 sq. ft. rooms (including bathrooms). The white grilles are paintable so it can be cohesive with your existing decor and wall color. Accessorize this unit with a wall switch or variable speed wall control. The 8" Broan-NuTone Through-the-Wall Ventilation Fan is perfect for your home.

### Amazon.com

Reduce humidity and odors in any room with this 8-inch through wall ventilation fan from Broan (model 509). It's ideal for eliminating cooking fumes from kitchens and humidity from laundry rooms as well as for use in workshops and rec rooms. The 509 requires wiring installation to a wall switch, and it features an efficient operation with a durable polymeric fan blade and permanently lubricated, thermally protected motor. It moves air at 180 cubic feet per minute (CFM), and it produces a 6.5-sone level of sound.

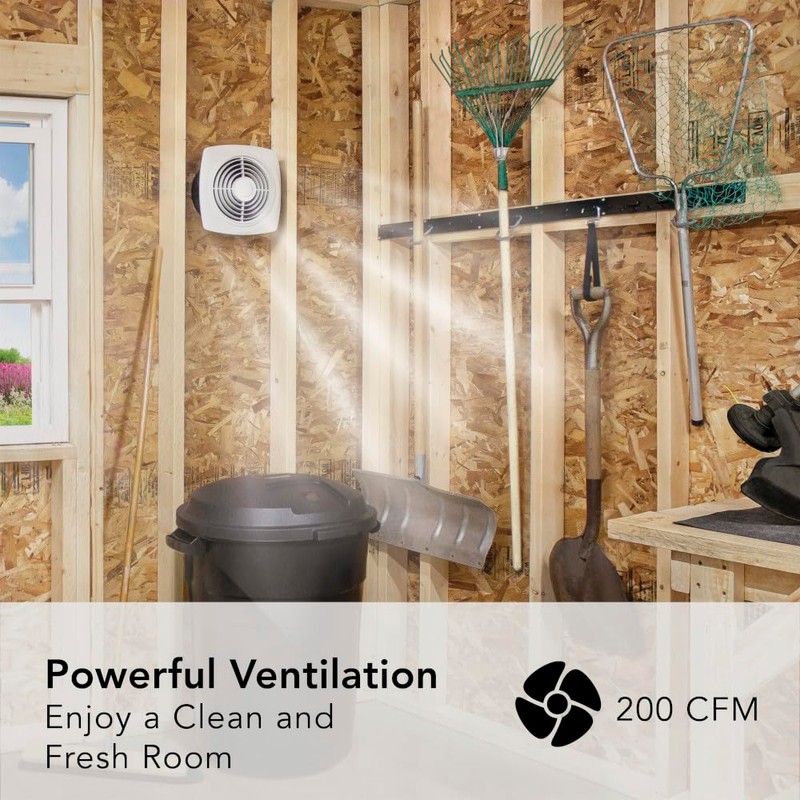

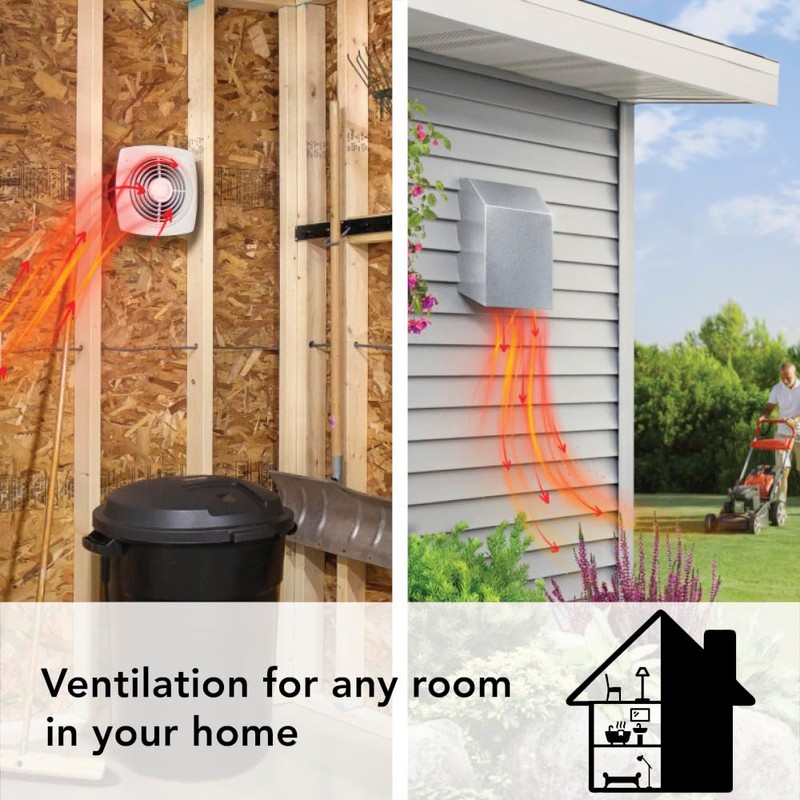

Great for use in laundry rooms, workshops, rec rooms, and kitchens (view larger).

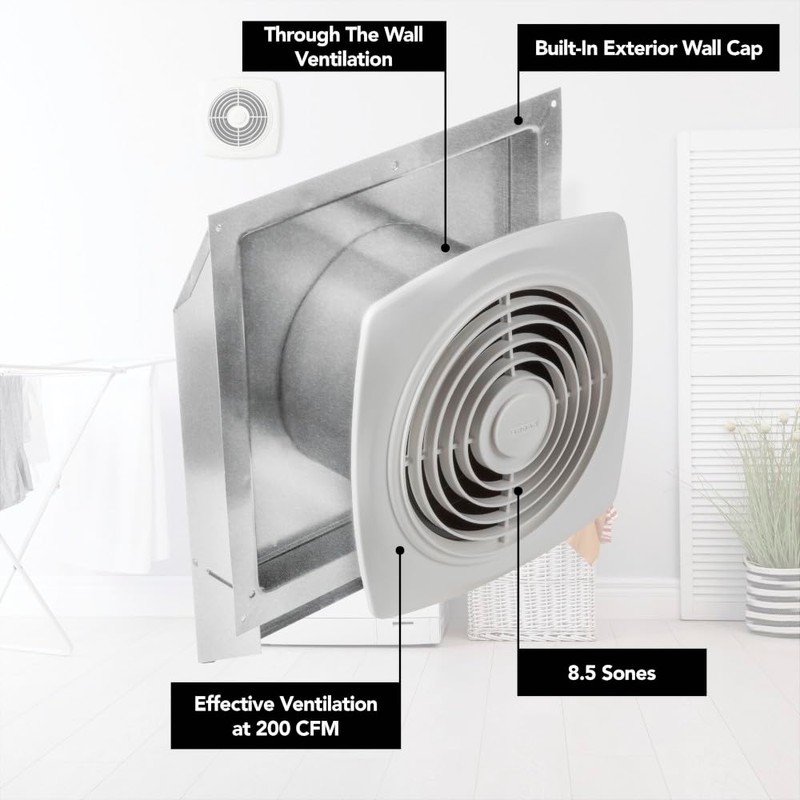

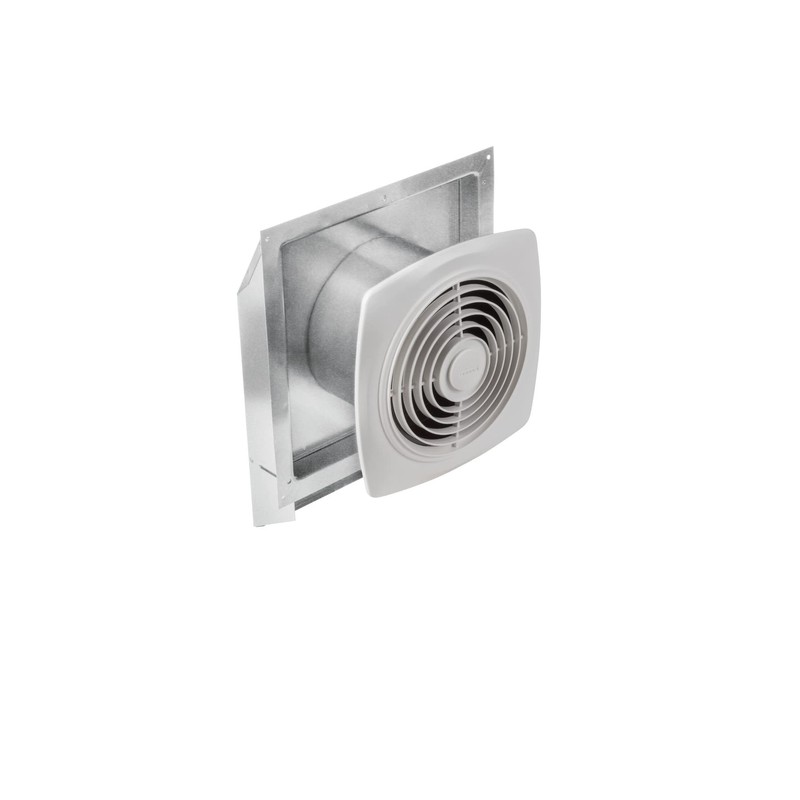

This fan has a white polymeric grille that can be painted to match your home decor, and its rugged steel housing also has an electrically-bonded epoxy paint finish that can be painted to match the outdoor style of your home. For use with 8-inch round ducts, the housing adjusts to fit walls from 4-1/2 to 9-1/2 inches thick, and it features a backdraft damper. An aluminum filter is sold separately.

#### Considerations When Choosing a Home Ventilation System

Homes are now built much more efficiently than they once were, making them far less costly to heat and air condition. That said, having proper ventilation throughout the home is now imperative in order to provide a safe and comfortable living environment. Broan ventilation fans provide the best solutions to ensure that contaminants are constantly removed from the indoors.

Eliminating excess moisture keeps your home dry and comfortable and can help avoid mold and mildew. Volatile organic compounds (VOCs) "outgas" from construction materials such as plywood, carpet, fabric, paint, adhesive, insulation, and other common items. Allergens, dust, cooking vapor, and what the kids bring home from school are more reasons why good ventilation is critical.

##### Sones measure the "sound level" of your fan

A sone is a measurement of sound in terms of comfortable hearing level for an average listener. The lower the sone value, the more comfortable the environment. Sones are not decibels or volume, but rather how sound is "sensed." One sone is half as loud as two sones, and is equivalent to a quiet refrigerator.

##### Calculate the air movement necessary for proper ventilation

Air movement is measured in cubic feet per minute (CFM). To determine CFM requirements, first determine the size of your room. Measure and multiply the length, width and ceiling height of your room to determine cubic footage. Then use the multiplication factor of .13 and round up to the next "ten." Here are three examples:

**Example 1:** Bathroom with 8' ceiling: 7' wide x 9' long x 8' high x .13 = 66. Select a bath fan with at least 70 CFM.

**Example 2:** Bathroom with 9' ceiling: 10' wide x 9' long x 9' high x .13 = 105. Select a bath fan with at least 110 CFM.

**Example 3:** For a bathroom with a vaulted ceiling, use the average ceiling height at the wall and the peak: 8' wide x 12' long x ((8' at wall + 12' at peak) / 2 = 10') average height x .13 = 125. Select a fan (or fans) with at least 130 CFM.

#### About Broan-NuTone

In 1932, Henry Broan developed and manufactured a kitchen fan called the Motordor Fan that provided quiet and efficient kitchen ventilation. Today, Broan-NuTone leads the industry with forward-thinking residential ventilation products, customized climate, communications and storage solutions and superior customer service. The Broan brand focuses on range hoods, ventilation fans, heater/fan/light combination units, Indoor Air Quality (IAQ) fresh air systems, built-in heaters, whole-house fans, attic ventilators and trash compactors, while the NuTone brand offers door chimes, central vacuum systems, stereo intercom systems, medicine cabinets, ironing centers, ceiling fans and ventilation fans.


#### 509 Through Wall Ventilation Fan

##### At a Glance

* Requires wiring installation to a wall switch * Permanently lubricated, thermally protected plug-in motor * Moves 180 cubic feet per minute (CFM) * Specially designed polymeric fan blade produces 6.5-sone noise level * Housing adjusts to fit walls from 4-1/2 to 9-1/2 inches thick * 8-3/8-inch diameter sleeve * White polymeric grille can be painted to match any decor * Built-in damper minimizes backdrafts * 1-year limited warranty

### From the Manufacturer

In the midst of the Great Depression, two aggressive young men emerged with two new products that would make major contributions to the housing industry. In 1932, Henry Broan developed and manufactured a kitchen fan called the Motordor Fan that provided quiet and efficient kitchen ventilation. His creation launched what is today known as Broan-NuTone LLC. Four years later, in 1936, J. Ralph Corbett developed a melodious door chime replacing the obnoxious door buzzer of the time. His development launched what is today known as NuTone, Inc. Both men, headquartered in the Midwest, started their companies with a simple product and a few employees. Each expanded their companies, creating revolutionary new products that provided unmatched conveniences for homeowners nationwide. Both companies quickly became global competitors and continued to provide innovative, superior products to meet the needs of consumers. In 1981, Broan Mfg. Co., Inc. was acquired by Nortek, Inc. and became the lead company of Nortek's Residential Building Products Group, which was named the Broan Group. During this same time period, NuTone was sold to Scovill Manufacturing in 1967 and was then acquired by Williams plc in 1991. In 1998, Nortek acquired NuTone, adding it to the Broan Group and renaming the group the Broan-NuTone Group. Then, in January 2000, Broan Mfg. Co., Inc. became Broan-NuTone LLC, with NuTone Inc., Aubrey Manufacturing, Inc. and Rangaire LP as subsidiaries. Today, Broan-NuTone LLC is headquartered in Hartford, Wis. and employs more than 3,200 people in eight countries on three continents. It is North America's largest producer of residential ventilation products such as range hoods, ventilation fans and indoor air quality products and also holds major market positions in chimes, central vacuums, intercom systems, medicine cabinets, built-in electric heaters, whole-house fans, attic ventilators, paddle fans, ironing centers, trash compactors and speakers.
