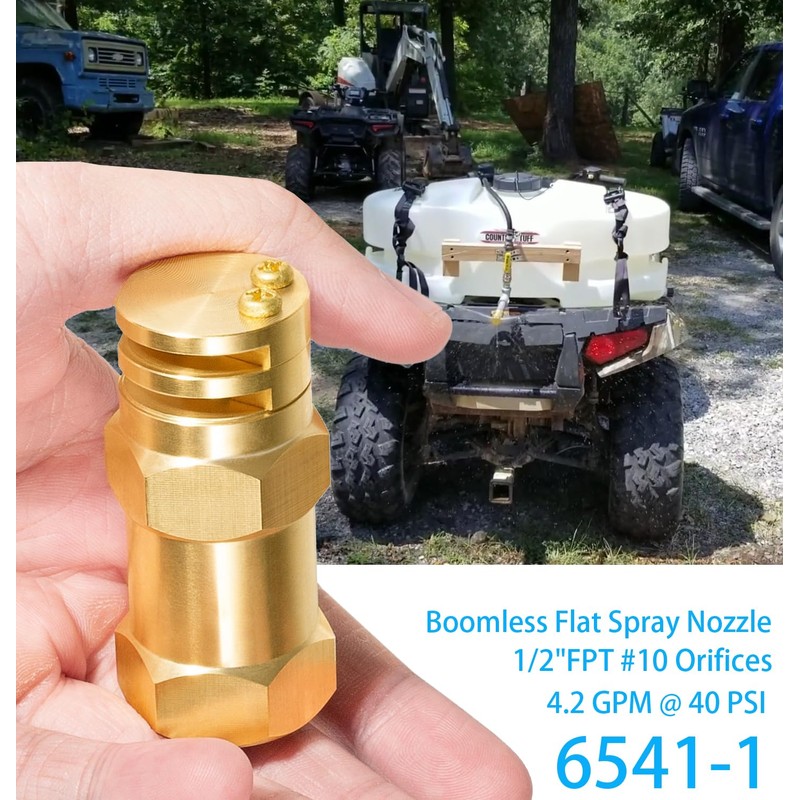

Boomless Spray Nozzle 1/2" FPT #10 Orifices (90° & 180° Caps Included) 4.2 GPM @ 40 PSI #6541-1, 6541 1, 6541-01, 654101, 65411 (4.2 GPM)
$120.32
- $5.99 shipping from United States View details
-
Arrives

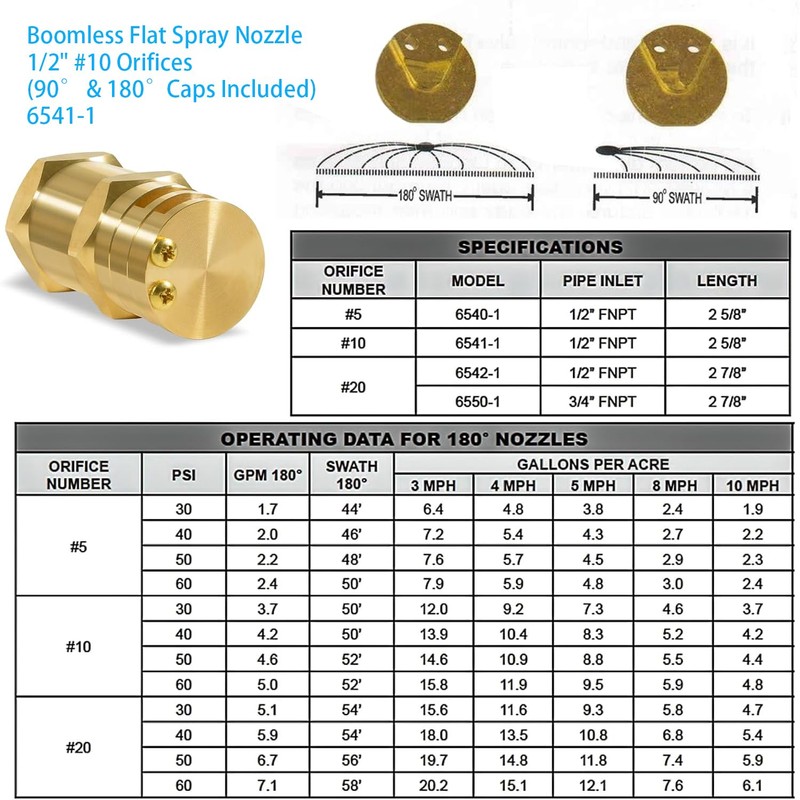

- Orifice Number: #10. Pipe Inlet: 1/2" FNPT. PSI: 40; GPM 180° : 4.2; Swath 180°: 50 ft. Model Number: 6541-1, 6541 1, 6541-01, 654101, 65411, 400-65411
- Spray Nozzle 1/2" FPT #10 Orifices can easily mounts to ATVs, 3PL, Field Sprayers, Linkage Sprayers, Utes sprayers to spread your spray further. Ideal for rough country spraying & locust control

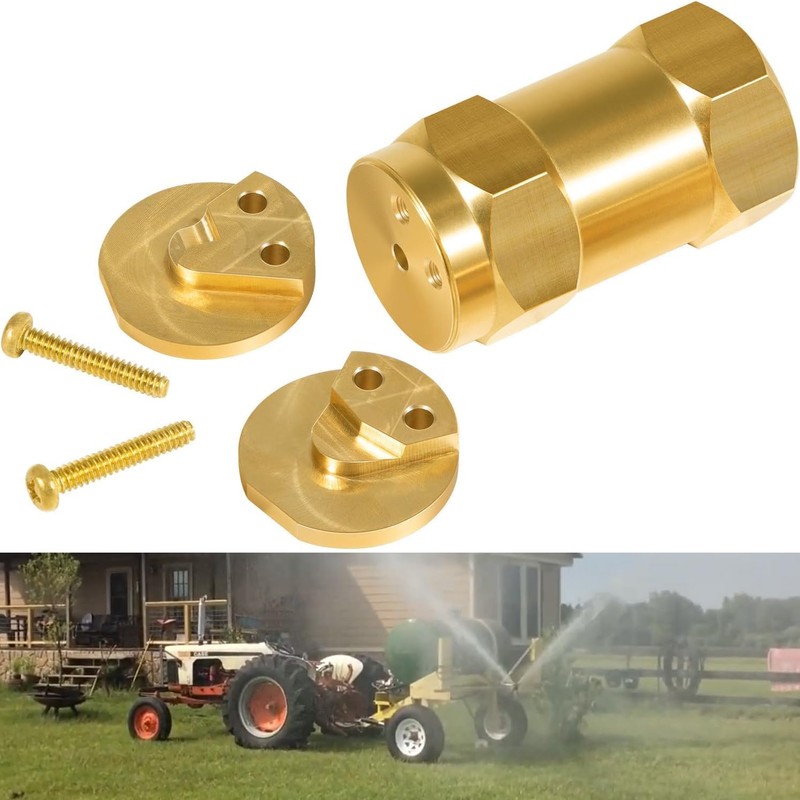

- Each nozzle included with a full spray Cap and a half spray Cap, one for 180° and one for 90°. Simply take out two screws, with quick and easy Caps change, you can turn your sprayer from a 90-degree swath to a 180-degree swath. You can easily changed from one side to two side spraying, and better control over the spraying
- Our Spray Nozzle utilizes all brass construction, sturdy and durable, with great corrosion & rust resistance, anti-oxidation, and deformation protection. Simply screw this Nozzle into a piece of pipe, hook in a quick-acting Valve and you have a sprayer for tractors or trucks that will cover a strip up to 46 feet wide. Provides even, thorough spray distribution, making your spaying job more easier
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- Orifice Number: #10. Pipe Inlet: 1/2" FNPT. PSI: 40; GPM 180° : 4.2; Swath 180°: 50 ft. Model Number: 6541-1, 6541 1, 6541-01, 654101, 65411, 400-65411
- Spray Nozzle 1/2" FPT #10 Orifices can easily mounts to ATVs, 3PL, Field Sprayers, Linkage Sprayers, Utes sprayers to spread your spray further. Ideal for rough country spraying & locust control
- Each nozzle included with a full spray Cap and a half spray Cap, one for 180° and one for 90°. Simply take out two screws, with quick and easy Caps change, you can turn your sprayer from a 90-degree swath to a 180-degree swath. You can easily changed from one side to two side spraying, and better control over the spraying
- Our Spray Nozzle utilizes all brass construction, sturdy and durable, with great corrosion & rust resistance, anti-oxidation, and deformation protection. Simply screw this Nozzle into a piece of pipe, hook in a quick-acting Valve and you have a sprayer for tractors or trucks that will cover a strip up to 46 feet wide. Provides even, thorough spray distribution, making your spaying job more easier

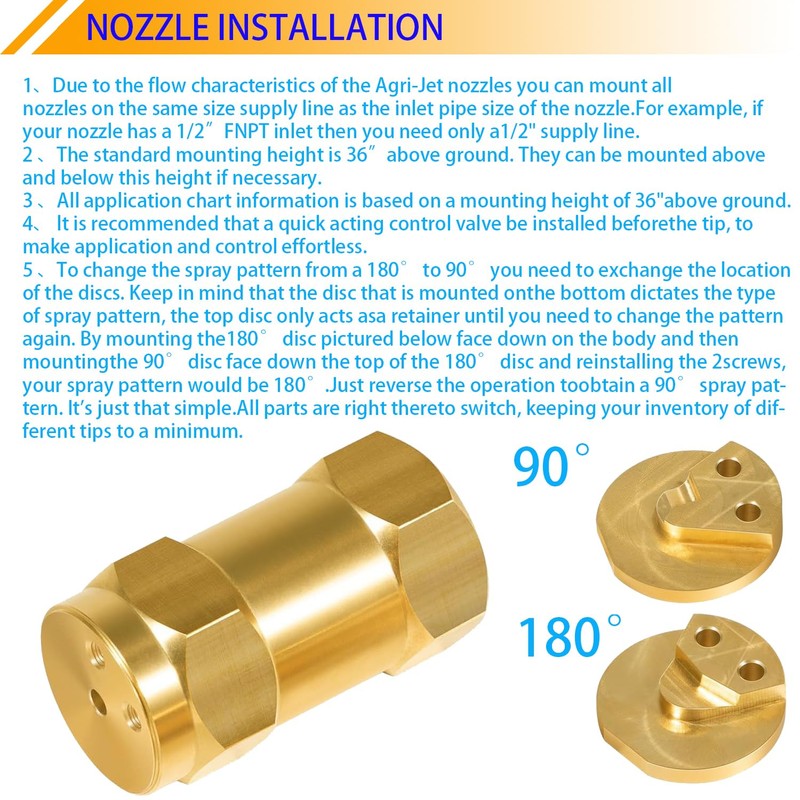

NOZZLE INSTALLATION
1、Due to the flow characteristics of the Agri-Jet nozzles you can mount all nozzles on the same size supply line as the inlet pipe size of the nozzle.For example, if your nozzle has a 1/2”FNPT inlet then you need only a1/2" supply line.
2 、The standard mounting height is 36”above ground. They can be mounted above and below this height if necessary.
3 、All application chart information is based on a mounting height of 36"above ground.
4、 lt is recommended that a quick acting control valve be installed beforethe tip, to make application and control effortless.
5 、To change the spray pattern from a 180° to 90° you need to exchange the location of the discs. Keep in mind that the disc that is mounted onthe bottom dictates the type of spray pattern, the top disc only acts asa retainer until you need to change the pattern again. By mounting the180° disc pictured below face down on the body and then mountingthe 90° disc face down the top of the 180° disc and reinstalling the 2screws, your spray pattern would be 180°.Just reverse the operation toobtain a 90° spray pattern. It's just that simple.All parts are right thereto switch, keeping your inventory of different tips to a minimum.
