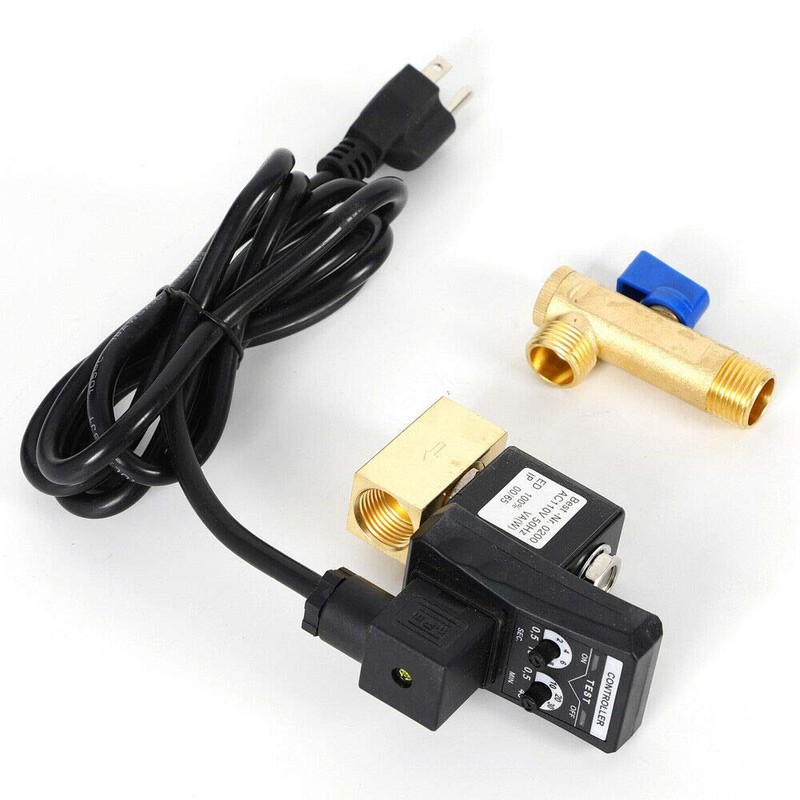

BJTDLLX AC 110V 1/2" Electronic Timed Air Compressor 2 Way Air Gas Tank Direct-acting Auto Drain Valve

Brand: BJTDLLX
  • 【Drain Valve】automatic electronic timing drain valve equipped with ball valve filter, split drain valve, L-shaped structure.
  • 【Easy to Install】easy to install, fully automatic operation. The compressed air system needs to be cleaned before installation.
  • 【Line Distinction】the wire valve has been connected at the factory, the live line L is light-colored, the neutral line N is blue, and the safety ground GND is yellow-green. The long screws on the junction box must be tightened to prevent the water from scorching.
  • 【Timer Setting】the left knob sets the discharge time, the right knob sets the interval time; the first discharge time is 2s, the interval time is 20min, and then further adjustment is needed.
  • 【Package Content】1 * Drain valve with power cord. The voltage is AC110V 50Hz.
Brand: BJTDLLX
Manufacturer: BJTDLLX
Part Number: LCZ66W1
Isin: ILJE5PMF9UUM

$71.14

  • Free shipping in US
  • Shipping: $6.5 Standard Shipping (5-10 Business Days)
  • Arrives:

  • Free 30-Day returns

In Stock

Sold by , Fulfilled by IBSPOT
Ships from USA

IBspot Buyer Protection

Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

supported payment methods:Visa, Mastercard, Discover, Amex, Apple Pay, Google Pay

GUARANTEED SAFE CHECKOUT

More seller options

Starting from

Compare all sellers
  • MONEY BACK GUARANTEE

    30 days money back guarantee, no additional fee charged.

  • EXCELLENT SUPPORT

    We provide 24/7 online customer support via email.

  • Fast Shipping

    One week domestic shipping. Global delivery to the US in 2 weeks.

scroll to top arrow
BJTDLLX AC 110V 1/2" Electronic Timed Air Compressor 2 Way Air Gas Tank Direct-acting Auto Drain Valve

BJTDLLX AC 110V 1/2" Electronic Timed Air Compressor 2 Way Air Gas Tank Direc...

$71.14

Specification:

Voltage: AC110V 50Hz

Voltage range: 10%

Time interval ( OFF ): 0.5--45 minutes (adjustable)

Discharge time ( ON ): 0.5--10 seconds (adjustable)

Manual test button: Yes( micro switch )

The current consumption: Max 4mA

Protection grade: IP65

Shell material: Flame retardant ABS plastic

Indicator lamp: LED indicating power on / off

Type: two-way direct-acting valve

Flow aperture: 5 mm

In / out port size: 1/2""

Maximum working pressure: 1.6Mpa

Maximum temperature: 90 °C

Valve material: Forging brass


Installation:

1. Clean the compressed air system before installing

2. Attention to the direction of the arrow when the valve body; outlet do not use the impact of the hose does not impact

3. The supply voltage must be the same as the drain valve voltage; when using DC, the positive pole must be connected to the connector ""1""

4. The factory has been connected to the cable drain valve, fade for the fire line L, blue for the zero line N, yellow and green color for the safe ground GND

5. Always tighten the long screws on the terminal box to prevent the water from burning



Package Contents:

1 * Drain Valve With Power Cable
