Bisida 15S BMS 48V 20A Lifepo4 Battery Management System PCB Protection Board with Balance Wire and NTC,Ten Functional protections, Common Port, for Lifepo4 Battery Pack (15S 48V 20A)
$47.17
- $5.99 shipping from United States View details
-
Arrives

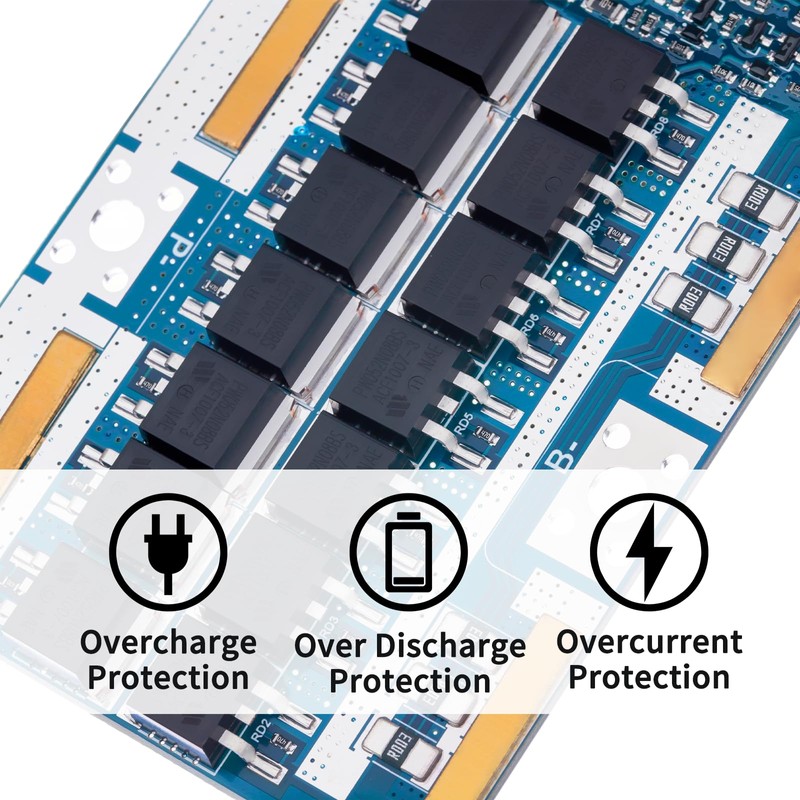

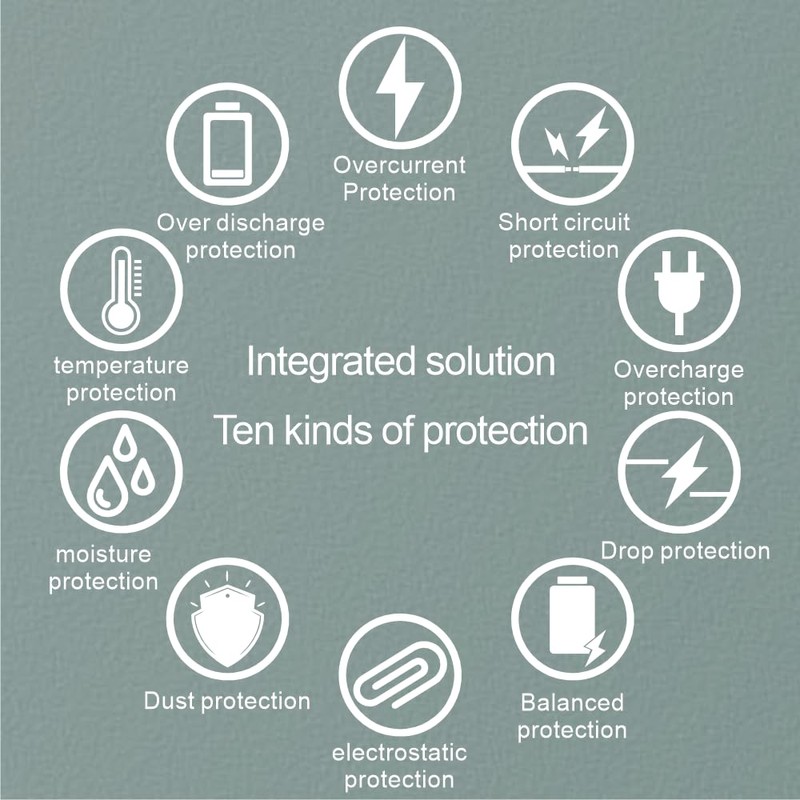

- 【Multi -Function Protection】Bisida's BMS has a variety of protection functions, such as over charge protection, over discharge protection, over current protection, short-circuit protection, temperature protection, Downtime protection，Voltage balance(passive balance), etc.

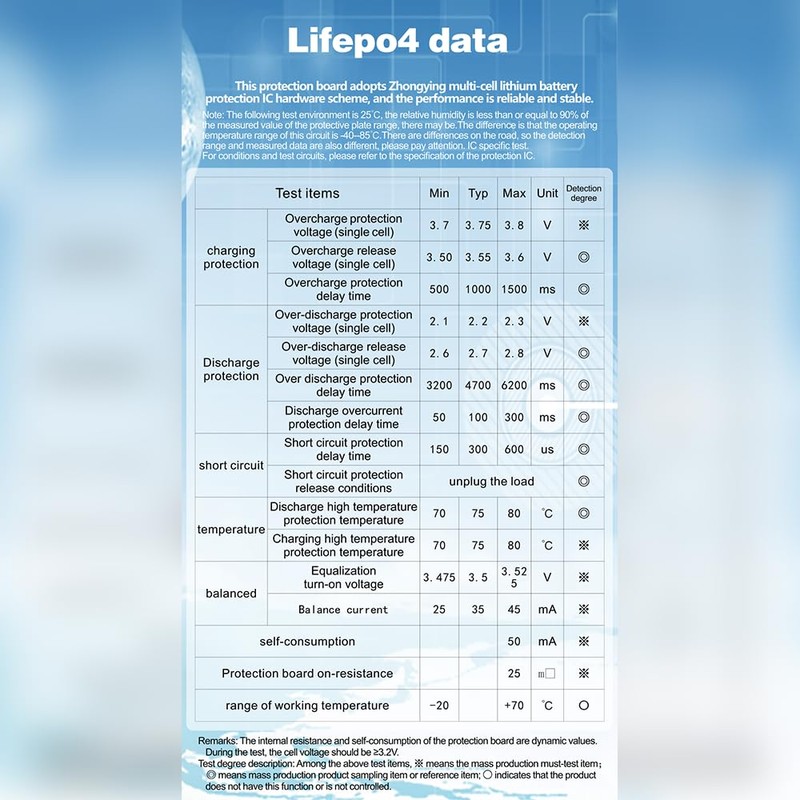

- 【Operating Temperature】Bisida's BMS supports (3.2V) Lifepo4 battery charging and discharging in zones from 2.3V to 3.65V, with low temperature protection up to -20°C and high temperature protection up to 70°C. Different voltages and currents have different parameter details. Confirmation required. Please communicate with the seller to confirm accurate data.
- 【Preparation Before Installation】Before installing the BMS protective board, it is necessary to match the voltage, capacity, and internal resistance (the voltage difference between the battery per section is not higher than 0.05V, the difference between the internal resistance is not more than 5MΩ, and the capacity difference is less than 30mAh). Otherwise the battery pack will not be able to charge.

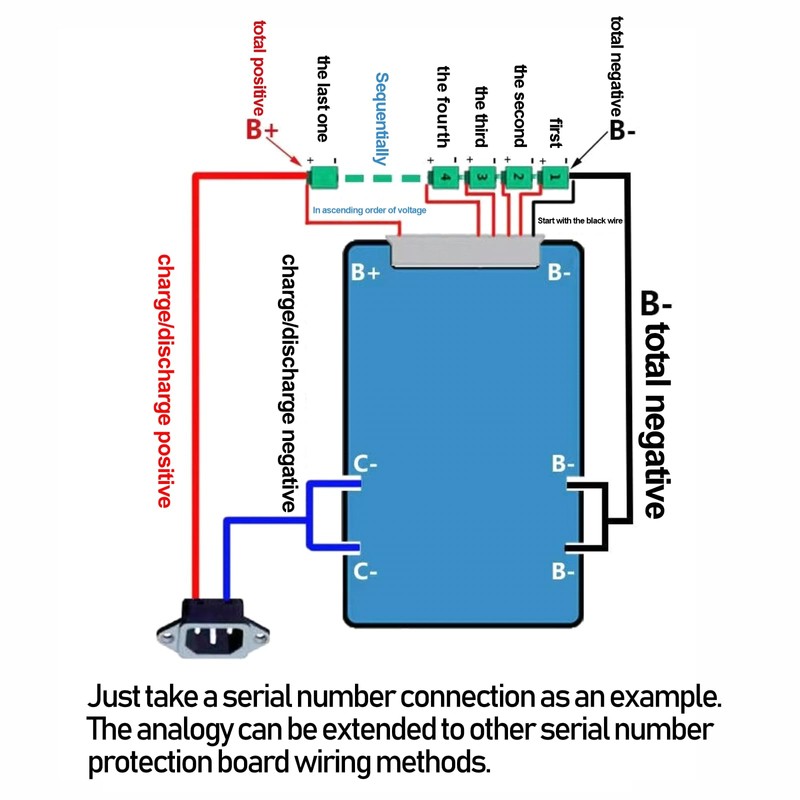

- 【Wiring Method】The wiring methods of common ports of BMS: B- connection battery pack negative , C- connection charging negative/output negative. All the positive electrodes are the total positive pole from the battery pack.

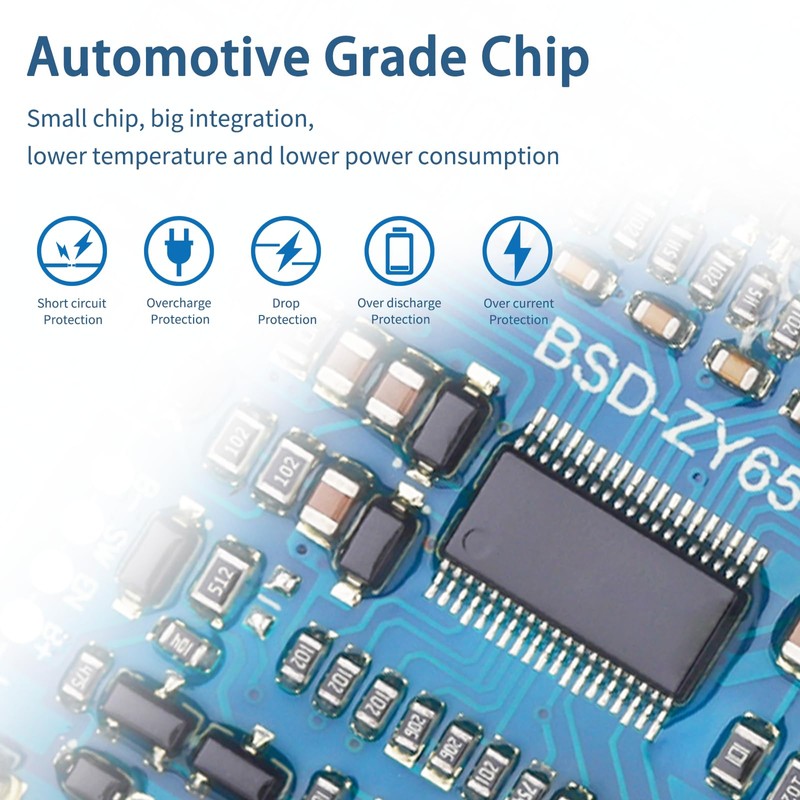

- 【High Quality】Bisida's BMS utilizes top quality (A-level) protective integrated circuit IC, from the solution of Industry car level.BMS manufactured by high quality Mos and IC imported.Support OEM/ODM customization, if you have special needs, you can contact customer service.
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- 【Multi -Function Protection】Bisida's BMS has a variety of protection functions, such as over charge protection, over discharge protection, over current protection, short-circuit protection, temperature protection, Downtime protection，Voltage balance(passive balance), etc.
- 【Operating Temperature】Bisida's BMS supports (3.2V) Lifepo4 battery charging and discharging in zones from 2.3V to 3.65V, with low temperature protection up to -20°C and high temperature protection up to 70°C. Different voltages and currents have different parameter details. Confirmation required. Please communicate with the seller to confirm accurate data.
- 【Preparation Before Installation】Before installing the BMS protective board, it is necessary to match the voltage, capacity, and internal resistance (the voltage difference between the battery per section is not higher than 0.05V, the difference between the internal resistance is not more than 5MΩ, and the capacity difference is less than 30mAh). Otherwise the battery pack will not be able to charge.
- 【Wiring Method】The wiring methods of common ports of BMS: B- connection battery pack negative , C- connection charging negative/output negative. All the positive electrodes are the total positive pole from the battery pack.
- 【High Quality】Bisida's BMS utilizes top quality (A-level) protective integrated circuit IC, from the solution of Industry car level.BMS manufactured by high quality Mos and IC imported.Support OEM/ODM customization, if you have special needs, you can contact customer service.

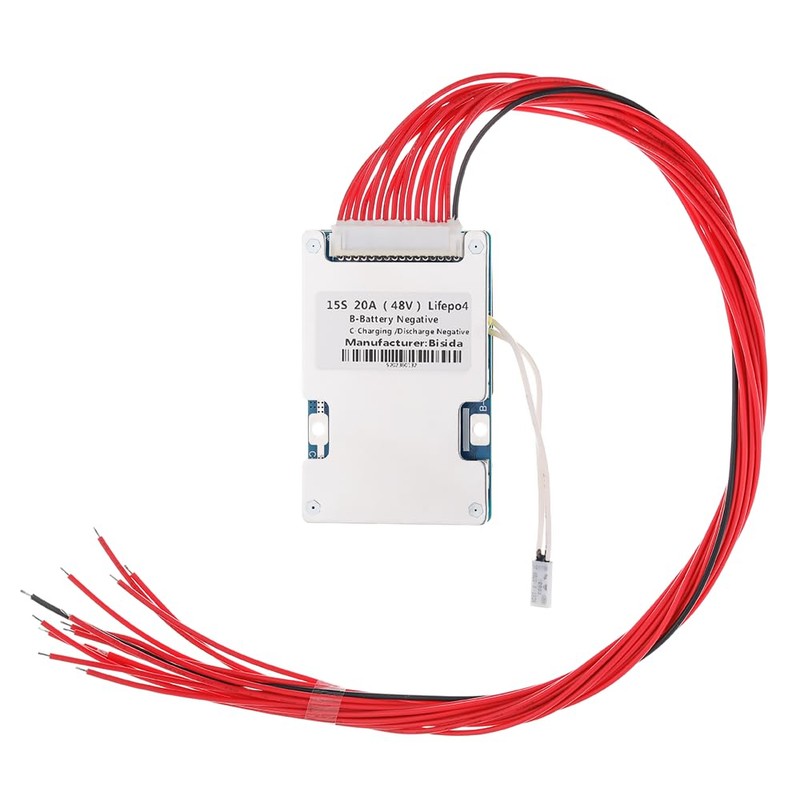

Product size: 50mm*90mm*8mm
Voltage Value: 48V
Charger Voltage: 54V
Working Current: 20A
Charging current: Recommended below 5A

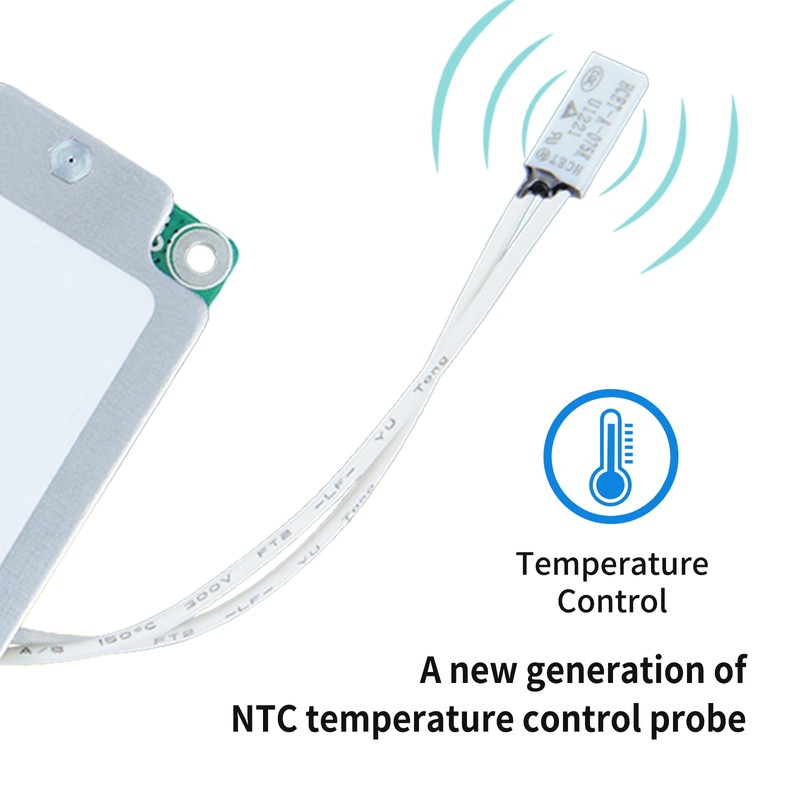

Temperature protection: -20 ~ 70 ℃
Applicable Battery:
3.2V Lifepo4 Battery (Single Cell)
Instantaneous CurrenT: 3 to 5 Times the working current.
Package Contents:
Battery Protection Board*1
Cable*1
If you have exact requirers, you need to batch, or customize the Please Communicate with the Seller to Confirm
Please note:
Our products use the integrated IC solution.
It means that the SOC accuracy of the BMS is very high, and the voltage of each string will be collected. It must be required that the voltage, internal resistance, and capacity must be the same height during assembly, otherwise the BMS will disconnect and protect (disconnection protection function).
This product is an industrial semi-finished product, which needs to be repaired and assembled by people with professional electrical knowledge. Thank you for your understand.
