BIGTREETECH TFT35 E3 V3.0.1 Panel de visualización inteligente gráfico para Ender-3 compatible con SKR Mini E3 V3.0, SKR 3/EZ, Octopus/Pro/Max EZ, Kraken, SKR Pro V1.2 Tablero de control
$126.31
- $9.99 shipping from Mexico View details
-
Arrives
- Chip ARM Cortex-M3 serie GD32F205VCT6 con CPU de 32 bits de 120 MHz; Actualice el Firmware con tarjeta SD. Es fácil y cómodo de operar

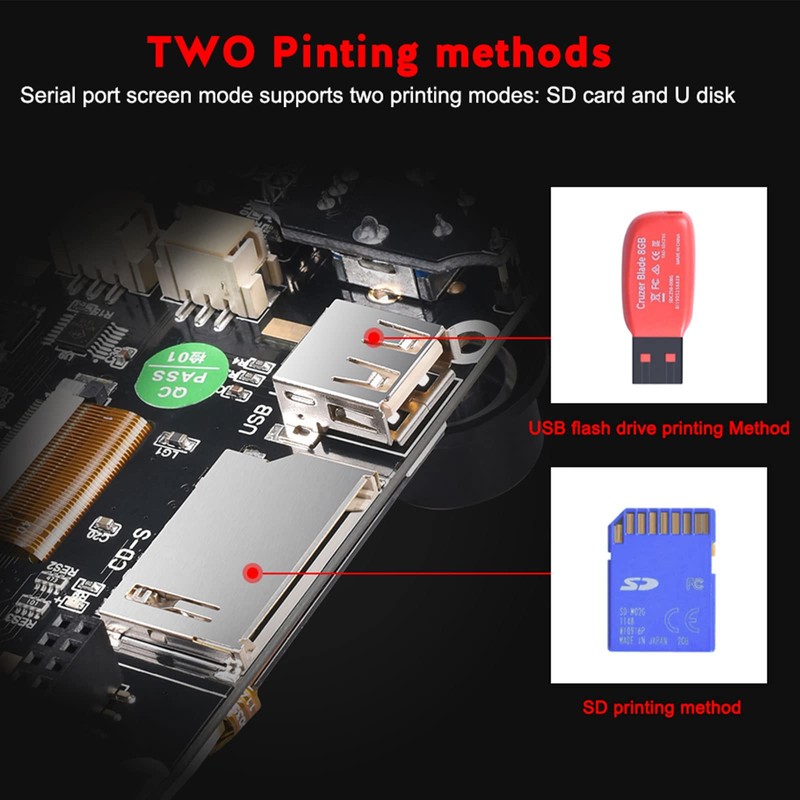

- Esta visualización tiene mayor compatibilidad. Los usuarios pueden seleccionar dos modos de trabajo: modo de visualización de puerto serie UART y modo de visualización 12864; modo de visualización de puerto serie soporta dos modos de impresión: tarjeta SD y disco U

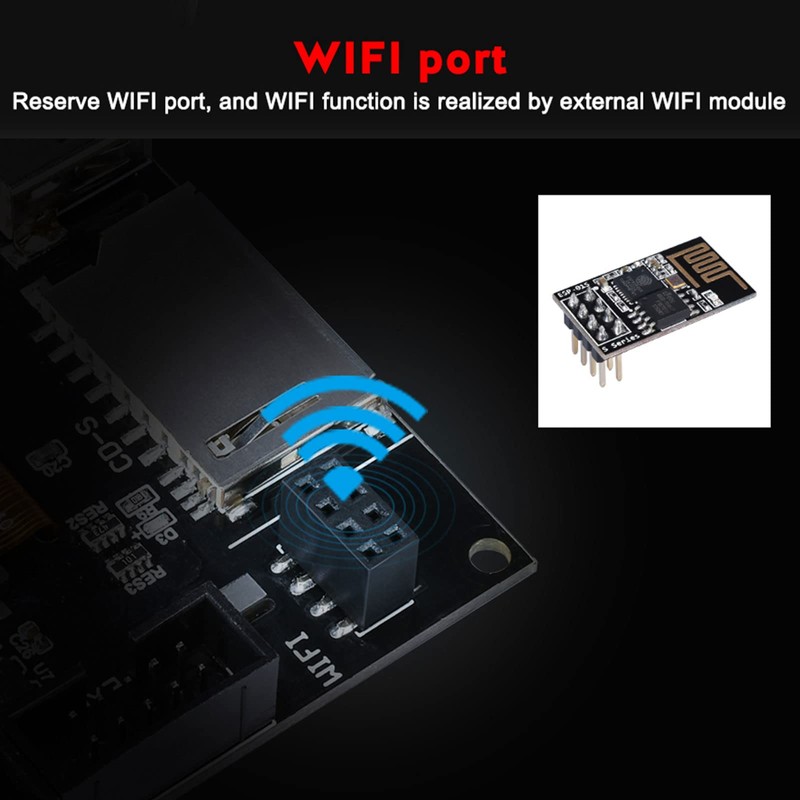

- Puerto WIFI de reserva, y la función WIFI se realiza mediante módulo WIFI externo; reserva el puerto de extensión de detección de rotura de filamento (FIL-DET)
- Reserva el puerto de extensión del apagado automático después de imprimir (PS-ON)

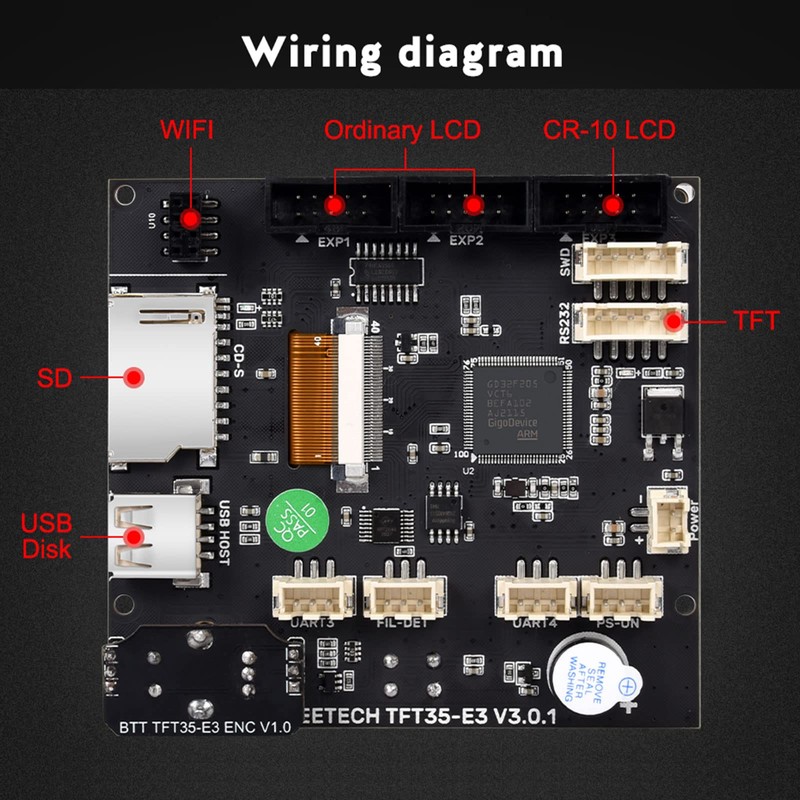

- El modo LCD12864 utiliza EXP1, EXP2 y EXP3. EXP1 y EXP2 son puertos de visualización LCD de la placa base normal. EXP3 es la interfaz LCD utilizada por la placa base de la serie E3 (como SKR MINI E3 V1.2, SKR E3 DIP V1.1, etc.)
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- Chip ARM Cortex-M3 serie GD32F205VCT6 con CPU de 32 bits de 120 MHz; Actualice el Firmware con tarjeta SD. Es fácil y cómodo de operar
- Esta visualización tiene mayor compatibilidad. Los usuarios pueden seleccionar dos modos de trabajo: modo de visualización de puerto serie UART y modo de visualización 12864; modo de visualización de puerto serie soporta dos modos de impresión: tarjeta SD y disco U
- Puerto WIFI de reserva, y la función WIFI se realiza mediante módulo WIFI externo; reserva el puerto de extensión de detección de rotura de filamento (FIL-DET)
- Reserva el puerto de extensión del apagado automático después de imprimir (PS-ON)
- El modo LCD12864 utiliza EXP1, EXP2 y EXP3. EXP1 y EXP2 son puertos de visualización LCD de la placa base normal. EXP3 es la interfaz LCD utilizada por la placa base de la serie E3 (como SKR MINI E3 V1.2, SKR E3 DIP V1.1, etc.)
1) Utiliza el codificador emisor de luz, presiona la luz azul brillante, si no, no se ilumina, llena de tecnología.
2) Modo de visualización táctil TFT: puerto serie de visualización RS232.
3) 2 juegos de puertos de extensión de puerto serie UART están reservados para uso de bricolaje.
2. Parámetros del producto:
Tamaño de apariencia: 93,35 x 87,00 mm.

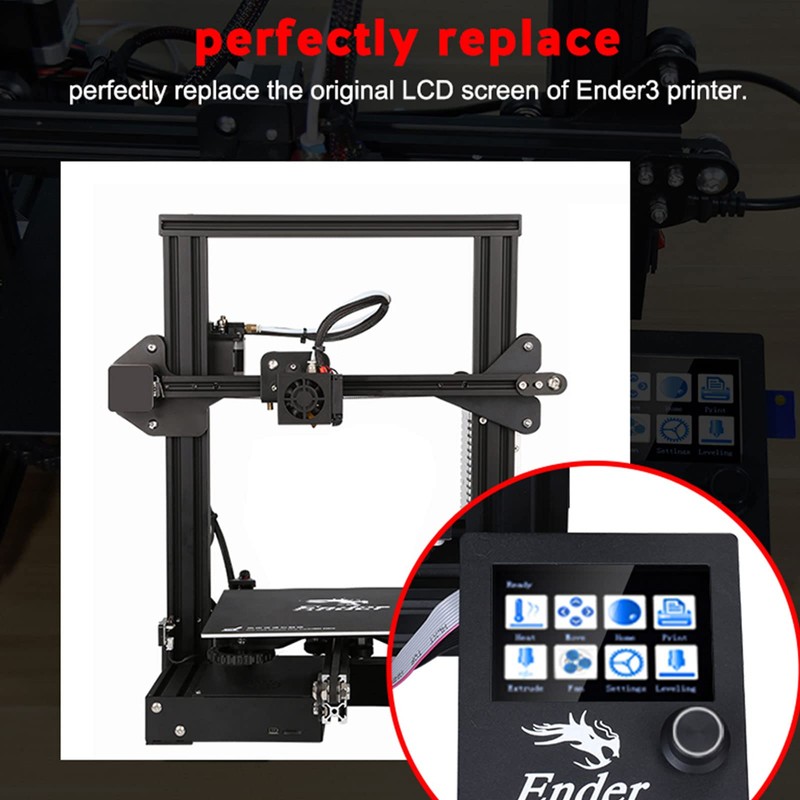

Tamaño de instalación: reemplaza perfectamente la visualización LCD original de la impresora Ender3, información detallada, comprueba el tamaño TFT35-E3 V3.0.1.
Microprocesador: GD32F205VCT6.
Entrada de alimentación: 5 V CC.
Voltaje lógico de la tarjeta SD: 3,3 V y 5 V (como compatible con placa base de chip de control principal MEGA2560, mayor compatibilidad).
Notas
1. Cuando utilice el modo de visualización 12864, conecte el puerto EXP1 y EXP2 a la placa base. No hay función táctil en este modo.
2. Cuando utilice el modo de visualización de puerto serie, conéctese con TFT o AUX-1 en la placa base a través de RS232. Este modo tiene función táctil;
3. Dos modos de trabajo se pueden cambiar con una tecla. Presiona el codificador unos 3 segundos hasta que aparezca la página de selección de modo, luego presiona el codificador después de seleccionar el modo.
