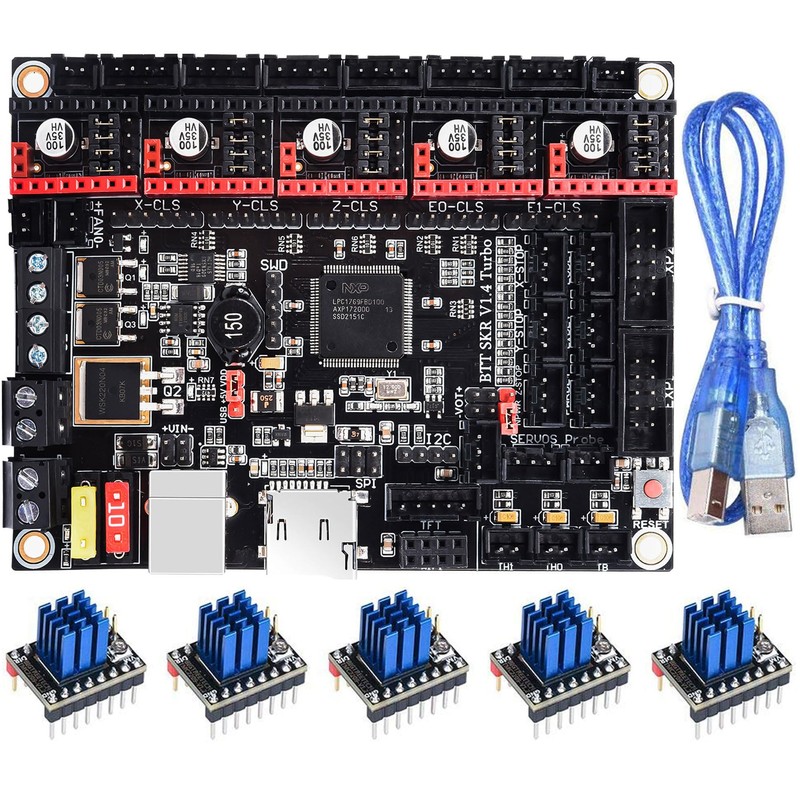

BIGTREETECH SKR V1.4 - Placa de control turbo de 32 bits para impresora 3D compatible con TFT35 E3 V3.0.1/TFT70 compatible con visualización táctil TMC2209/TMC2208/TMC5160/TMC2130 para la mayoría de
$167.68
- $12.99 shipping from Mexico View details
-
Arrives

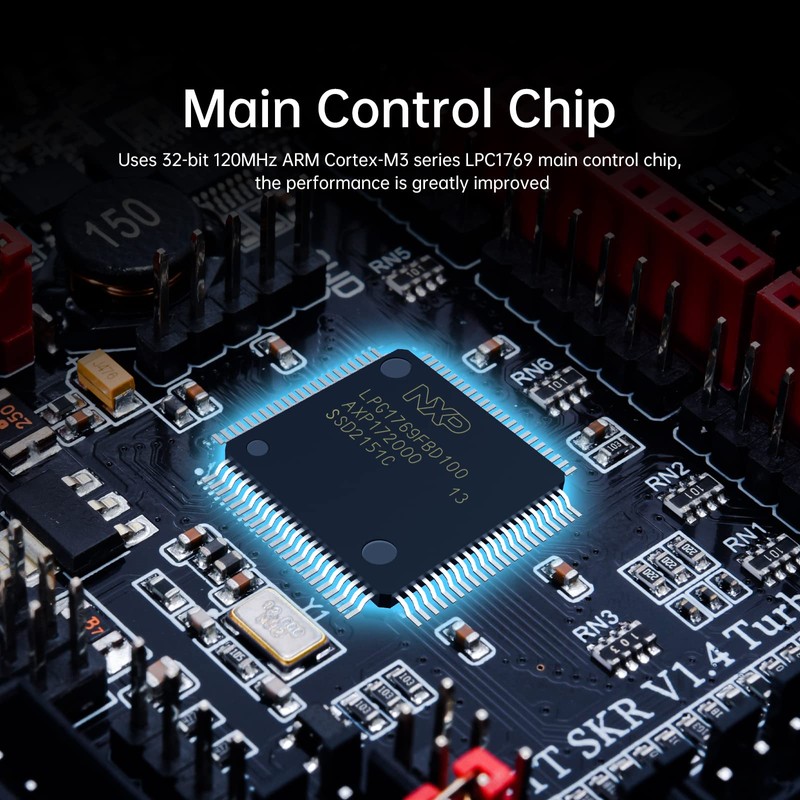

- BIGTREETECH SKR V1.4 Turbo con chip de control principal Cortex-M3 serie LPC1769 de 32 bits de 120 MHz, el rendimiento se mejora enormemente
- La placa de control SKR V1.4 Turbo puede suministrar energía a la visualización TFT, BLtouch, Neo-pixel conectando un módulo de alimentación externo DC5V; además, la interfaz I2C, SPI, WIFI está reservada para facilitar el bricolaje del cliente
- Modo de trabajo SPI impulsado por TMC integrado y modo de trabajo UART, y los pines de función DIAG integrados son convenientes para que los clientes lo usen, eliminando el complicado proceso de cableado, que se puede utilizar simplemente quitando e insertando la tapa de puente

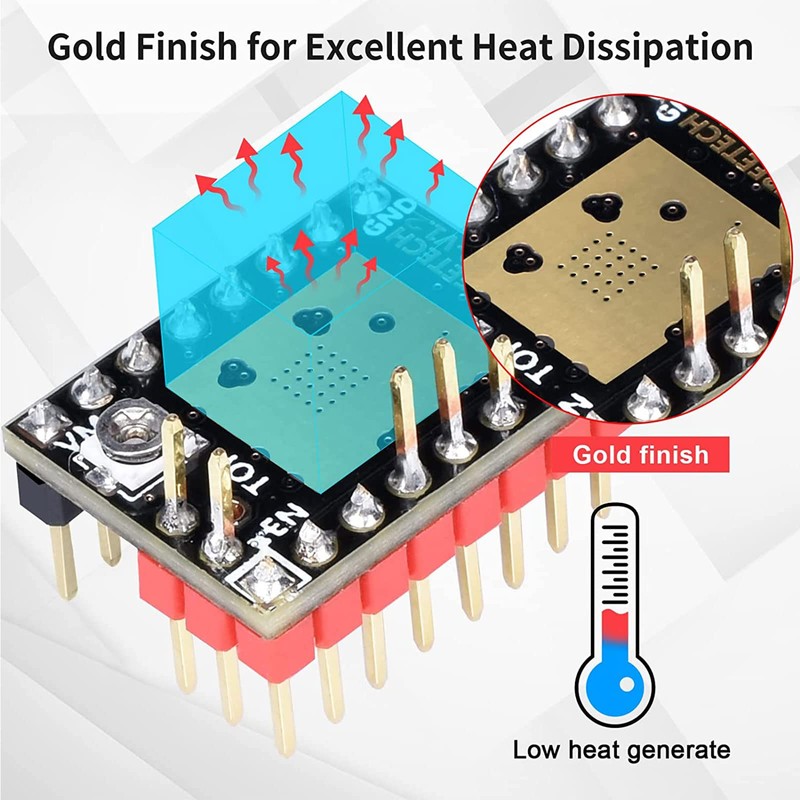

- En comparación con otros controladores de motor paso a paso en el mercado, nuestro driver paso a paso silencioso TMC2209 genera menor calor y tiene una posición de enfriamiento de gran área para bajar la temperatura. El conductor puede reducir un 30% de calor que otros conductores de motor paso a paso, incluso trabajando durante mucho tiempo. Con refrigeración pasiva en una impresión de 10 horas, solo alcanzan 37 ℃
- BIGTREETECH TMC2209 V1.3 es un driver de motor ultra silencioso IC para motores paso a paso de dos fases, que adopta la tecnología stealthChop2 Mute que reduce el ruido del motor hasta el punto de silencio a bajas velocidades para garantizar un funcionamiento silencioso, máxima eficiencia y mejor par del motor. SpreCycle permite un movimiento altamente dinámico. Corriente de accionamiento 2A, corriente máxima 2.8A, rango de voltaje 4.75V-29V, subdivisión 256
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- BIGTREETECH SKR V1.4 Turbo con chip de control principal Cortex-M3 serie LPC1769 de 32 bits de 120 MHz, el rendimiento se mejora enormemente
- La placa de control SKR V1.4 Turbo puede suministrar energía a la visualización TFT, BLtouch, Neo-pixel conectando un módulo de alimentación externo DC5V; además, la interfaz I2C, SPI, WIFI está reservada para facilitar el bricolaje del cliente
- Modo de trabajo SPI impulsado por TMC integrado y modo de trabajo UART, y los pines de función DIAG integrados son convenientes para que los clientes lo usen, eliminando el complicado proceso de cableado, que se puede utilizar simplemente quitando e insertando la tapa de puente
- En comparación con otros controladores de motor paso a paso en el mercado, nuestro driver paso a paso silencioso TMC2209 genera menor calor y tiene una posición de enfriamiento de gran área para bajar la temperatura. El conductor puede reducir un 30% de calor que otros conductores de motor paso a paso, incluso trabajando durante mucho tiempo. Con refrigeración pasiva en una impresión de 10 horas, solo alcanzan 37 ℃
- BIGTREETECH TMC2209 V1.3 es un driver de motor ultra silencioso IC para motores paso a paso de dos fases, que adopta la tecnología stealthChop2 Mute que reduce el ruido del motor hasta el punto de silencio a bajas velocidades para garantizar un funcionamiento silencioso, máxima eficiencia y mejor par del motor. SpreCycle permite un movimiento altamente dinámico. Corriente de accionamiento 2A, corriente máxima 2.8A, rango de voltaje 4.75V-29V, subdivisión 256
Adopta un tubo MOSFET de alto rendimiento, mejor efecto de disipación de calor.
El uso de fusibles enchufables facilita el proceso de reemplazo.
Reserva la interfaz BLTouch SERVOS y sonda para un fácil uso de BL Touch;
Utiliza el diseño de selección de energía para separar la fuente de alimentación USB de la fuente de alimentación de conmutación, evitando eficazmente cortocircuitos causa el puerto USB de la computadora a quemarse.
La interfaz de función especial utiliza cabezales de pin llamativos, lo que reduce en gran medida la tasa de error del cableado.
Interfaces I2C, SPI, WIFI reservadas, convenientes para que los clientes lo hagan manualmente.
Interfaz de unidad de bucle cerrado reservada, eliminando el problema del módulo de transferencia enchufable;
Interfaz dual de eje Z, eliminando el problema del módulo de expansión de unidad externa;

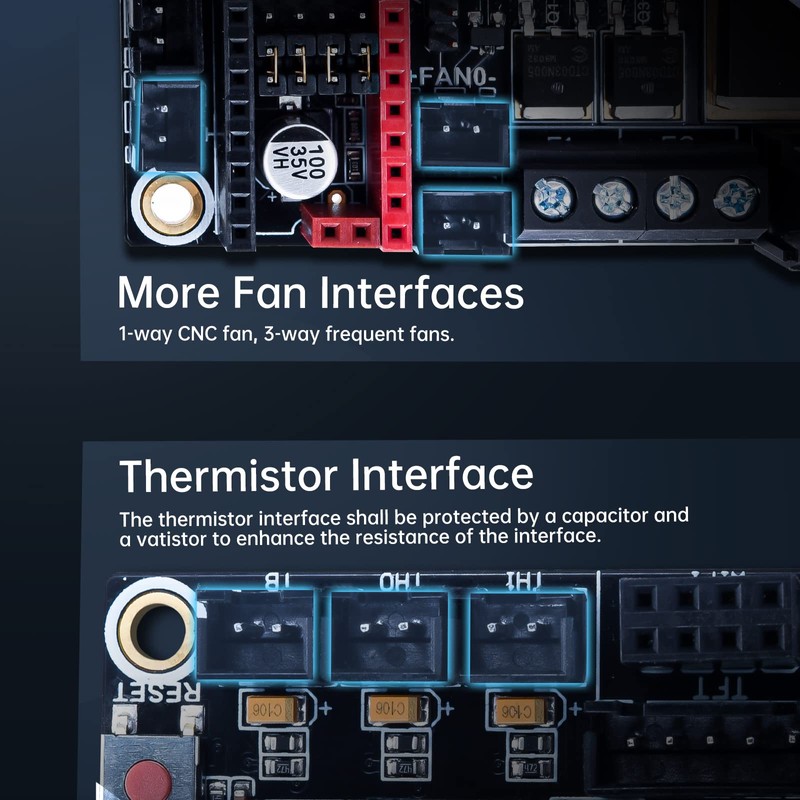

La interfaz del termistor está protegida por una resistencia sensible a la presión del condensador biliar para mejorar la resistencia de la interfaz;
Más interfaces de ventilador: 1 ventilador controlado digitalmente, 3 ventiladores normalmente abiertos.

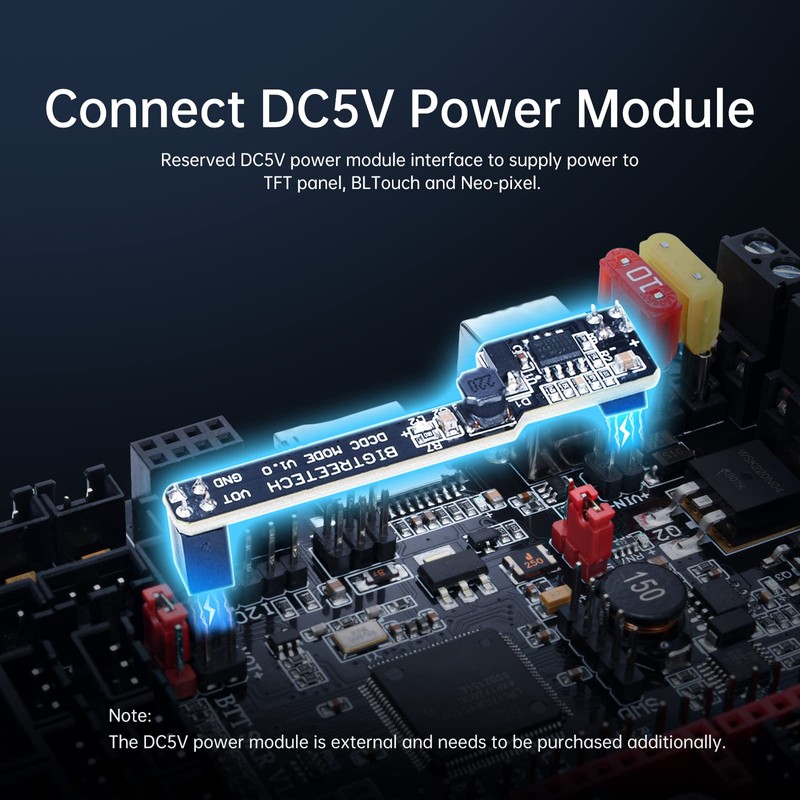

El módulo de alimentación externo DC5V se puede conectar para suministrar energía a la visualización TFT, BLtouch.
Instrucciones de ajuste del potenciómetro:
Potenciómetro de giro en el sentido de las agujas del reloj: reduce Vref para reducir la corriente de accionamiento
Potenciómetro de giro en sentido contrario a las agujas del reloj: aumenta el Vref para aumentar la corriente de accionamiento
Si la placa base proporciona 12 V o 24 V, se puede medir el voltaje exacto de Vref.
Rango de valores Vref: Valor predeterminado: 1 V (± 0,2); Máx.: 2 V; Mín: 0 V;
No apliques fuerza excesiva al girar el potenciómetro para evitar daños irreversibles al potenciómetro. Cuando el potenciómetro gira en sentido contrario a las agujas del reloj a su valor máximo, se convierte en el mínimo ya que continúa girando mientras se gira en el sentido de las agujas del reloj al mínimo. Si sigues girando, se mostrará el valor máximo.

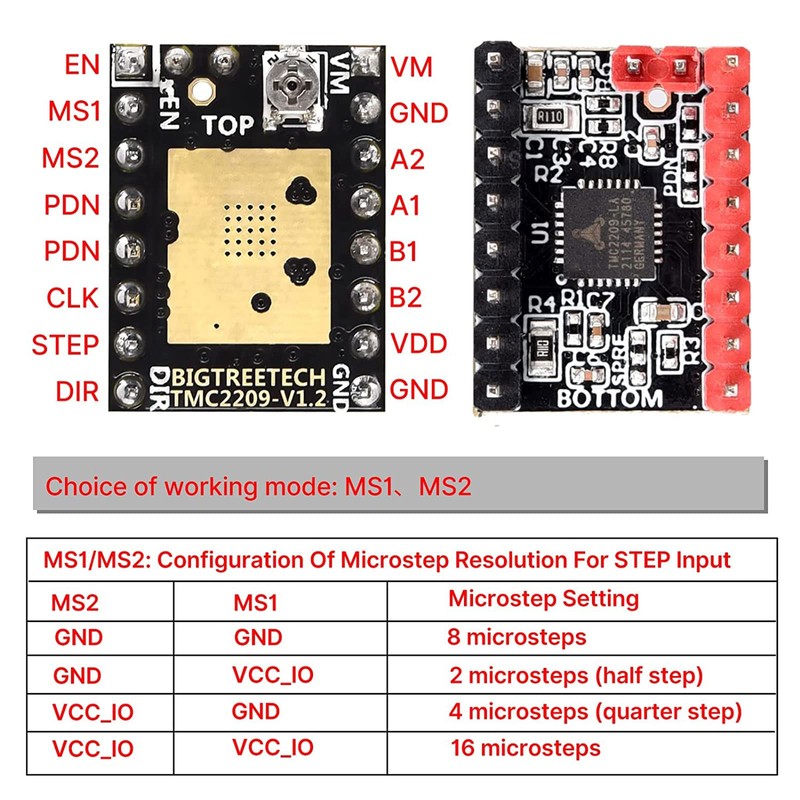

Características TMC2209 V1.2:
Evita la agitación del motor.
Compatible con detección de bloqueo.
Compatible con modo STEP / DIR y UART
No es fácil perder el paso; modo ultra silencioso.
