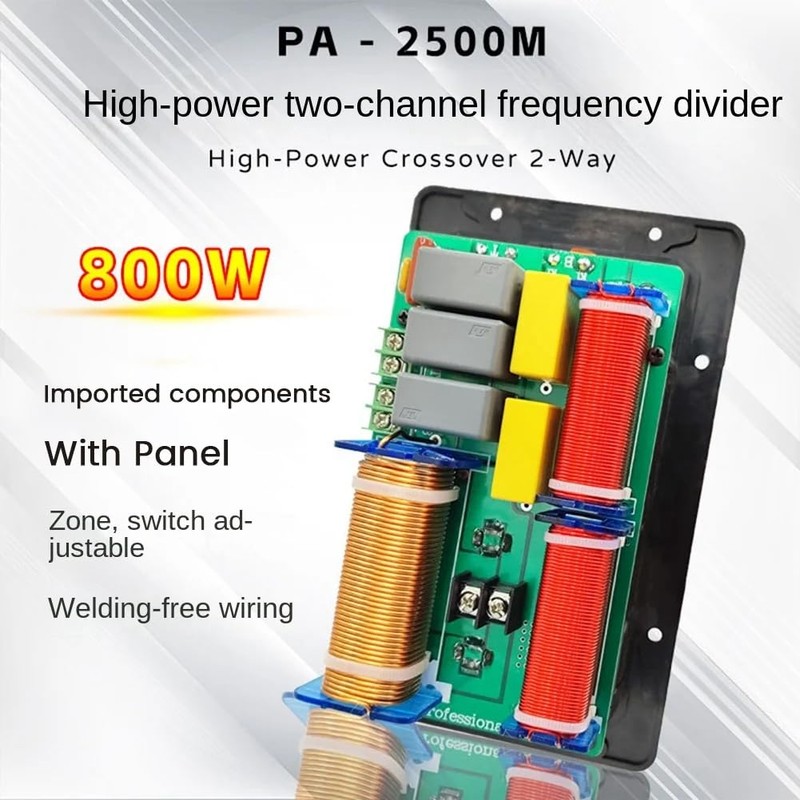

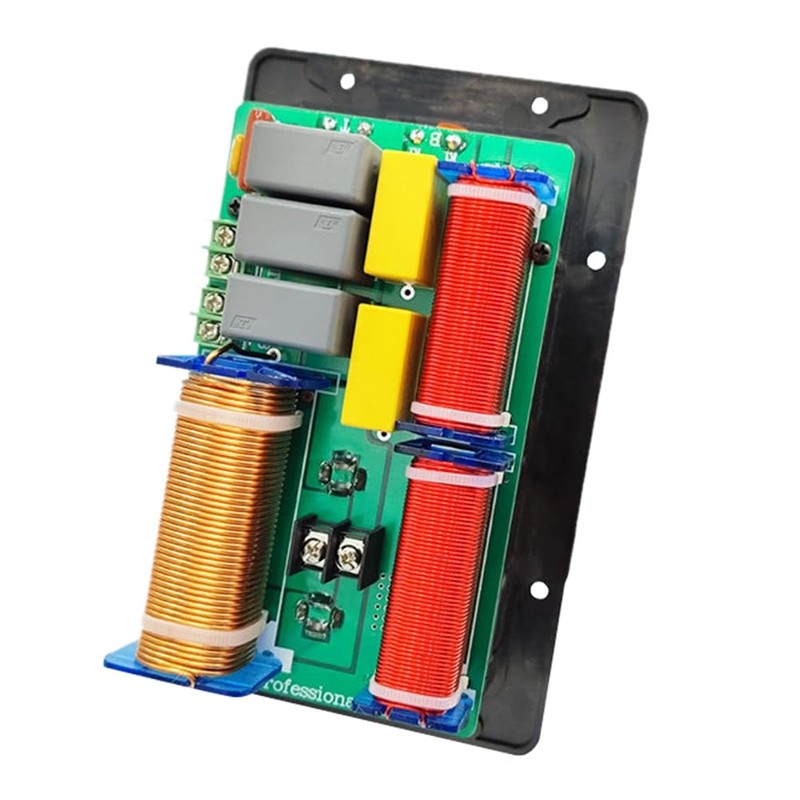

berjalan 800W 2 Way Speaker Audio Frequency Divider Treble Bass 2 Unit Crossover Filters DIY HIFI Home Theater Easy to Use
$57.20
- $9.99 shipping from United Kingdom View details
-
Arrives
- Commonly used in treble + bass two-way stage speakers, the treble has two tuning methods: treble/super treble, and the bass has two tuning methods: mid-bass/bass. It is suitable for high-power speakers of around 800W. This model can control and change the sound quality by itself, and debug the effect that the user likes.
- Various effects are applied in various venues. Sometimes a set of stage speakers is adjusted to meet the needs of speeches (AV). The clarity of human voices is very good, but the bass is not so powerful when listening to KTV or DJ disco; On the contrary, when it is adjusted to KTV or DJ with strong bass, it is very exciting to listen to the bass drum, but it is not so natural, bright and sweet when listening to human voices.
- The direct-tuning version of the crossover is installed outside the cabinet and can be combined into 4 effects. The user can change it at any time, covering multiple crossover points, and the changing effect is more . The in-box debugging version can only be debugged to achieve the correct effect, while the out-of-box direct-tuning version is different. It can be combined with various changes to suit your wishes.
- Ancient crossovers are rigid and cannot be changed if the user installs them inappropriately. Sometimes the treble is too strong and the bass performance is poor, or the bass is too thick and the overall performance is unclear.

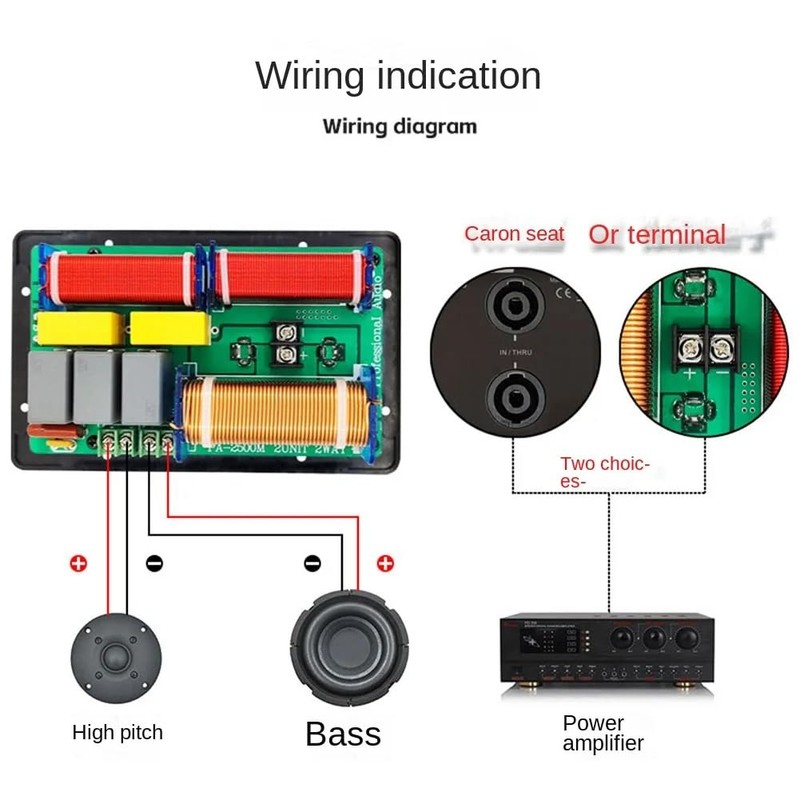

- Can be debugged and can change the effect: The crossover wiring panel is equipped with two switches to control different circuit combinations and change the sound quality effect. The sound of the speaker connected to the bass switch is limited to below 700~800Hz (8Hz/0Hz). Treble sound is limited to above 4k~7kHz (3dB/0dB). With socket, no soldering is required, the wires can be twisted with a screwdriver, and the installation is convenient without soldering iron.
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- Commonly used in treble + bass two-way stage speakers, the treble has two tuning methods: treble/super treble, and the bass has two tuning methods: mid-bass/bass. It is suitable for high-power speakers of around 800W. This model can control and change the sound quality by itself, and debug the effect that the user likes.
- Various effects are applied in various venues. Sometimes a set of stage speakers is adjusted to meet the needs of speeches (AV). The clarity of human voices is very good, but the bass is not so powerful when listening to KTV or DJ disco; On the contrary, when it is adjusted to KTV or DJ with strong bass, it is very exciting to listen to the bass drum, but it is not so natural, bright and sweet when listening to human voices.
- The direct-tuning version of the crossover is installed outside the cabinet and can be combined into 4 effects. The user can change it at any time, covering multiple crossover points, and the changing effect is more . The in-box debugging version can only be debugged to achieve the correct effect, while the out-of-box direct-tuning version is different. It can be combined with various changes to suit your wishes.
- Ancient crossovers are rigid and cannot be changed if the user installs them inappropriately. Sometimes the treble is too strong and the bass performance is poor, or the bass is too thick and the overall performance is unclear.
- Can be debugged and can change the effect: The crossover wiring panel is equipped with two switches to control different circuit combinations and change the sound quality effect. The sound of the speaker connected to the bass switch is limited to below 700~800Hz (8Hz/0Hz). Treble sound is limited to above 4k~7kHz (3dB/0dB). With socket, no soldering is required, the wires can be twisted with a screwdriver, and the installation is convenient without soldering iron.
1. Special capacitor for audio;
2. The inductor is wound with high-temperature- enameled wire and adopts a high-temperature- blue skeleton;
3. Special card dragon base and solderless terminal blocks for high-power stage speakers, no need for soldering;

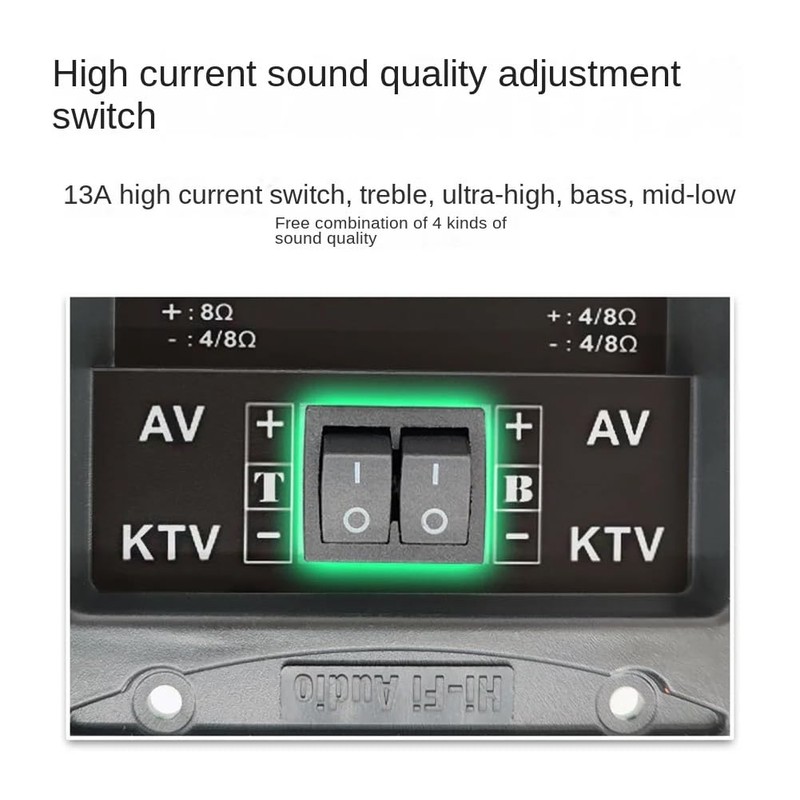

4. The high-current switch on the panel can easily adjust 4 crossover points, between 6dB and 18dB;
5. The sound quality can be adjusted to 4 sound quality effects through the switch. The design is reasonable, the appearance is exquisite, and the sound quality is pleasant.
Speaker junction box with switch:
High-end speaker junction box with switch, 5mm thick ABS material and thick plastic panel, bright appearance, beautiful and , sufficient materials and exquisite workmanship.
Model: PA-2500M
Power: 800W
Impedance: 4 ~ 8Ω
Frequency point: about 2500Hz~2800Hz (4 combinations, determined by debugging)

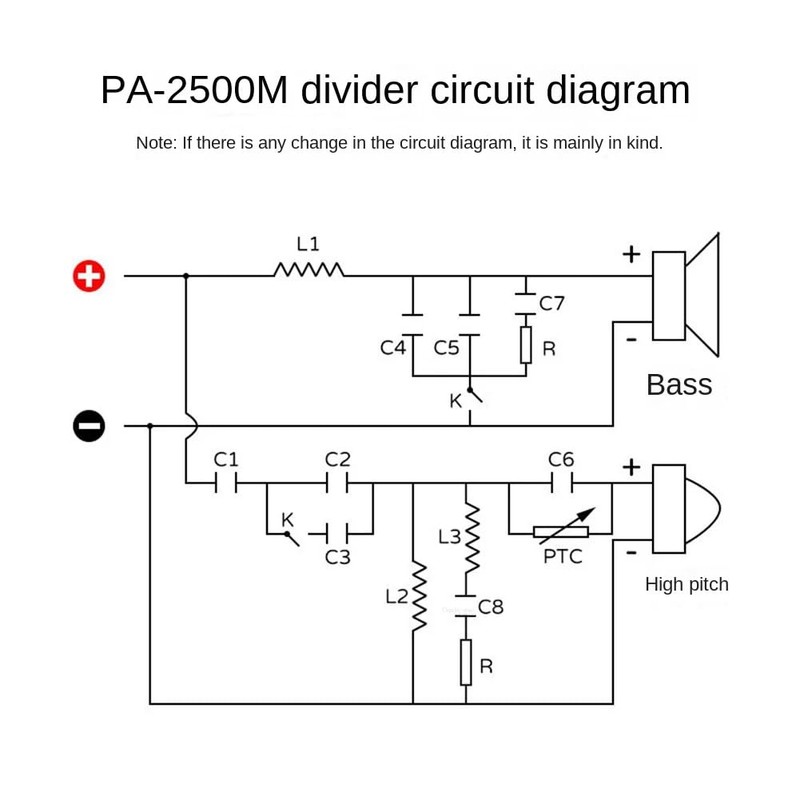

Circuit: Treble 18dB, Bass 12dB

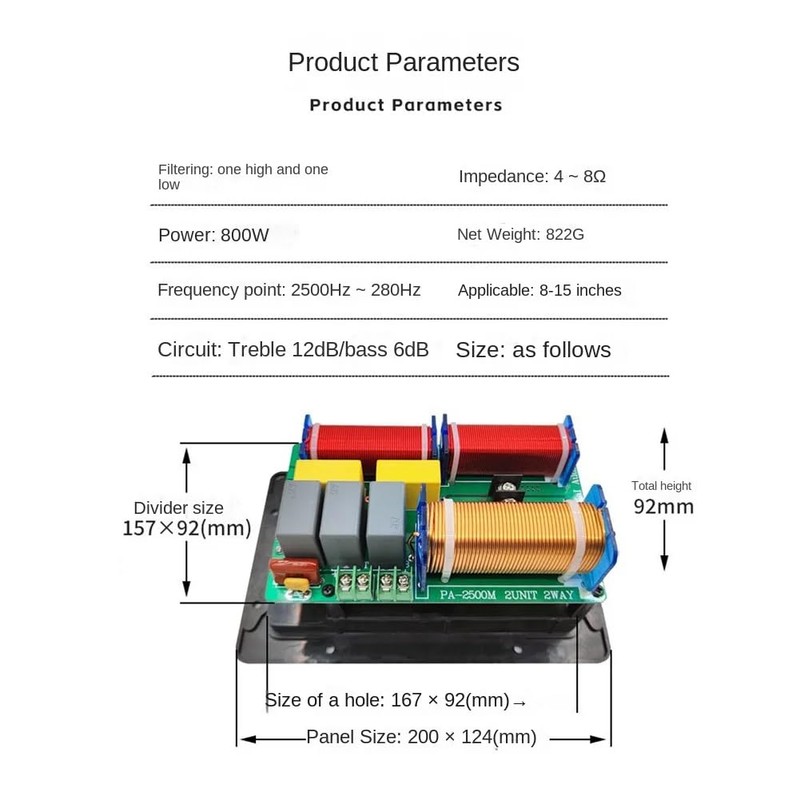

Opening size: 167mmx92mm
Panel size: 200mmx124mm
Due to different batches, there may be differences in product appearance, color, and printed text, which not affect the use
material: plastic
Color as shown
Package Contents:
1 x Speaker Frequency Divider
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
