AZDelivery OLED Parent 128 x 64 Pixel 0.96 Inches
AZDelivery OLED Parent 128 x 64 Pixel 0.96 Inches
AZDelivery OLED Parent 128 x 64 Pixel 0.96 Inches

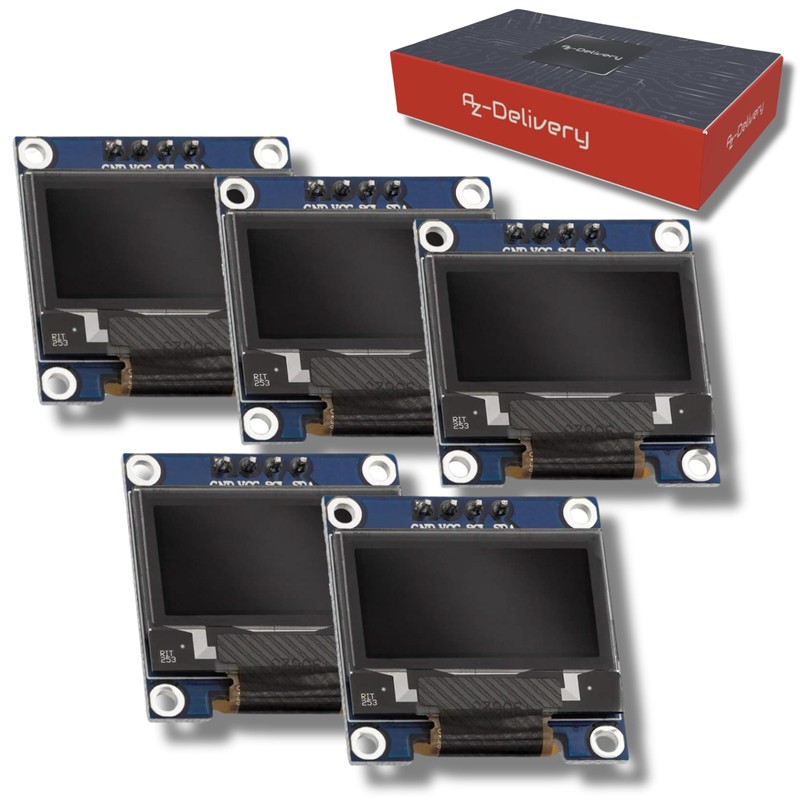

- Get five AZDelivery I2C displays, 128 x 64 pixels, 0.96 inch displays
- The AZDelivery 0.96 inch OLED I2C display is a high-contrast display with high resolution of 128 times 64 pixels and innovative OLED technology. This OLED I2C display provides easy connection of the display with Raspberry Pi etc. and other microcontrollers through I2C interface via only four pins. Thanks to the integrated display adapter, the module can be connected to the I2C bus immediately.
- With changing the I2C address and soldering from a third contact, two displays can be operated at the same time.
- The OLED module can be connected to 3.3 V.
- ✅ This product contains an e-book that contains useful information about the beginning of your project, it helps with a quick setup and saves time in the configuration process. We offer a range of application examples, complete installation guides and libraries.
| Brand: | AZDelivery |
|---|---|
| Size: | 5x OLED Display |
| Color: | White |
| Manufacturer: | AZDelivery |
| Part Number: | 4NJMPYJ |
| Isin: | IN5EYCRMOBJY |
Out of Stock
In Stock
Backordered
Out of Stock
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
Monochrome 0.96 inch OLED display with 128 x 64 pixels (white).
This display is very small with a 3 cm screen diagonal and easy to read thanks to high contrast. The display consists of 128 x 64 OLED pixels, which are individually controlled by the built-in SSD1306 chip.
As the pixels light up, no backlight is required, which has a positive effect on power consumption and gives the display the high contrast.
It is ideal for easy use with microcontrollers such as ATmega, STM32, 8051, AVR, PIC, DSP, ARM, MSP430, PLC,TTL logic. The display is controlled via the I2C interface and requires only 4 ports.
A typical pin assignment on one looks like this:
VCC -> 3.3 V.
GND -> GND
SDA -> A4.
SCL -> A5.
In combination with the two libraries Adafruit GFX and Adafruit SSD1306, which also contain example sketches, the display can be programmed quickly.
Details:
Chipset: SSD1306.
Colour: white.
Visible angle: > 160°.
Resolution: 128 x 64 pixels.
Operating voltage: 3.3 V to 5 V.
Operating temperature: -30°C to +80°C.
Low power consumption: 0.04 W in normal operation.
Control: I2C/TWI
Pin assignment: VCC, GND, SCL, SDA
Dimensions: approx. 27 mm x 27 mm x 4.1 mm.
Package includes:
1 x pre-assembled OLED display as shown.
High quality and fast delivery directly from Germany by ordering from AZ-Delivery as well as eBook for download!
Of course, you will receive fully automatic purchase by AZDelivery and also guarantees an invoice including VAT and according to German standards
AZDelivery is a trademark registered with the DPMA (German Trademark and Patent Office). Pursuant to § 14 (2) of the Trademark Act, third parties are prohibited from using this trademark in commercial transactions.
This display is very small with a 3 cm screen diagonal and easy to read thanks to high contrast. The display consists of 128 x 64 OLED pixels, which are individually controlled by the built-in SSD1306 chip.
As the pixels light up, no backlight is required, which has a positive effect on power consumption and gives the display the high contrast.
It is ideal for easy use with microcontrollers such as ATmega, STM32, 8051, AVR, PIC, DSP, ARM, MSP430, PLC,TTL logic. The display is controlled via the I2C interface and requires only 4 ports.
A typical pin assignment on one looks like this:
VCC -> 3.3 V.
GND -> GND
SDA -> A4.
SCL -> A5.
In combination with the two libraries Adafruit GFX and Adafruit SSD1306, which also contain example sketches, the display can be programmed quickly.
Details:
Chipset: SSD1306.
Colour: white.
Visible angle: > 160°.
Resolution: 128 x 64 pixels.
Operating voltage: 3.3 V to 5 V.
Operating temperature: -30°C to +80°C.
Low power consumption: 0.04 W in normal operation.
Control: I2C/TWI
Pin assignment: VCC, GND, SCL, SDA
Dimensions: approx. 27 mm x 27 mm x 4.1 mm.
Package includes:
1 x pre-assembled OLED display as shown.
High quality and fast delivery directly from Germany by ordering from AZ-Delivery as well as eBook for download!
Of course, you will receive fully automatic purchase by AZDelivery and also guarantees an invoice including VAT and according to German standards
AZDelivery is a trademark registered with the DPMA (German Trademark and Patent Office). Pursuant to § 14 (2) of the Trademark Act, third parties are prohibited from using this trademark in commercial transactions.
