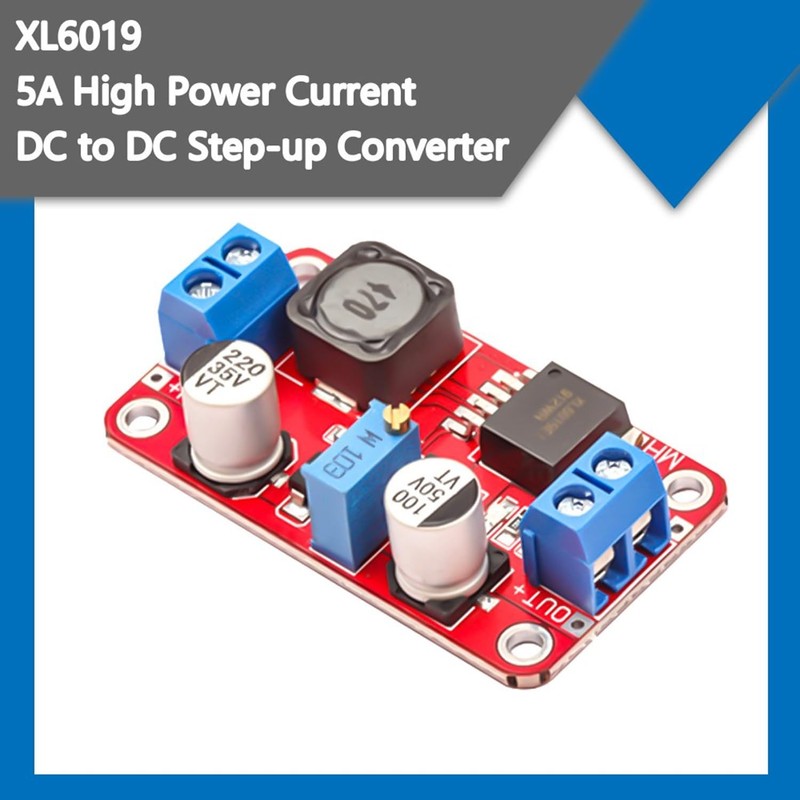

AYMBH XL6019 DC-DC Buck Boost Converter Module 5V 6V 12V 24V to 5-40V 5A Adjustable Voltage Regulator | High Efficiency Step-Up Power Supply Module | Compact Design & Overload Protection
$25.44
- $9.99 shipping from United Kingdom View details
-
Arrives
- 📌👉【WIDE INPUT RANGE】 Accepts input from 3V to 40V; adjustable output voltage from 5V to 40V supports diverse applications.
- 📌👉【HIGH EFFICIENCY】 Achieves conversion efficiencies up to 94%, ensuring minimal energy loss and effective thermal management.
- 📌👉【ADJUSTABLE OUTPUT】 Easily fine-tune output voltage using the blue potentiometer knob; monitor adjustments with a multimeter.
- 📌👉【ADVANCED PROTECTION】 Integrated over-temperature and over-current safeguards provide reliable, worry-free operation.
- 📌👉【COMPACT DESIGN】 Small dimensions (50x28x13mm) make it ideal for portable devices, EPCs, and car adapters.
- 📌👉【ROBUST PERFORMANCE】 Industrial-grade reliability with a wide operating temperature range of -40°C to +85°C.
- 📌👉【MULTI-PURPOSE APPLICATIONS】 Perfect for notebooks, handheld devices, EPCs, and DIY electronics projects.
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- 📌👉【WIDE INPUT RANGE】 Accepts input from 3V to 40V; adjustable output voltage from 5V to 40V supports diverse applications.
- 📌👉【HIGH EFFICIENCY】 Achieves conversion efficiencies up to 94%, ensuring minimal energy loss and effective thermal management.
- 📌👉【ADJUSTABLE OUTPUT】 Easily fine-tune output voltage using the blue potentiometer knob; monitor adjustments with a multimeter.
- 📌👉【ADVANCED PROTECTION】 Integrated over-temperature and over-current safeguards provide reliable, worry-free operation.
- 📌👉【COMPACT DESIGN】 Small dimensions (50x28x13mm) make it ideal for portable devices, EPCs, and car adapters.
- 📌👉【ROBUST PERFORMANCE】 Industrial-grade reliability with a wide operating temperature range of -40°C to +85°C.
- 📌👉【MULTI-PURPOSE APPLICATIONS】 Perfect for notebooks, handheld devices, EPCs, and DIY electronics projects.
𝕬𝖞𝖒𝖇𝖍
📜 𝕯𝖊𝖘𝖈𝖗𝖎𝖕𝖙𝖎𝖔𝖓

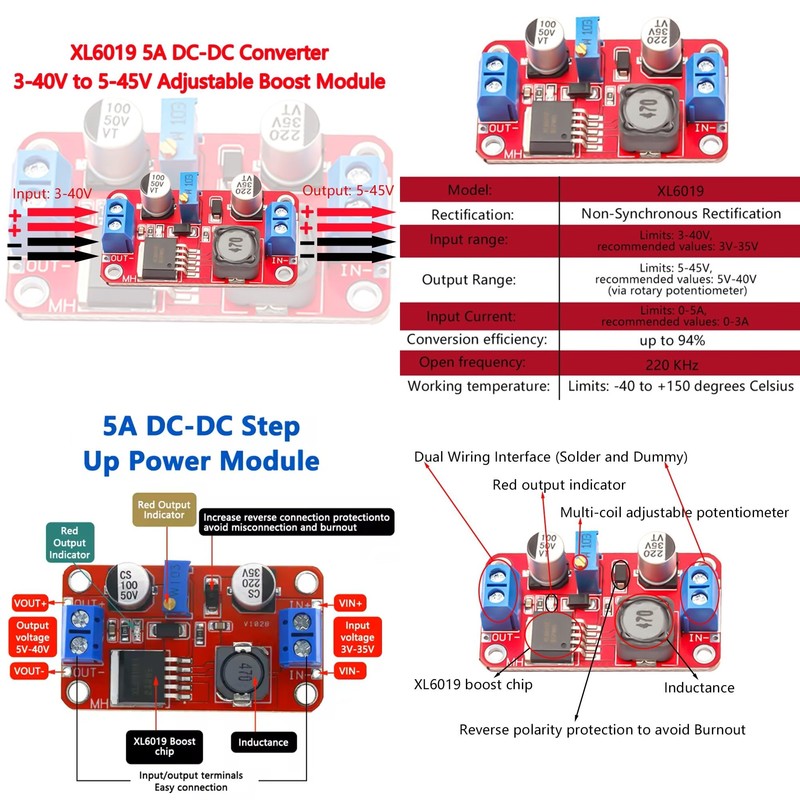

⪻⭐⪼ The XL6019 DC-DC Buck-Boost Converter Module is a versatile and reliable power supply solution designed to meet the needs of various applications. This module features an input voltage range from 3V to 40V and provides an adjustable output voltage from 5V to 40V, supporting up to 5A of current. The XL6019 is equipped with an integrated MOSFET and advanced circuitry that ensures efficient energy transfer with a conversion efficiency of up to 94%.
⪻⭐⪼ Built with reliability in mind, this module includes over-temperature and over-current protection, safeguarding your devices from potential damage. Its compact design (50x28x13mm) makes it perfect for portable devices, EPCs, car adapters, and voltage conversion projects. The adjustable potentiometer allows precise voltage tuning, making it suitable for professional and DIY applications alike.
⪻⭐⪼ Whether you need to power handheld devices, notebooks, or other electronics, the XL6019 module is engineered for performance. Its wide voltage range and built-in protection circuits provide peace of mind while ensuring stable and consistent output. This module is an essential addition to any toolkit for engineers, hobbyists, or anyone requiring dependable DC-DC conversion.
🧮 𝕱𝖊𝖆𝖙𝖚𝖗𝖊𝖘
⪻⭐⪼ Wide Input Voltage Range: Supports input voltages from 3V to 40V, ideal for diverse applications and device compatibility.
⪻⭐⪼ Adjustable Output Voltage: Easily modify the output voltage from 5V to 40V using the built-in potentiometer for precise tuning.
⪻⭐⪼ High Efficiency: Achieves a maximum conversion efficiency of 94%, ensuring minimal energy loss and reduced heat generation.
⪻⭐⪼ Built-in Protection: Includes over-temperature and over-current safeguards for enhanced reliability and safe operation.
⪻⭐⪼ Compact and Lightweight: Measures just 50x28x13mm, making it perfect for portable devices and space-constrained setups.
⪻⭐⪼ Robust Performance: Industrial-grade design ensures operation in temperatures ranging from -40°C to +85°C.
⪻⭐⪼ Multi-Purpose: Suitable for various applications, including handheld devices, EPCs, notebook car adapters, and DIY electronics projects.
⪻⭐⪼ Integrated MOSFET: Features fewer external components for a cost-effective, fully integrated boost solution.

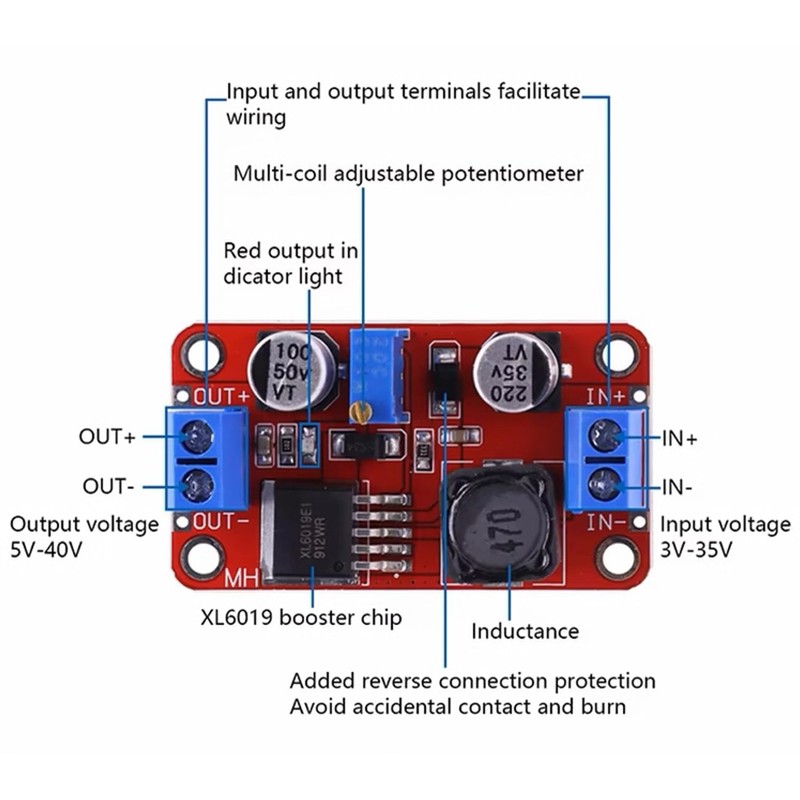

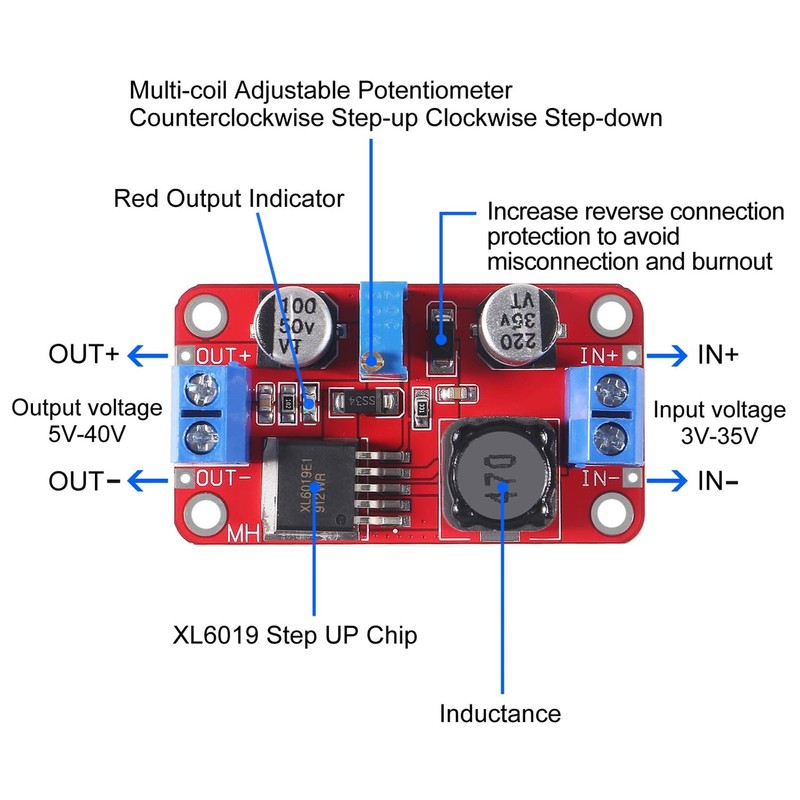

⪻⭐⪼ User-Friendly Adjustment: Blue potentiometer knob enables clockwise and counterclockwise adjustments for boosting or bucking output voltage.
🛠 𝕾𝖕𝖊𝖈𝖎𝖋𝖎𝖈𝖆𝖙𝖎𝖔𝖓
⪻⭐⪼ Input Voltage: 3V to 40V (recommended: 3V to 35V)
⪻⭐⪼ Output Voltage: 5V to 40V (adjustable, maximum 45V)
⪻⭐⪼ Input Current: Maximum 5A (recommended: 0-3A)
⪻⭐⪼ Conversion Efficiency: Up to 94%
⪻⭐⪼ Output Ripple: ≤100mV
⪻⭐⪼ Switching Frequency: 220kHz (Second-generation switching technology)
⪻⭐⪼ Voltage Regulation: ±0.5%
⪻⭐⪼ Load Regulation: ±0.5%
⪻⭐⪼ Operating Temperature: -40°C to +85°C (recommended: -20°C to +85°C)
⪻⭐⪼ Reverse Connection Protection: Yes, up to 40V

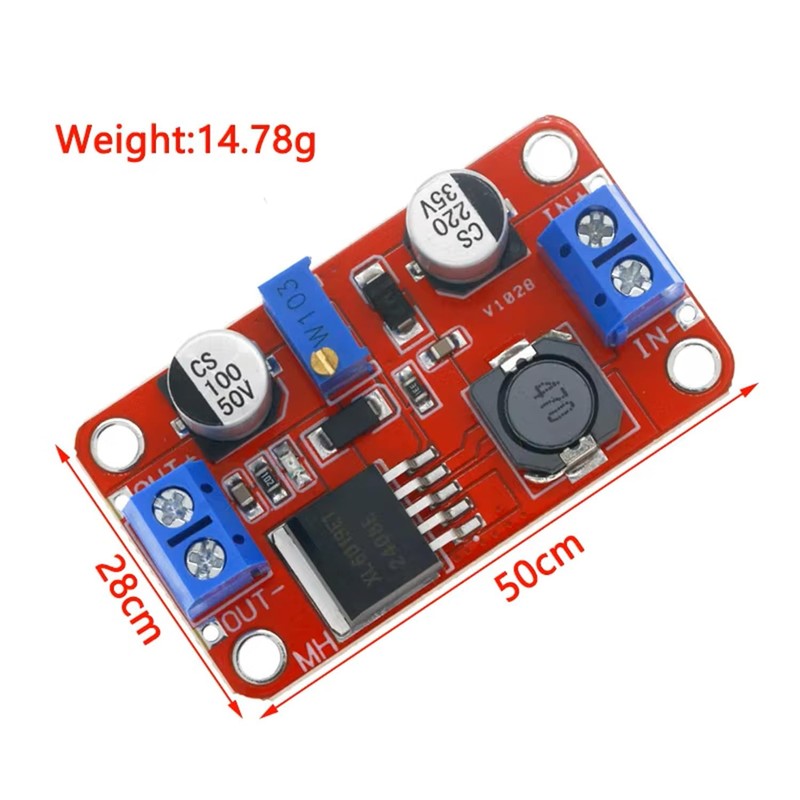

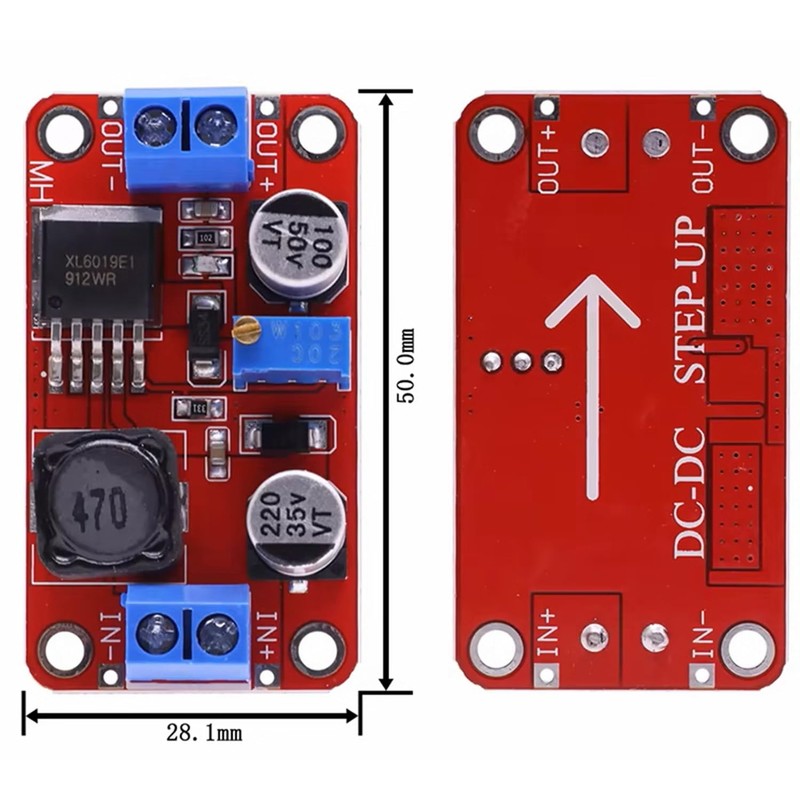

⪻⭐⪼ Dimensions: 50x28x13mm (L x W x H)
⪻⭐⪼ Applications: EPCs, notebook car adapters, voltage conversion, handheld devices, and more
🛒 𝕭𝖔𝖝 𝕴𝖓𝖈𝖑𝖚𝖉𝖊𝖘
⪻⭐⪼ 1 x XL6019 5A High Power Current DC to DC Step-up 5V 6V 12V 24V 3-35V to 5-40V XL6019 Converter Adjustable Voltage Regulator Power Module
📝 𝕹𝖔𝖙𝖊𝖘
⪻⭐⪼ Correct Wiring: Ensure proper polarity connections—input and output terminals must not be reversed to avoid damage.
⪻⭐⪼ Voltage Adjustment: Use a multimeter to monitor and adjust the output voltage by rotating the blue potentiometer. Turn counterclockwise to boost voltage and clockwise to buck voltage.
⪻⭐⪼ Maximum Ratings: Do not exceed the input voltage limit of 40V or the maximum output voltage of 45V to maintain safe operation.
⪻⭐⪼ Heat Management: For prolonged use under high load, consider adding external cooling solutions to maintain thermal stability.
⪻⭐⪼ Measurement Variance: Allow for slight dimensional differences (1-2mm) due to manual measurement.
⪻⭐⪼ Device Color: Actual product colour may vary slightly due to monitor and lighting differences.
⪻⭐⪼ Applications: Ideal for DIY enthusiasts and professionals working on power supplies, voltage conversion, and portable electronics.
