AV Access 4K HDBaseT HDMI Extender, 70m/230ft HDMI Extender Over Single Cat6/6a/7 with 2-Way IR, CEC, PoE & RS232, EDID, HDCP 2.2
$270.53
- $14.50 shipping from Canada View details
-
Arrives
- 【4K@60Hz 4:2:0 8bit HDR】This HDBT HDMI Extender transmits uncompressed 4K@60Hz HDMI signal up to 40m/130ft, and 1080P@60hz up to 70m/230ft over a single Cat 6a/7 cable. Also supports Dolby Atmos, DTS:X, Dolby True-HD, DTS-HD Master, LPCM 2.1/5.1/7.1 CH.

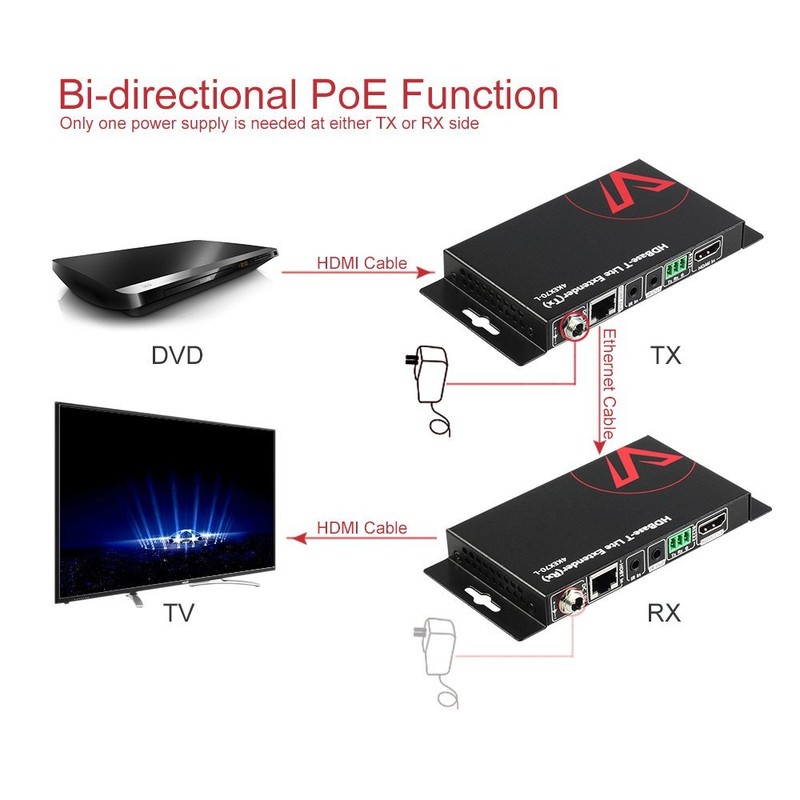

- 【Multi-Functional HDBaseT Extender】AV Access HDBT HDMI Extender supports bi-directional PoE, IR, CEC and RS232, as well as automatic EDID management. HDMI 1.4/HDCP 2.2 compliant with HDR (4K@60hz 4:2:0 chroma subsampling only). The extender is not HDMI 2.0 compliant.

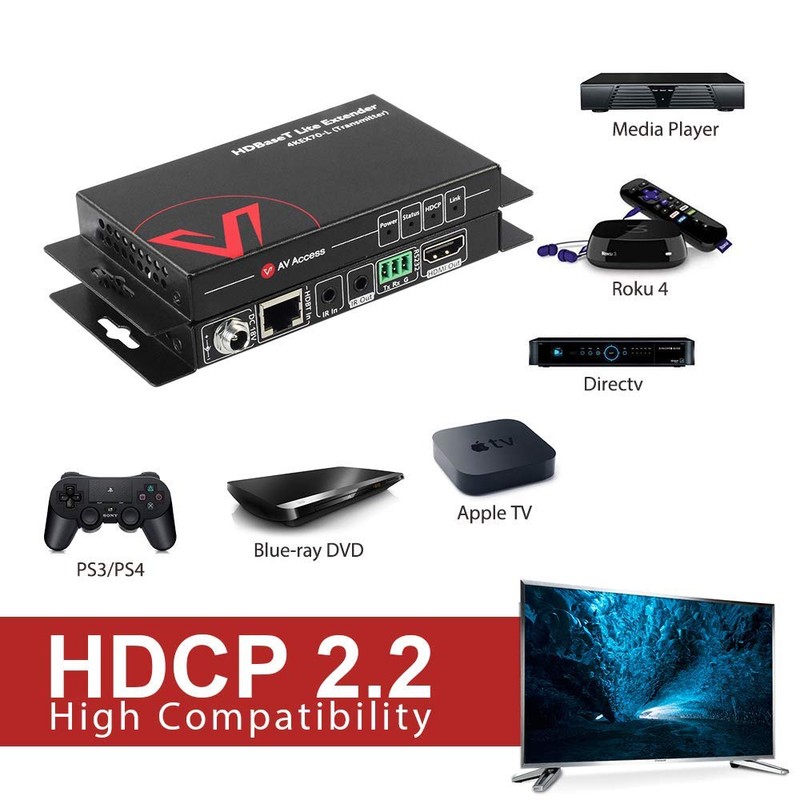

- 【Plug & Play, Excellent Compatibility】the HDMI Extender works perfectly with PCs, game consoles and most HDMI display devices. No software or driver is required; just plug and play.
- 【Slim Appearance & Wide Applications】Compact and space-saving, as small as a smartphone. Ideal for digital signage, home theater, boardroom, classroom, meeting room, and any other locations requiring long-distance HDMI signal extension.
- 【3 Years Free Replacement Warranty】3-Year-Warranty and Life-Time customer service. AV Access HDBT Extender is certificated by FCC and CE. It provides built-in Surge/ Lightning Protection and superior ESD Protection: +/- 8KV (Air-gap discharge) +/- 4KV (contact discharge) to prevent thunder strikes.
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- 【4K@60Hz 4:2:0 8bit HDR】This HDBT HDMI Extender transmits uncompressed 4K@60Hz HDMI signal up to 40m/130ft, and 1080P@60hz up to 70m/230ft over a single Cat 6a/7 cable. Also supports Dolby Atmos, DTS:X, Dolby True-HD, DTS-HD Master, LPCM 2.1/5.1/7.1 CH.
- 【Multi-Functional HDBaseT Extender】AV Access HDBT HDMI Extender supports bi-directional PoE, IR, CEC and RS232, as well as automatic EDID management. HDMI 1.4/HDCP 2.2 compliant with HDR (4K@60hz 4:2:0 chroma subsampling only). The extender is not HDMI 2.0 compliant.
- 【Plug & Play, Excellent Compatibility】the HDMI Extender works perfectly with PCs, game consoles and most HDMI display devices. No software or driver is required; just plug and play.
- 【Slim Appearance & Wide Applications】Compact and space-saving, as small as a smartphone. Ideal for digital signage, home theater, boardroom, classroom, meeting room, and any other locations requiring long-distance HDMI signal extension.
- 【3 Years Free Replacement Warranty】3-Year-Warranty and Life-Time customer service. AV Access HDBT Extender is certificated by FCC and CE. It provides built-in Surge/ Lightning Protection and superior ESD Protection: +/- 8KV (Air-gap discharge) +/- 4KV (contact discharge) to prevent thunder strikes.
Product Dimension (WxHxD) 145mmx25mmx77mm
Power Supply DC18V 1A
Power Consumption11W
Input 1x HDMI 1.4(TX), 1x HDBT 1.0(RX)
Input Resolution 4960x2160@24/25/30/60Hz, 3840x2160@24/25/30Hz,1080p
Output 1xHDBT (TX), 1xHDMI(RX)
Output Resolution 4960x2160@24/25/30/60Hz,3840x2160@24/25/30Hz,1080p
Transmission Distance
Cat 6a/7: 3840x2160@60Hz 4:2:0 8bit max.40m(130ft)
Cat 6a/7: 1920x1080p@60Hz max.70m (230ft)
Audio Format Stereo,LPCM,Dolby DTS-HD

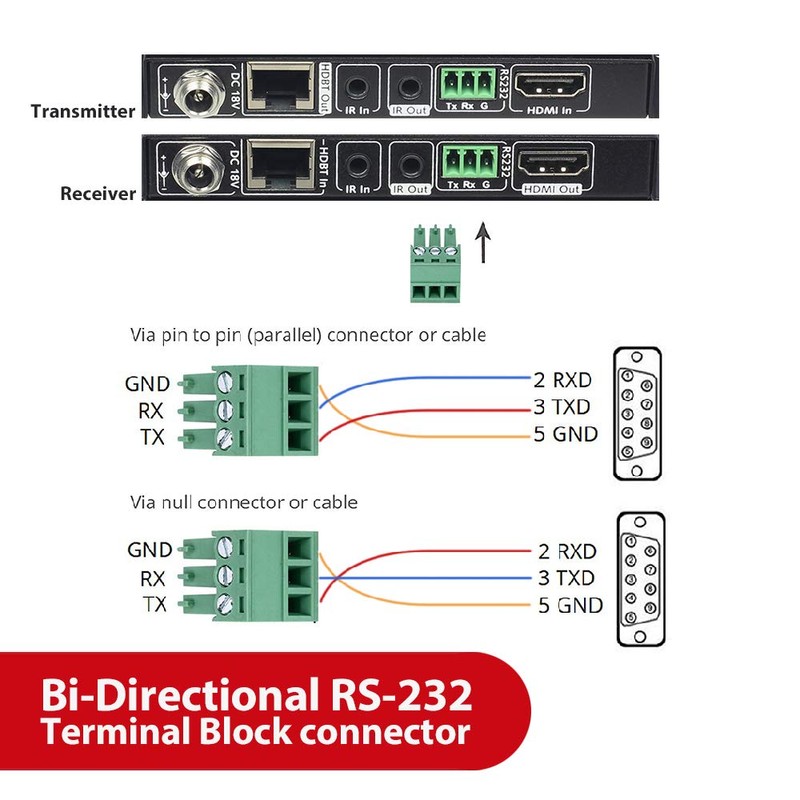

Control method Bi-directional IR+RS232 pass through

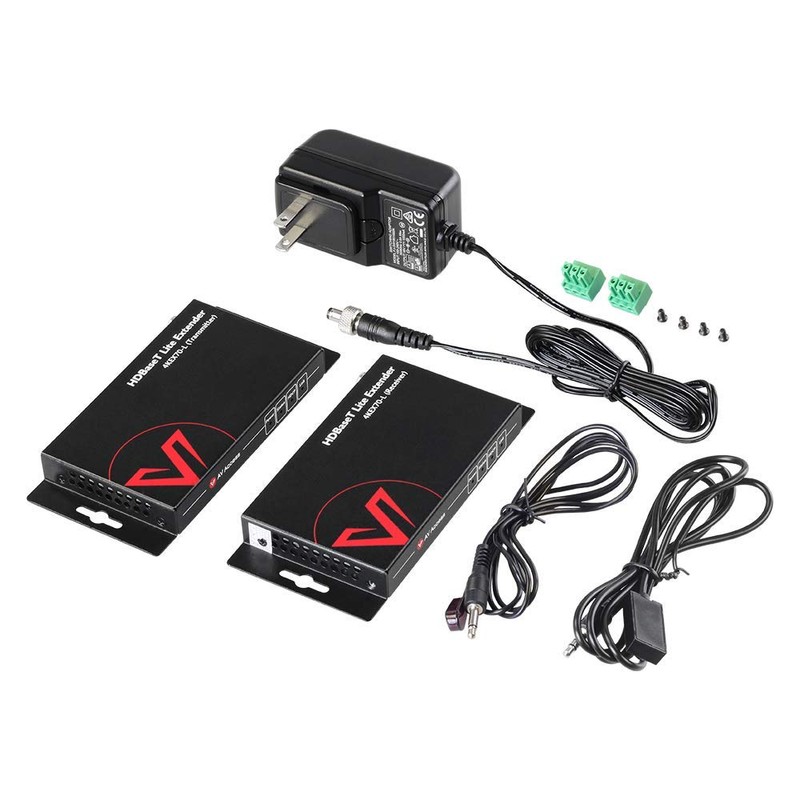

Package：

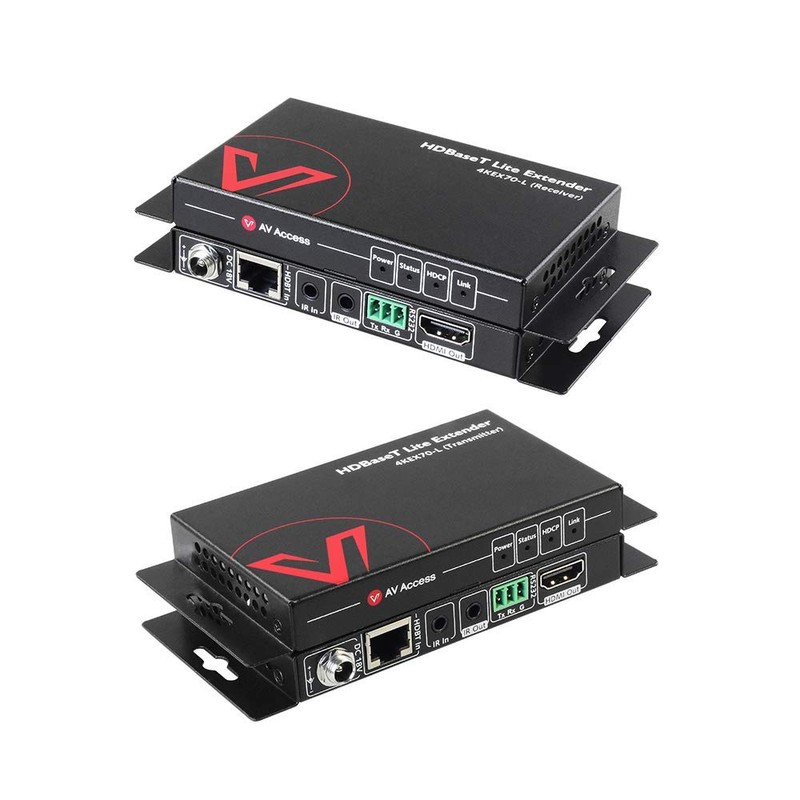

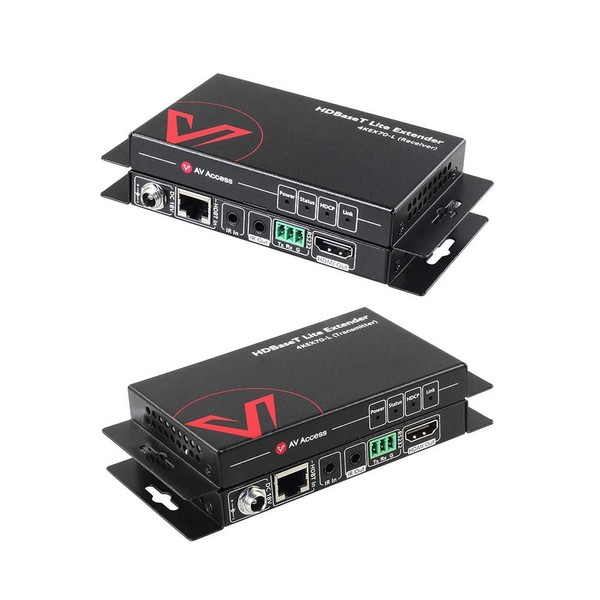

1xTransmitter 70TX
1xReceiver 70RX
1xUser Manual
1xPower Supply
1xIR Emitter cable
1xIR Receiver cable(30KHz-50KHz)
Troubleshooting
1.POWER:Make sure all devices are powered on.
2.INDICATOR:Make sure LED indicators of transmitter and receiver are normal.
3.DEVICES:Make sure picture can be shown normally when connecting source to display devices directly.
4.CABLE:Try to plug in and out HDMI/ CatX cable or change another HDMI/ CatX cable.
4-1 Cat 5e/ 6/ 6a/7 cable is recommended, do not use Cat5 cable.
4-2 Make sure CATx cables is less than 230ft for 1080p, 130ft for 4K resolution.
4-3 Make sure the two connectors of one CATx cable are same standard (EIA/TIA 568B).
5.COMPATIBILITY:Please test other source and display devices to determine whether it is a compatibility issue.
6.IR Cable:When control DVD at TV side by DVD remote controller.
6-1 Plug IR emitter to extender transmitter IR out; Stick IR emitter connector at DVD IR window center
6-2 Plug IR receiver to extender receiver IR in; Stick IR receiver connector near TV and DVD remote controller.
