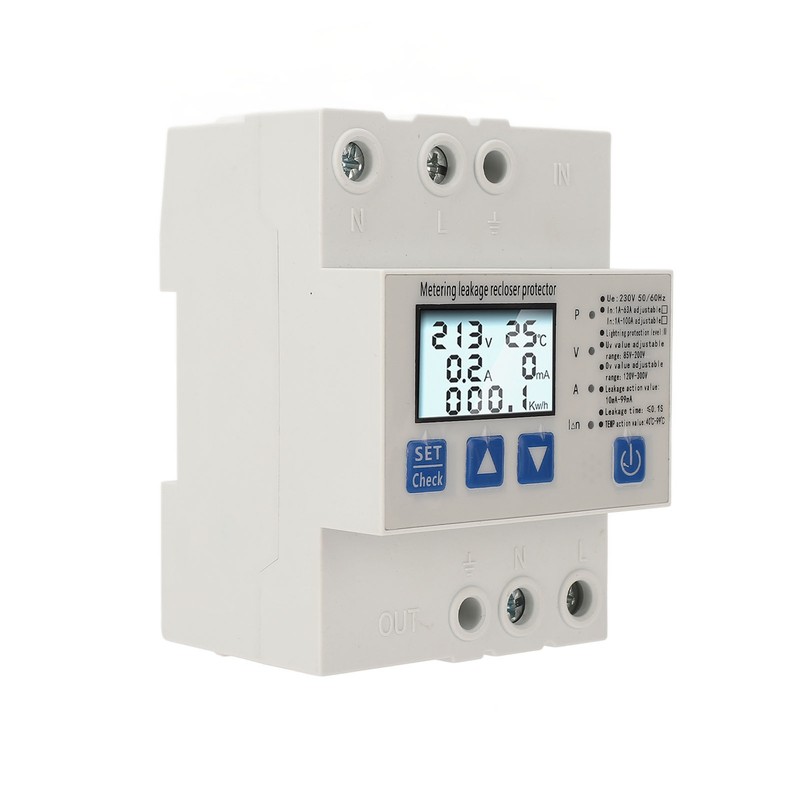

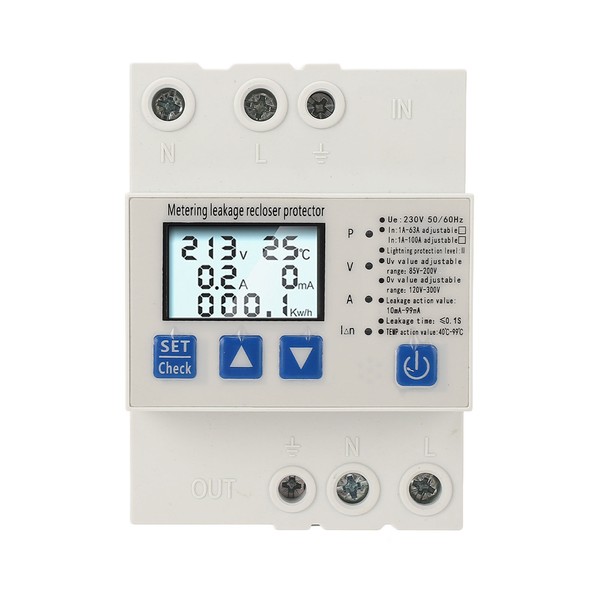

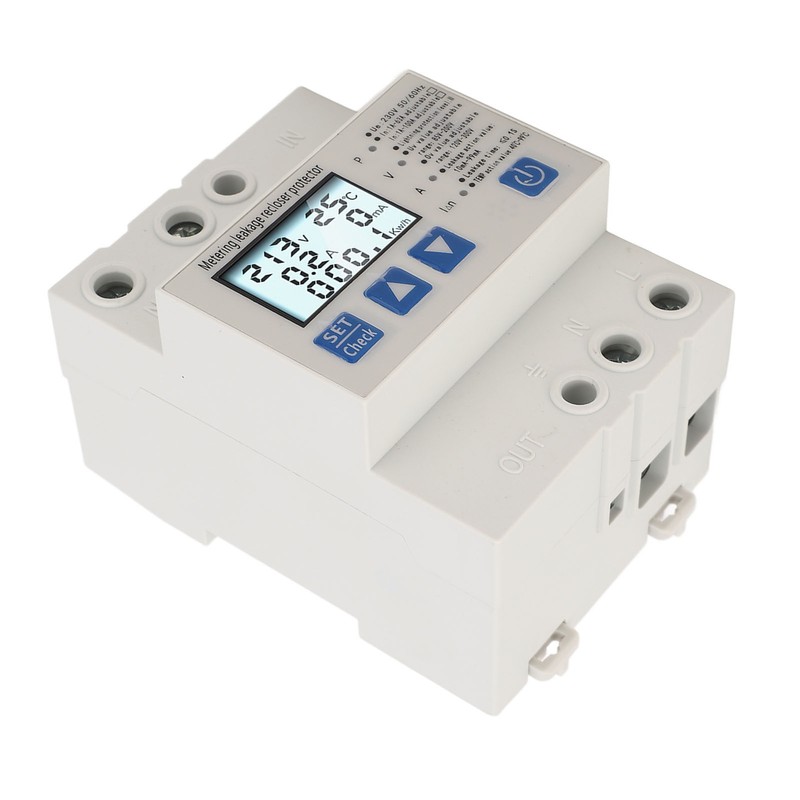

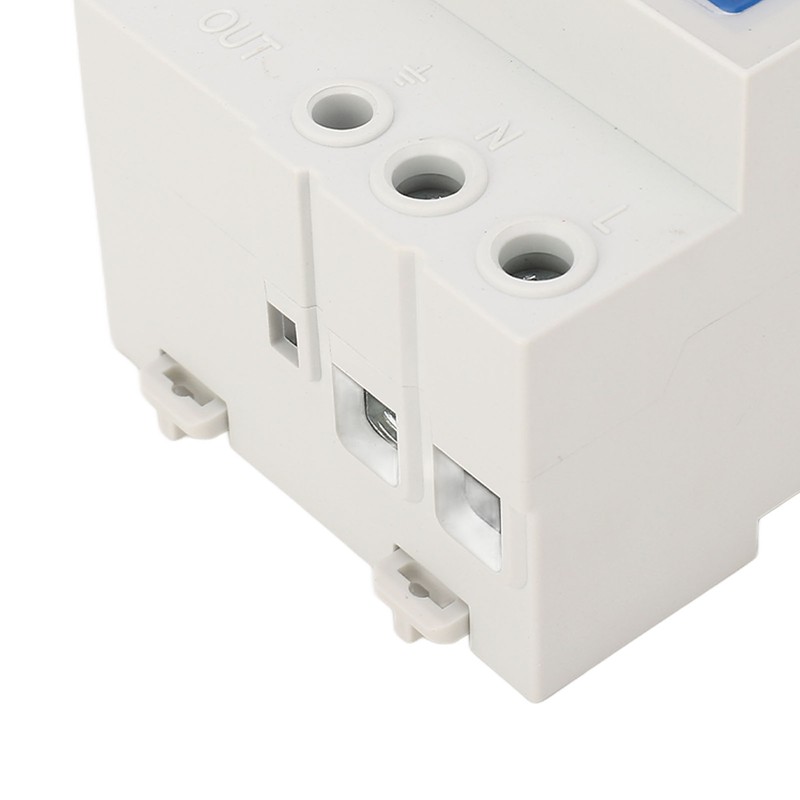

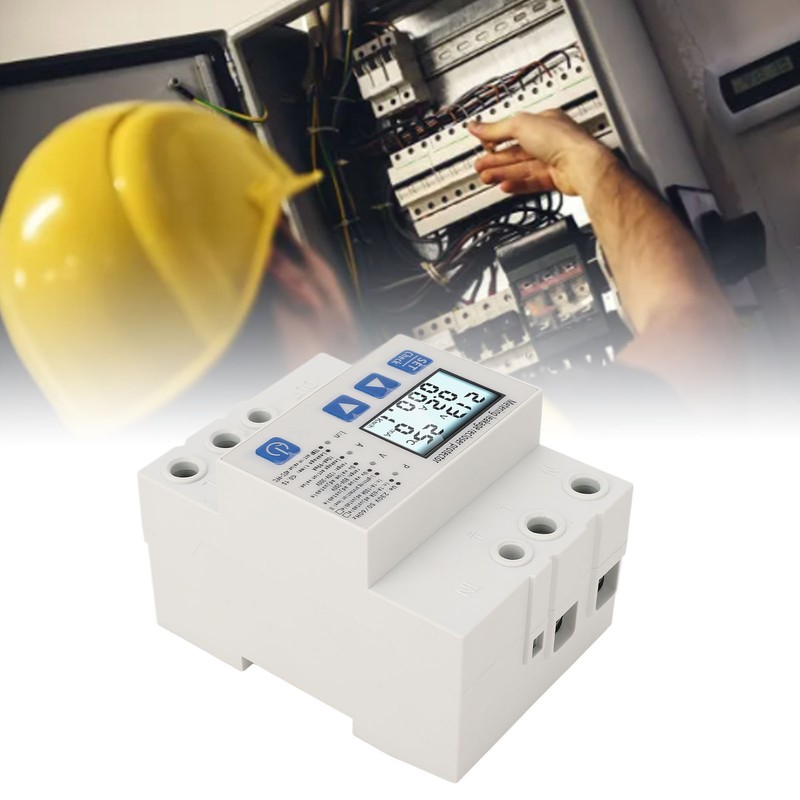

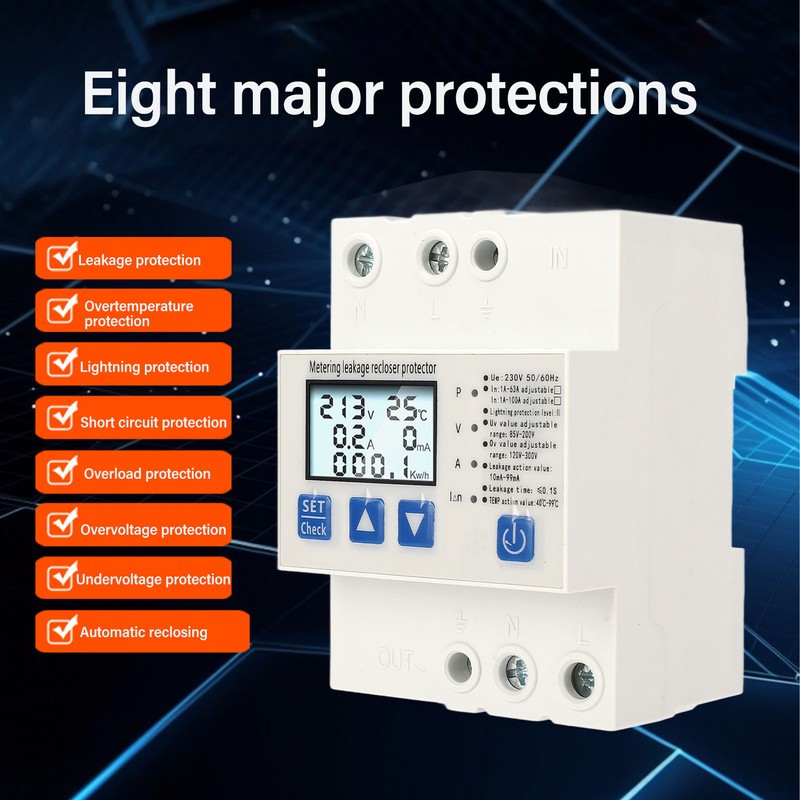

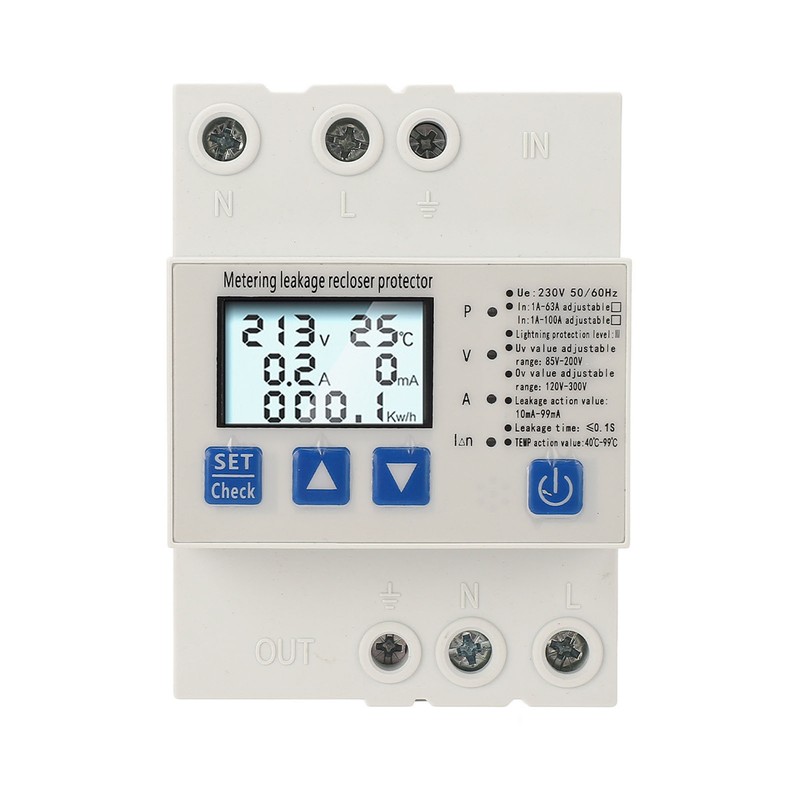

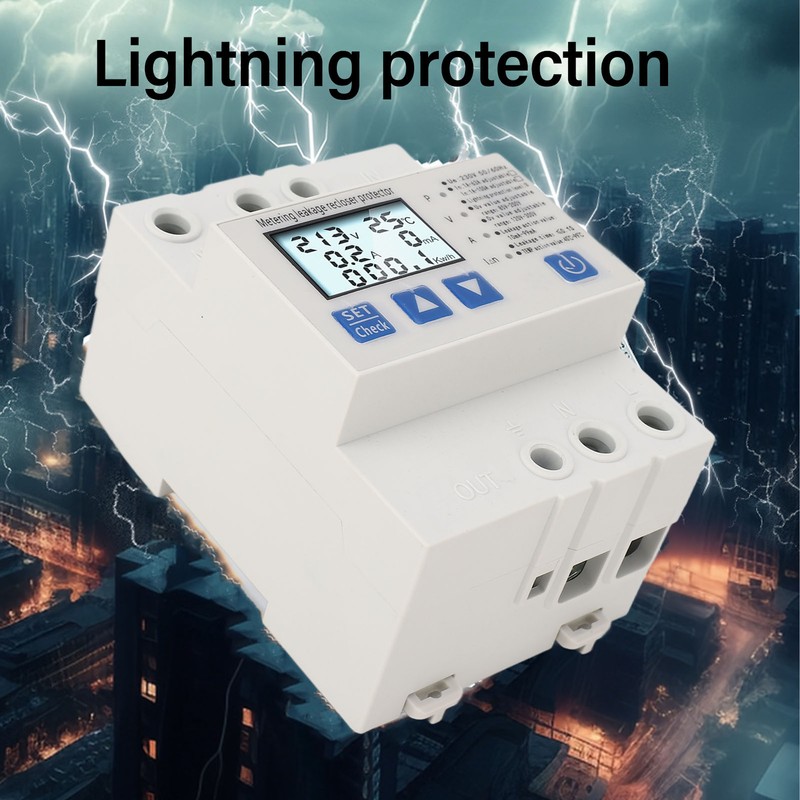

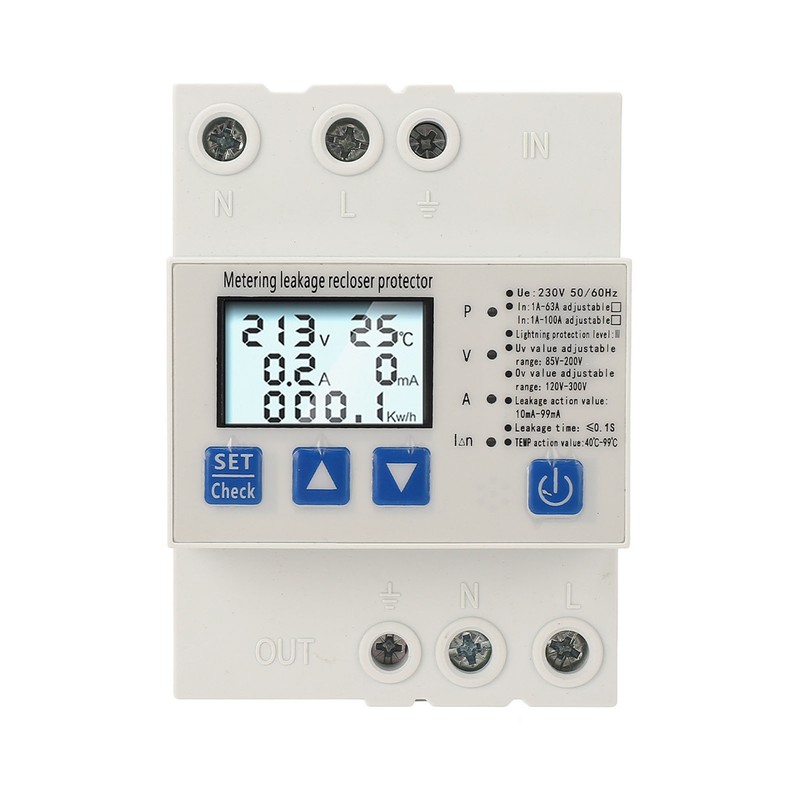

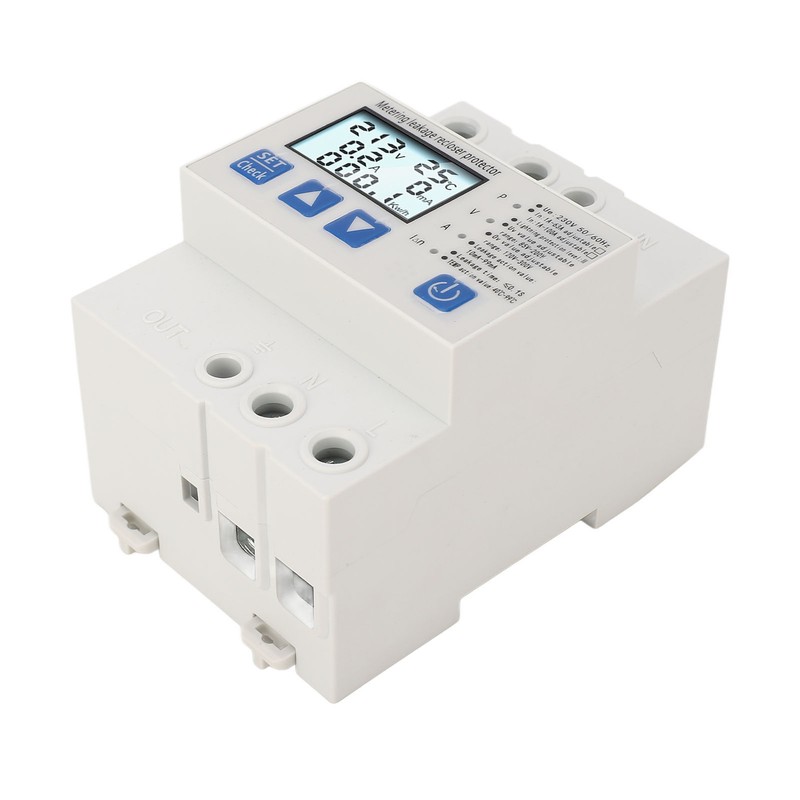

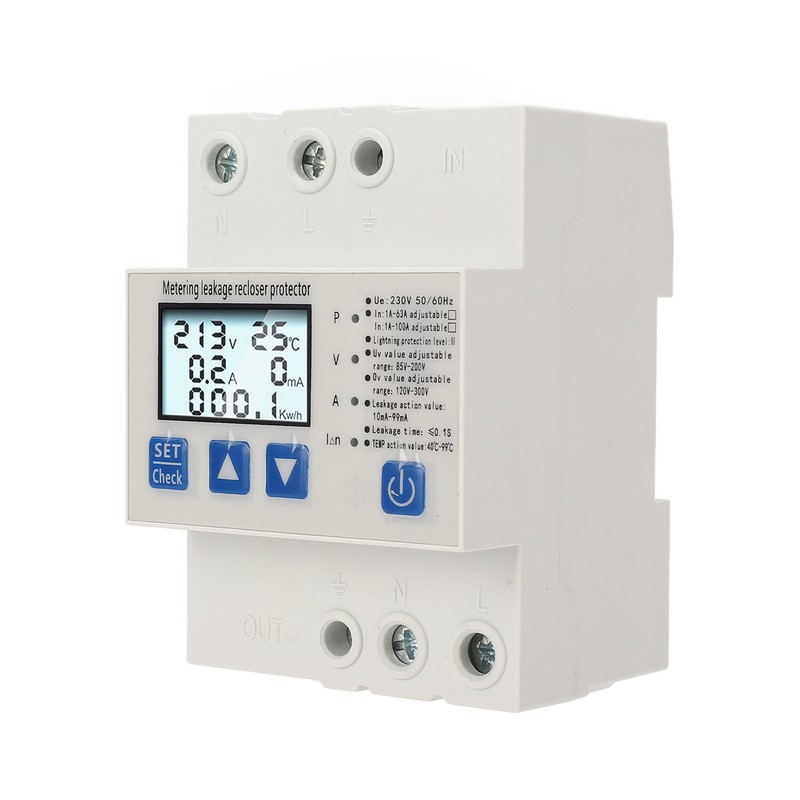

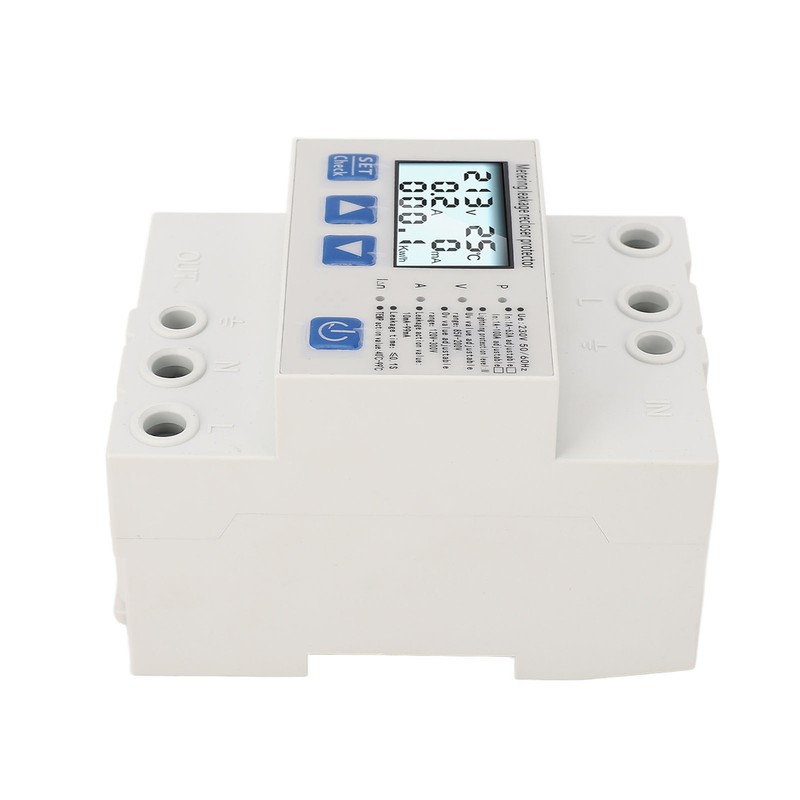

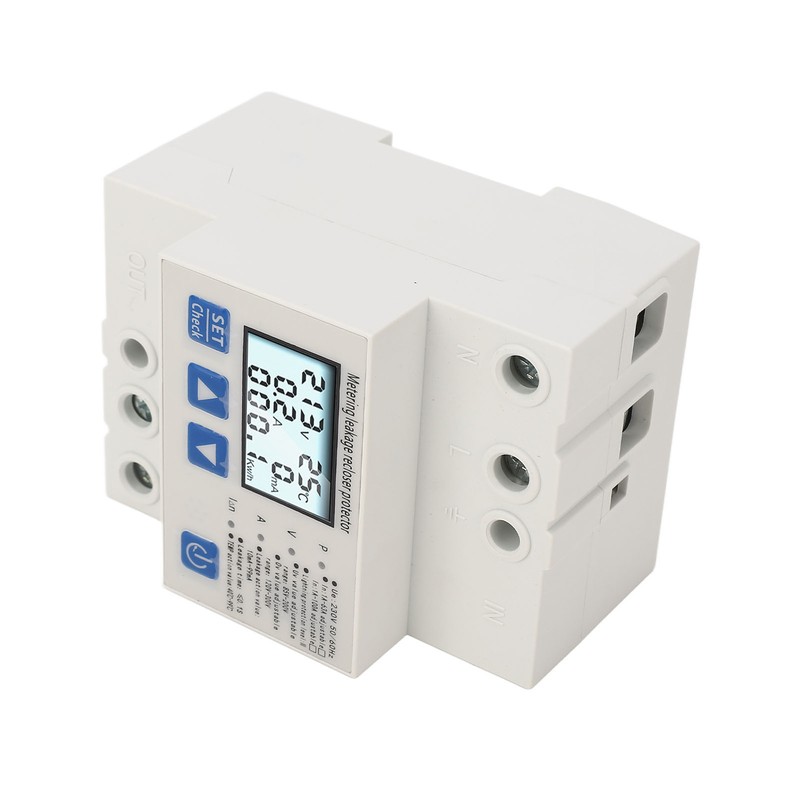

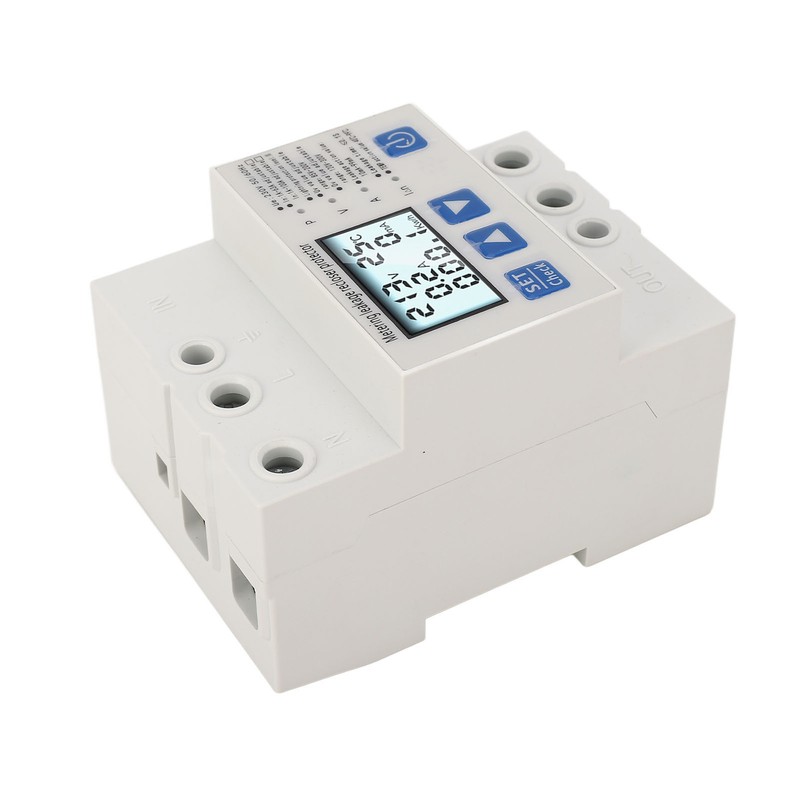

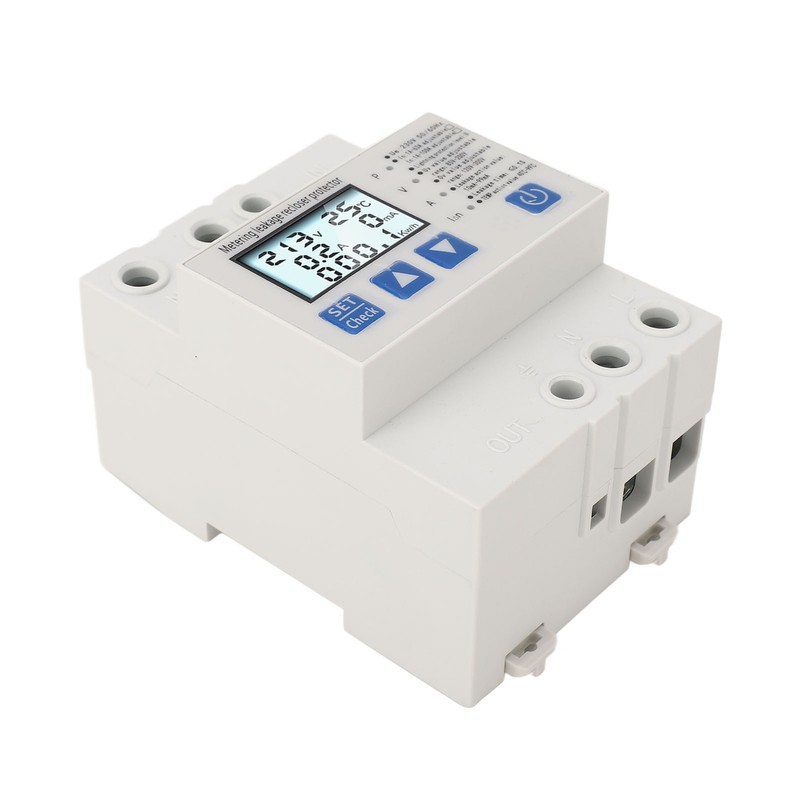

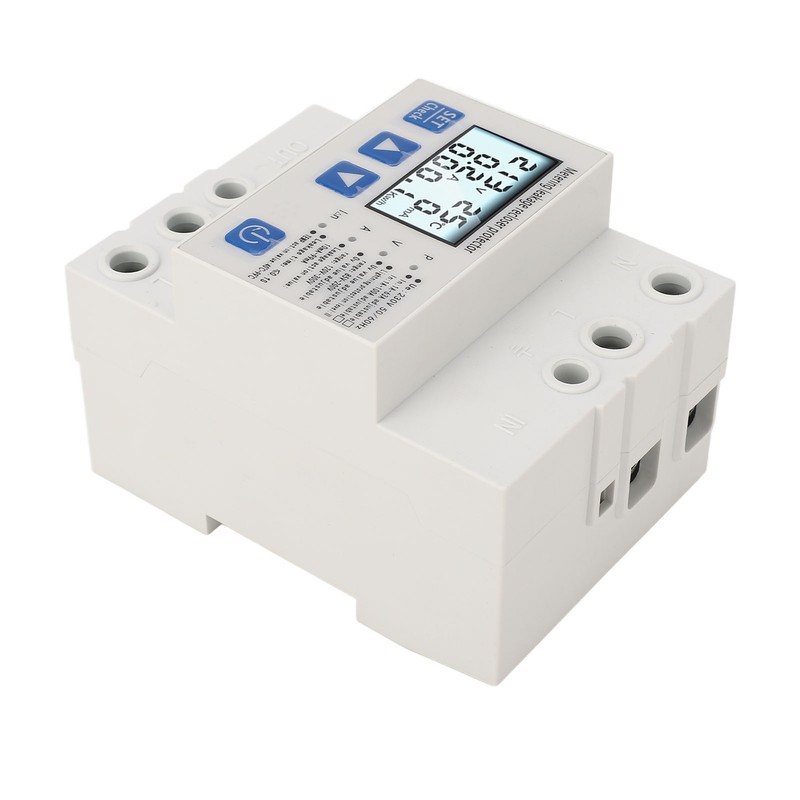

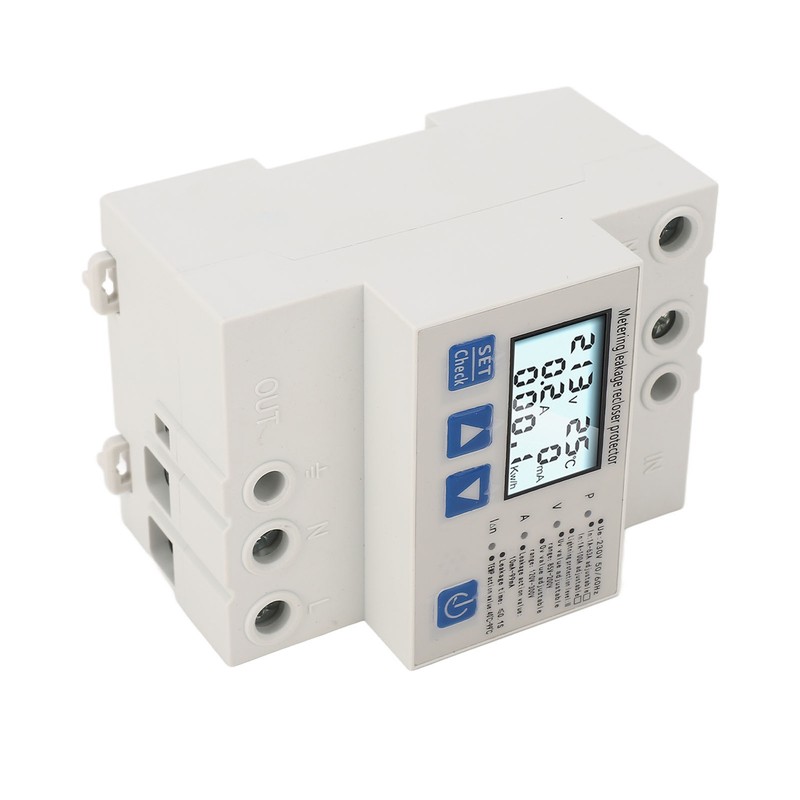

Automatic Self Recovery Power Overvoltage Protector Over Under Voltage Protective Device AC230V 1A‑63A
$45.24
- $9.99 shipping from United States View details
-
Arrives

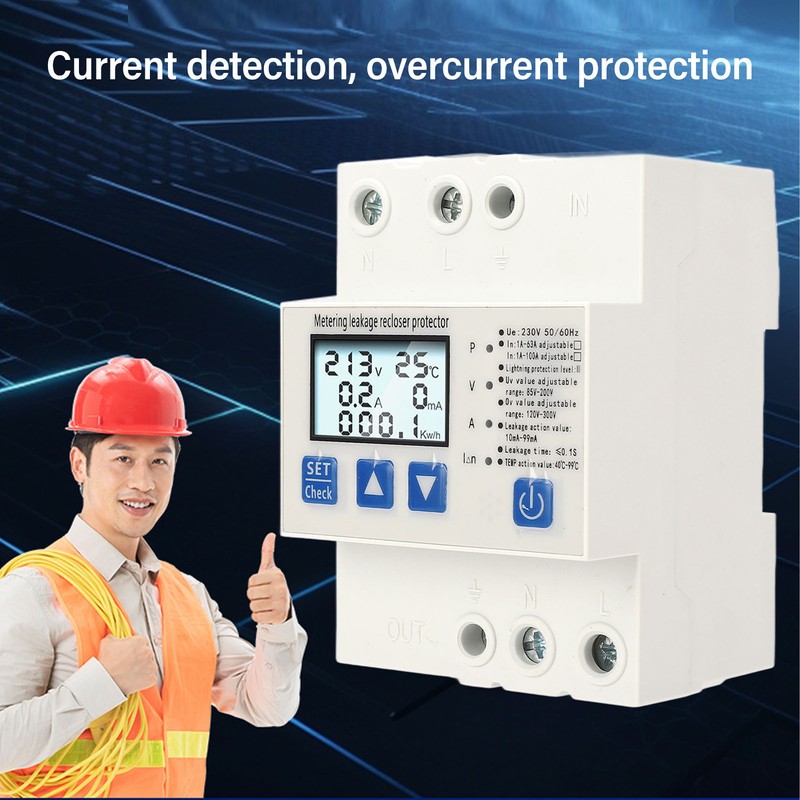

1、Voltage Monitoring: Over and under voltage protector realtime monitoring of over and under voltage, when the voltage is unstable, higher than the set value or set value, the protector will trip in 2 seconds for protecting. 2、Current Monitoring: Over and under voltage protector line current realtime monitoring, overcurrent protection, realtime monitoring of load current and power after connection, when the load current is greater than the set value, the protector trips for protection. 3、Leakage Protection: Overvoltage protector in the line leakage current, realtime monitoring, automatic and accurate monitoring of the current leakage current in the line after the device is connected, if more than the set leakage current, the device cuts off the power supply within 0.1 seconds. 4、Adjustable Parameters: All the protections of over under voltage protector can be adjusted, over voltage, under voltage, overload, leakage, over temperature, overload delay, the number of reclosing times can be adjusted by itself. 5、Lightning Protection: The under voltage protector can direct the surge current generated by the line to the earth when lightning strikes, and the equipment has a lightning protection levels of 10KA to prevent the equipment at the load end from being damaged. 6、Automatic Reclosing: The over under voltage protector can automatically split the gate and close the gate, after the protector alarm trips, after a certain time interval (the first 30S, the second 300S, the 3rd to 50th 600S), after detecting the fault discharged automatically reclosing the power.
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
1、Voltage Monitoring: Over and under voltage protector realtime monitoring of over and under voltage, when the voltage is unstable, higher than the set value or set value, the protector will trip in 2 seconds for protecting. 2、Current Monitoring: Over and under voltage protector line current realtime monitoring, overcurrent protection, realtime monitoring of load current and power after connection, when the load current is greater than the set value, the protector trips for protection. 3、Leakage Protection: Overvoltage protector in the line leakage current, realtime monitoring, automatic and accurate monitoring of the current leakage current in the line after the device is connected, if more than the set leakage current, the device cuts off the power supply within 0.1 seconds. 4、Adjustable Parameters: All the protections of over under voltage protector can be adjusted, over voltage, under voltage, overload, leakage, over temperature, overload delay, the number of reclosing times can be adjusted by itself. 5、Lightning Protection: The under voltage protector can direct the surge current generated by the line to the earth when lightning strikes, and the equipment has a lightning protection levels of 10KA to prevent the equipment at the load end from being damaged. 6、Automatic Reclosing: The over under voltage protector can automatically split the gate and close the gate, after the protector alarm trips, after a certain time interval (the first 30S, the second 300S, the 3rd to 50th 600S), after detecting the fault discharged automatically reclosing the power.
1、Voltage Monitoring: Over and under voltage protector realtime monitoring of over and under voltage, when the voltage is unstable, higher than the set value or set value, the protector will trip in 2 seconds for protecting. 2、Current Monitoring: Over and under voltage protector line current realtime monitoring, overcurrent protection, realtime monitoring of load current and power after connection, when the load current is greater than the set value, the protector trips for protection. 3、Leakage Protection: Overvoltage protector in the line leakage current, realtime monitoring, automatic and accurate monitoring of the current leakage current in the line after the device is connected, if more than the set leakage current, the device cuts off the power supply within 0.1 seconds. 4、Adjustable Parameters: All the protections of over under voltage protector can be adjusted, over voltage, under voltage, overload, leakage, over temperature, overload delay, the number of reclosing times can be adjusted by itself. 5、Lightning Protection: The under voltage protector can direct the surge current generated by the line to the earth when lightning strikes, and the equipment has a lightning protection levels of 10KA to prevent the equipment at the load end from being damaged. 6、Automatic Reclosing: The over under voltage protector can automatically split the gate and close the gate, after the protector alarm trips, after a certain time interval (the first 30S, the second 300S, the 3rd to 50th 600S), after detecting the fault discharged automatically reclosing the power.
More Information
Item Type: Self Recovery Over Under Voltage Power Protector
Material: PC flame retardant
Rated Voltage: AC230V 50 60Hz
Rated Current In: 1A-63A adjusting
Measurement Accuracy: Grade 1
Lightning Protection Levels: 3
Life: Electrical life switch 100000 times
Power Consumption: Less than 3W
Operating Voltage Range: AC85V-265V
Adjustable Range of Undervoltage Value: 85V-200V
Overvoltage Value Adjustable Range: 120V-300V
Leakage Action Value: 10mA-99mA adjusting
Leakage Action Time: ≤0.1S
Temperature Action Value: 40℃-99℃
Maximum Rated Output Current: 63A

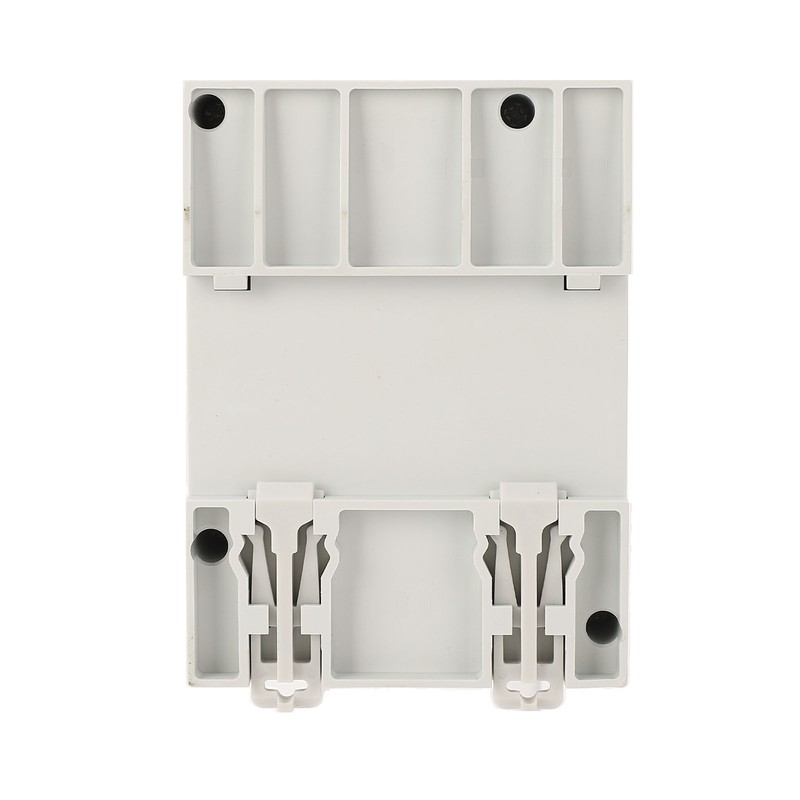

Installation: 35x7.5mm Standard Guide Rail
