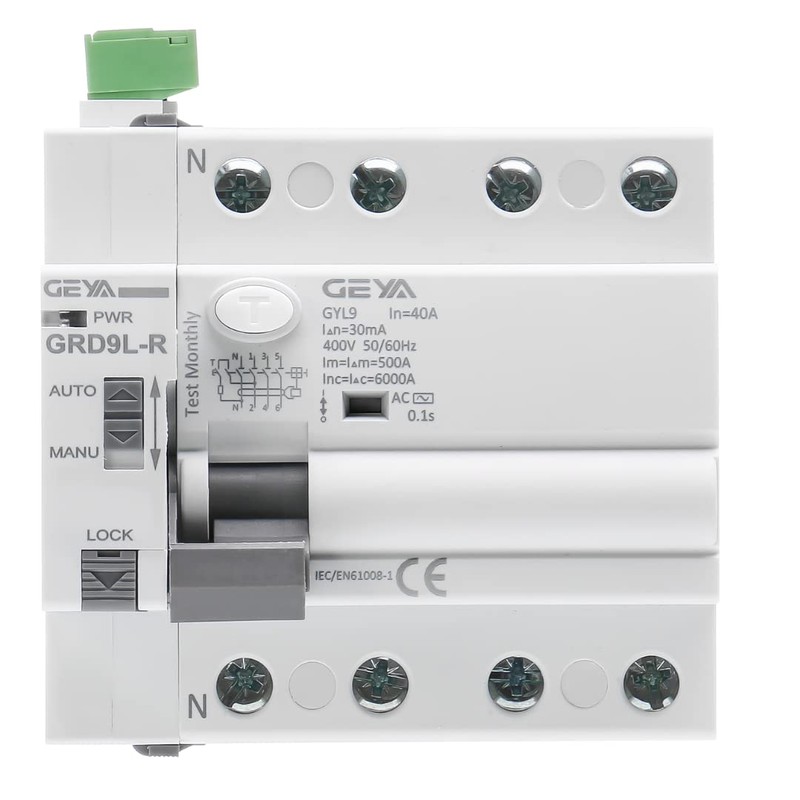

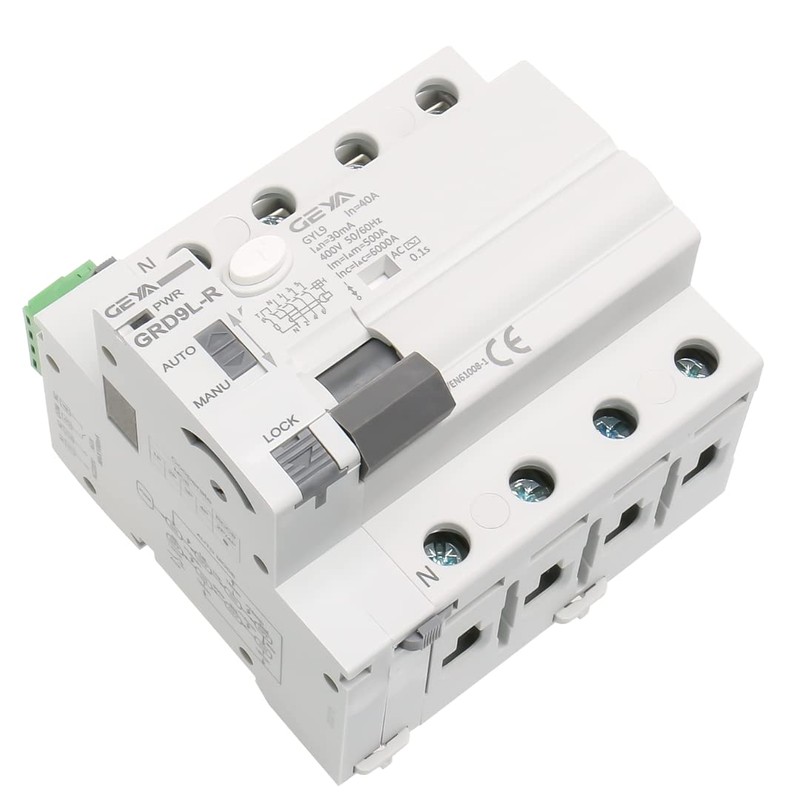

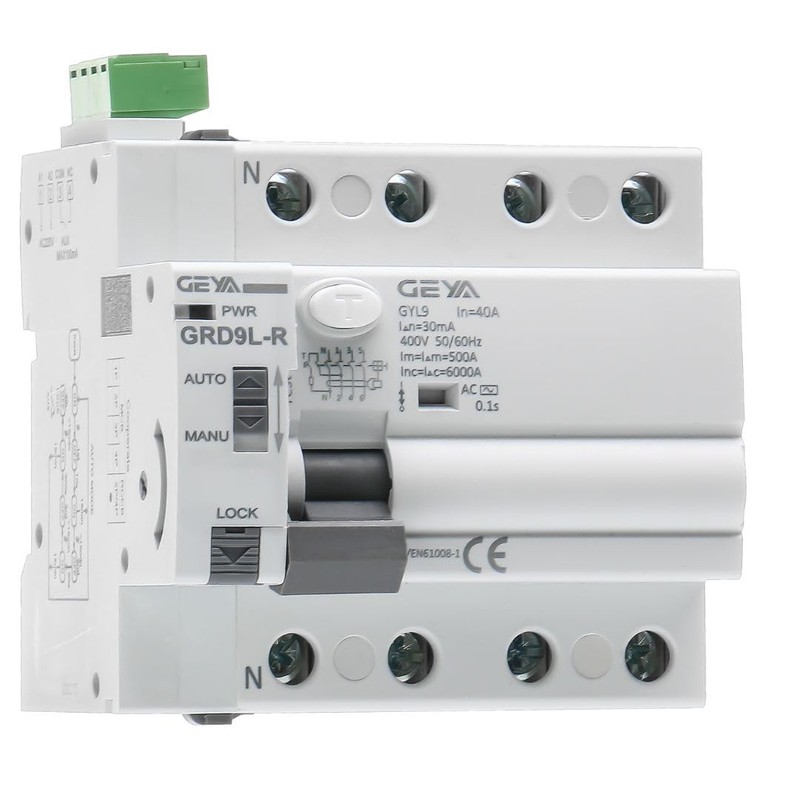

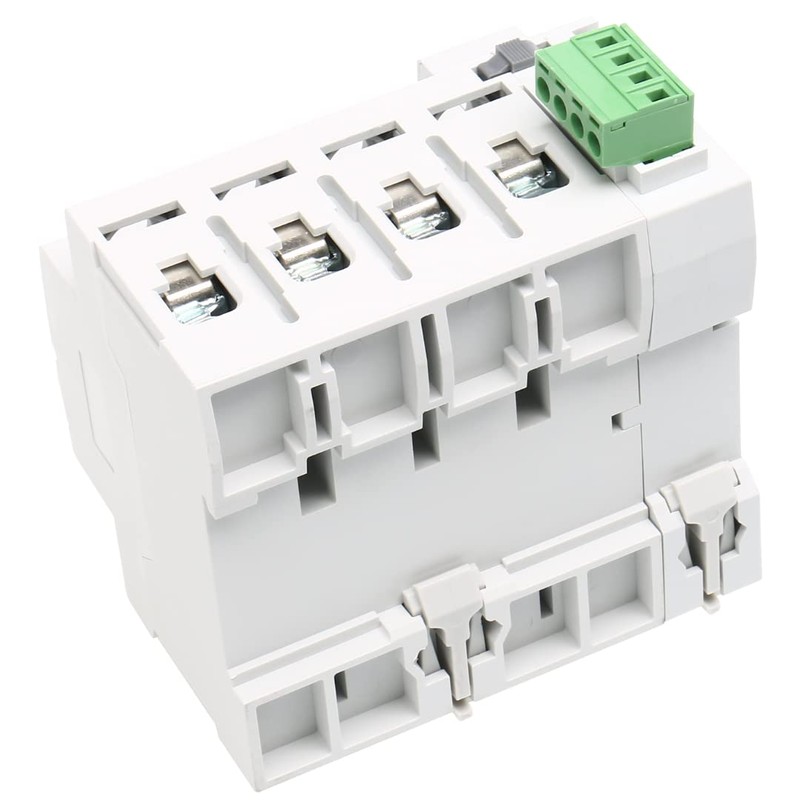

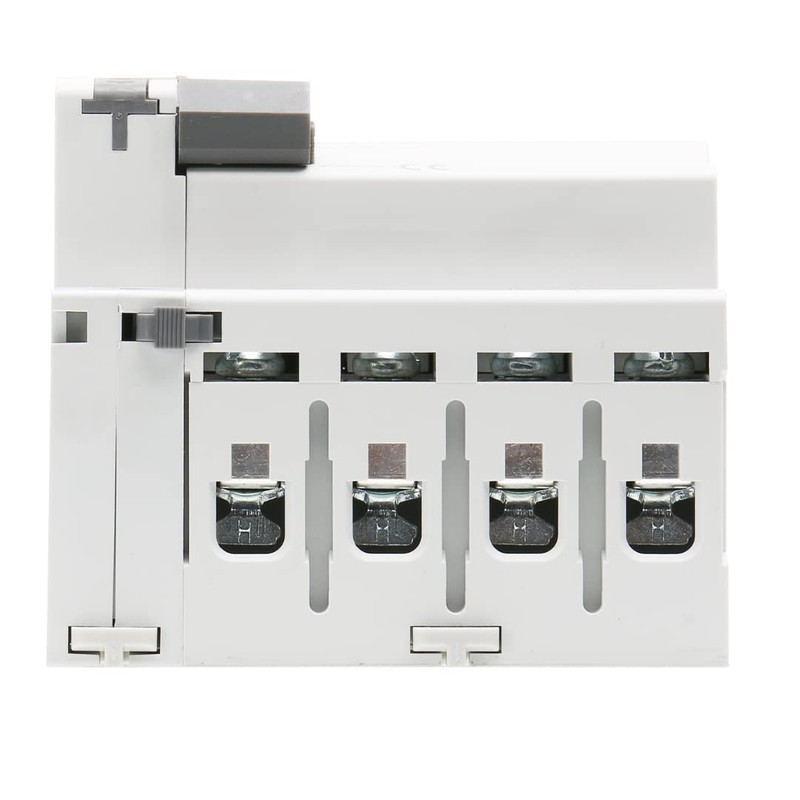

Automatic 3 Phase Auto Reconnect Differential Switch 4P 40A 30mA 6KA Class AC Differential Auto Recovery DIN Rail RCCB
Product Overview

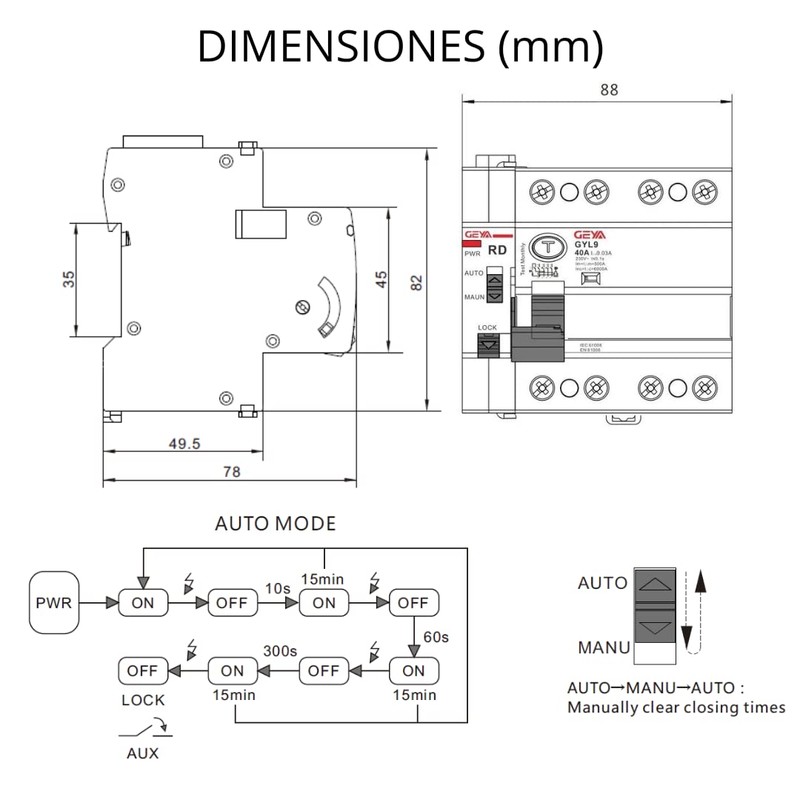

- 3 Recovery Attempts When the light goes out and the differential jumps, it makes 3 recovery attempts, usually in time intervals of 10 seconds after cutting, then after 60 seconds and one after 300 seconds. If you fail to repair the differential after the three attempts, this is considered an electrical problem and do not try again. To unlock the rearmament, the AUTO-MANU tab must be raised and lowered twice in a row.

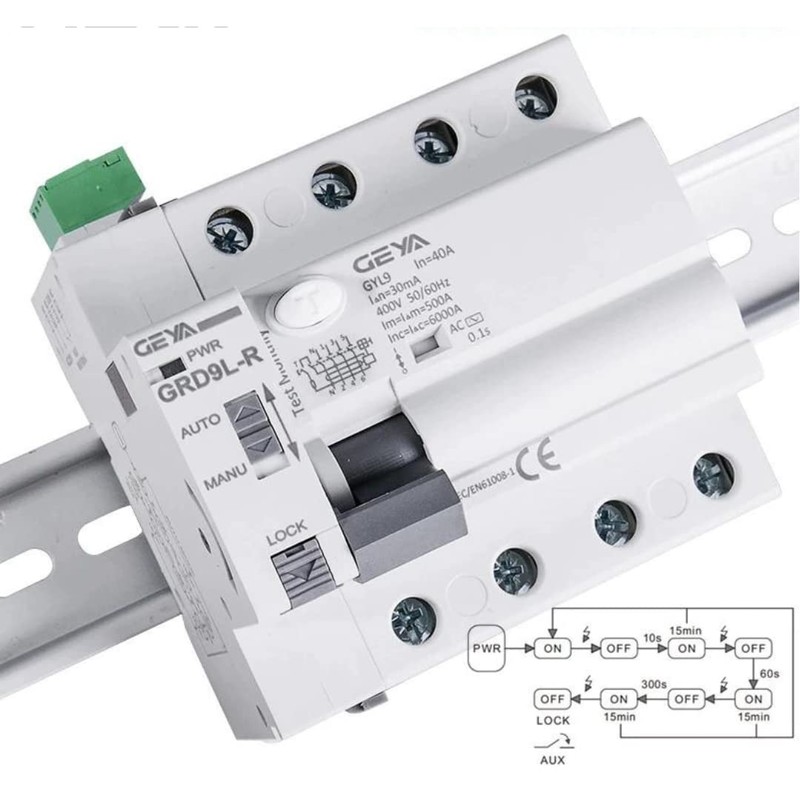

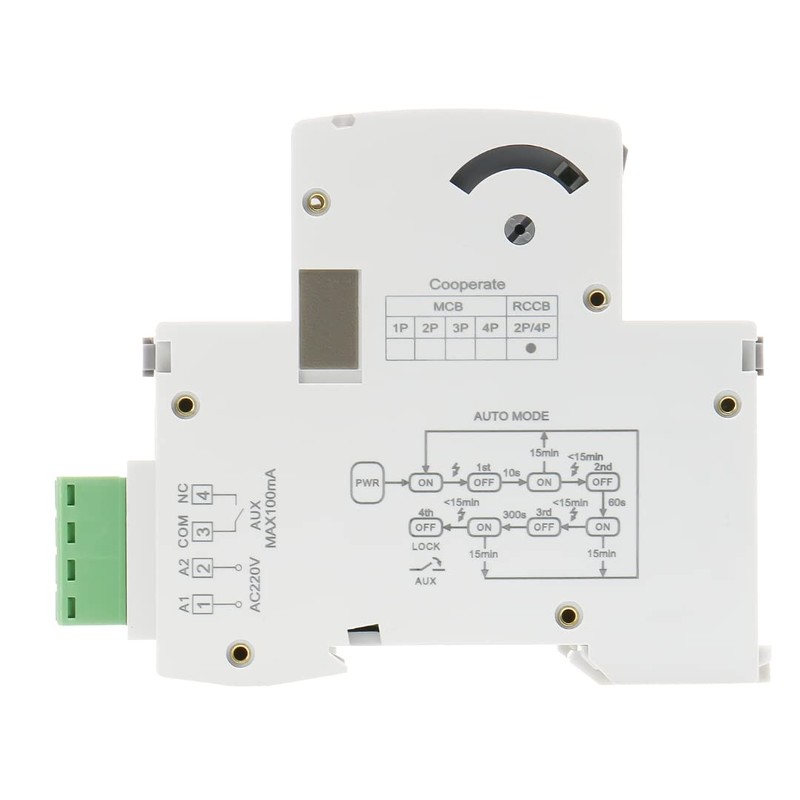

- EASY INSTALLATION Installs on the rail like any other differential of the light frame. Self-healing must be electrically powered, you need to connect the L and N terminals parallel to the upper differential or the general automatic input (connect to the differential input A1 and A2 of the green terminal). The retrofittable differential has a locking system that allows you to select the operation manually, automatically and closed.
- Automatic Recovery Type AC:The automatic 4 pin differential switch is a useful element in electrical installation. Automatically repairs the residual current switch, so its function is more important in protecting electrical installation.
- Complies with IEC61008, EN61008 and CE standards. Protect your electrical system with the retrofittable differential reset
- Type AC with 40 amps and 30 mA, 4P
- NO LIGHT Our retrofittable differential is a device that allows the light to automatically reset when the differential jumps through a temporary incident.
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
Product Overview
- 3 Recovery Attempts When the light goes out and the differential jumps, it makes 3 recovery attempts, usually in time intervals of 10 seconds after cutting, then after 60 seconds and one after 300 seconds. If you fail to repair the differential after the three attempts, this is considered an electrical problem and do not try again. To unlock the rearmament, the AUTO-MANU tab must be raised and lowered twice in a row.
- EASY INSTALLATION Installs on the rail like any other differential of the light frame. Self-healing must be electrically powered, you need to connect the L and N terminals parallel to the upper differential or the general automatic input (connect to the differential input A1 and A2 of the green terminal). The retrofittable differential has a locking system that allows you to select the operation manually, automatically and closed.
- Automatic Recovery Type AC:The automatic 4 pin differential switch is a useful element in electrical installation. Automatically repairs the residual current switch, so its function is more important in protecting electrical installation.
- Complies with IEC61008, EN61008 and CE standards. Protect your electrical system with the retrofittable differential reset
- Type AC with 40 amps and 30 mA, 4P
- NO LIGHT Our retrofittable differential is a device that allows the light to automatically reset when the differential jumps through a temporary incident.
1. It can be combined with the circuit breaker/leakage circuit breaker and automatically closes again when MCB / RCCB is moved unexpectedly.
No manual closure required, reduces the cost of manual maintenance and eliminates errors in time to improve efficiency.

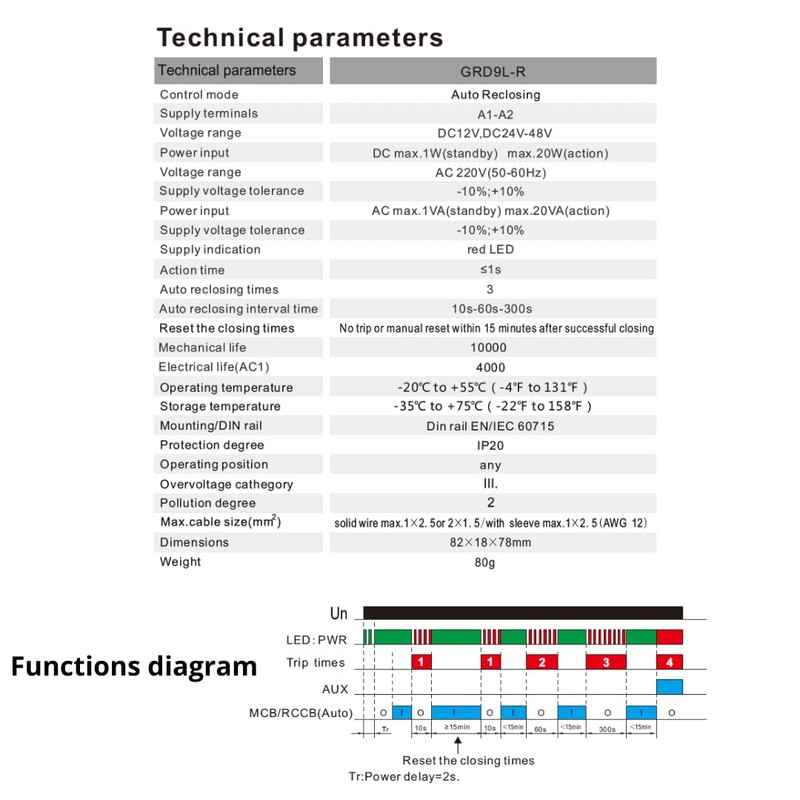

2. Built in 3 restart times, continuous closing error within 15 minutes, can send alarm via auxiliary contact.
3. With manual and automatic selector switch.
4. With mechanical and electronic double locking function.
5. The wave transmission mode is more stable and reliable.
6. Can be combined with other accessories.
7. The working status is indicated by LED.
Why is it advisable to install an automatic reset differential?
The reasons for installing a retrofittable differential are fully supported by the associated advantages, which we have compiled in the following points:
EASY INSTALLATION & LOW COST Although they physically occupy slightly more than normal differentials, their installation is still quite simple or can be easily derived by professionals at a reasonable price if you put the installation costs on a scale and compare it to the peace and security they provide.
Economic savings: given the kind of damage that a differential with rearmament prevents (fire, short circuit, electric shock) and possible losses from it (breakage of the cold chain in chilled or frozen food, stopping the continuous water purification of swimming pools, aquariums or aquariums, etc.).
Automatic differential, three-phase, 40A.
