PID Temperature Controller,W/ 30 RAMP / SOAK,SSR Output, SYL-2352P Black
PID Temperature Controller,W/ 30 RAMP / SOAK,SSR Output, SYL-2352P Black
PID Temperature Controller,W/ 30 RAMP / SOAK,SSR Output, SYL-2352P Black
Product Overview
- 30 programable steps for ramp, soak and other logic actions
- PID control with fuzzy logic enhancement for the best stability control
- Display in either Fahrenheit or Celsius temperature unit
- Support both heating and cooling mode.
- Model: SYL-2352P. US Seller, ship from GA!
| Brand: | AUBER |
|---|---|
| Size: | 1/16 DIN |
| Color: | Black |
| Manufacturer: | Auber Instruments |
| Part Number: | DC3KNS0 |
| Model: | SYL-2352P |
| Material Type: | Plastic |
| Product Dimensions: | 2.24 x 3.35 x 5.79 inches; 5.6 ounces |
| Isin: | I6HI8GM8BTD3 |
Out of Stock
In Stock
Backordered
Out of Stock
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
Product Overview
- 30 programable steps for ramp, soak and other logic actions
- PID control with fuzzy logic enhancement for the best stability control
- Display in either Fahrenheit or Celsius temperature unit
- Support both heating and cooling mode.
- Model: SYL-2352P. US Seller, ship from GA!
| Brand: | AUBER |
|---|---|
| Size: | 1/16 DIN |
| Color: | Black |
| Manufacturer: | Auber Instruments |
| Part Number: | DC3KNS0 |
| Model: | SYL-2352P |
| Material Type: | Plastic |
| Product Dimensions: | 2.24 x 3.35 x 5.79 inches; 5.6 ounces |
| Isin: | I6HI8GM8BTD3 |

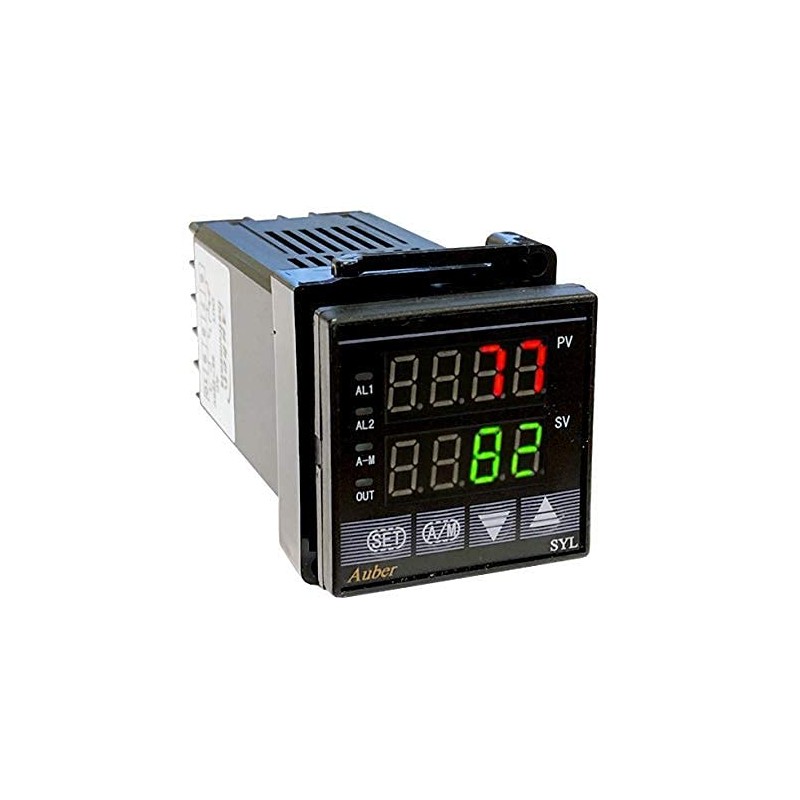

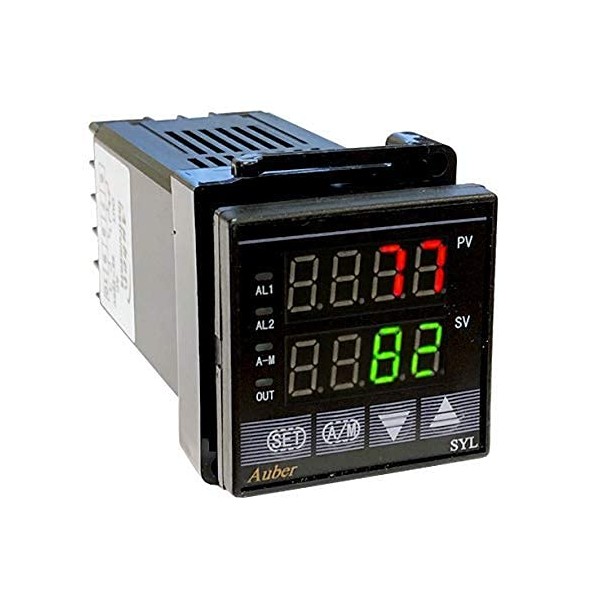

Model for this listing: SYL-2352P This is a brand new, dual display, 1/16 DIN sized (1.89x1.89" or 48 x 48 mm) programmable PID temperature/process controller. This controller is for applications where it is desirable to have the set point automatically adjust itself over time. Up to 30 steps can be programed to A) ramp the temperature up or down at controlled rate, B) Maintain the temperature for a specific period time, C) turn on/off the relays (alarm relay) after process reaches a specific step. This controller has all the features of the standard PID controller (except the manual control). The dual alarm relay can be activated either by the temperature set point or by program steps. They can be used for interlock other equipments in the process. Multiple programs can be stored as long as the total steps is less or equal to 30 steps. If you don't need the ramp/soak action, please see my other listing for PID controllers without ramp/soak. Main Specifications: Input type: TC: K, E, S, WRe, J, T, B, N RTD: Pt100, Cu50, 0-80 ohm, 0-400 ohm. DC voltage:0~20 mV, 0-100 mv, 0~5V, 1~5V, 0~1V, -100~100mV, -20~20mV, -5~5V, 0.2~1V. DC current: 4~20mA. Input range: K (32~2300ºF), S (32~3100ºF), WRe (32~4150ºF), T (-330~660ºF), E (32~1500ºF), J (32~1800ºF), B (32~3300ºF), N (32~2400ºF) Pt100 (-320~1100ºF), Cu50 (-60~300ºF) Linear input: -1999~+9999 defined by user Display: Two lines, Four digits. °F or °C. Display Resolution: 1°C and 0.1 °C. or 1°F, Control mode: Fuzzy PID, On-Off Output mode: 12VDC for external SSR Overall dimension: 48 x 48 x 107mm. Depth after mounting panel is 100mm. This unit has 12VDC output for controlling an external solid state relay or SSR. **Manual:** goo.gl/T0Tyjj **Basic Tutorial Video:** https://youtu.be/6h139MgGvnY **Programming Video:** https://youtu.be/raxscrYmxhg **Customer Support Line:** 770-569-8420
