APKLVSR SOIC8 SOP8 Flash Chip IC CH341A USB Programmer for EEPROM, BIOS USB Programmer, SOP8 Clip + SOIC8 Adapter
Product Overview

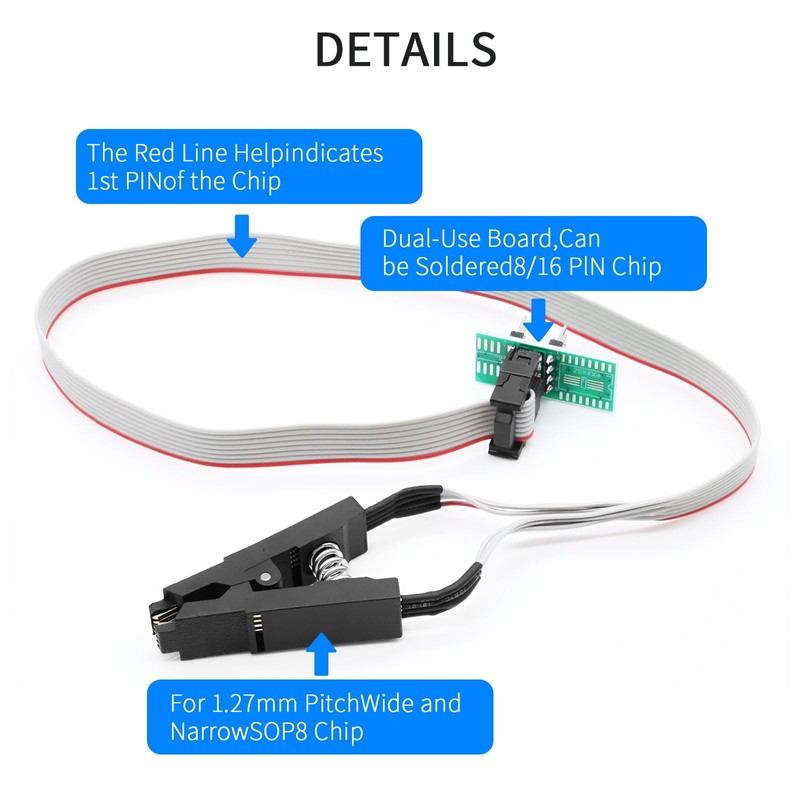

- 【SOIC8 SOP8 test clip for EEPROM】: The SOP8 clip allows in-circuit programming of the EEPROM without disassembling the chip, which can save people time. So the BIOS update is easier and more efficient.
- 【Features】: Suitable for amateur programmers of series 24 and 25 FLASH. Use a dedicated CH341A chip USB. The SOP8 clip supports both wide-body and narrow body SOP8 chips with 1.27mm pitching.

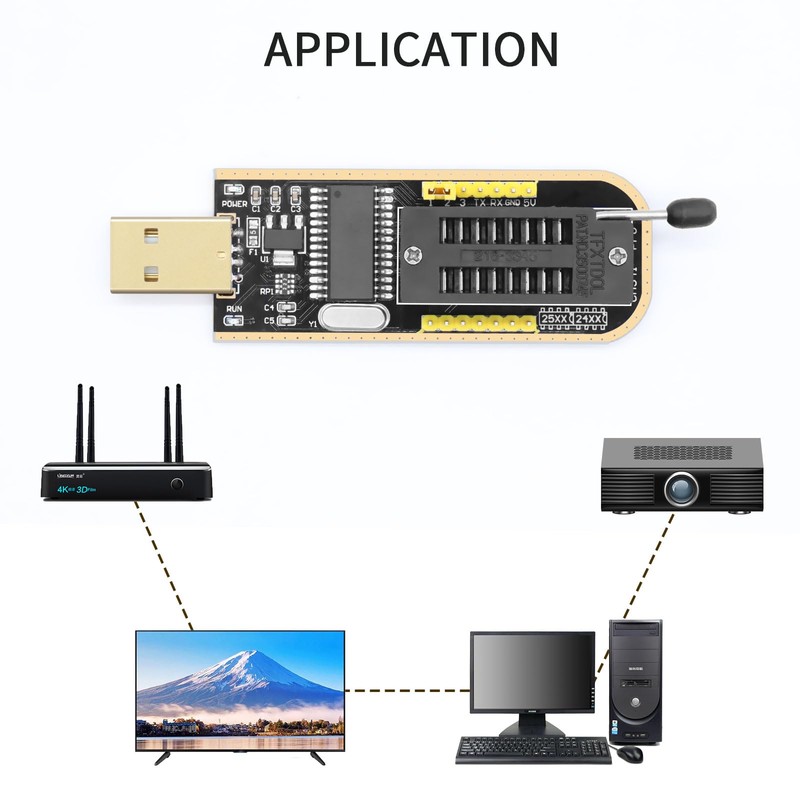

- 【Application】: The main purpose of the CH341A programmer is to perform backup, erase, programming, calibration and other operations for various software. SOIC8 SOP8 test clip, used for online programming of EE-PROM 24CXX / 25CXX / 93CXX.
- Note: 1.The CH341A programmer supports most 24/25 series EEPROM SOP8 chips on the market, but not all. 2. Due to the properties of the CH341A chip, the ESMT SST Class 25 chip can only be read and not written. Please check the product description before purchase whether your chip model is within the compatible range.

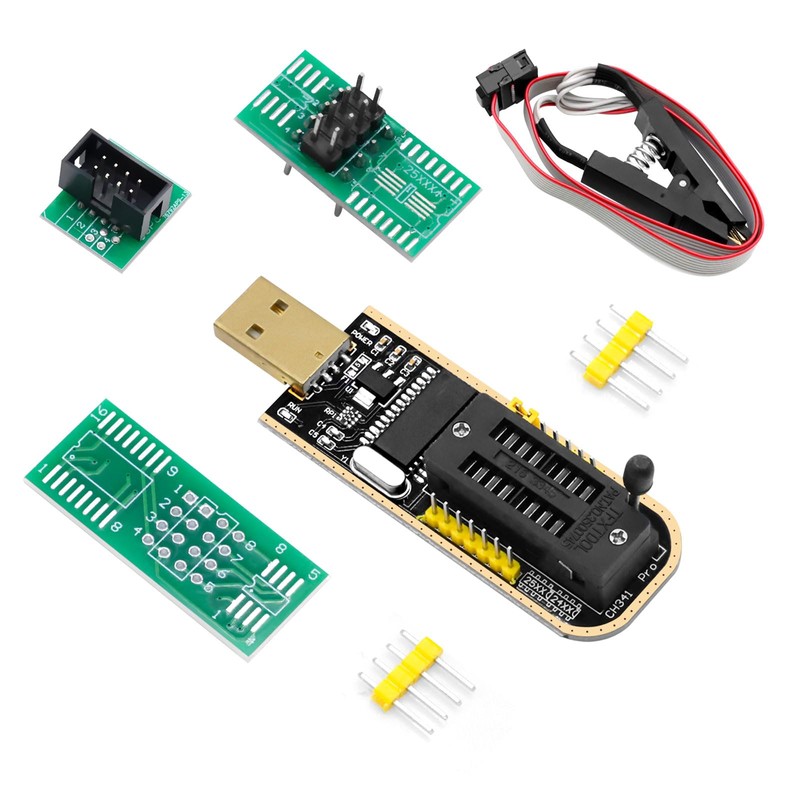

- 【Package includes】: 1 x CH341A programmer, 1 x SOP8 test clip, 1 x 8-pin to 8-pin converter, 2 x SOP8 to 8-pin converters, 2 x 2.54 mm 4-pin connectors
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
Product Overview
- 【SOIC8 SOP8 test clip for EEPROM】: The SOP8 clip allows in-circuit programming of the EEPROM without disassembling the chip, which can save people time. So the BIOS update is easier and more efficient.
- 【Features】: Suitable for amateur programmers of series 24 and 25 FLASH. Use a dedicated CH341A chip USB. The SOP8 clip supports both wide-body and narrow body SOP8 chips with 1.27mm pitching.
- 【Application】: The main purpose of the CH341A programmer is to perform backup, erase, programming, calibration and other operations for various software. SOIC8 SOP8 test clip, used for online programming of EE-PROM 24CXX / 25CXX / 93CXX.
- Note: 1.The CH341A programmer supports most 24/25 series EEPROM SOP8 chips on the market, but not all. 2. Due to the properties of the CH341A chip, the ESMT SST Class 25 chip can only be read and not written. Please check the product description before purchase whether your chip model is within the compatible range.
- 【Package includes】: 1 x CH341A programmer, 1 x SOP8 test clip, 1 x 8-pin to 8-pin converter, 2 x SOP8 to 8-pin converters, 2 x 2.54 mm 4-pin connectors

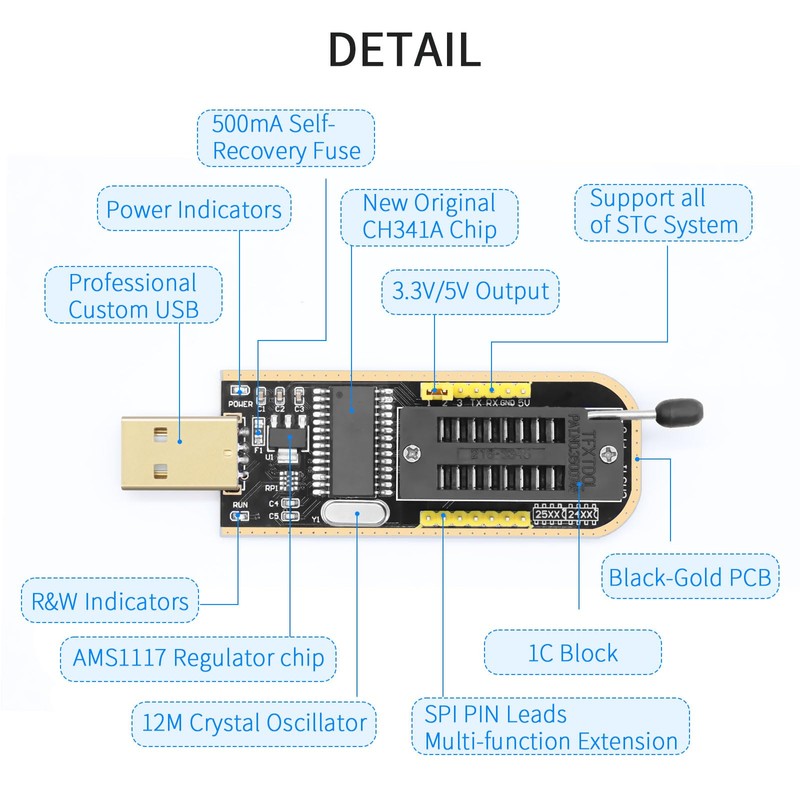

Description:
Supports 24EE ROM
Supports 25 SPI FLASH
Supports USB to TTL can be rooted online
With CH341A chip
Supports downloading STC serial procedure for a single chip
SPI pin for multi-function extension.
Automatic identification chip model 25 series.
R&W Indicators
12M quartz oscillator.
New original CH341A chip
500mA Self Recovery Backup
Provides output power from 5V to 3.3V
Package includes:
1 x CH341A programmer.
1 x SOP8 test clip.
1 x 8-pin to 8-pin converter.

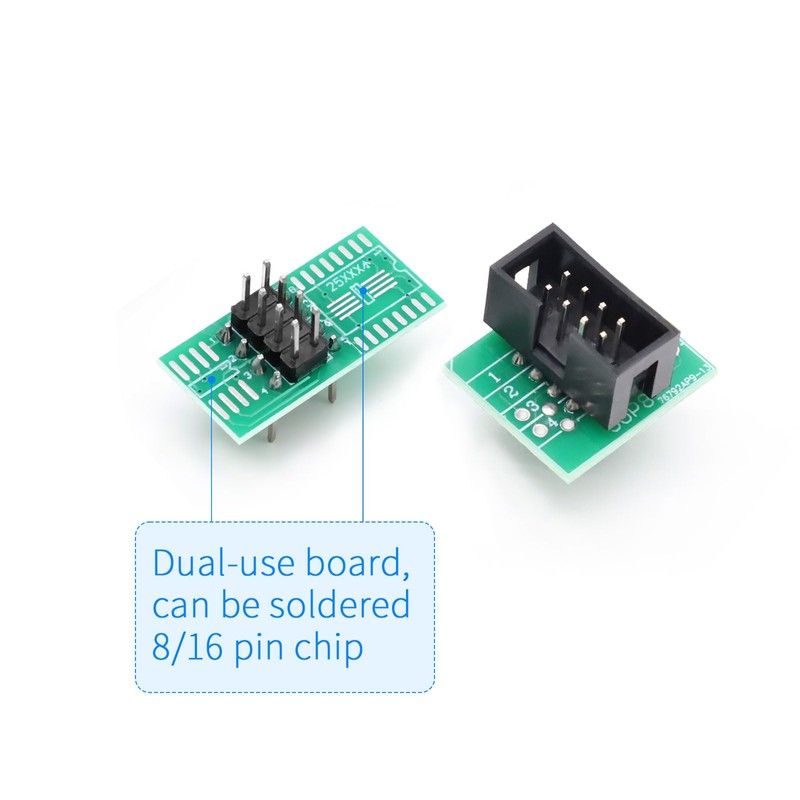

2 SOP8 SOP16 to 8pin converter.
2 x 2.54 mm 4 pin header.
Note for the test clip:

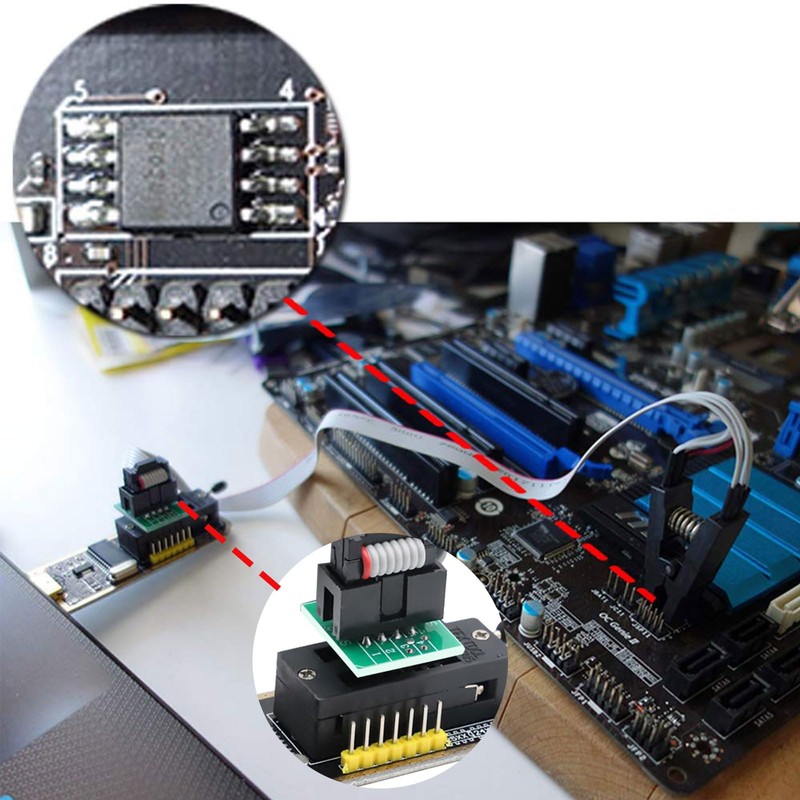

1. Some motherboards may cut off the chip directly, but some chips are affected by peripheral circuits and cannot be used in this way. Check the memory location of the chip on the motherboard before purchasing.
2. The test clip can be used with many powerful programmers. If a programmer has occurred with a protected function, the clip cannot be read at normal voltage. You need to add a voltage of 3.3V.
Use: first hold the chip and add a voltage of 3.3V to the pen, which is the 8th pin of the chip. Usually the 3.3V power supply has two wires, the VCC is connected to the clip, and the other wire is grounded.
3. Do not press vigorously when tightening, first open the clip and clamp it on the left and right side of the chip.
