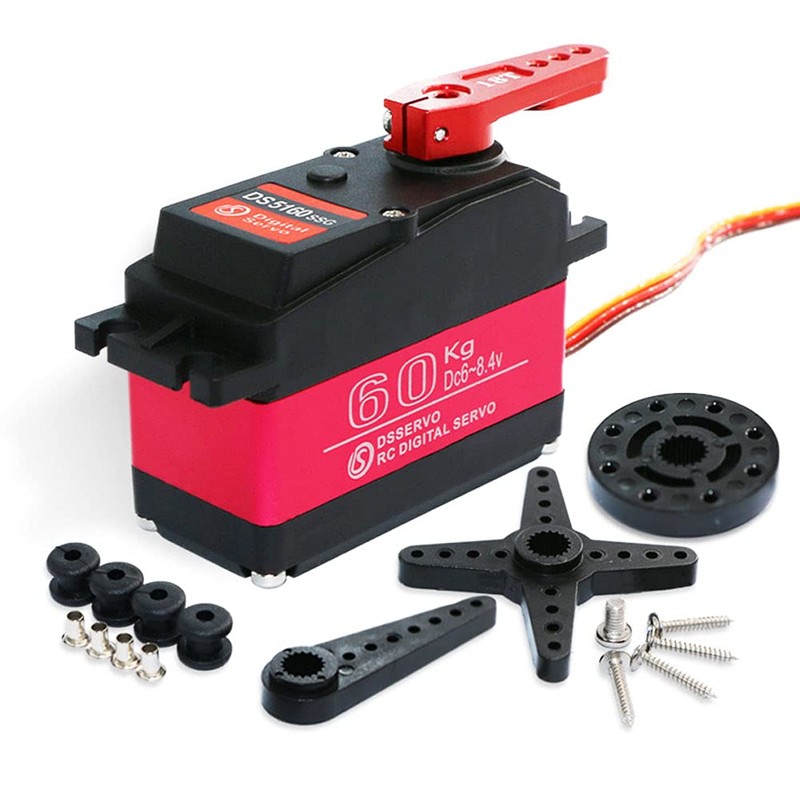

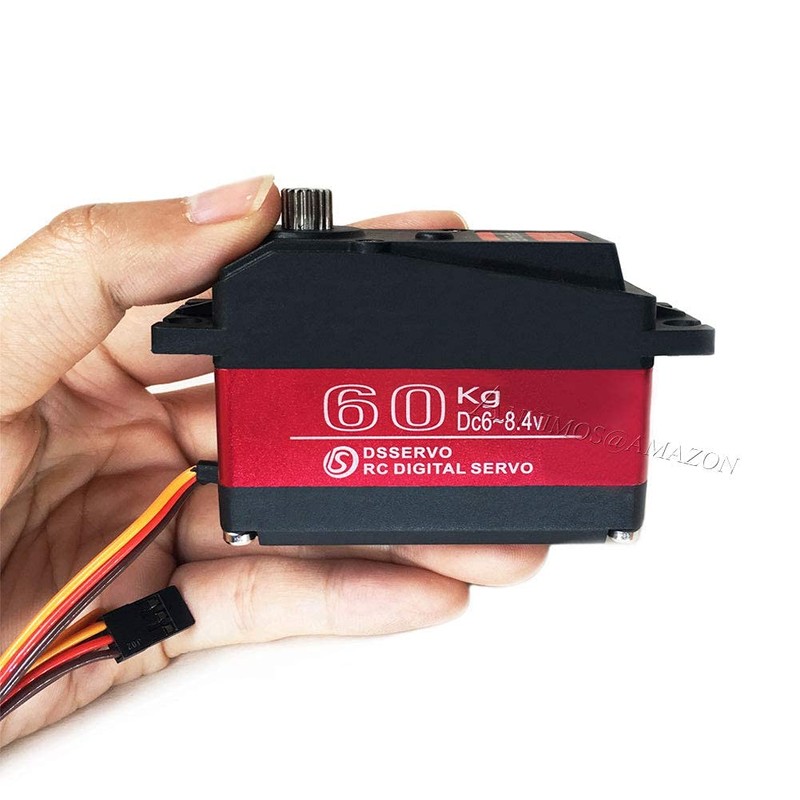

ANNIMOS 60KG Digital Servo 8.4V High Voltage Stainless Steel Gear Large Torque High Speed Waterproof 1/5 Baja Servos - 180 Degrees

$84.92

  • Excellent - DS5160 SSG Big servo 60kg HV Robotic Servo for 1/5 Redcat HPI Baja 5B SS RC Crawler compatible SAVOX-0236 LOSI XL 5T
  • High Quality - full stainless steel gears,durable power cord and parts,CNC aluminium middle Shell,water-proof sealing silicone loop,dual ball bearing.To easure longer serive time,high speed low noise
  • Support High Voltage - the best volts is 7.4V, It’s recommended to use 2S battery for power supply 6-8.4V
  • Best for your DIY Projects: easy to install,widely used in remote control crawler cars vehicle truck boat aircraft helicopter robot arm and so on

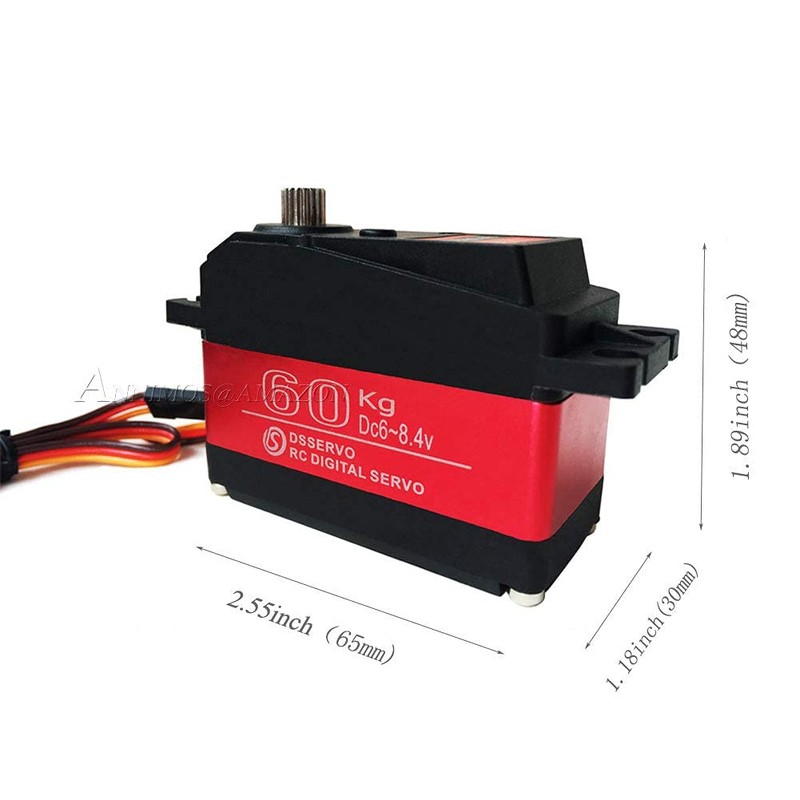

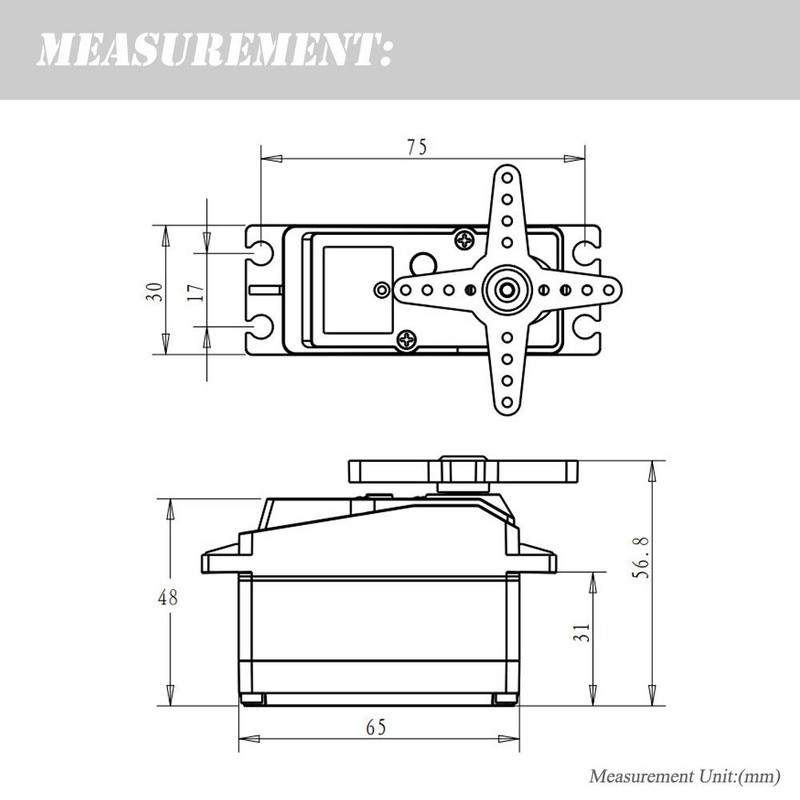

  • Dimension:2.55x1.18x1.89inch (65*30*48mm);Weight:162g (5.71oz)

Manufacturer:
ANNIMOS
Part Number:
DS5160SSG180
Material Type:
Stainless Steel, Aluminum, Silicone
Product Dimensions:
5.9 x 3.9 x 1.7 inches; 6.72 ounces
Isin:
IYVAVMOWUWJD

$84.92

In Stock

Sold by , Fulfilled by IBSPOT • Ships from US

IBSPOT Buyer Protection
  • Free 30-Day Returns
  • Full Refund for Damaged or Incorrect Items
  • Guaranteed Delivery or Money Back
  • Secure Checkout & Fast Support
scroll to top arrow
ANNIMOS 60KG Digital Servo 8.4V High Voltage Stainless Steel Gear Large Torque High Speed Waterproof 1/5 Baja Servos - 180 Degrees

ANNIMOS 60KG Digital Servo 8.4V High Voltage Stainless Steel Gear Large Torqu...

$84.92

  • Excellent - DS5160 SSG Big servo 60kg HV Robotic Servo for 1/5 Redcat HPI Baja 5B SS RC Crawler compatible SAVOX-0236 LOSI XL 5T
  • High Quality - full stainless steel gears,durable power cord and parts,CNC aluminium middle Shell,water-proof sealing silicone loop,dual ball bearing.To easure longer serive time,high speed low noise
  • Support High Voltage - the best volts is 7.4V, It’s recommended to use 2S battery for power supply 6-8.4V
  • Best for your DIY Projects: easy to install,widely used in remote control crawler cars vehicle truck boat aircraft helicopter robot arm and so on
  • Dimension:2.55x1.18x1.89inch (65*30*48mm);Weight:162g (5.71oz)

Manufacturer:
ANNIMOS
Part Number:
DS5160SSG180
Material Type:
Stainless Steel, Aluminum, Silicone
Product Dimensions:
5.9 x 3.9 x 1.7 inches; 6.72 ounces
Isin:
IYVAVMOWUWJD

Specification:
DS5160SSG is new launched products in 2019.It continue keeping high quality as previous models, such as: CNC aluminium middle Shell for better heat dissipation, two ball bearings on the output shaft for reduced friction.Light weight,high-speed big torque, water-resistant,sensitive,responsive,low noise and so on.

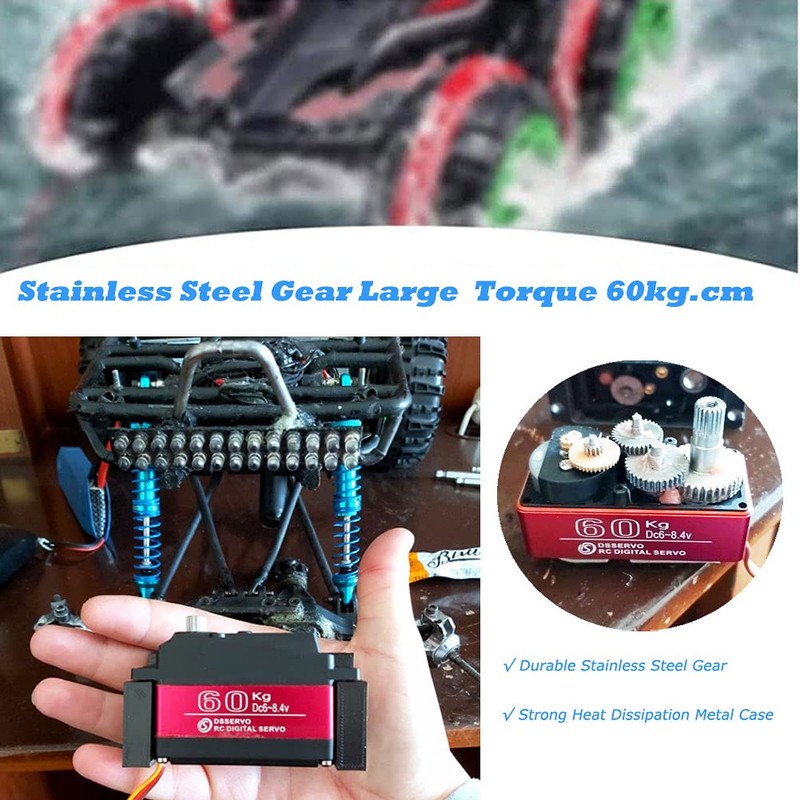

Its’ Stainless Steel Gear which offer faster speed and accuracy and longer service life.It also has plently of power,super strong and stable, will help you to control your model better.

Note:
1. The best service voltage is 7.4V.It’s recommended to use 2s battery for power supply (6-8.4V)
2.The working angle of this servo is 180 degrees(PWM: 500us-2500us),
as the output of some remote controls can only be 1000-2000us,we recommend you to purchase 270 degrees model.(ASIN: B07KTSCN4J)

Feature:
- High-precision metal gear.
- Durable SS Metal Gear
- Double Ball Bearing
- Programmable Digital Amplifier with Mosft Drive
- Bottom Side Axial Mount Hole
- Orientation Angle: maximum 180deg
- Mechanical Angle:360deg (Plug/Output wheel/Radio control system compatible with Futaba JR Hitec)

Speed:
▶0.17sec/60 degree @6V
▶0.15sec/60 degree @7.4V
▶0.13sec/60 degree @8.4V
Torque:
▶58kg.cm.@6V
▶65kg.cm.@7.4V
▶70kg.cm.@8.4V

Operating Voltage:6V-8.4V

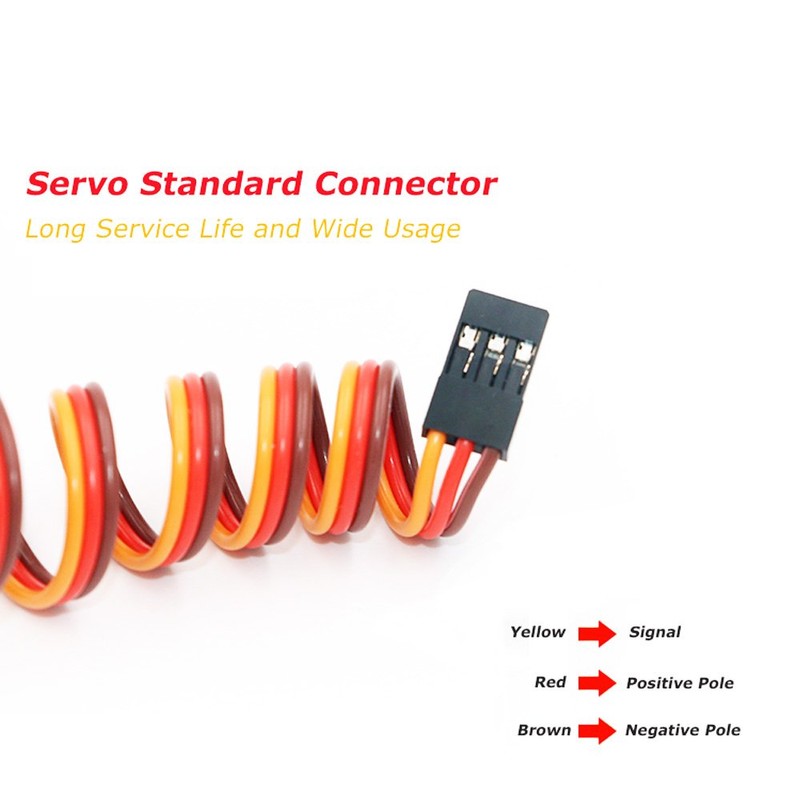

Connector wire length:17.7in (450mm)
Gear ratio:279
Pulse width range: 500~2500μsec
Dead band width Microseconds

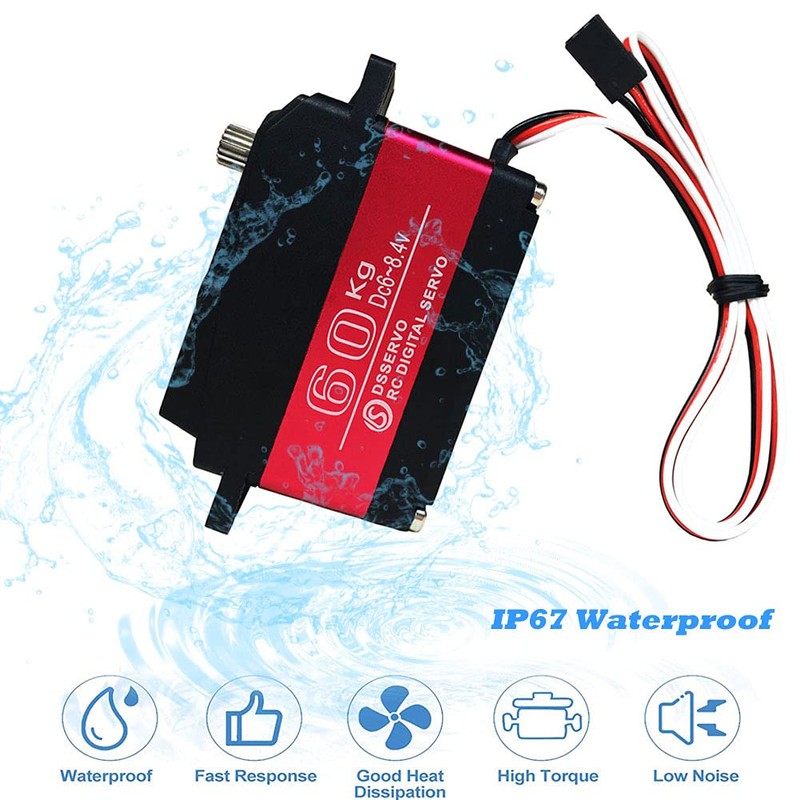

Waterproof performance:IP67

Package:

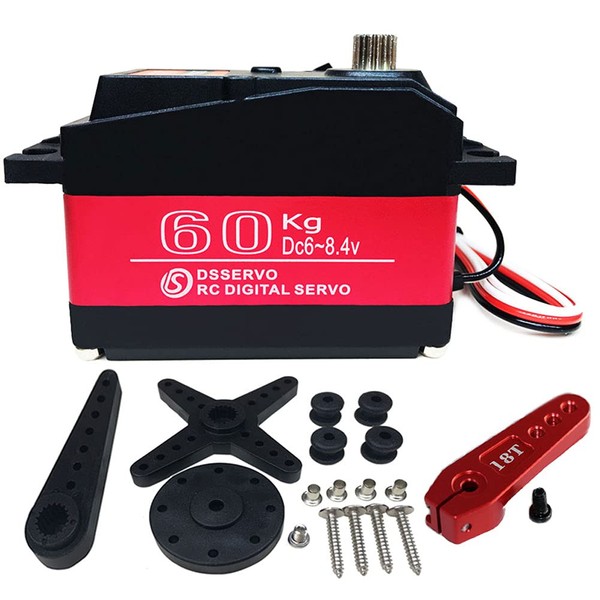

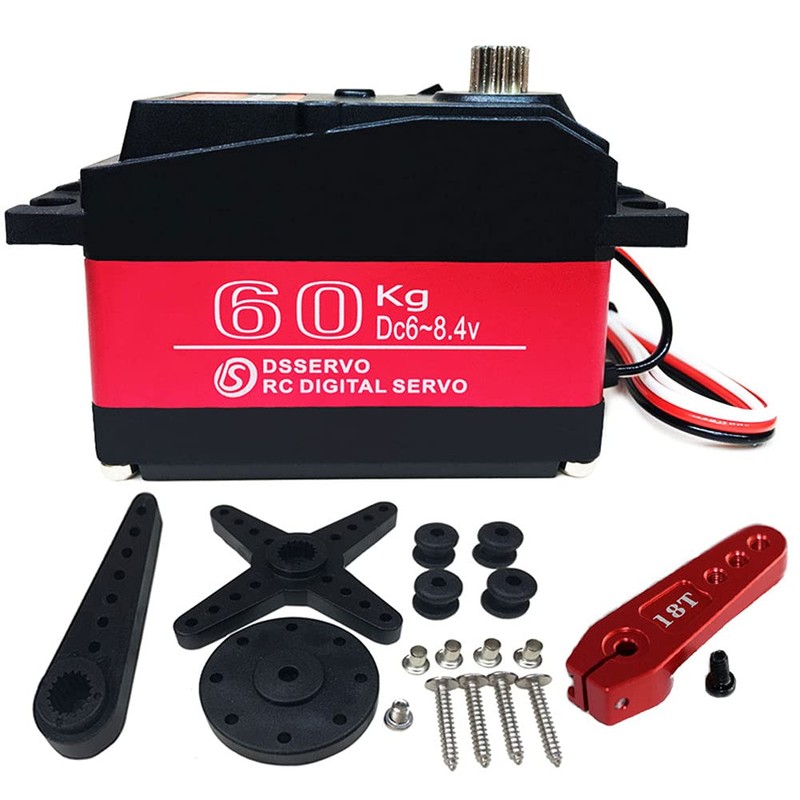

-1 pcs Digital Metal Robotic Servo

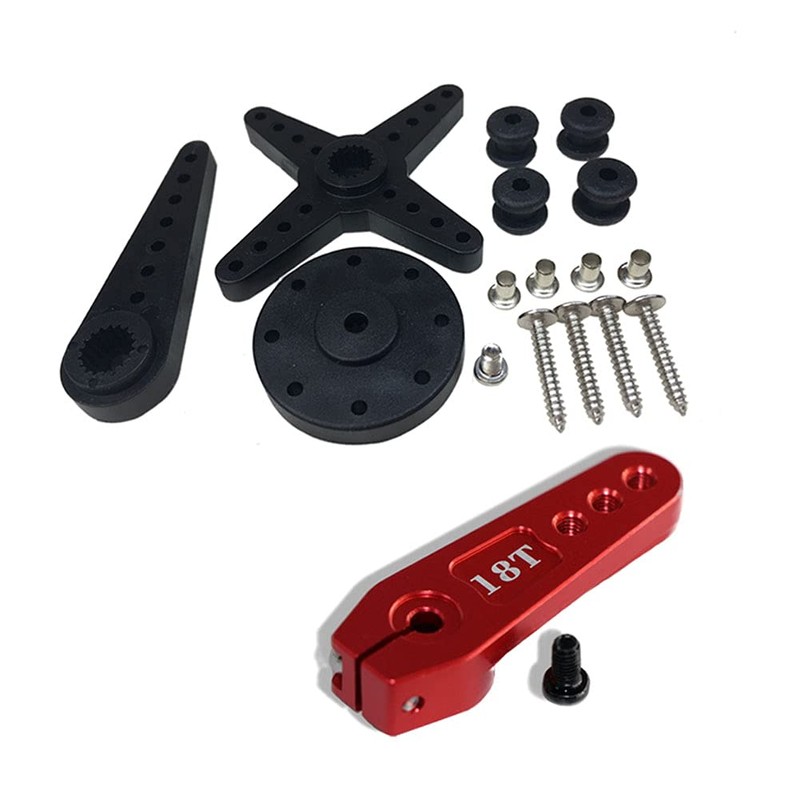

-A set of accessories: Long Holder Aluminum, Short Holder Aluminum, Circle Holder-18T, Circle Holder and screws (As shown in the picture)

Other options:
✔Pack of 2 20KG servos, please search ASIN: B07TKTQ2NZ
✔35KG Coreless servo 180°,please search ASIN:B07SWW9NDR
✔25KG Coreless servo 180°,please search ASIN: B07SRNS5N8
