AMK SCX30 Brushless Motor ESC Combo, 1212 5000KV Outer Rotor Motor with 25A ESC, 2S LiPo Compatible System for Axial SCX30 1/30 RC Crawler, High Torque Smooth Low-Speed Control, Easy Installation
$86.89
- $5.99 shipping from United States View details
-
Arrives
- Designed for SCX30 Upgrades: Built for Axial SCX30 1/30 RC crawler upgrades, this combo includes a 1212 5000KV brushless outrunner motor and a 25A brushless ESC, giving your mini crawler a compact and capable power system for improved crawling performance
- Smooth Low-Speed Control and Strong Torque: Featuring simulated FOC control, this system delivers excellent low-speed linearity, smooth startup, and strong low-end torque for better throttle control on climbs, rocks, and technical trail sections
- Compact 25A ESC with Built-In Protection: The FAM32-25A brushless ESC supports 2S LiPo input with 25A continuous current, 60A peak current, and 5V/1A BEC output. Low-voltage protection and a durable metal case help provide reliable performance in a compact size
- 1212 5000KV Outrunner Motor: The included 1212 brushless motor features a 5000KV rating, 9N12P design, low no-load current, and stable operation. It supports clockwise or counterclockwise rotation to suit different installation and setup needs
- Easy Setup for RC Crawler Builds:Small size makes installation easier on SCX30 builds. Motor wires can be connected in any order, and if throttle direction is reversed, simply swap any two motor wires. Throttle neutral can also be adjusted during setup for proper response
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- Designed for SCX30 Upgrades: Built for Axial SCX30 1/30 RC crawler upgrades, this combo includes a 1212 5000KV brushless outrunner motor and a 25A brushless ESC, giving your mini crawler a compact and capable power system for improved crawling performance
- Smooth Low-Speed Control and Strong Torque: Featuring simulated FOC control, this system delivers excellent low-speed linearity, smooth startup, and strong low-end torque for better throttle control on climbs, rocks, and technical trail sections
- Compact 25A ESC with Built-In Protection: The FAM32-25A brushless ESC supports 2S LiPo input with 25A continuous current, 60A peak current, and 5V/1A BEC output. Low-voltage protection and a durable metal case help provide reliable performance in a compact size
- 1212 5000KV Outrunner Motor: The included 1212 brushless motor features a 5000KV rating, 9N12P design, low no-load current, and stable operation. It supports clockwise or counterclockwise rotation to suit different installation and setup needs
- Easy Setup for RC Crawler Builds:Small size makes installation easier on SCX30 builds. Motor wires can be connected in any order, and if throttle direction is reversed, simply swap any two motor wires. Throttle neutral can also be adjusted during setup for proper response
Upgrade your Axial SCX30 1/30 RC crawler with a compact brushless power system designed for smooth low-speed control and strong crawling torque.

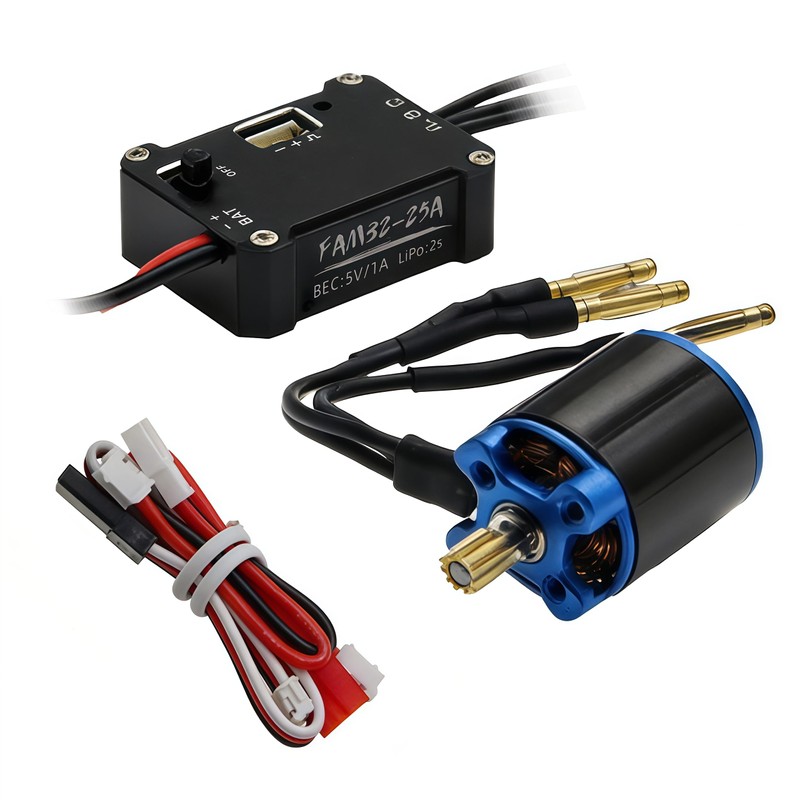

This combo includes a 1212 5000KV outrunner brushless motor and a FAM32-25A ESC, making it a great replacement or performance upgrade for mini crawler builds that need better throttle response, smoother startup, and more precise control on technical terrain.
The ESC uses simulated FOC control to improve low-speed linearity and help deliver a smoother driving feel during crawling, climbing, and trail use. Its compact, highly integrated design makes it easy to fit into small RC crawler chassis, while the metal housing and low-voltage protection add durability and reliability.
The included 1212 5000KV outrunner motor offers stable operation, low no-load current, and flexible rotation direction for easier installation. Whether you are upgrading a stock setup or building a custom mini crawler, this motor and ESC combo provides a balanced mix of compact size, smooth throttle control, and strong low-end performance.
Features:
Simulated FOC control for smooth startup and excellent low-speed linearity
Strong low-end torque for crawling and climbing performance
Compact, highly integrated design for easy installation
Low-voltage protection for added safety
Durable metal ESC case
Parameter tuning supported with programming tools for different motor setups

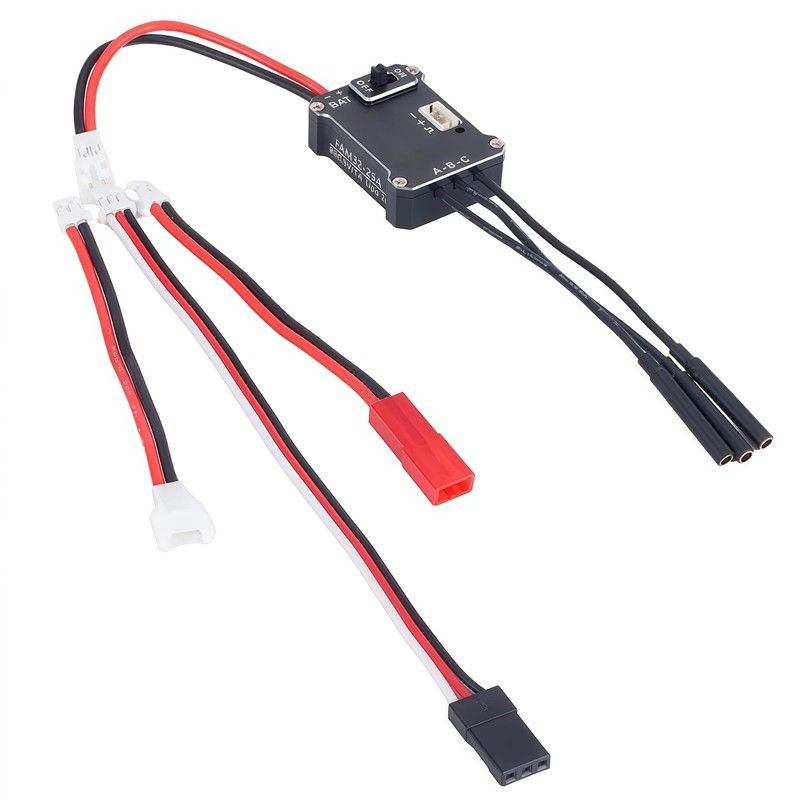

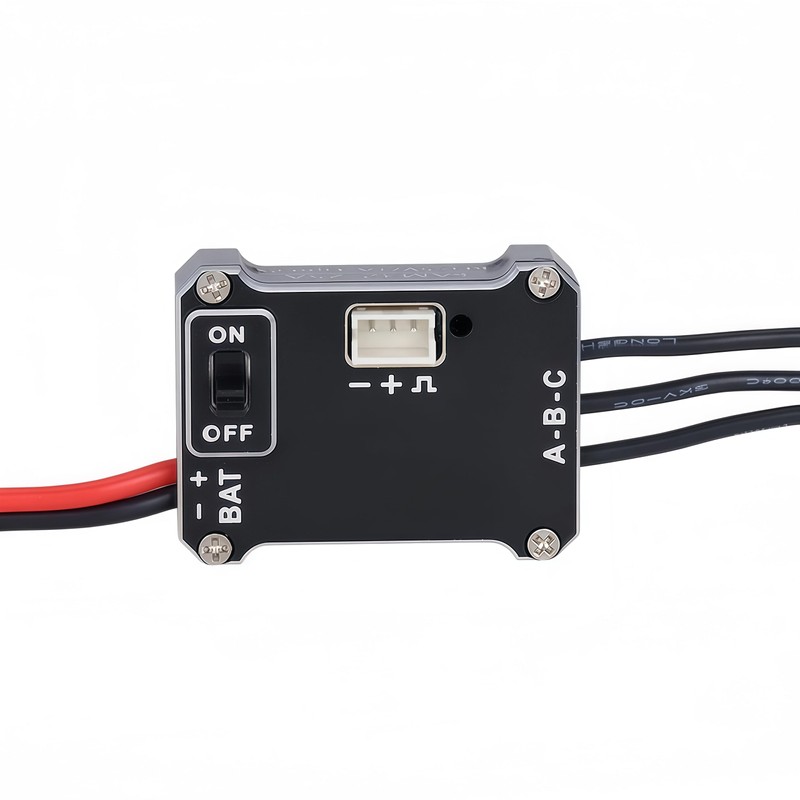

ESC Specifications:
Model: FAM32-25A Brushless ESC
Color: Black
Input Voltage: 2S LiPo
Continuous Current: 25A
Peak Current: 60A
BEC Output: 5V/1A
Compatible Motor Types: 1212 / 1224 / 1621 outrunner motors
Compatible Vehicle: SCX30

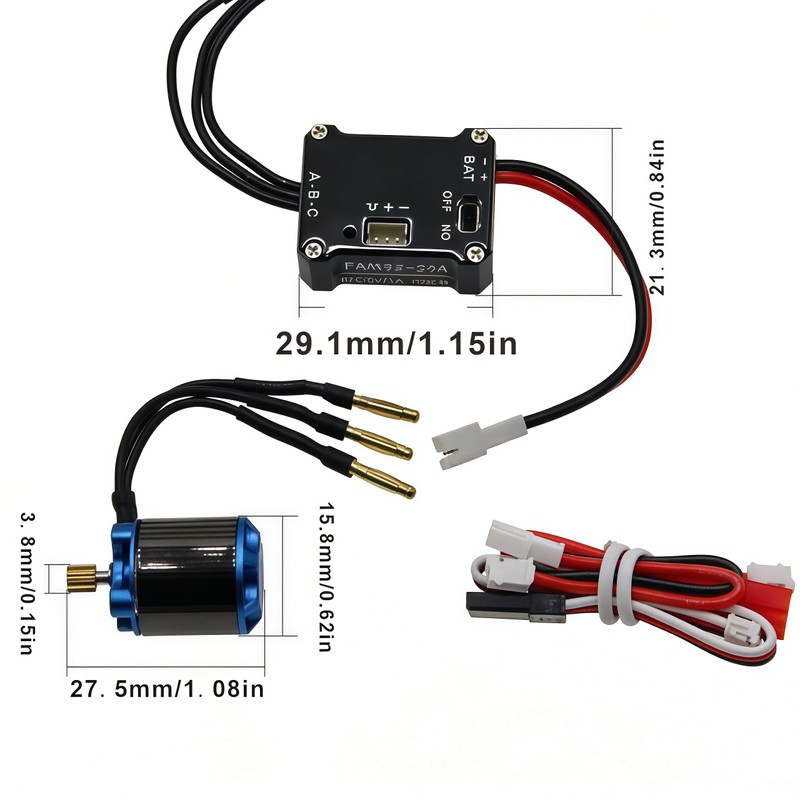

Dimensions: 29.3 x 21.3 x 10.4 mm
Weight: 63.1 g

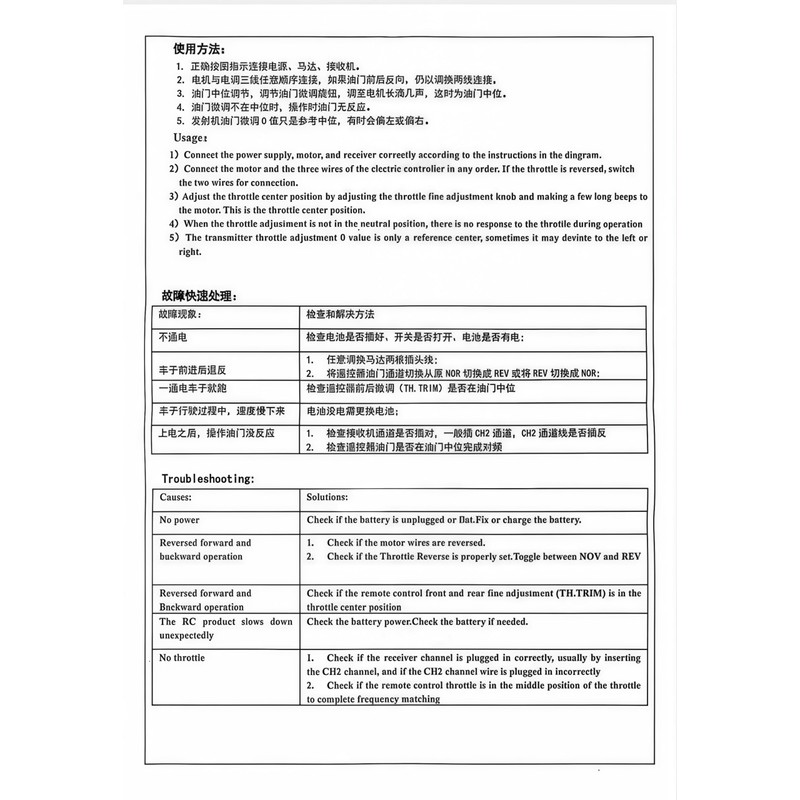

Installation Notes

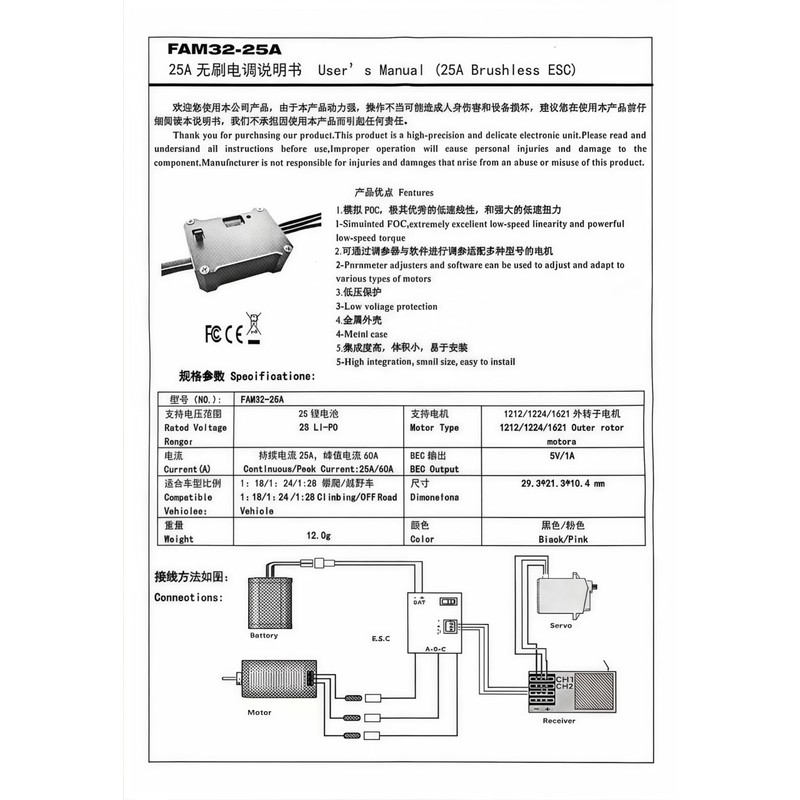

1、Connect the battery, motor, and receiver according to the wiring diagram.
2、The three motor wires can be connected in any order. If throttle direction is reversed, swap any two motor wires.
3、Adjust throttle trim until the motor emits several long beeps, indicating the throttle neutral position.
4、If throttle trim is not set to neutral, the system may not respond correctly to throttle input.
5、The transmitter's zero-throttle setting is only a reference point and may vary slightly depending on the radio system.

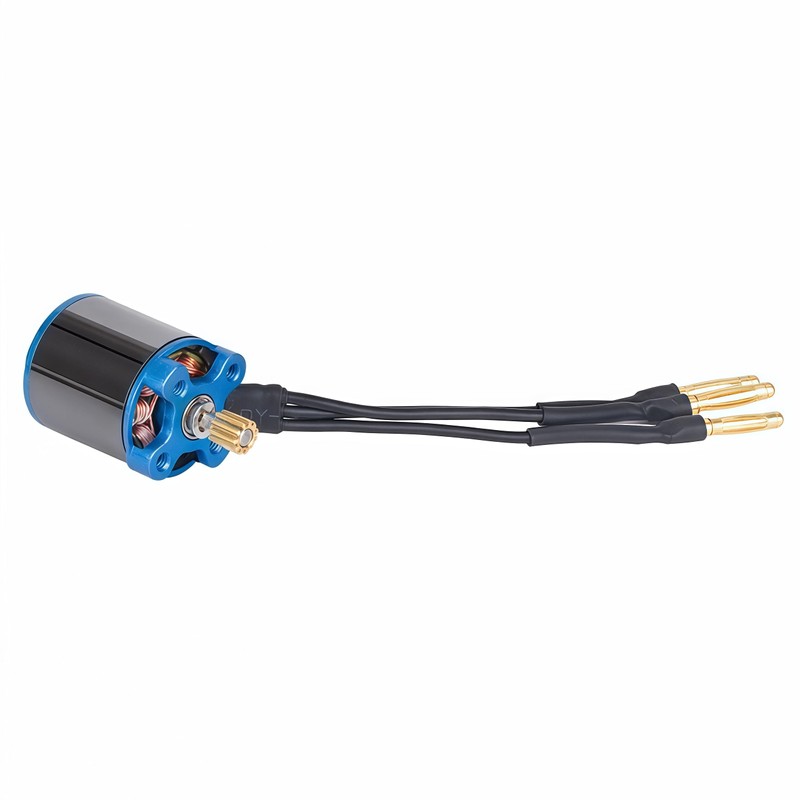

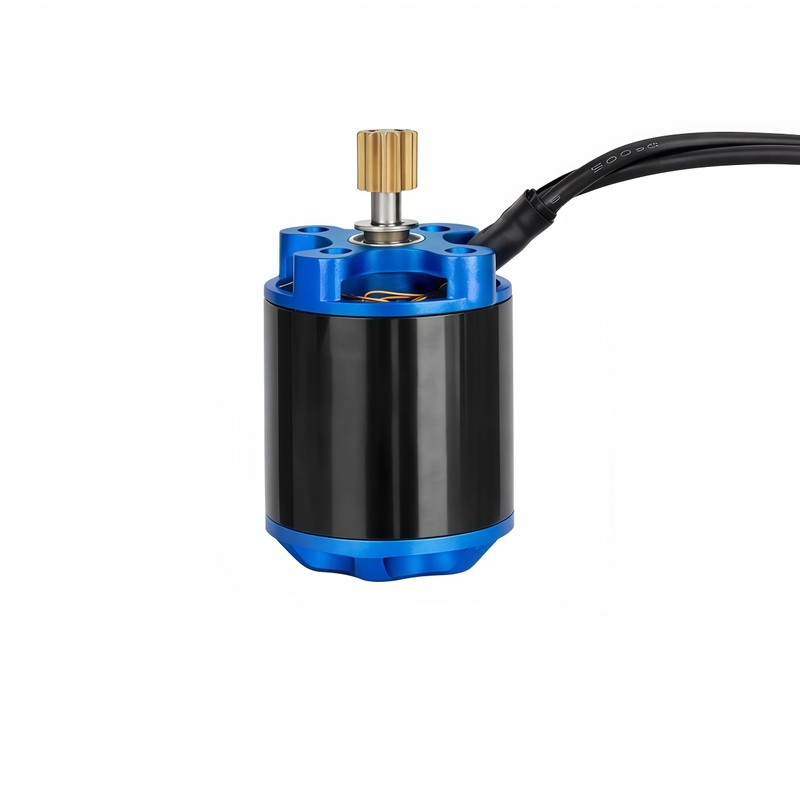

Motor Specifications:
Model: 1212 5000KV Brushless Motor
Color: Black
Rated Voltage Range: 1S-3S LiPo
Reference Voltage: 7.4V
No-Load Current (at 7.4V): ≤0.9A
No-Load Speed (at 7.4V): 37000 ± 5% rpm
Internal Resistance (25°C): 150mΩ ± 3%
KV Rating: 5000KV
Configuration: 9N12P
Motor Weight: 15.5 g
Withstand Voltage: DC500V (3S)
Dynamic Balance: ≤15 mg
Rotation Direction: Clockwise / Counterclockwise
Operating Temperature: -10°C to 65°C
Storage Temperature: -10°C to 50°C
Storage Humidity: ≤85%
Pinion Gear: 11T
Installation: Direct-fit for SCX30 with no permanent modification required

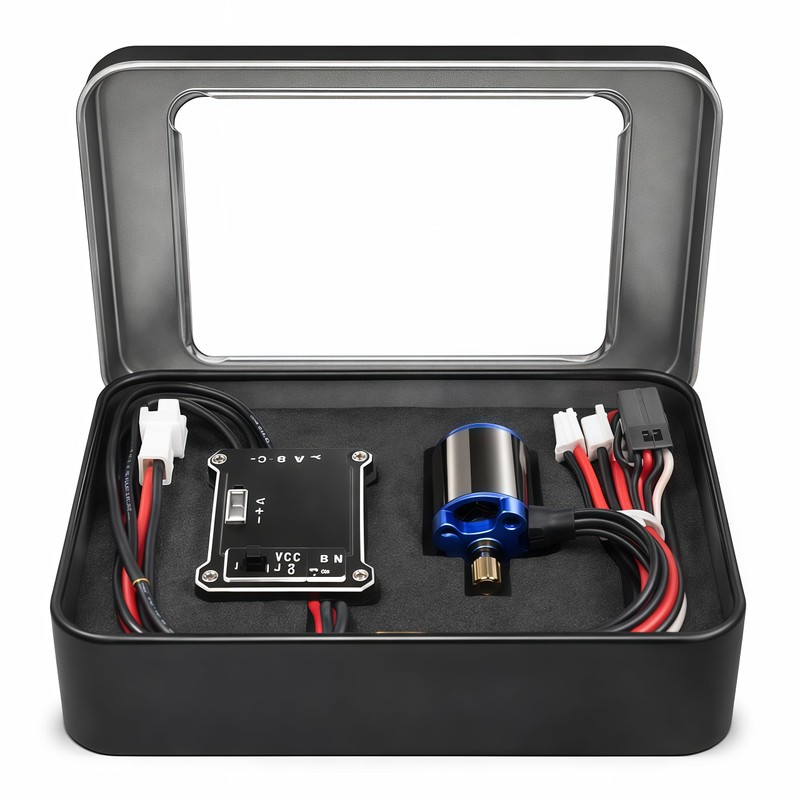

Package Includes:
1 x 25A Brushless ESC
1 x 1212 5000KV Brushless Motor
