AIXONTEC CAT 6A Field Assembly RJ45 LAN Plug Tool-free for CAT 7 Installation Cable Crimp Connector for CAT.5 / CAT.6 / CAT.6A / CAT.7 / CAT.7A Installation Cable Monthly Video
$34.87
- $9.99 shipping from Germany View details
-
Arrives

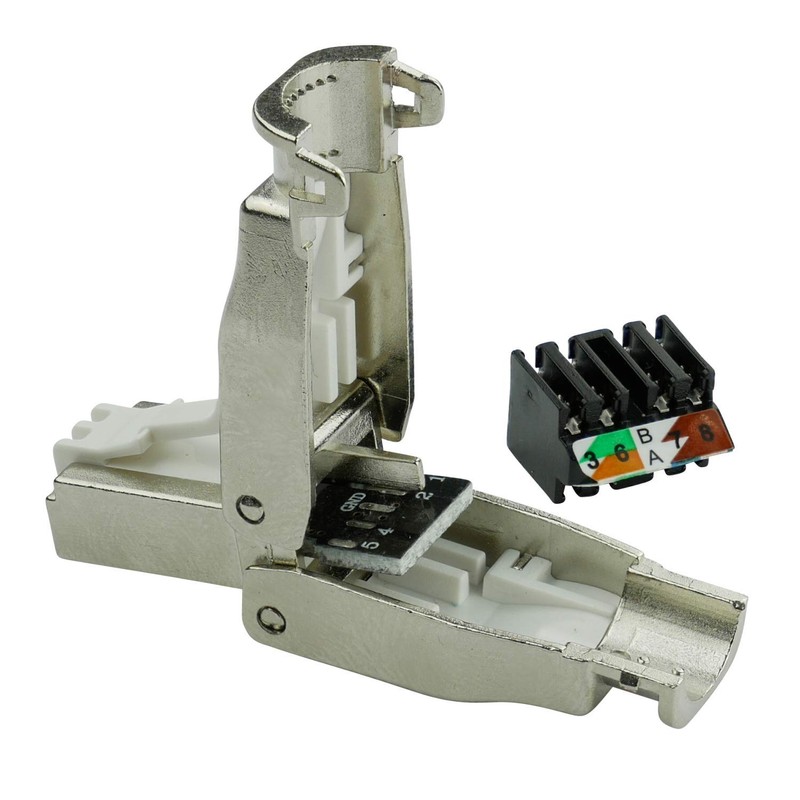

- A robust and high-quality die-cast zinc housing, which can be easily opened and closed by unfolding. The black threading aid can be removed individually and easily mounted before installation and reinserted into the housing and used multiple times. You do not need a fitter, no LSA tool, no crimping tool or extra kink protection grommet for installation. The 8 wires are inserted directly into the wire manager, cut and crimped
- The high level of gold plating of the contacts of 50 µ contributes to the stability and durability of the product. The shielded RJ45 connector provides very high transmission characteristics of up to 10GbE (Cat6A ISO/IEC 11801 and EN 50173), 500 MHz and can be used for both shielded and unshielded cables. The 8P/8C contacting is possible according to EIA/TIA 568 A or B.
- The RJ45 connector can accommodate cables with a conductor cross section of AWG 22-26 and a cable cross section of up to 9 mm. This plug is particularly suitable for Cat.7 installation cables with a halogen-free and Cat 7 outdoor network cable with a PE outer sheath.
- The RJ45 connector is suitable for (10BASE-T, 100BASE-TX, 1000BASE-T and 10000BASE-T) transmissions and is POE capable. We recommend that you check our German and English assembly instructions for the product on AIXONTEC YOUTUBE CHANNAL beforehand. Printed German assembly instructions are included with your order.
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- A robust and high-quality die-cast zinc housing, which can be easily opened and closed by unfolding. The black threading aid can be removed individually and easily mounted before installation and reinserted into the housing and used multiple times. You do not need a fitter, no LSA tool, no crimping tool or extra kink protection grommet for installation. The 8 wires are inserted directly into the wire manager, cut and crimped
- The high level of gold plating of the contacts of 50 µ contributes to the stability and durability of the product. The shielded RJ45 connector provides very high transmission characteristics of up to 10GbE (Cat6A ISO/IEC 11801 and EN 50173), 500 MHz and can be used for both shielded and unshielded cables. The 8P/8C contacting is possible according to EIA/TIA 568 A or B.
- The RJ45 connector can accommodate cables with a conductor cross section of AWG 22-26 and a cable cross section of up to 9 mm. This plug is particularly suitable for Cat.7 installation cables with a halogen-free and Cat 7 outdoor network cable with a PE outer sheath.
- The RJ45 connector is suitable for (10BASE-T, 100BASE-TX, 1000BASE-T and 10000BASE-T) transmissions and is POE capable. We recommend that you check our German and English assembly instructions for the product on AIXONTEC YOUTUBE CHANNAL beforehand. Printed German assembly instructions are included with your order.

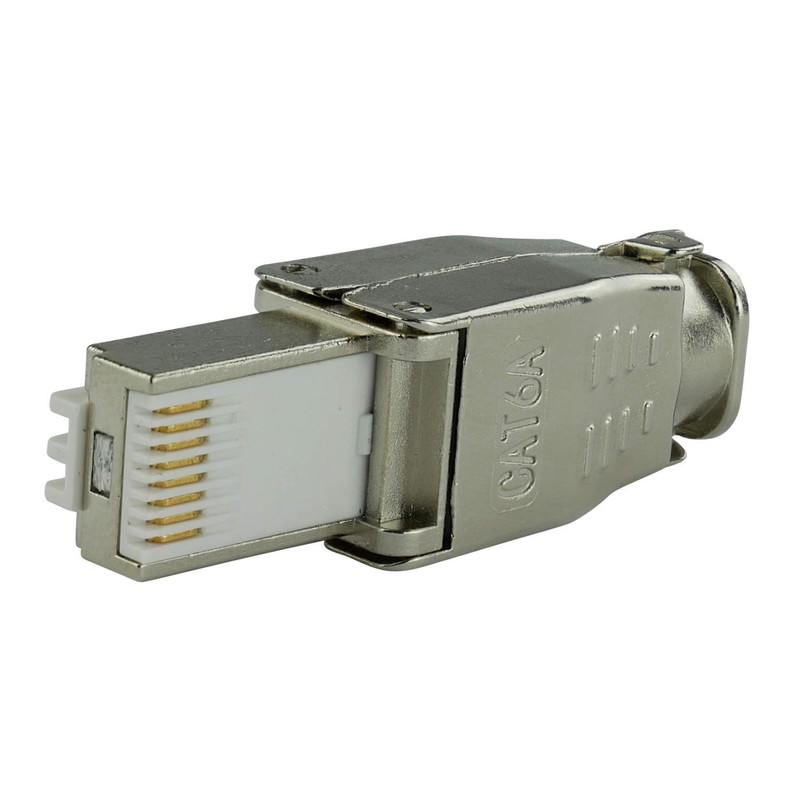

AIXONTEC Cat.6A RJ45 Field Assembled Connector 10 Gigabit 500 MHz Shielded
- Transmission properties Cat.6A, (EIA/TIA) class EA, 500 MHz/10 GbE
- Standards
- EIA/TIA 568 C.2 Cat.6A.
- ISO/IEC 11801 (2nd ed.)
- EN 50173 2. Edition
- Housing die-cast zinc, nickel-plated.
- Contacts 50 µ gold-plated
- PoE capability PoE / PoE+.
- Cable connection AWG 22-26.
- Cable diameter 6-9 mm.
- Insertion force = 50 N.
- mating cycles min. 750 cm
- Insulation resistance: 500 m ohm.
- Contact resistance: 20 m ohm.
- Max. Rated current: 1.0 amps.
- Operating temperature: -40 °C to 70 °C.
- Contact EIA/TIA A/B
- YouTube assembly video "AIXONTEC" channel.

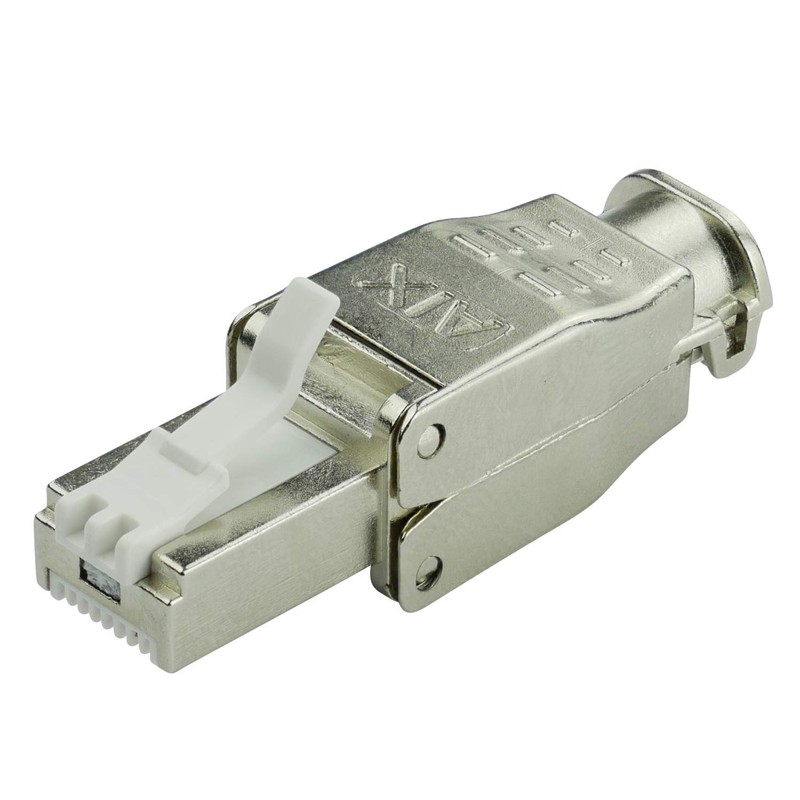

Field assembly RJ45 connector with fully shielded zinc die-cast housing. Suitable for all applications (voice, video and data) class EA/ 500 MHz to 10 GbE.

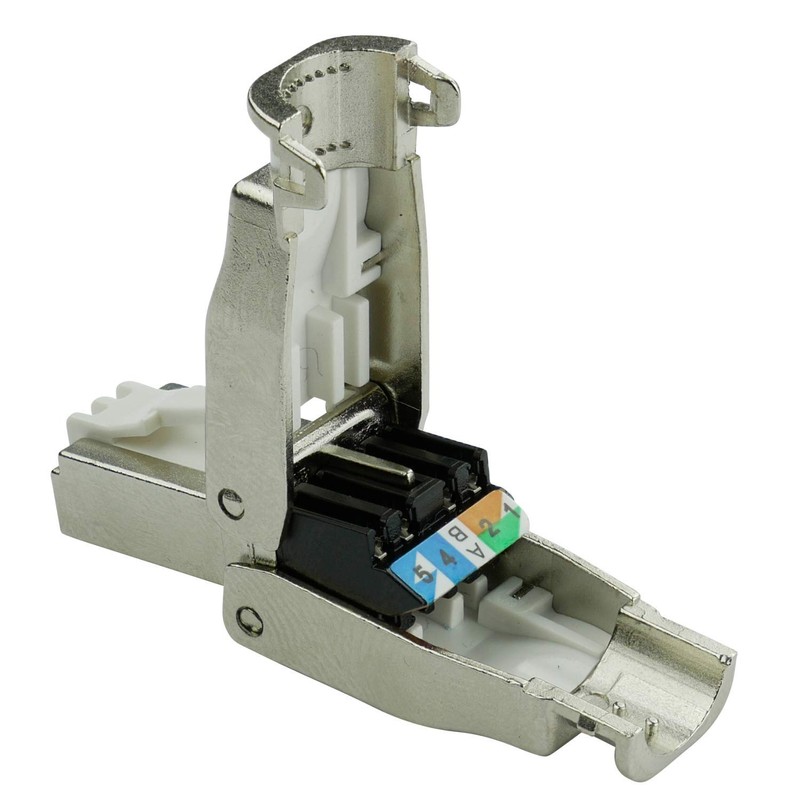

The compact design with removable wire separator ensures quick, easy installation on site, even for cables with larger conductor cross sections (AWG22) and cable diameters (up to 9mm).
The metallic housing is high-quality and solidly processed, a 360° shielding and strain relief is ensured by the cable holder at the housing input.

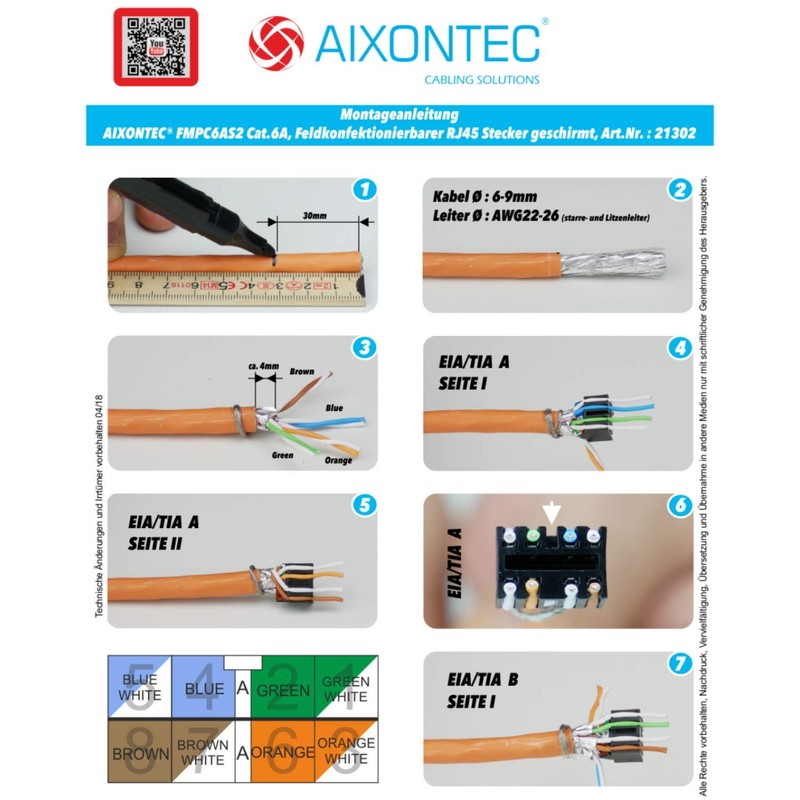

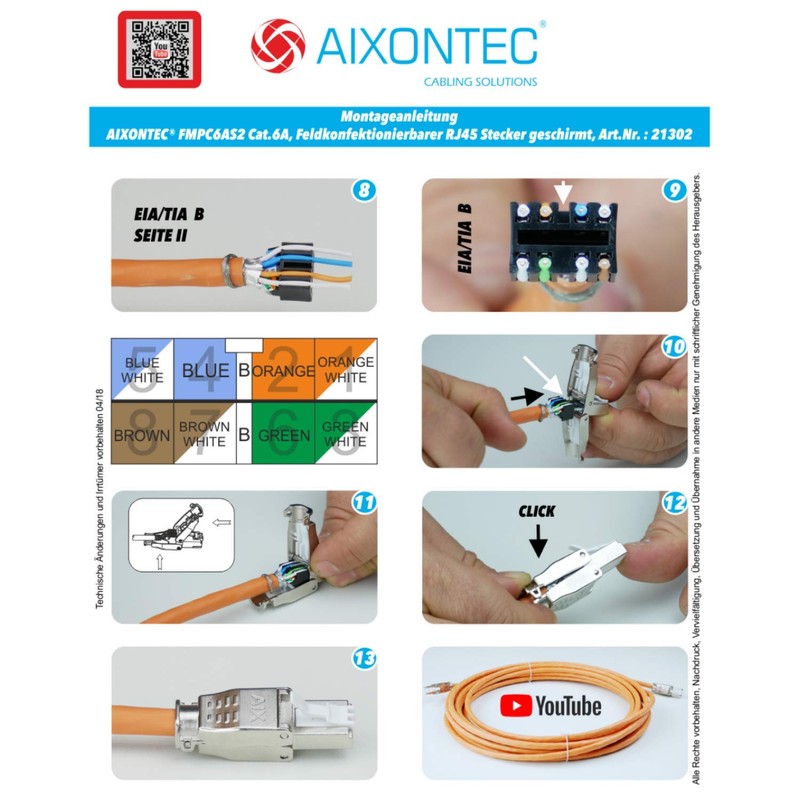

Easy assembly is supported by our German/English installation instructions and YouTube videos.
