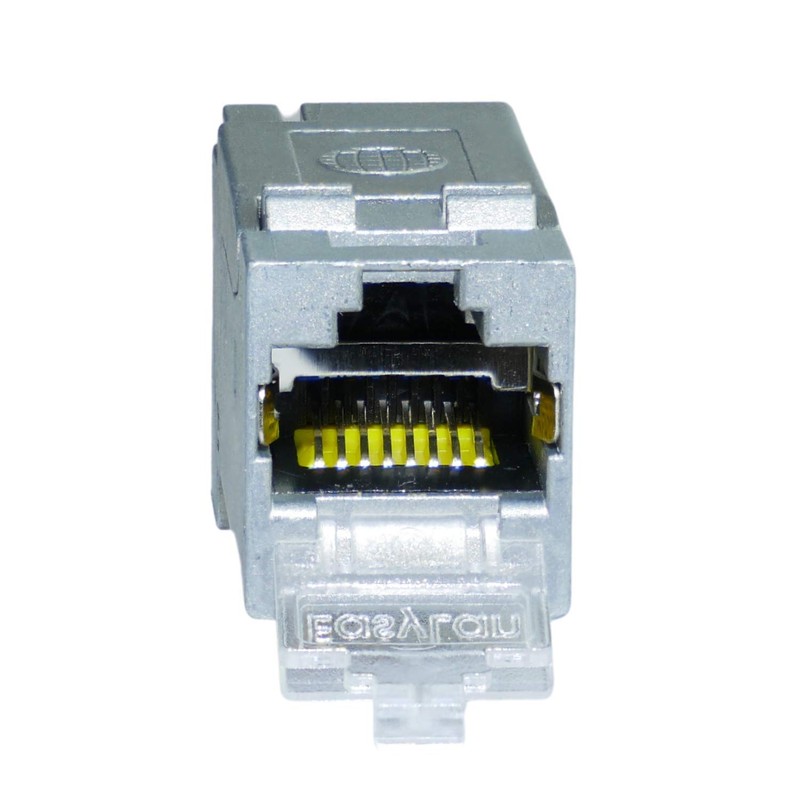

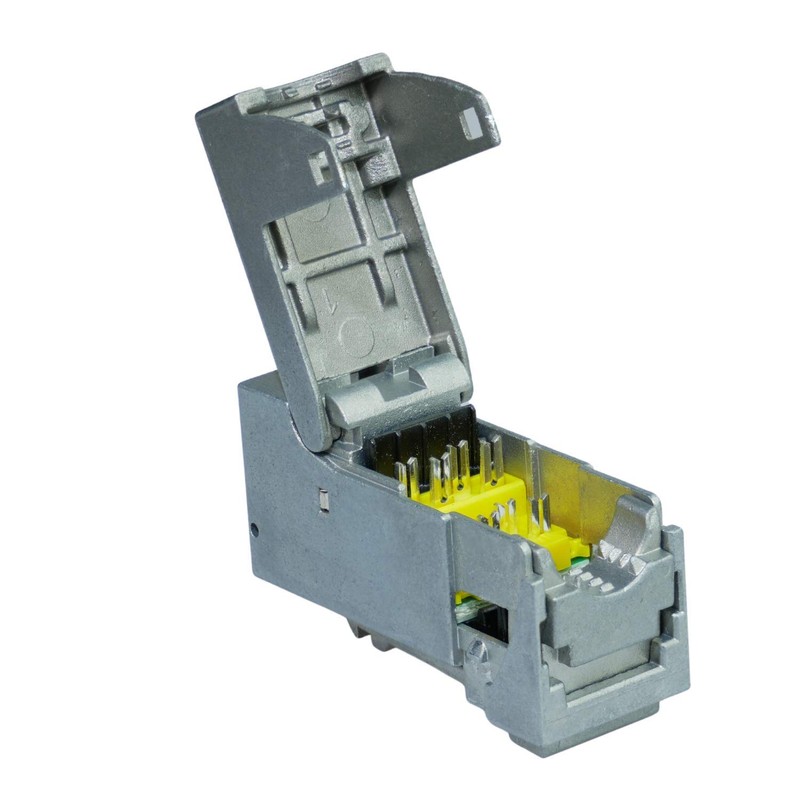

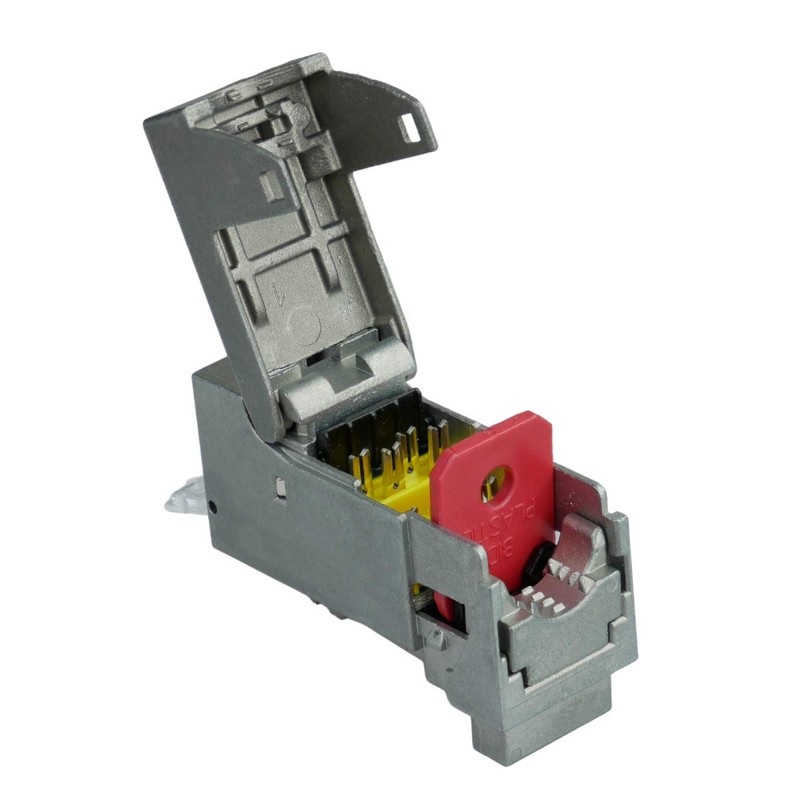

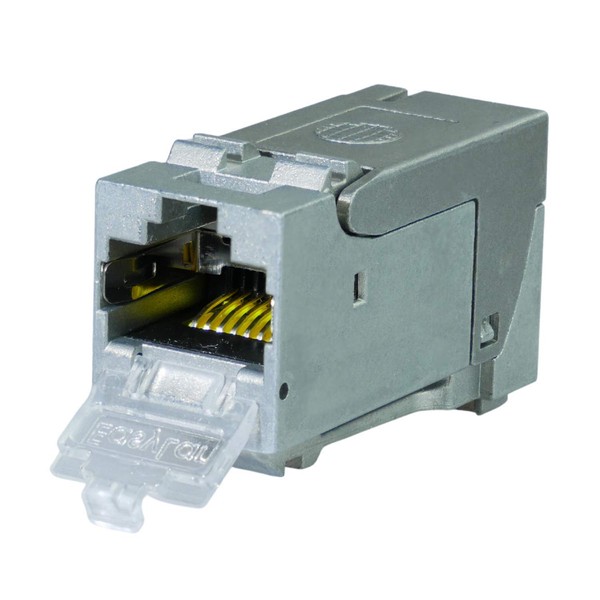

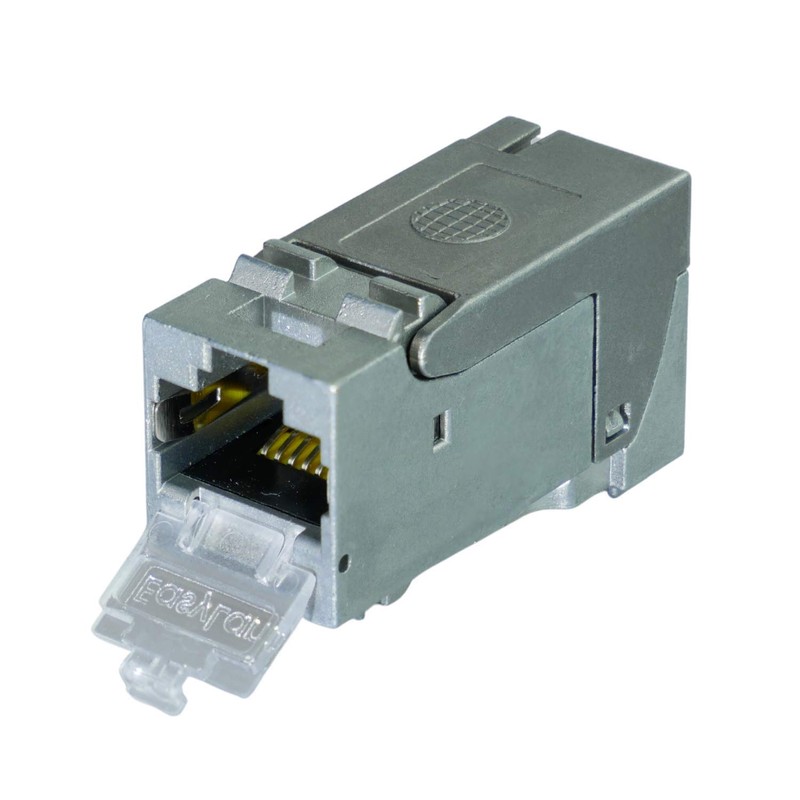

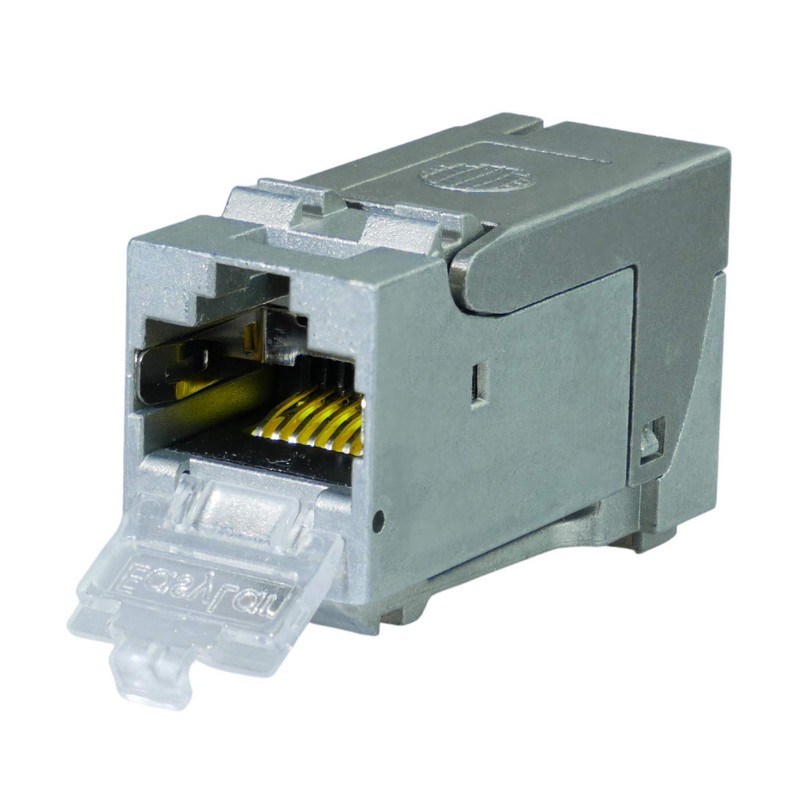

AIXONTEC Cat.6A Class EA Keystone Jack RJ45 Module Socket 500 MHz 10 Gbit Fully Shielded Toolless Mounting Toolless RJ-45 Adapter Cat.7 Installation Cable Cat 7 Installation Cable up to 9.0 mm
$40.56
- $9.99 shipping from Germany View details
-
Arrives
- High-speed RJ45 Cat.6A class EA socket jack – excellent shielding and performance features, bandwidth 500 MHz, up to 10 Gigabit, ISO/IEC 11801 Class EA. The Cat.6A keystone module is ideal for professional and home applications.
- Cable holder diameter 5.0 mm - 9.0 mm, wire cross section AWG24-22 suitable for rigid and flexible cables. 50µ gold-plated contact surfaces, wire manager for contacts: AWG 22, AWG 23, AWG 24 (suitable for Cat.7 installation cable and Cat.7 installation cable).
- Reliable: The Cat.6 Keystone module offers high reliable mechanical and electrical properties thanks to its high-quality and robust zinc die-cast housing. The Cat.6 10 Gigabit connection module is easy to assemble thanks to its removable threading aid.
- Premium quality – the Cat 6A network adapter can be mounted several times thanks to its high-quality 30µ gold-plated contact pads. Suitable for connecting Cat.7/Cat.6a/Cat.6/ Cat.5 installation cables to each other. After successfully placing the wires on the LSA connector, the full link length is supported even with 10 Gigabit networks and supports PoE and PoE+. (Power over Ethernet)
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- High-speed RJ45 Cat.6A class EA socket jack – excellent shielding and performance features, bandwidth 500 MHz, up to 10 Gigabit, ISO/IEC 11801 Class EA. The Cat.6A keystone module is ideal for professional and home applications.
- Cable holder diameter 5.0 mm - 9.0 mm, wire cross section AWG24-22 suitable for rigid and flexible cables. 50µ gold-plated contact surfaces, wire manager for contacts: AWG 22, AWG 23, AWG 24 (suitable for Cat.7 installation cable and Cat.7 installation cable).
- Reliable: The Cat.6 Keystone module offers high reliable mechanical and electrical properties thanks to its high-quality and robust zinc die-cast housing. The Cat.6 10 Gigabit connection module is easy to assemble thanks to its removable threading aid.
- Premium quality – the Cat 6A network adapter can be mounted several times thanks to its high-quality 30µ gold-plated contact pads. Suitable for connecting Cat.7/Cat.6a/Cat.6/ Cat.5 installation cables to each other. After successfully placing the wires on the LSA connector, the full link length is supported even with 10 Gigabit networks and supports PoE and PoE+. (Power over Ethernet)
AIXONTEC RJ45 CAT.6A Class EA 10 GbE 500MHz Keystone Module
- Transmission characteristics Cat.6A Class 500 MHz up to 10 GbE
- Standards.
- EN 50173 (2nd output), class EA.
- ISO/IEC 11801 AM1 and AM2, Class EA.
- EIA/TIA 568 C.2 Cat.6A
- Housing die-cast zinc, nickel-plated.
- Contacts 50 µ gold-plated
- Cable connection AWG 22-24.
- Cable diameter: 5 - 9.5 mm.
- Plug-in force = 50 N.
- Plug-in cycles min. 750.
- Insulation resistance: 500 m Ohm.
- Contact resistance = 20 m Ohm.
- Max. Rated current: 1.0 amps.
- Operating temperature: 40 °C to 70 °C.
- Contact EIA/TIA A/B.
- PoE+ 4PPoE IEEE802.3bt
Shielded Cat.6A RJ45 keystone module with zinc die-cast housing. Suitable for all applications (language and data) Class EA/500MHz to 10GbE
With integrated protective cap, also suitable for industrial applications. Easy to use and quick to assemble.
