- Suitable for workshop chips or smoke extraction with pipe or hose as a reduction DN50 to DN40

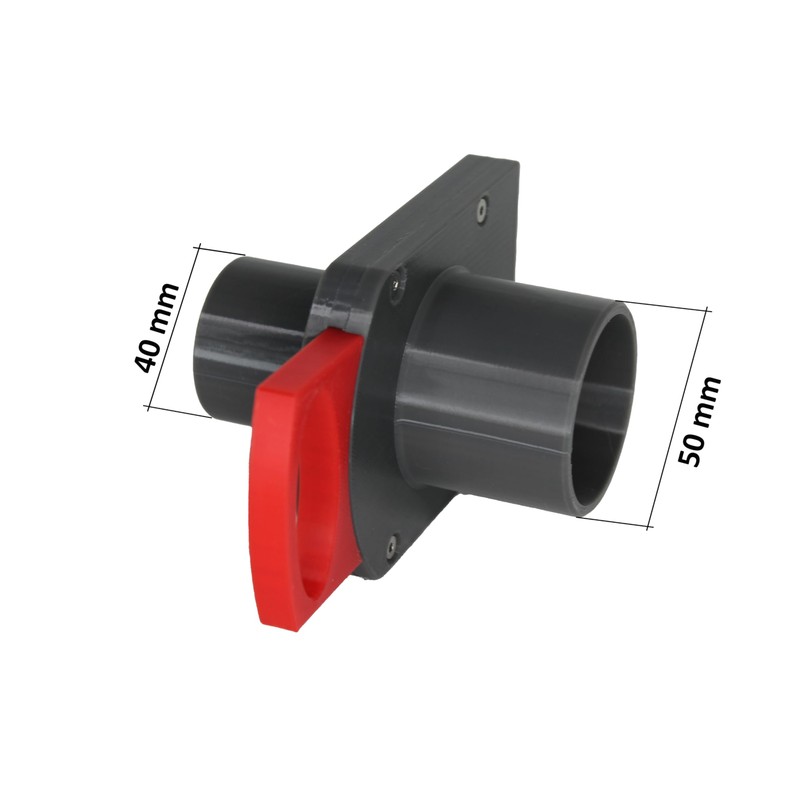

- DN40 mm + DN50 mm combination / reducer - without HT sleeve (one side outer diameter 40 mm other side outer diameter 50 mm)
- Not suitable for pool or water pipes - not waterproof
- Ideal for Y-connection as a gate valve in extraction systems with cyclone separator and vacuum cleaner
- Robust and perfect fit
- Developed and manufactured in Germany
| Brand: | Generic |
|---|---|
| Manufacturer: | 3-D-M |
| Part Number: | YVGZHG3 |
| Material Type: | Plastic – base body (PETG grey) – locking slider (PLA+ red) |
| Isin: | I354HQSTAYSF |
Out of Stock
In Stock
Backordered
Out of Stock
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
Product description: locking slide.
The lock slide is an effective tool for controlling the airflow between different machines during extraction. It is characterised by its ease of use and durability. Thanks to the robust construction and the use of high-quality materials, it offers a long service life. The slider locks securely into the end positions.
Intended use:
Blastgates or gate valves are used to shut off vacuum air flows in extraction systems, industrial vacuum cleaners, dust collectors, air purifiers, cyclone separators, filter systems for the extraction of dust, wood or metal chips as well as smoke or vapours.
Recommended indoor use only
Temperature range: -20 °C to max. 60 °C.
Max. Operating pressure: 10 bar.
Dimensions (length x width x height): 90 mm x 75 mm x 130 mm (closed) or 185 mm (open).
Important note:
This gate valve is expressly not suitable for shutting off pipes with liquids (water, oils, etc.) or gas!

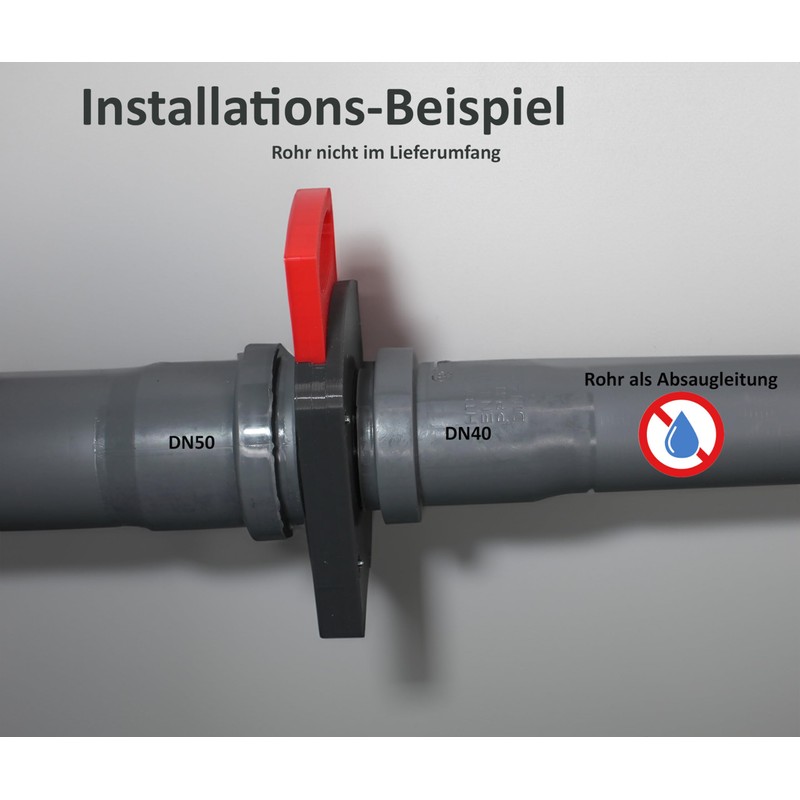

Compatibility and installation
The lock gate valve is compatible with HT pipes (high temperature pipes). This makes it a practical addition to any workshop. With the locking slider, you can direct the suction specifically to a table saw, chop saw or milling machine by opening the corresponding blastgate and closing the others. This optimises the efficiency of the extraction system as only the machine that is currently in operation is vacuumed. Also compatible with our separately available hose adapters for many different hose diameters.
Easy to install:
HT pipes can be inserted without sticking.
For stability, the HT pipes should be mounted firmly on the wall in front of and behind the gate valves (e.g. with pipe clamps).
HIGH QUALITY MANUFACTURING AND QUALITY
The parts are manufactured using state-of-the-art 3D printing technology and carry the characteristic features of this process. The surface of the parts is untreated. We carefully ensure that only high-quality products are delivered.
Materials used:
Base body: PETG (polyethylene terephthalate glycol).
Slider: PLA (polylactide).
Questions and answers about the product:
Customer Question: InaProduct ReviewistofLeakage IssuesThe Speech. Why is that?
Answer: tightness problems can only occur when improper use, e.g. when our air lock valve is incorrectly inserted into water conducting pipes. Despite clearer hints of our product description, this is unfortunately sometimes. As appropriate, use in extraction systems can assure you that our product has no tightness problems.
Customer question: How to clean the locking slider thoroughly?
Answer: For intensive cleaning disassembly, boiling locking sliders (loosen the screws) and clean it with a dry brush and cloth. Wetting the sliding surface lightly with silicone spray, then mounting, boiling, locking slider, pull the screw hand tight.
Customer Question: Must be lubricated?
Answer: It is recommended to lightly wet the sliding surfaces of the lock slider with silicone spray to facilitate operation and extend the life of the product.
