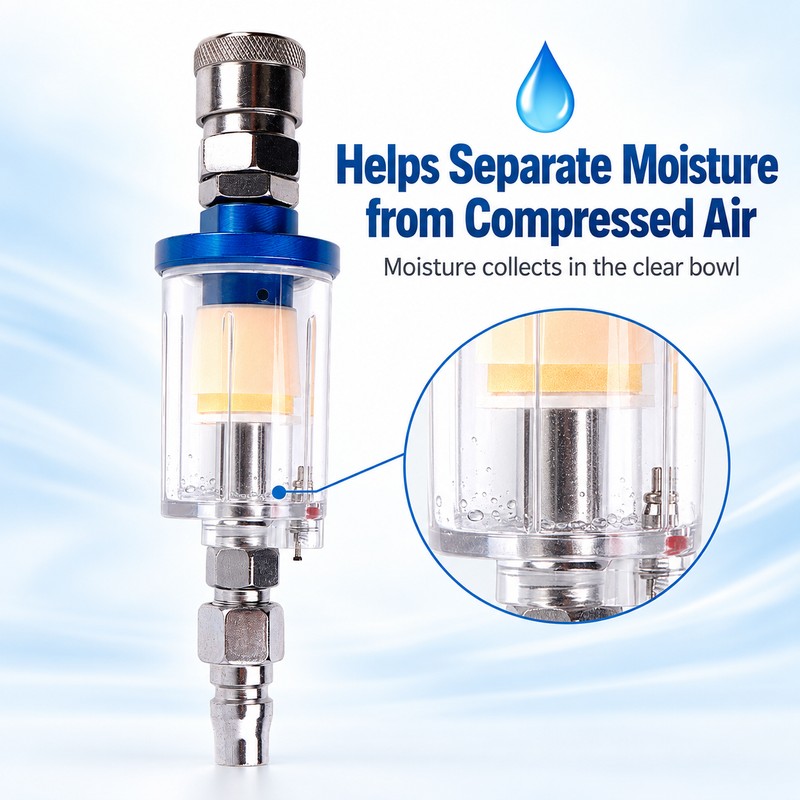

Air Compressor Water Separator Filter for Spray Guns – 1/4-Inch Inline Moisture Trap with JPN-Style Quick Connectors and Manual Drain
$19.99
- $5.99 shipping from United States View details
-
Arrives

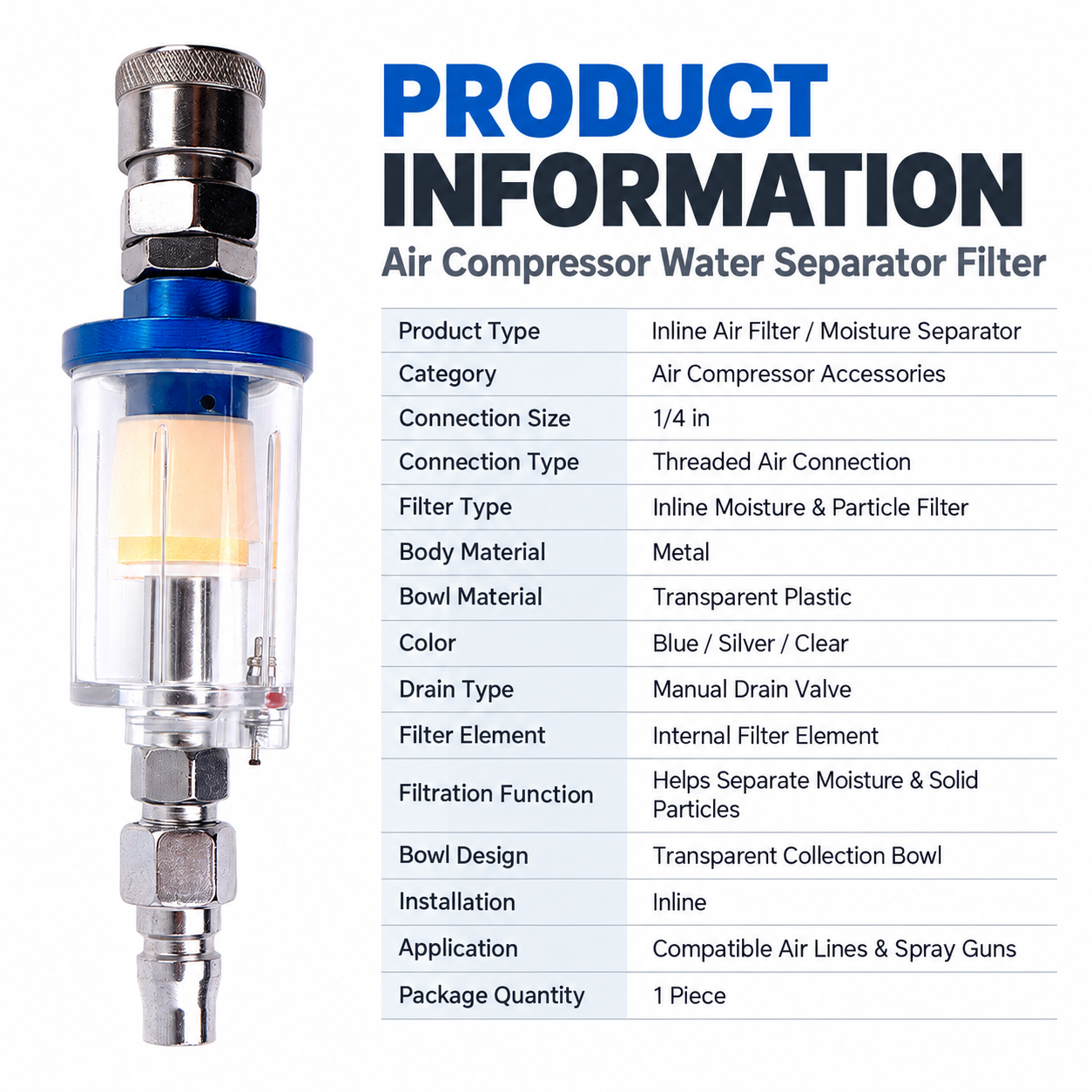

- Product Type: Inline compressed-air water separator filter and moisture trap for compatible spray gun and pneumatic tool connections.
- Filtration Function: Helps trap liquid water droplets, condensation, and airborne solid debris, including pipe scale and rust.
- Threaded Connection: 1/4-inch thread size; the exact thread standard is not established.
- Quick-Connect Profile: Supplied JPN-style quick fittings. Quick-connect profile is separate from thread size; both must match the intended equipment. Other coupler profiles are not confirmed compatible.
- Adapter Requirements: A suitable adapter may be required for connections that do not directly match. No additional adapter is included.

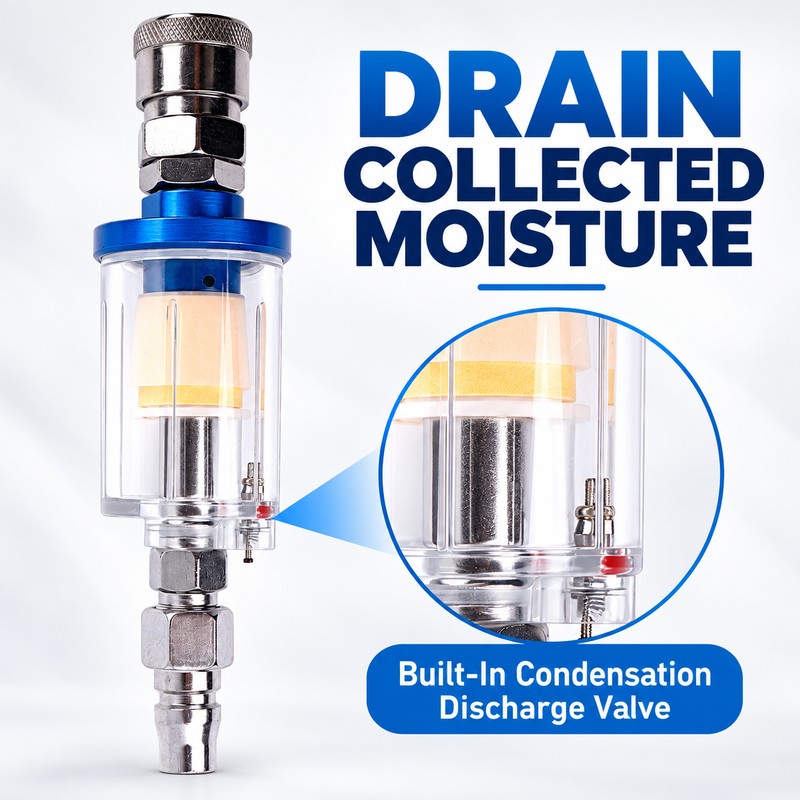

- Drain Mechanism: Bottom spring-loaded, manually operated drain valve. Not an automatic-drain system. Isolate the supply and fully depressurize before draining.

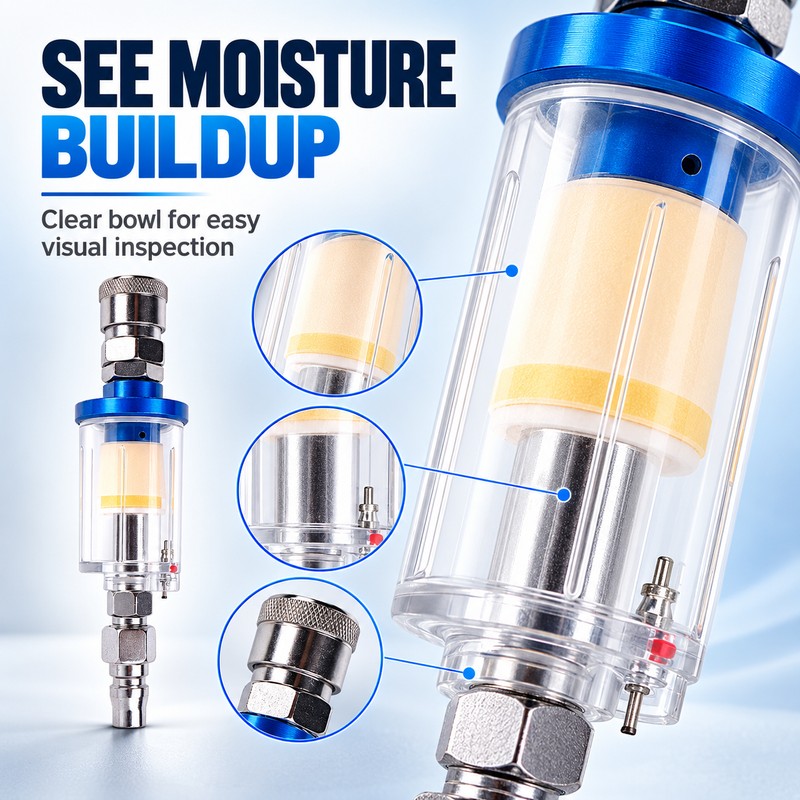

- Inspection Bowl: Transparent polycarbonate bowl allows visual monitoring of collected moisture and debris.
- Materials: Aluminum alloy, transparent polycarbonate, and iron.
- Colors: Blue, silver, and clear.
- Approximate Overall Length: 5.91 inches (150 mm).
- Approximate Maximum Width: 1.57 inches (40 mm).
- Installation: Verify fitting compatibility and applicable marked ratings, follow airflow direction markings, connect the correct inlet and outlet, and check for secure, leak-free connections according to equipment instructions.
- Care: Protect the bowl from impacts, incompatible chemicals, and excessive heat. Do not operate with a cracked or damaged bowl. Fully depressurize before maintenance.
- Operating Specifications: Manufacturer-confirmed pressure rating, filtration micron rating, and temperature limits are not provided. Verify applicable marked ratings and equipment requirements before use.
- Filtration Limitations: Does not guarantee removal of all oil mist, oil vapor, or water vapor. Not a compressed-air dryer, dehumidifier, or breathable-air filtration system.
- Package Contents: One assembled inline water separator filter with the shown JPN-style quick connectors and manual drain valve.
- Not Included: Pressure regulator, pressure gauge, air compressor, air hose, and additional adapters.
- Helps Trap Moisture and Debris: Designed to collect liquid water droplets, condensation, and airborne solid particles such as pipe scale and rust from compressed-air lines.
- JPN-Style Quick Connectors: Includes JPN-style quick fittings with a 1/4-inch threaded connection. Match both the thread specification and quick-connect profile before purchase; an additional adapter may be needed.
- Visible Moisture Collection: Transparent polycarbonate bowl lets you visually monitor collected condensation and debris.
- Manual Spring-Loaded Drain: Bottom drain valve allows manual release of collected moisture after the air supply has been isolated and the system fully depressurized. Not an automatic drain.
- Practical Inline Construction: Made with aluminum alloy, transparent polycarbonate, and iron components. Approximately 5.91 inches (150 mm) long and 1.57 inches (40 mm) at its widest point.
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
What Customers Are Saying
- Product Type: Inline compressed-air water separator filter and moisture trap for compatible spray gun and pneumatic tool connections.
- Filtration Function: Helps trap liquid water droplets, condensation, and airborne solid debris, including pipe scale and rust.
- Threaded Connection: 1/4-inch thread size; the exact thread standard is not established.
- Quick-Connect Profile: Supplied JPN-style quick fittings. Quick-connect profile is separate from thread size; both must match the intended equipment. Other coupler profiles are not confirmed compatible.
- Adapter Requirements: A suitable adapter may be required for connections that do not directly match. No additional adapter is included.
- Drain Mechanism: Bottom spring-loaded, manually operated drain valve. Not an automatic-drain system. Isolate the supply and fully depressurize before draining.
- Inspection Bowl: Transparent polycarbonate bowl allows visual monitoring of collected moisture and debris.
- Materials: Aluminum alloy, transparent polycarbonate, and iron.
- Colors: Blue, silver, and clear.
- Approximate Overall Length: 5.91 inches (150 mm).
- Approximate Maximum Width: 1.57 inches (40 mm).
- Installation: Verify fitting compatibility and applicable marked ratings, follow airflow direction markings, connect the correct inlet and outlet, and check for secure, leak-free connections according to equipment instructions.
- Care: Protect the bowl from impacts, incompatible chemicals, and excessive heat. Do not operate with a cracked or damaged bowl. Fully depressurize before maintenance.
- Operating Specifications: Manufacturer-confirmed pressure rating, filtration micron rating, and temperature limits are not provided. Verify applicable marked ratings and equipment requirements before use.
- Filtration Limitations: Does not guarantee removal of all oil mist, oil vapor, or water vapor. Not a compressed-air dryer, dehumidifier, or breathable-air filtration system.
- Package Contents: One assembled inline water separator filter with the shown JPN-style quick connectors and manual drain valve.
- Not Included: Pressure regulator, pressure gauge, air compressor, air hose, and additional adapters.
- Helps Trap Moisture and Debris: Designed to collect liquid water droplets, condensation, and airborne solid particles such as pipe scale and rust from compressed-air lines.
- JPN-Style Quick Connectors: Includes JPN-style quick fittings with a 1/4-inch threaded connection. Match both the thread specification and quick-connect profile before purchase; an additional adapter may be needed.
- Visible Moisture Collection: Transparent polycarbonate bowl lets you visually monitor collected condensation and debris.
- Manual Spring-Loaded Drain: Bottom drain valve allows manual release of collected moisture after the air supply has been isolated and the system fully depressurized. Not an automatic drain.
- Practical Inline Construction: Made with aluminum alloy, transparent polycarbonate, and iron components. Approximately 5.91 inches (150 mm) long and 1.57 inches (40 mm) at its widest point.

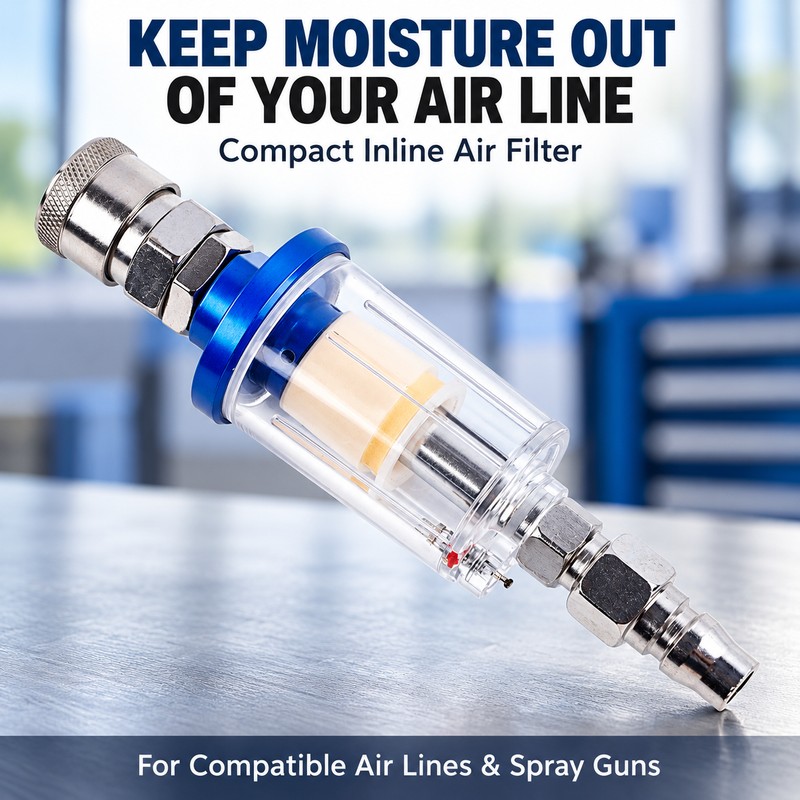

Keep an eye on moisture and debris in your compressed-air line with this inline air compressor water separator filter. Designed for compatible spray gun and pneumatic tool connections, it helps trap liquid water droplets, condensation, and airborne solid debris such as pipe scale and rust as compressed air passes through the filter. Its transparent bowl allows you to monitor collected moisture, while the bottom spring-loaded valve provides manual draining.
What Problem It Solves

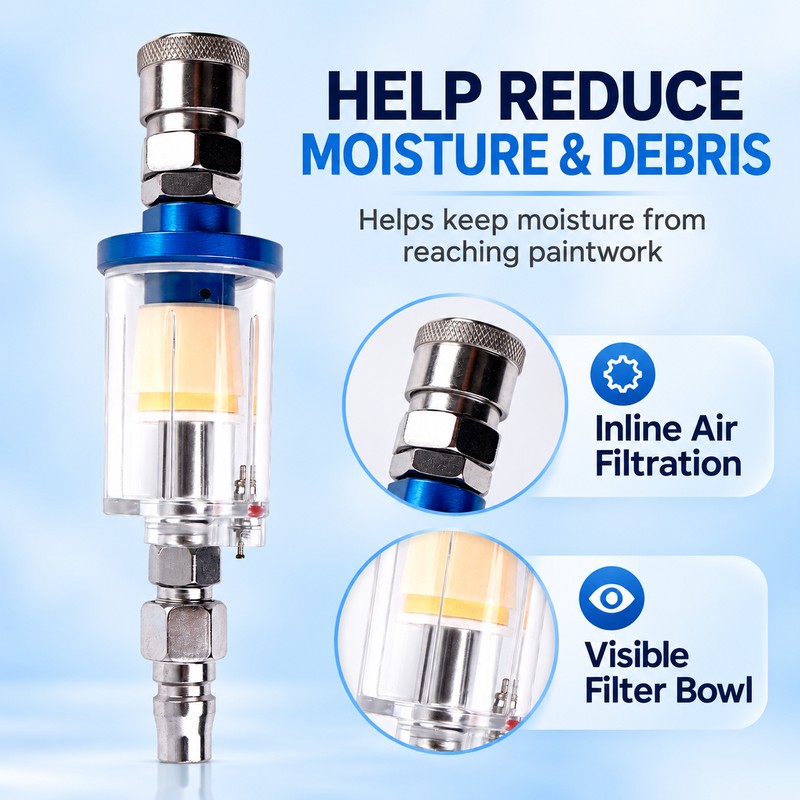

Condensation and loose debris in compressed-air lines can interfere with spray gun work and pneumatic equipment. This inline filter provides a practical way to collect some of these contaminants before they reach connected equipment. It is not a compressed-air dryer, dehumidifier, or pressure regulator, and it does not guarantee removal of all moisture, oil mist, oil vapor, or water vapor.
Connection Compatibility

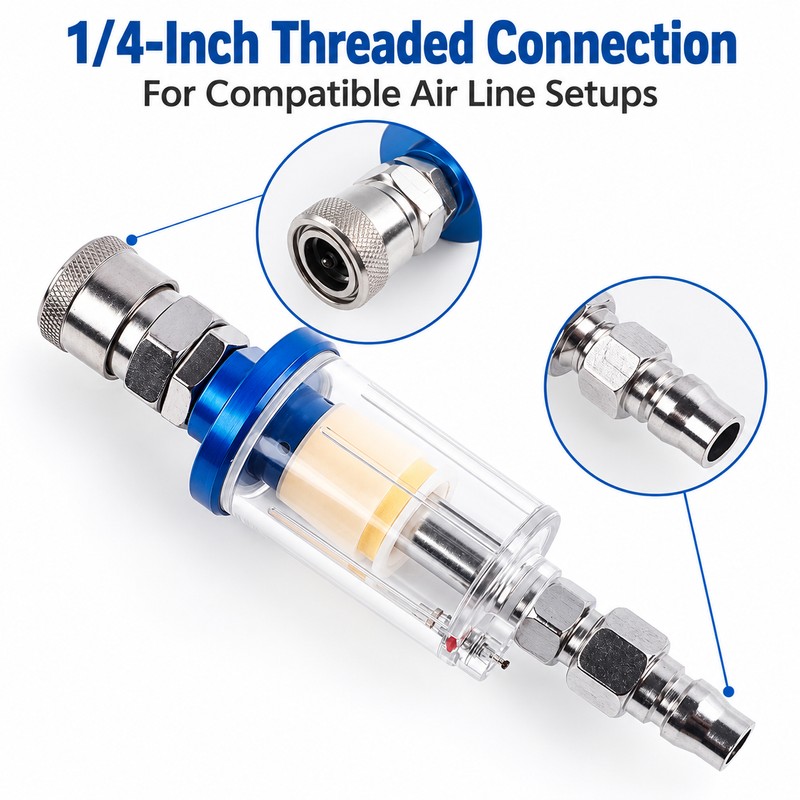

The filter has a 1/4-inch threaded connection and supplied JPN-style quick-connect fittings. Thread size and quick-connect profile are separate compatibility requirements: a matching 1/4-inch thread does not establish that the quick connector will fit your existing air hose or tool. Confirm both the exact thread specification and JPN connector profile before purchase. The thread standard is not established, and compatibility with other quick-coupler profiles should not be assumed. A separate adapter may be required and is not included.
Construction and Dimensions
The assembly uses aluminum alloy, transparent polycarbonate, and iron components, with a blue, silver, and clear appearance. Approximate overall length is 5.91 inches (150 mm), and approximate maximum width is 1.57 inches (40 mm). The transparent bowl supports visual inspection of collected condensation. The bottom spring-loaded drain valve is manually operated; this is not an automatic-drain filter.
Installation and Use
- Before installation, confirm that the equipment connections match the filter's thread and JPN-style quick-connect profile. Verify the filter's applicable marked operating ratings against your compressed-air system and equipment requirements.
- Turn off and isolate the compressed-air supply, then fully depressurize the system before connecting or disconnecting the filter.
- Follow any airflow direction markings on the filter. Connect the correct inlet and outlet using compatible fittings and the relevant equipment instructions.
- Check that all connections are secure and leak-free according to your equipment instructions before normal operation.

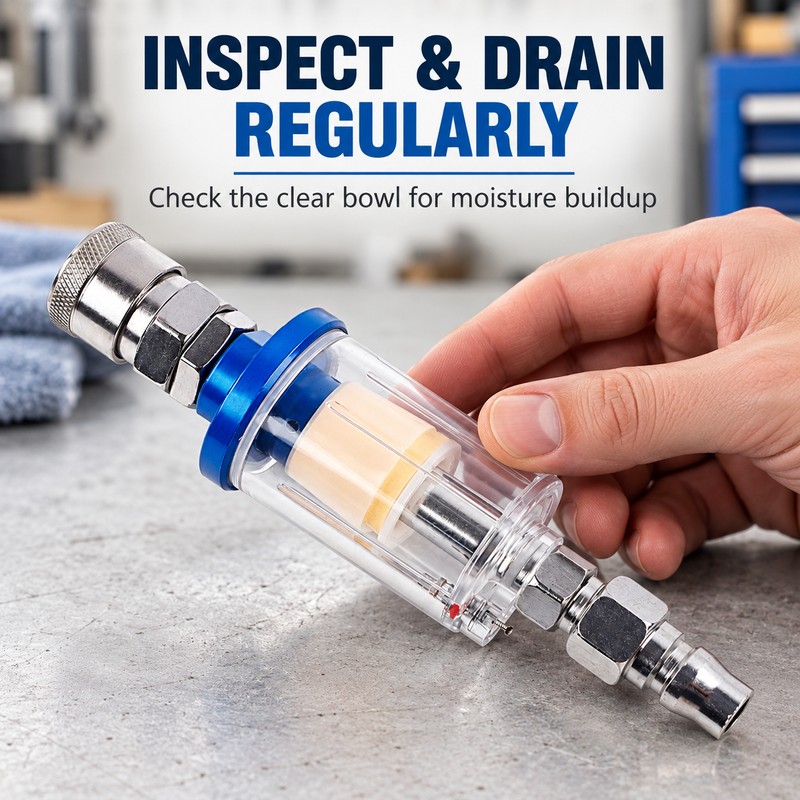

- Monitor the transparent bowl for collected moisture and debris during use.
- Before operating the spring-loaded manual drain valve or performing maintenance, isolate the air supply and fully depressurize the system. Follow the equipment instructions for safe draining and maintenance.
Care and Safety
Keep the clear polycarbonate bowl away from impacts, incompatible chemicals, and excessive heat. Do not use the filter if the bowl is cracked, damaged, or otherwise compromised. No manufacturer-confirmed maximum pressure rating, filtration micron rating, or operating temperature limit is available in the supplied information. Do not rely on an assumed rating; verify applicable markings and equipment requirements before use. This product is not intended to provide breathable air.
Package Contents
Includes one assembled inline water separator filter with the shown JPN-style quick connectors and manual drain valve. A pressure regulator, pressure gauge, air compressor, air hose, and additional adapters are not included.
Choose this inline moisture trap when you need a compact, visually inspectable filter assembly for a compressed-air setup with correctly matched threaded and JPN-style quick-connect fittings.
