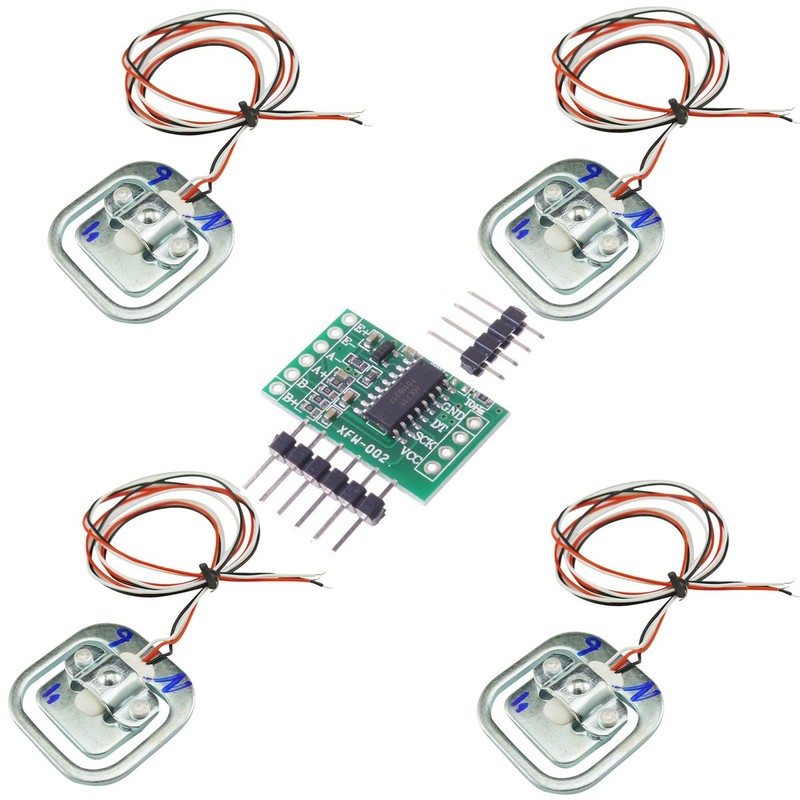

Aihasd 4 pieces half bridge load cell 50 kg half bridge strain gauges weight sensor + 1 piece HX711 amplifier AD weighing module for Arduino
Aihasd 4 pieces half bridge load cell 50 kg half bridge strain gauges weight sensor + 1 piece HX711 amplifier AD weighing module for Arduino
Aihasd 4 pieces half bridge load cell 50 kg half bridge strain gauges weight sensor + 1 piece HX711 amplifier AD weighing module for Arduino
- The weight sensor is characterised by accuracy and sensitivity as well as a low volume. The input circuit can be configured as a bridge sensor, the bridge pressure sensor modes (e.g. pressure, weighing), making it an ideal front-end module with high accuracy and low cost.

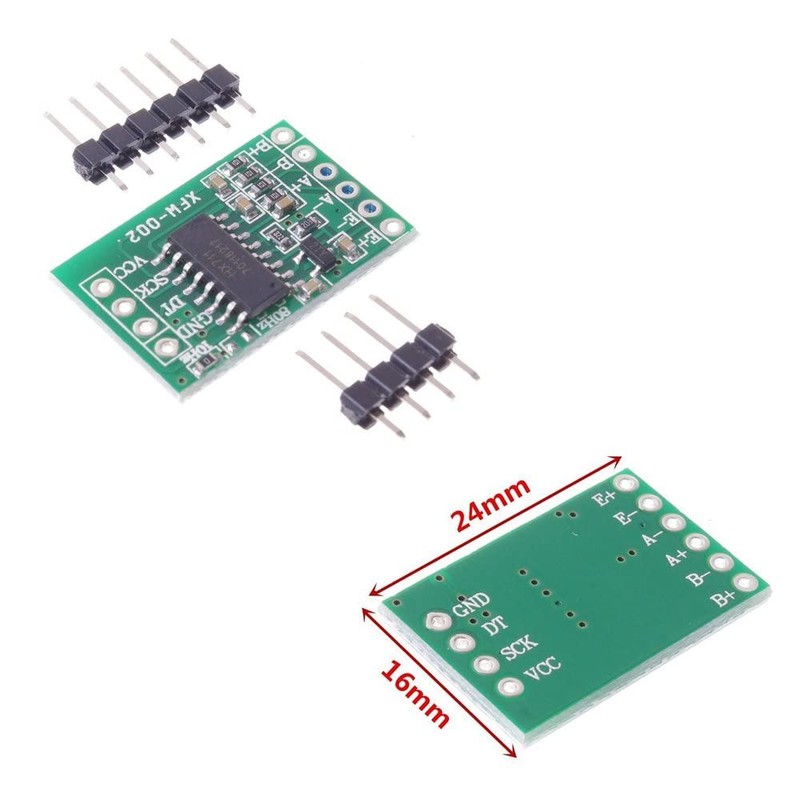

- The HX711 module uses 24 high-precision A/D converter chips hx711. It is a design specially developed for high-precision electronic scale design, with two analogue input channels and the internal integration of the 128x amplifier with programmable gain.
- The 50kg load cell consists of a set of half-bridge DMS. Use the external resistance of the 50 kg load sensor to perform a full bridge measurement. There are three ways to use it: 1. With a sensor with external resistors, full bridge measuring range of a sensor range: 50 kg. Higher requirements for external resistance.
- 2. With two weight sensors 50 kg form a full bridge measurement, measuring range for the sum of the two sensors: 50 kg x 2 = 100 kg.
- 3. Use four scales 50 kg to form a full bridge measurement, measuring range for the sum of four sensors: 50 kg x 4 = 200 kg.
| Brand: | Aihasd |
|---|---|
| Manufacturer: | AX Electronic |
| Part Number: | F5FT17R |
| Material Type: | PC (polycarbonate) |
| Isin: | II3ASM4IGDDR |
Out of Stock
In Stock
Backordered
Out of Stock
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
Product description:
1.HX711 Module + 4pcs 50kg Half Bridge Strain Gauge Weight Sensor Set.
2. This module uses a highly accurate 24-bit A/D converter chip HX711, which is designed for highly accurate electronic scales.
3. The weight sensor is characterised by accuracy and sensitivity as well as a low volume.
Specification:

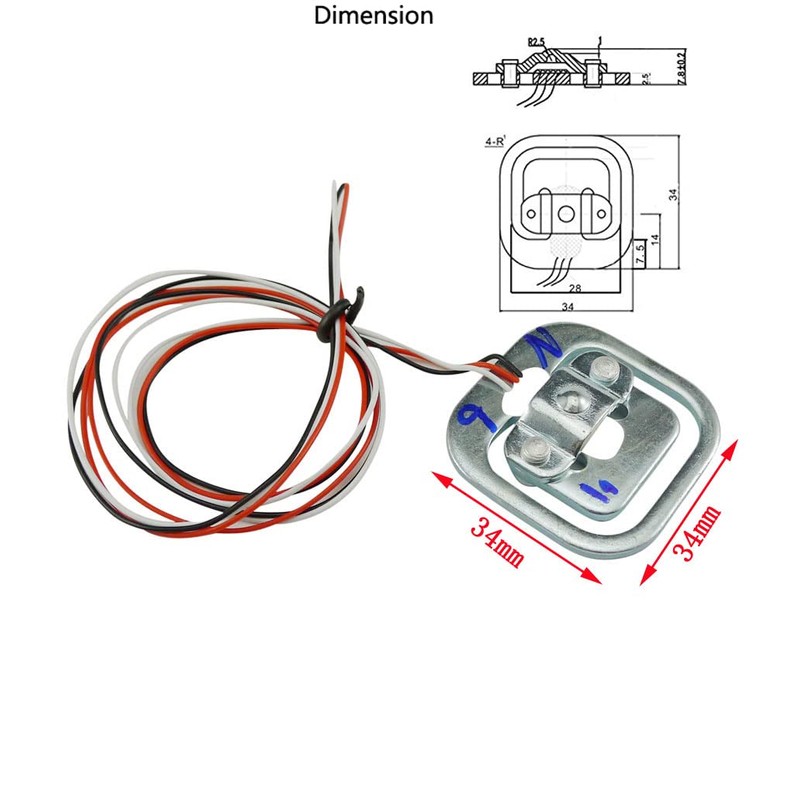

Sensor size: 34 mm x 34 mm / 1.34 inches x 1.34 inches.
Sensor inner construction: 1000 ohm half-bridge strain gauge.
Structure: half bridge.
Output sensitivity: 1.0 ± 15% mV/V.
Nonlinearity: 0.05% F.S
Input impedance: 1000±10ohm.
Output impedance: 1000 ± 10 ohms.
Insulation resistance: ≧ 2000 M ohm.
Operating temperature range: -10~+50°C.
Overload capacity: 150% F.S.
Capacity: 50 kg/110 lb.
When using 4 pieces, there are three types of measuring range: 50 kg/100 kg/200 kg.
This sensor is a group of half bridge strain gauges, method which can have the following three:
1. Use a sensor with the external resistance to form a full bridge measurement, the range of a sensor range: 50 kg. The requirements for external resistance are higher.
2. The use of two sensors to form a full bridge measurement that measures the range of two sensors and: 50 kg x 2 = 100 kg.
3. The use of four sensors to form a full bridge measurement, measuring range of four sensors and the range: 50 kg x 4 = 200 kg.
Package list:
4 x weight sensors.
1 x HX711 Module
1.HX711 Module + 4pcs 50kg Half Bridge Strain Gauge Weight Sensor Set.
2. This module uses a highly accurate 24-bit A/D converter chip HX711, which is designed for highly accurate electronic scales.
3. The weight sensor is characterised by accuracy and sensitivity as well as a low volume.
Specification:
Sensor size: 34 mm x 34 mm / 1.34 inches x 1.34 inches.
Sensor inner construction: 1000 ohm half-bridge strain gauge.
Structure: half bridge.
Output sensitivity: 1.0 ± 15% mV/V.
Nonlinearity: 0.05% F.S
Input impedance: 1000±10ohm.
Output impedance: 1000 ± 10 ohms.
Insulation resistance: ≧ 2000 M ohm.
Operating temperature range: -10~+50°C.
Overload capacity: 150% F.S.
Capacity: 50 kg/110 lb.
When using 4 pieces, there are three types of measuring range: 50 kg/100 kg/200 kg.
This sensor is a group of half bridge strain gauges, method which can have the following three:
1. Use a sensor with the external resistance to form a full bridge measurement, the range of a sensor range: 50 kg. The requirements for external resistance are higher.
2. The use of two sensors to form a full bridge measurement that measures the range of two sensors and: 50 kg x 2 = 100 kg.
3. The use of four sensors to form a full bridge measurement, measuring range of four sensors and the range: 50 kg x 4 = 200 kg.
Package list:
4 x weight sensors.
1 x HX711 Module
