Aideepen DC Motor Speed Controller, PWM DC 6-60V 12V 24V 36V 48V 30A Speed Adjustable Stepless Governor, Regulator with Start Stop Switch
$45.34
- $9.99 shipping from United Kingdom View details
-
Arrives
- ✔ Durability: This PWM motor speed controller is made of durable PCB material, stable product performance and long service life. Adopt digital encoder knob, stable and durable, high precision.
- ✔ High performance: Input supply voltage DC 6 V-60 V. Maximum output current 30A, maximum continuous output current 20A. Duty cycle adjustable 0%-100%.
- ✔ Easy to install: This motor speed controller adopts grid terminal block, button design. Slow start and stop time can be set, can limit the upper and lower speed limit, frequency 1-100KHZ can be set. (If you have any problems, please feel free to contact us)
- ✔ Note: The input voltage should be distinguished between positive and negative poles, and 220V can not be fed in, otherwise the controller will be damaged. The input voltage should match the rated voltage of the motor (between 6-60V).
- ✔ Wide range of applications: The Aideepen motor speed controller is suitable for controlling the speed of DC motors, fans, aquarium oxygen pumps and other products from 6 V - 60 V DC.
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- ✔ Durability: This PWM motor speed controller is made of durable PCB material, stable product performance and long service life. Adopt digital encoder knob, stable and durable, high precision.
- ✔ High performance: Input supply voltage DC 6 V-60 V. Maximum output current 30A, maximum continuous output current 20A. Duty cycle adjustable 0%-100%.
- ✔ Easy to install: This motor speed controller adopts grid terminal block, button design. Slow start and stop time can be set, can limit the upper and lower speed limit, frequency 1-100KHZ can be set. (If you have any problems, please feel free to contact us)
- ✔ Note: The input voltage should be distinguished between positive and negative poles, and 220V can not be fed in, otherwise the controller will be damaged. The input voltage should match the rated voltage of the motor (between 6-60V).
- ✔ Wide range of applications: The Aideepen motor speed controller is suitable for controlling the speed of DC motors, fans, aquarium oxygen pumps and other products from 6 V - 60 V DC.
Product parameters
Input voltage: DC6-60V (the specific voltage is equal to the rated voltage of the motor)
Output voltage: linear under load
Output current: 0-30A
Continuous current: within 20A
Speed control type: current control
Speed control type: 360 degree encoder knob
Speed control range: 0-100%
Frequency setting: 1-100KHZ can be set
Slow start and stop: can be set
Digital display of speed: 0-100 per cent table
Wiring type: fence type terminals
Support motor: brush motor
Module size: L*W*H 96mm*61mm*34mm
Product net weight: 105g

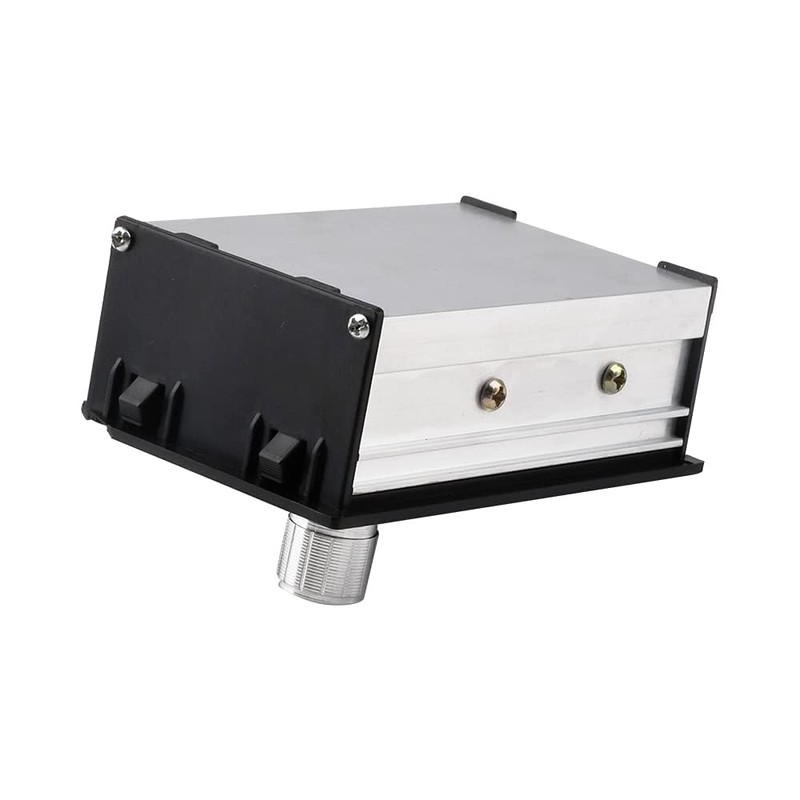

Panel opening: L*W92mm*56mm
Installation: Built-in

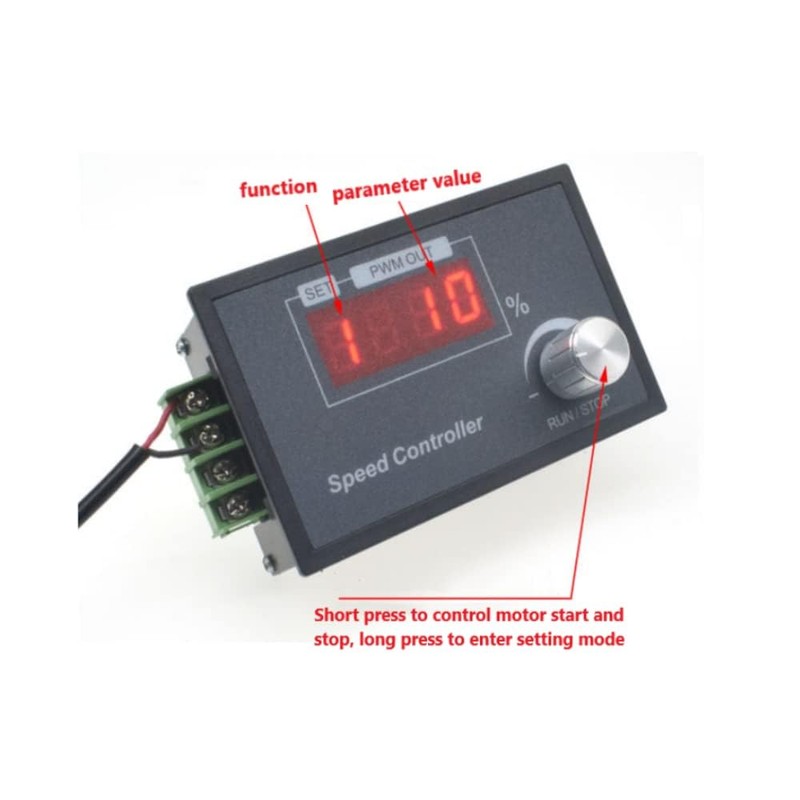

Digital encoder button operation:
Short press--switch motor start/stop
Long press--input the setting interface
Clockwise---increase
Anti-clockwise--shortening
Short press: Switch function 1, function 2, function 3, function 4, function 5, function 6 Long press, save and exit
Turn: Turn left to decrease the value, turn right to increase the value
① Setting the time for the slow start - function 1: 000 - 100 The time for the slow start at 100 % of the speed can be set between 0-10 seconds, the default setting is 1 second.
② Setting the slow stop time - function 2: 000 - 100 The slow stop time can be set between 0 and 10 seconds. 1 second is the default setting.
③ Setting the lower speed limit - function 3: 000 - 080 The minimum speed can be set from 0-80% and is below the maximum speed value The default setting is 0.
④ Upper speed limit - function 4: 000 - 100 The maximum speed can be set from 0-100% and is higher than the value of the minimum speed setting Default value is 100%.
⑤ Setting the acceleration and deceleration values - function 5: 001 002 005 010 015 015 020 025 The speed changes by 1%, 2%, 5%, 10%, 15%, 20%, 25% with each revolution.
⑥ Frequency setting - Function 6: Adjustable between 1-100KHZ Default setting 15KHZ.

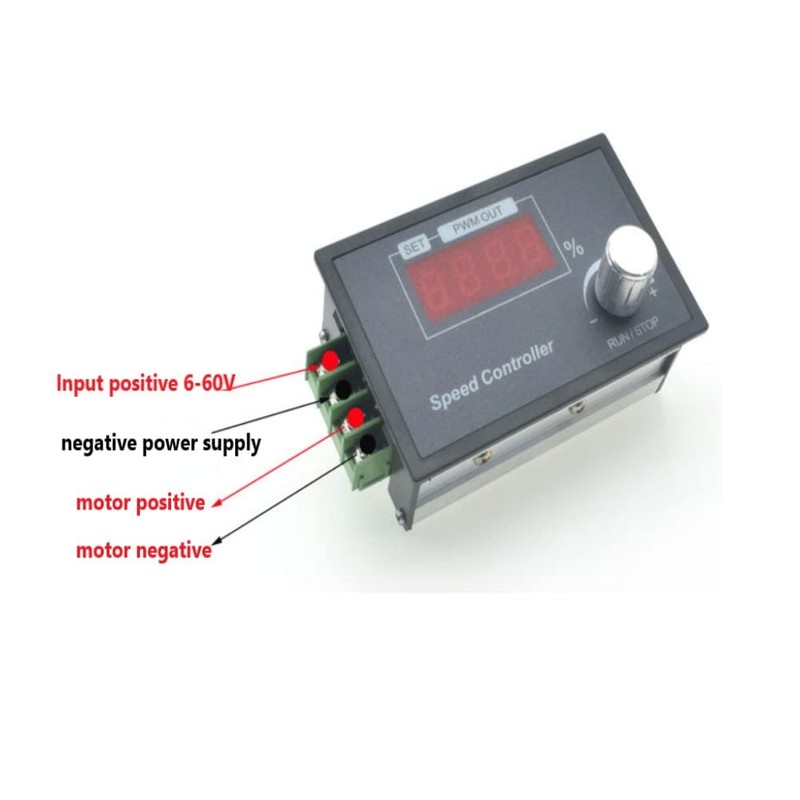

Note: The input voltage must be divided into positive and negative.
① The input voltage must be divided into positive and negative, not 220V.
② The input voltage should correspond to the rated voltage of the motor within 6-60V.
③ If the motor is 12V, enter 12V and 36V.
Product list
1 * Motor Speed Controller
