Adafruit RS-232 Level Shifter Breakout with Full Pinout, 5988
$48.98
- $9.99 shipping from Germany View details
-
Arrives

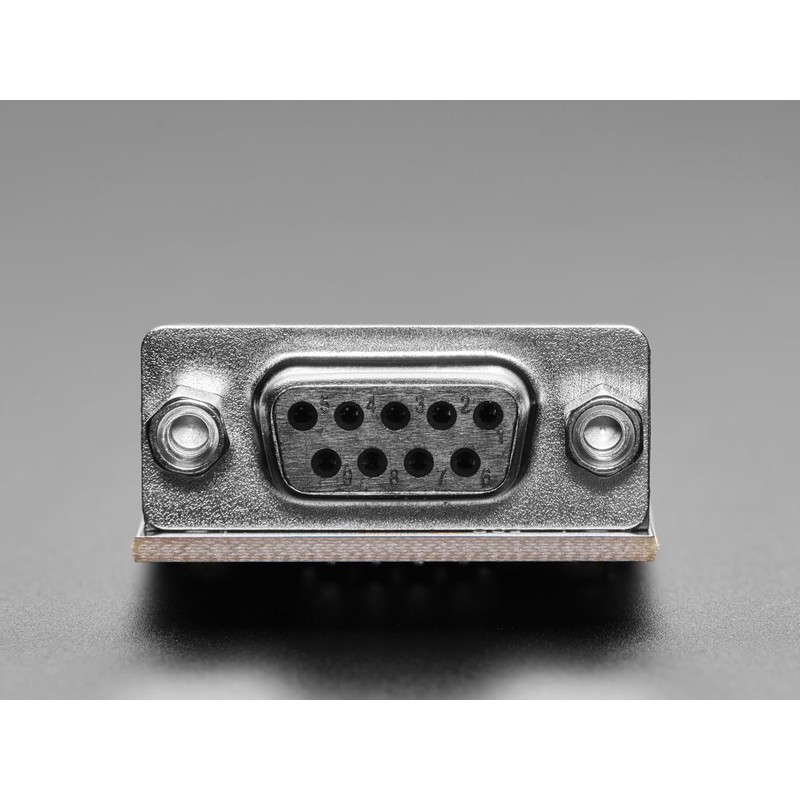

- Easy connection options – with our Adafruit RS232 full pinout breakout, you can easily connect your devices with RS-232 interfaces. The DE-9F socket allows you to connect directly to your device without having to tinker much.

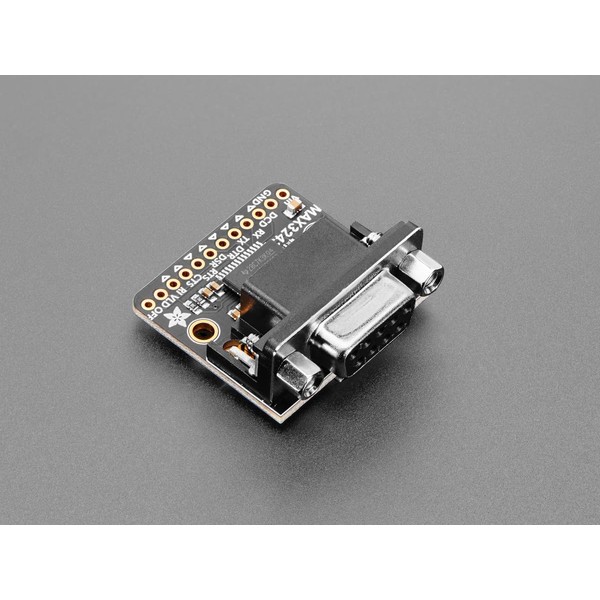

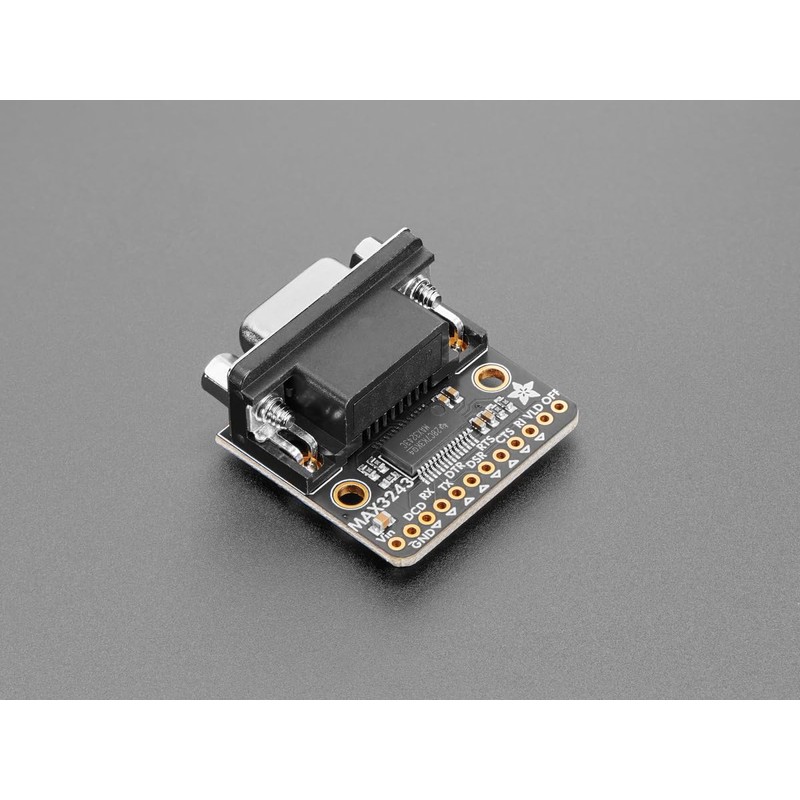

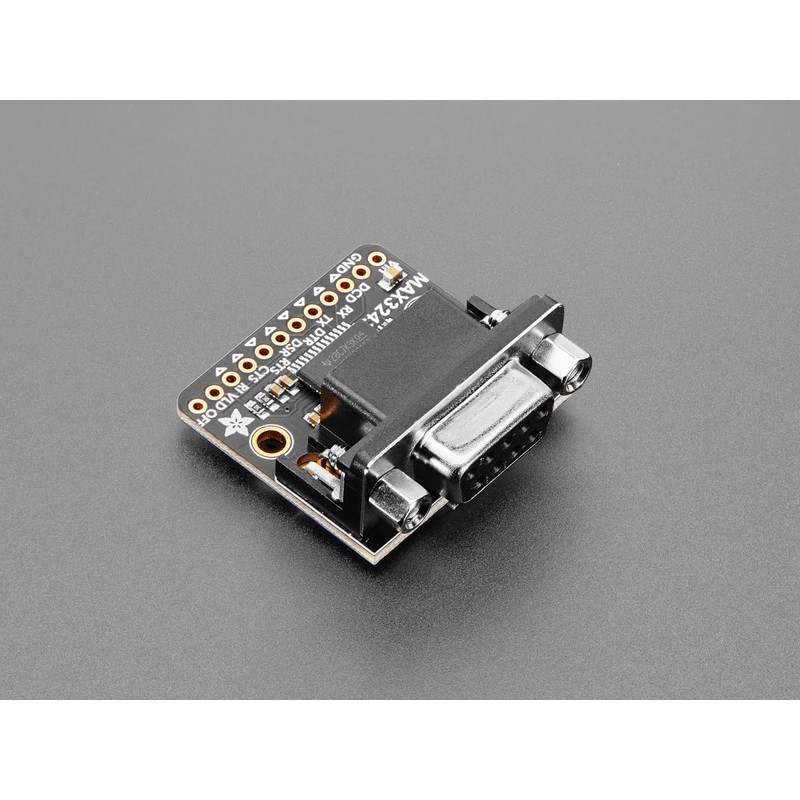

- Powerful converter – Equipped with the reliable MAX3243 chip, our breakout board ensures optimal communication between your microcontroller and RS-232 devices, at data rates of up to 250 Kbps.
- Versatile use: whether you want to connect an old modem, barcode scanner or retro equipment, this level shifter can do that. You have all the necessary pinouts for data and flow control at hand.
- Energy saving mode – with the practical "off" pin function, you can set all pins to tri-state and thus reduce energy consumption when you are not using the device. So your project remains efficient!
- Easy to use – the board is fully assembled and makes life easy. Thanks to the UART side for low voltage and the included header, attaching to a breadboard is a breeze.
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- Easy connection options – with our Adafruit RS232 full pinout breakout, you can easily connect your devices with RS-232 interfaces. The DE-9F socket allows you to connect directly to your device without having to tinker much.
- Powerful converter – Equipped with the reliable MAX3243 chip, our breakout board ensures optimal communication between your microcontroller and RS-232 devices, at data rates of up to 250 Kbps.
- Versatile use: whether you want to connect an old modem, barcode scanner or retro equipment, this level shifter can do that. You have all the necessary pinouts for data and flow control at hand.
- Energy saving mode – with the practical "off" pin function, you can set all pins to tri-state and thus reduce energy consumption when you are not using the device. So your project remains efficient!
- Easy to use – the board is fully assembled and makes life easy. Thanks to the UART side for low voltage and the included header, attaching to a breadboard is a breeze.
RS-232 was formerly the "USB of the past": a 9- or 25-pin D-Sub connector that transports data plus control signals. Maybe you remember old mice, modems or barcode scanners? Even today, some devices are equipped with RS-232 ports. However, modern users often use USB-RS-232 adapters.
If you want to use a microcontroller or computer to communicate with RS-232 devices, all you need is a serial port/UART and level converter. While UARTs work with logic levels at 0-3.3V or 0-5V, RS-232 requires +-6 to +-10V - so the signal can become negative! This is where our breakout comes into play: It reliably converts logic levels without extra components and offers a DE-9 socket for direct connections to your device.

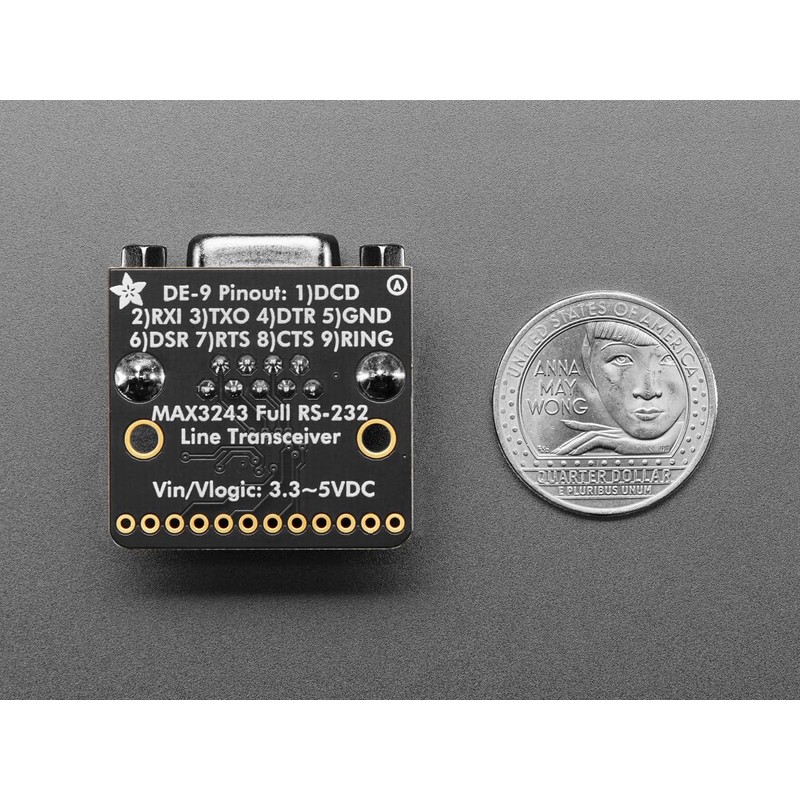

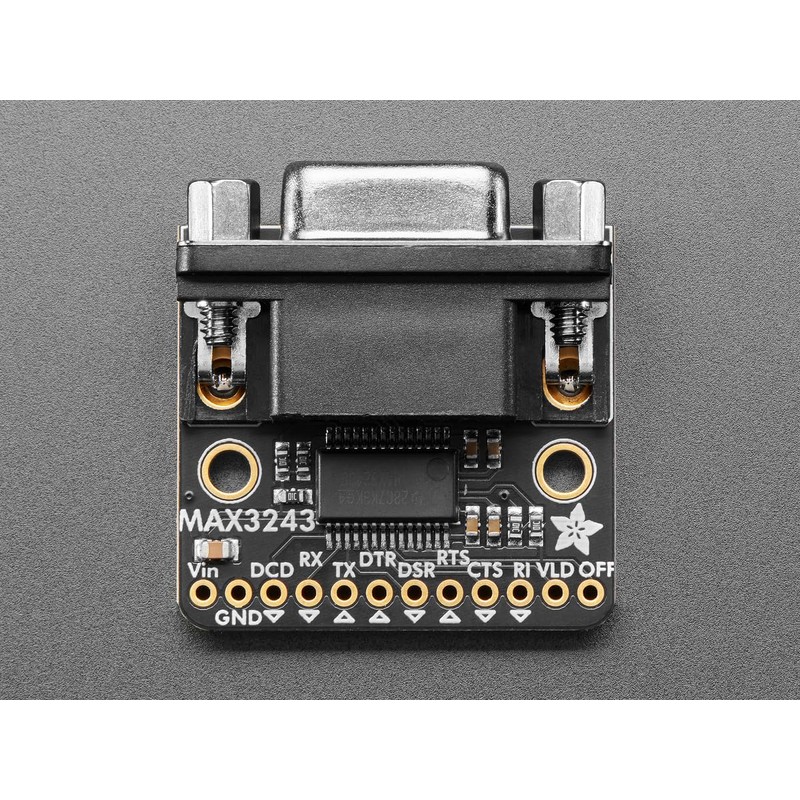

The board runs with 3.3V power supply and logic, which many older chips can't, and supports all 8 data pins including signals such as RTS, CTS, DTR, DSR, DCD and RI.
In addition, there are two convenient status lines: "Valid" shows you when the device detects a connection, while "Off" allows you to delete all pins for energy saving.

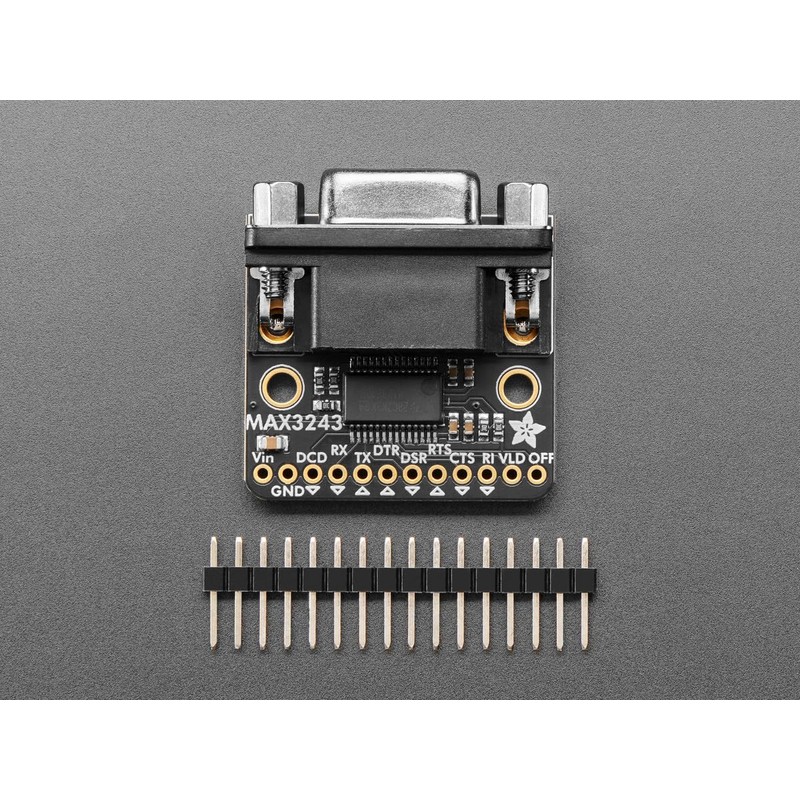

Included are the pre-assembled board and a DE-9F RS-232 connection. We also include a bit of headers so you can solder the board to a breadboard in minutes.
So, grab the RS232 breakout and take your microcontroller to the next level of communication!
