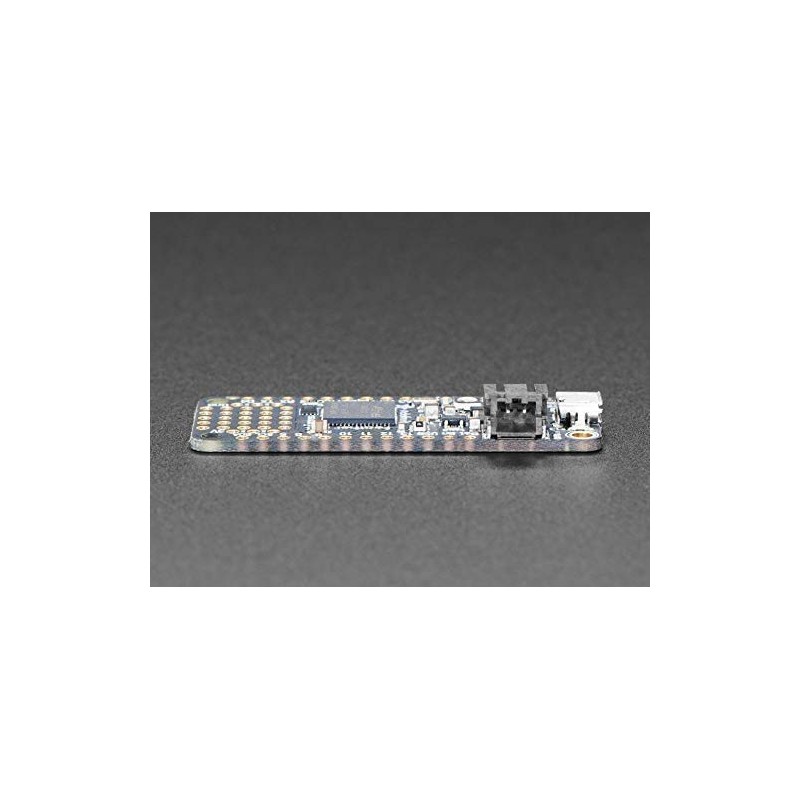

Adafruit Feather M4 Express - Featuring ATSAMD51 (ATSAMD51 Cortex M4)
$86.42
- $9.99 shipping from Germany View details
-
Arrives
- This spring is faster, smaller and easier to use than ever before
- It is fully compatible with all existing FeatherWings
- . You can use this spring with the Arduino IDE or via USB on any other computer.
- It can also be programmed in Python with your favorite text editor. No installations, IDE, or compilers required
- It has a lot of GPIO pins, with over 21 usable GPIO pins
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- This spring is faster, smaller and easier to use than ever before
- It is fully compatible with all existing FeatherWings
- . You can use this spring with the Arduino IDE or via USB on any other computer.
- It can also be programmed in Python with your favorite text editor. No installations, IDE, or compilers required
- It has a lot of GPIO pins, with over 21 usable GPIO pins
That's what you've been waiting for, the Feather M4 Express with ATSAMD51. This spring is powered by our new favourite chip ATSAMD51J19 - with its 120MHz Cortex M4 with floating-point support and 512KB flash and 192KB RAM. Your code will zig, zag and zoom, and with a number of additional peripherals for support, this is sure to be your new favorite chipset.
And best of all, it's a feather - so you know it works with all FeatherWings. What a great way to get running fast. Dimensions: 51mm x 23mm x 8mm, without soldered pin headers. Light as a (large?) Spring - 5 gram ATSAMD51 32-bit Cortex M4 core runs at 120MHz, 32-bit, 3.3V logic and performance hardware DSP and floating-point support 512KB flash, 192KB RAM 2MB SPI FLASH chip for storing files and CircuitPython code storage. No EEPROM 32.768KHz crystal for clock generation & RTC 3.3V controller with 500mA peak current output. Native USB support comes with USB bootloader and serial port debugging. Built-in crypto engines with AES (256 bit), True RNG, Pubkey controller tons of GPIO. ! 21 x GPIO pins with following functions: Dual 1 MSPS 12 Bit True og DAC (A0 and A1) - Can be used to play 12-bit stereo audio clips. Dual 1 MSPS 12 bit ADC (6 oge pins, some on ADC1 and some on ADC2) 6 x hardware SERCOM - Native hardware SPI, I2C and serial all available 16 x PWM outputs - for servos, LEDs, etc. I2S input and output 8-bit parallel capture controller (for camera/video) integrated 1000-mA. -Lipoly charger with LED indicator for charging status. Pin #13 red LED for general purpose flashing. Power/enable pin 4 mounting holes reset button
