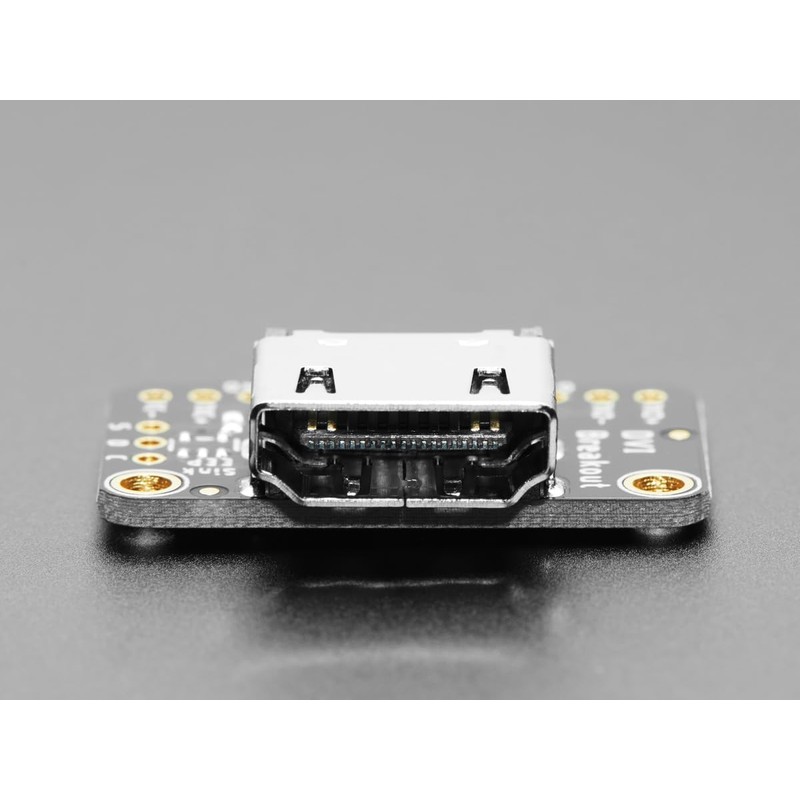

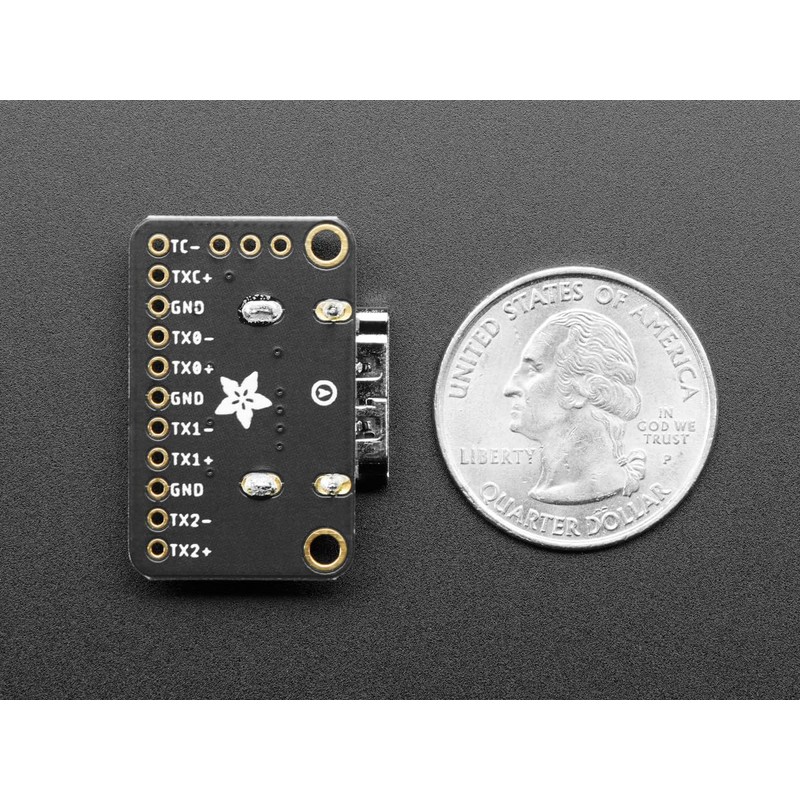

Adafruit DVI Breakout Board for HDMI Output Devices 4984
$37.37
- $9.99 shipping from Germany View details
-
Arrives
- Easy installation – connect the breakout board easily to the lower pins of your Raspberry Pi Pico and start directly with your video experiments.
- High-quality video output – with this board you can create impressive HDMI and DVI outputs – perfect for creative demos and exciting digital video projects.
- For creative minds: Use PIO system technology and overclocking to create your own video generations. There are no limits to your imagination
- Easy extension – there is space for an I2C EEPROM, if you are an experienced hobbyist and want to create a sink device with EDID - ideal for DIY projects!
- Fun tutorial included – you get access to a great example to create cool animations such as the bouncy Eben heads – and all this is very uncomplicated!
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- Easy installation – connect the breakout board easily to the lower pins of your Raspberry Pi Pico and start directly with your video experiments.
- High-quality video output – with this board you can create impressive HDMI and DVI outputs – perfect for creative demos and exciting digital video projects.
- For creative minds: Use PIO system technology and overclocking to create your own video generations. There are no limits to your imagination
- Easy extension – there is space for an I2C EEPROM, if you are an experienced hobbyist and want to create a sink device with EDID - ideal for DIY projects!
- Fun tutorial included – you get access to a great example to create cool animations such as the bouncy Eben heads – and all this is very uncomplicated!
With a bit of overclocking and clever use of the RP2040's PIO system, your Pico can output HDMI signals and produce impressive video demos. Ideal for experimenting and video generation.

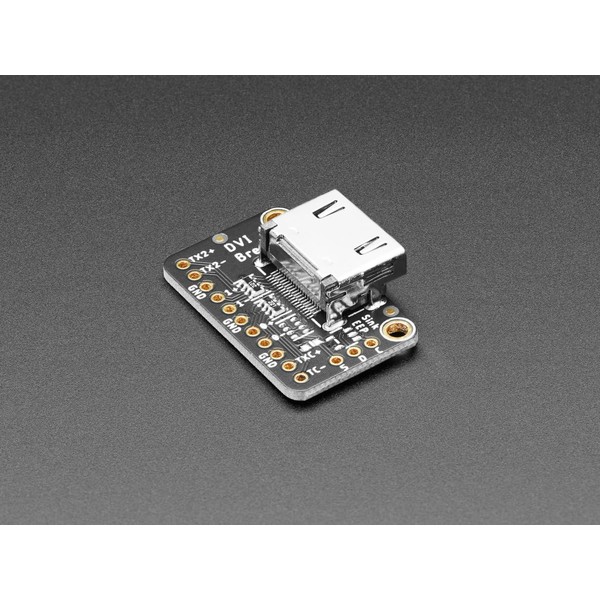

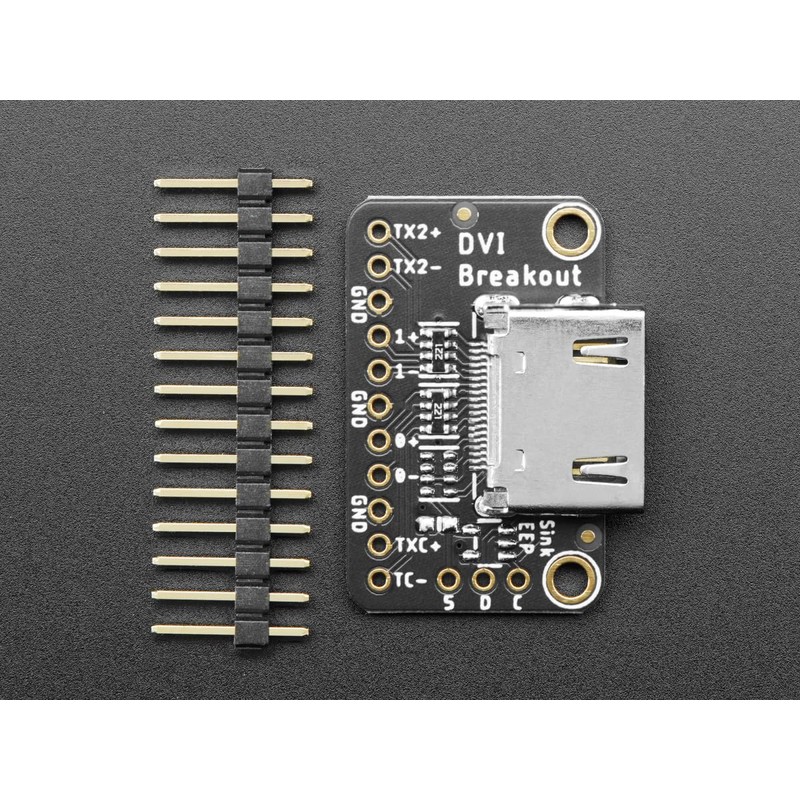

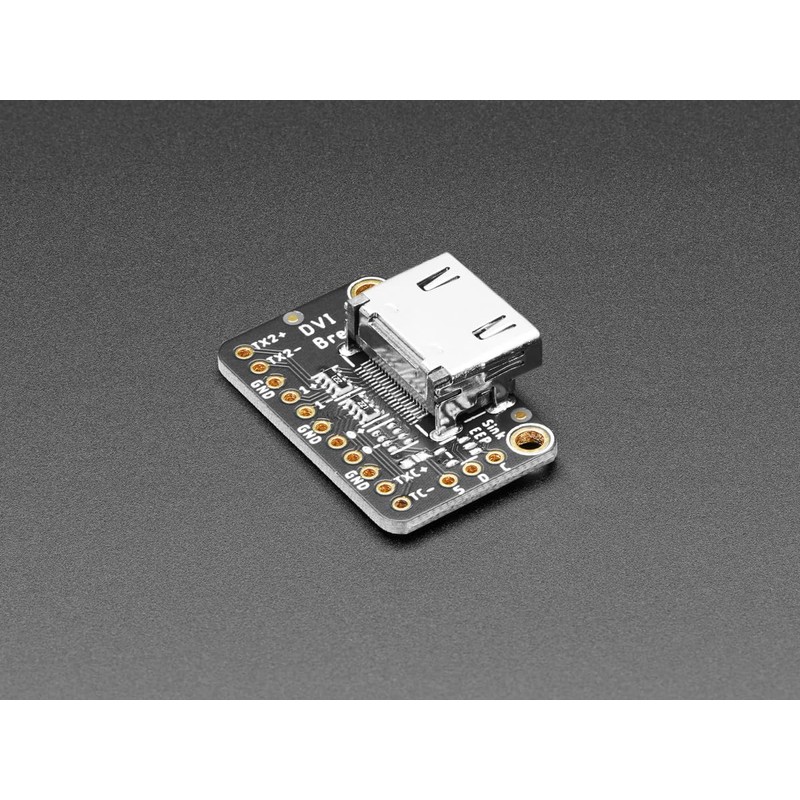

Our board has no active components. It only provides one connection for your HDMI/DVI cable and 220 Ohm series resistors. While there is room for an I2C EEPROM and some resistors, these are only intended for advanced users who want to create an EDID compatible 'sink' device. However, our board is designed for 'source' operation.

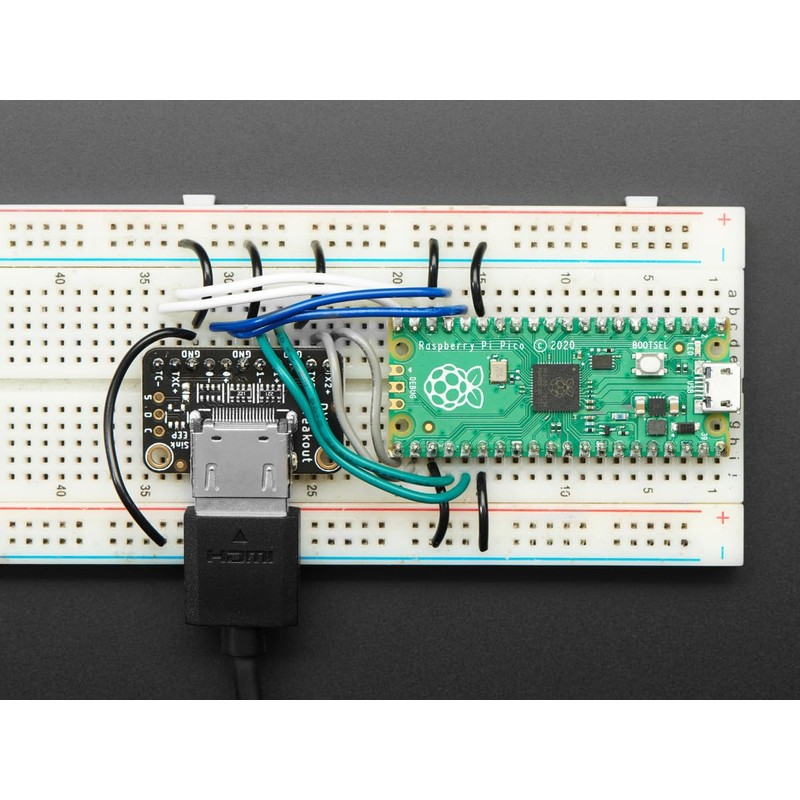

Wiring:
- GP12 to D0+
- GP13 to D0-
- GP14 to CK+
- GP15 to CK-
- GP16 to D2+
- GP17 to D2-
- GP18 to D1+
- GP19 to D1-
Download the cool example to get the bouncing level heads running (from a tutorial).
