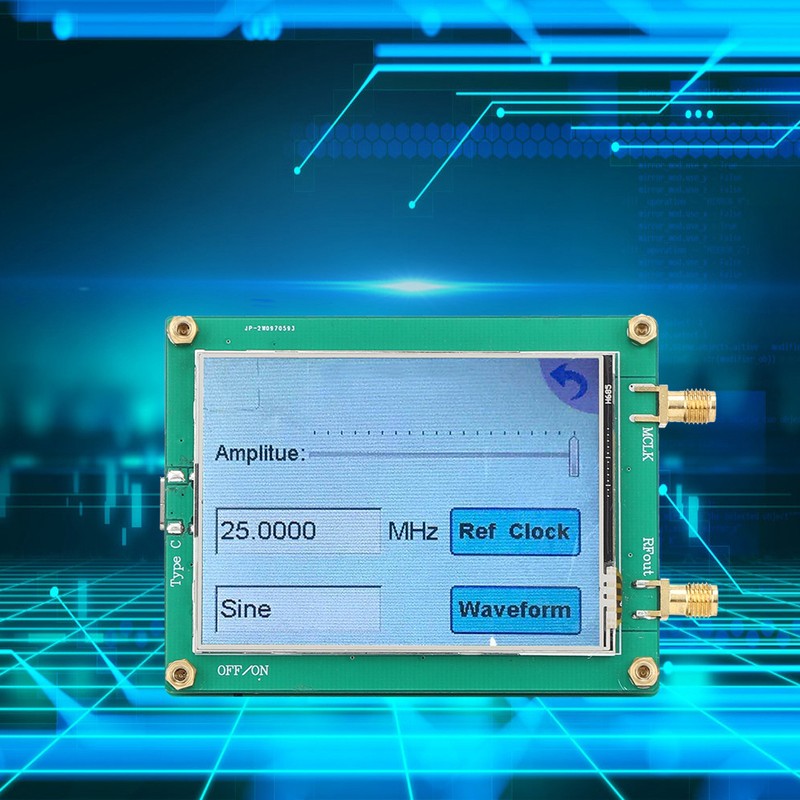

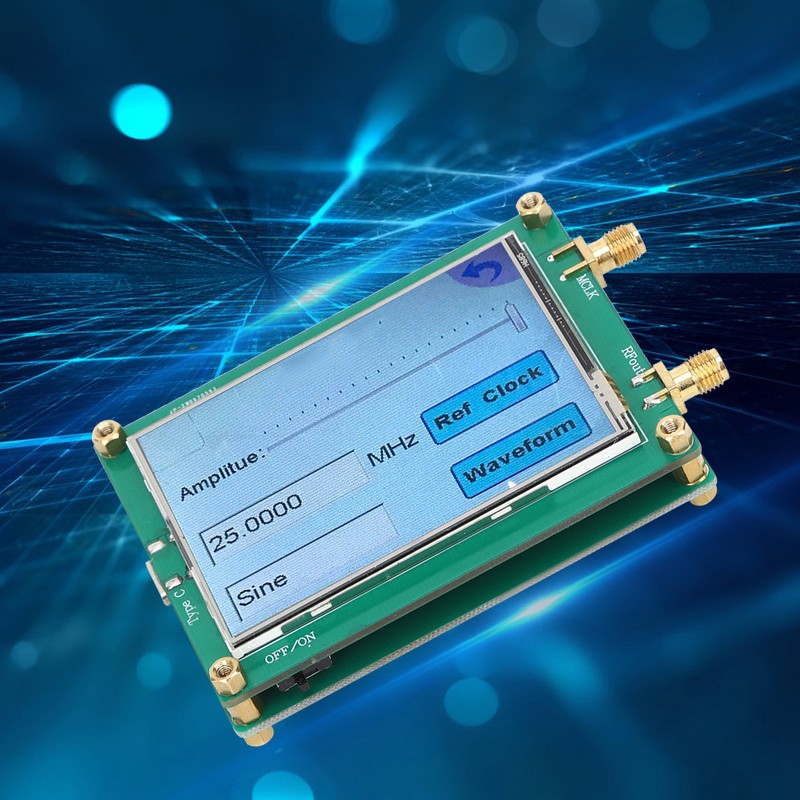

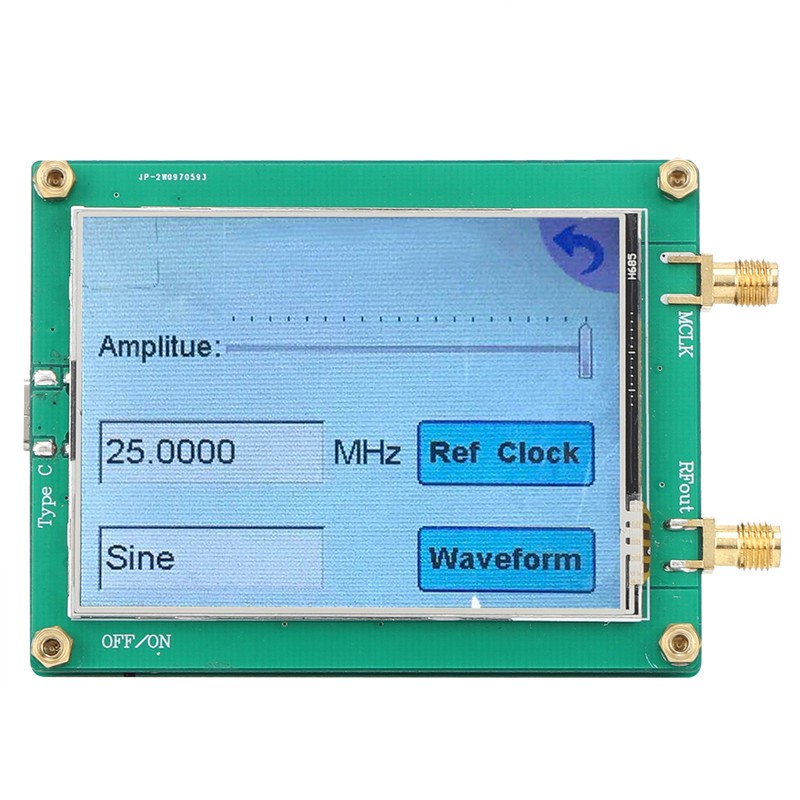

AD9833 TFT Full Touch Screen Signal Generator DDS Source Dot Frequency for Sine / Triangle / Square Wave
Product Overview
1、Adjustable signal generator can make frequency stimulation or waveform generation, which is practical. 2、Also, this DDS generator can measure liquid and air flow, and it is easy to use in life. 3、As for sensor applications, the generator can be suitable for proximity, motion and defect detection,Line loss / attenuation, testing and equipment, scan / clock generator, time domain reflectometry (TDR) applications. 4、Function signal generator enables to communicate with PC through TYPE C interface to provide host computer software. 5、When it comes to the output waveform, this generator can set for sine wave, triangle wave and square wave.
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
Product Overview
1、Adjustable signal generator can make frequency stimulation or waveform generation, which is practical. 2、Also, this DDS generator can measure liquid and air flow, and it is easy to use in life. 3、As for sensor applications, the generator can be suitable for proximity, motion and defect detection,Line loss / attenuation, testing and equipment, scan / clock generator, time domain reflectometry (TDR) applications. 4、Function signal generator enables to communicate with PC through TYPE C interface to provide host computer software. 5、When it comes to the output waveform, this generator can set for sine wave, triangle wave and square wave.
1、Adjustable signal generator can make frequency stimulation or waveform generation, which is practical. 2、Also, this DDS generator can measure liquid and air flow, and it is easy to use in life. 3、As for sensor applications, the generator can be suitable for proximity, motion and defect detection,Line loss / attenuation, testing and equipment, scan / clock generator, time domain reflectometry (TDR) applications. 4、Function signal generator enables to communicate with PC through TYPE C interface to provide host computer software. 5、When it comes to the output waveform, this generator can set for sine wave, triangle wave and square wave.
More Information
Module Features:
2. Onboard 25MHZ Active Crystal Oscillator: Stepping accuracy is 0.1HZ, external input clock can be connected through three-way-equipment.

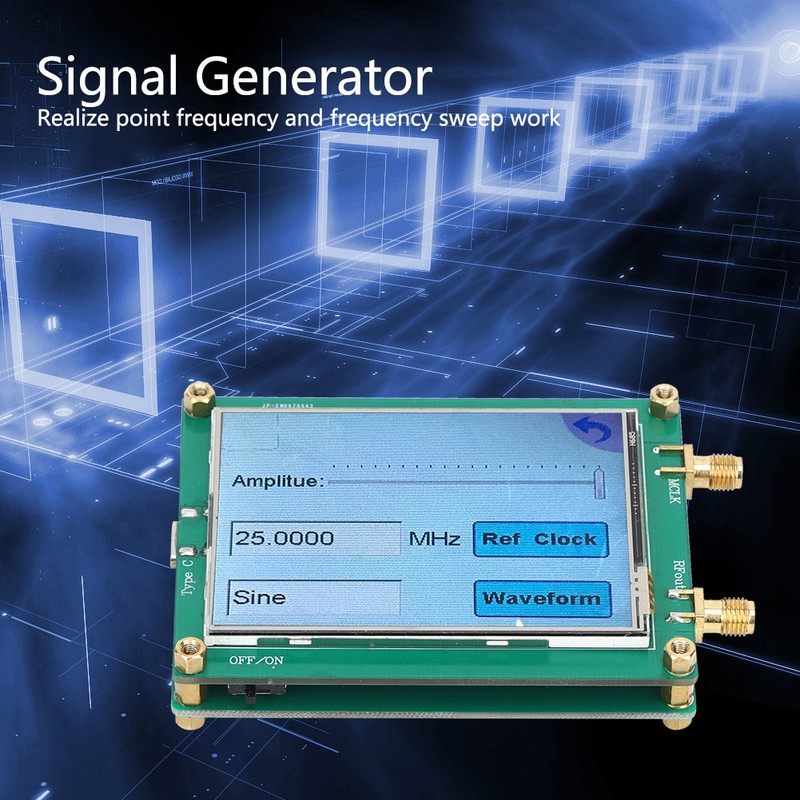

3. Point Frequency and Frequency Sweep Work: Achieved for full touch screen operation
4. Output Waveform: Sine wave, triangle wave and square wave can be set.
5. Output Amplitude: Sine wave and triangle wave are about 0.6Vpp (can be amplified by external amplifier), the high end of the frequency drops slightly; square wave is about 3Vpp
6. Output Impedance: 200R. It is recommended to add a buffer amplifier when loading
7. Output Frequency: Sine wave about DC-3MHz; square wave and triangle wave about DC-1MHz

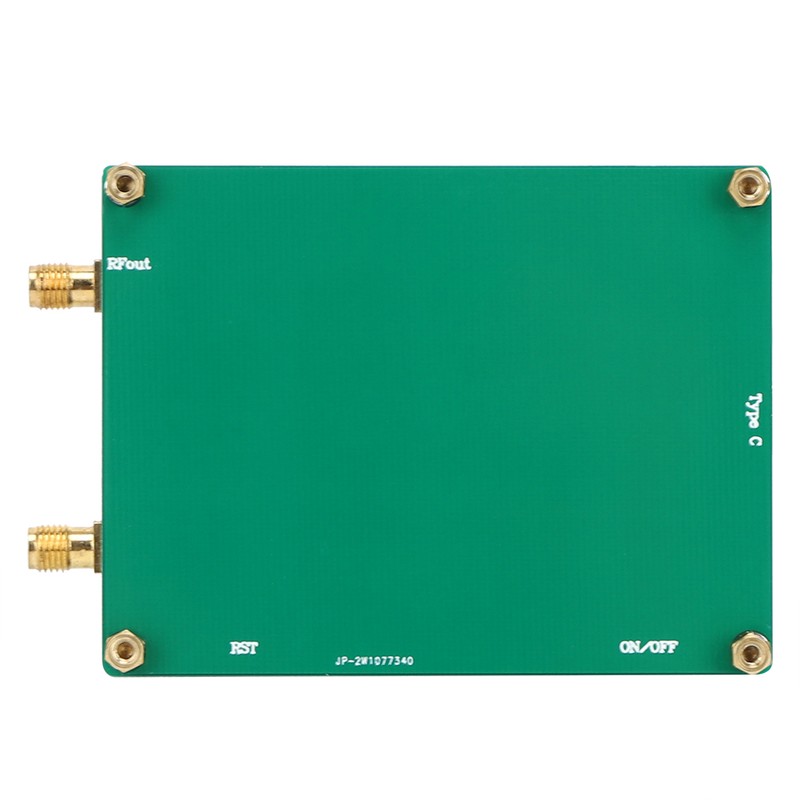

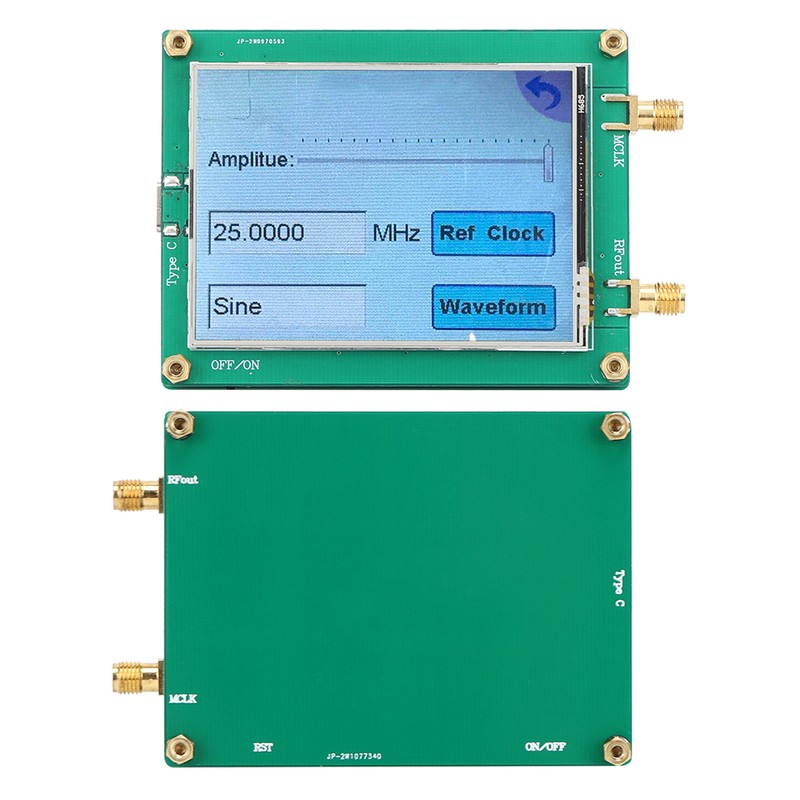

8. Output and External Clock Interface: SMA female seat (outer screw inner hole)

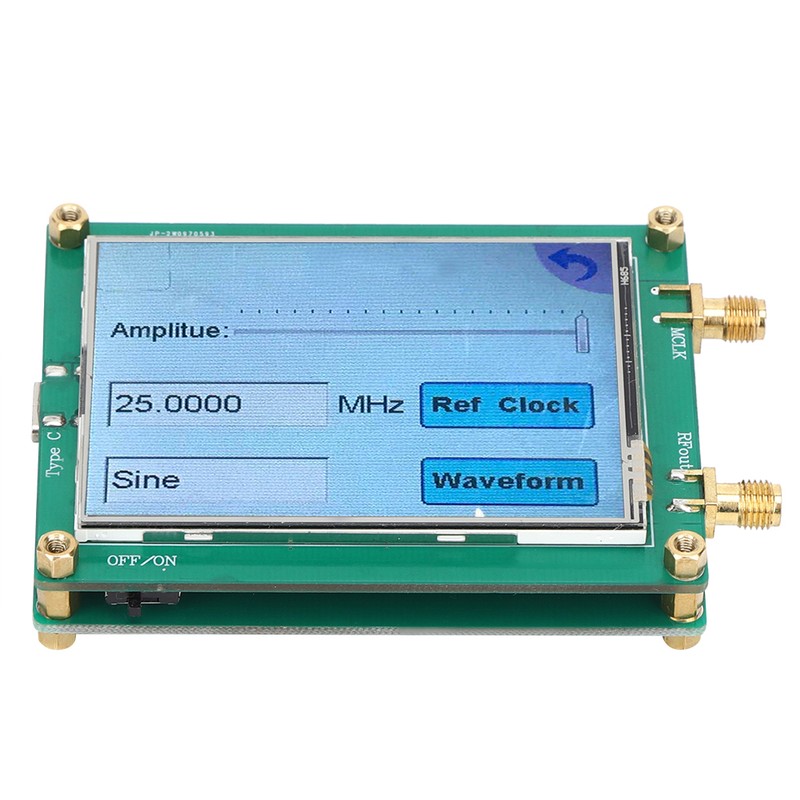

9. The Man-Machine Interface with Three Interfaces: Main display, setting interface, and keyboard interface. Full touch control

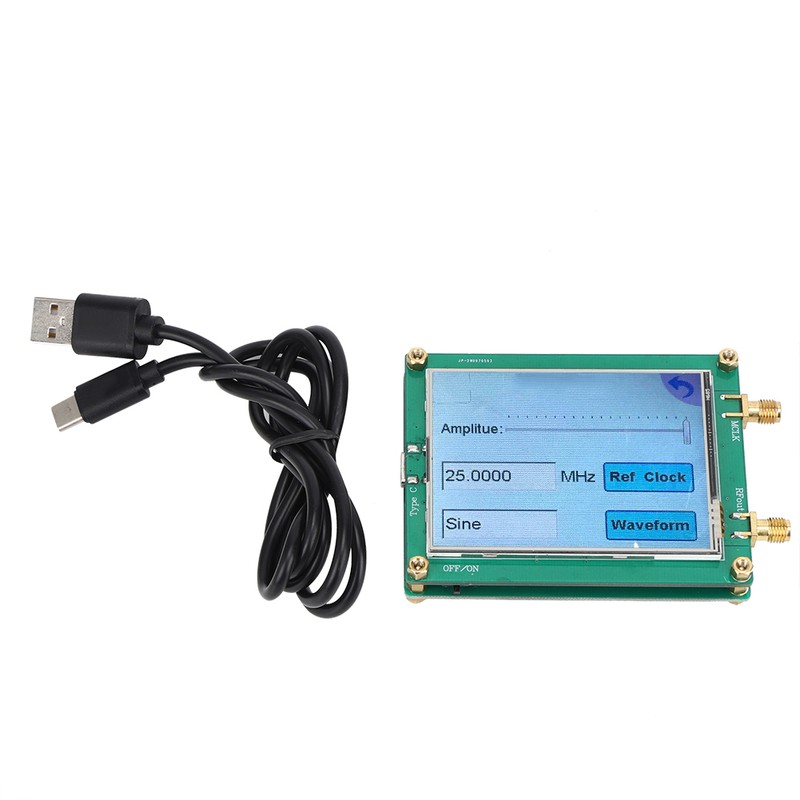

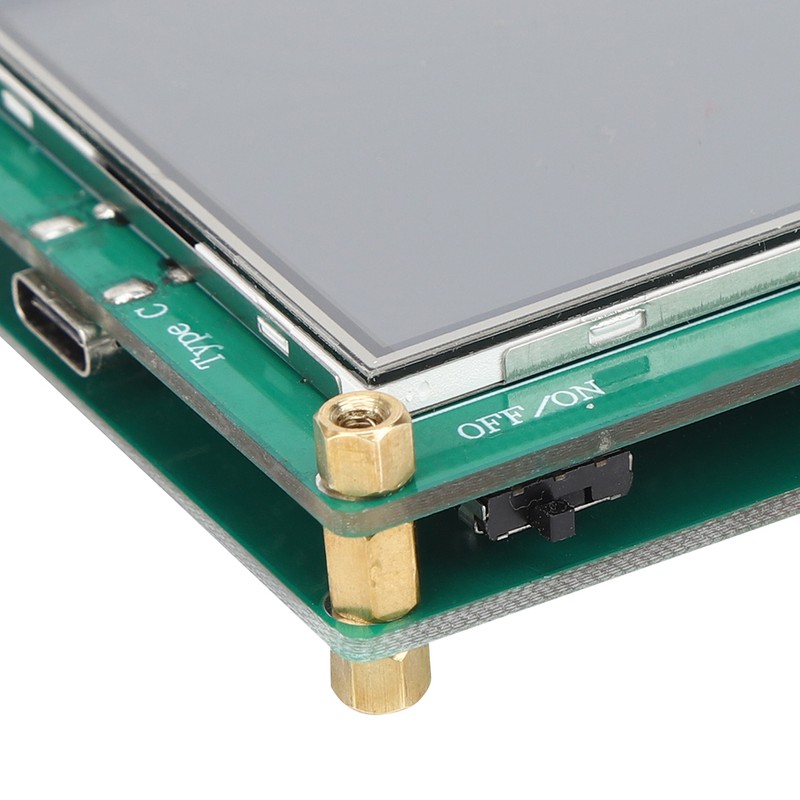

10. Can communicate with PC through TYPE C interface to provide host computer software
