AD630 Module, Balanced Modulation Module, Lock in Amplifier Preamplifier Board Phase Sensitive Detection Weak Signal Conditioning Module

Brand: Akozon

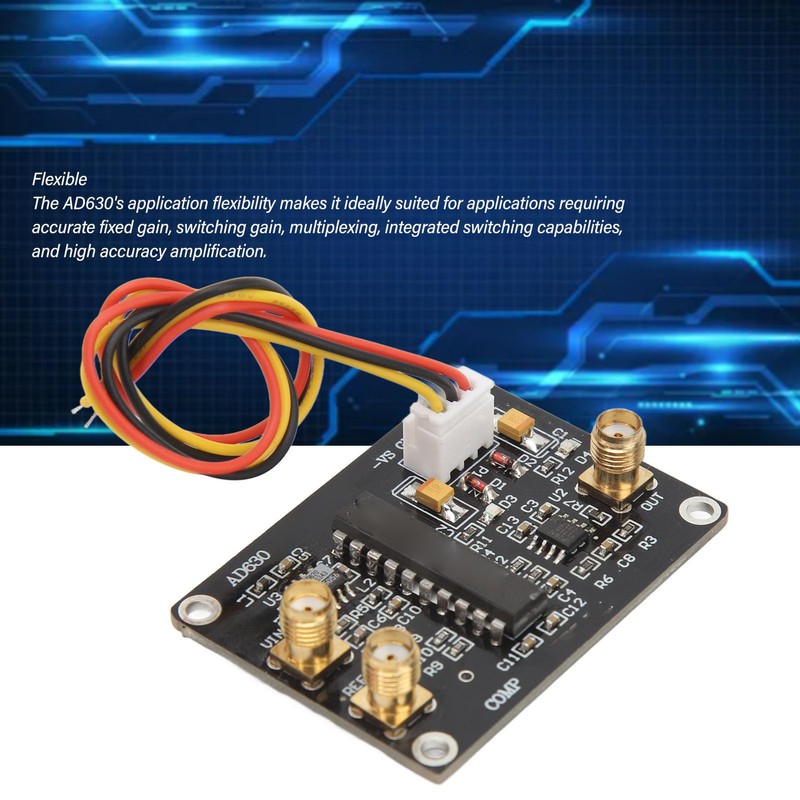

  • [Flexible: ]The AD630 module is designed for versatile use in various applications, including accurate fixed gain, switching gain, and multiplexing. Its integrated switching capabilities make it ideal for projects requiring high precision amplification.

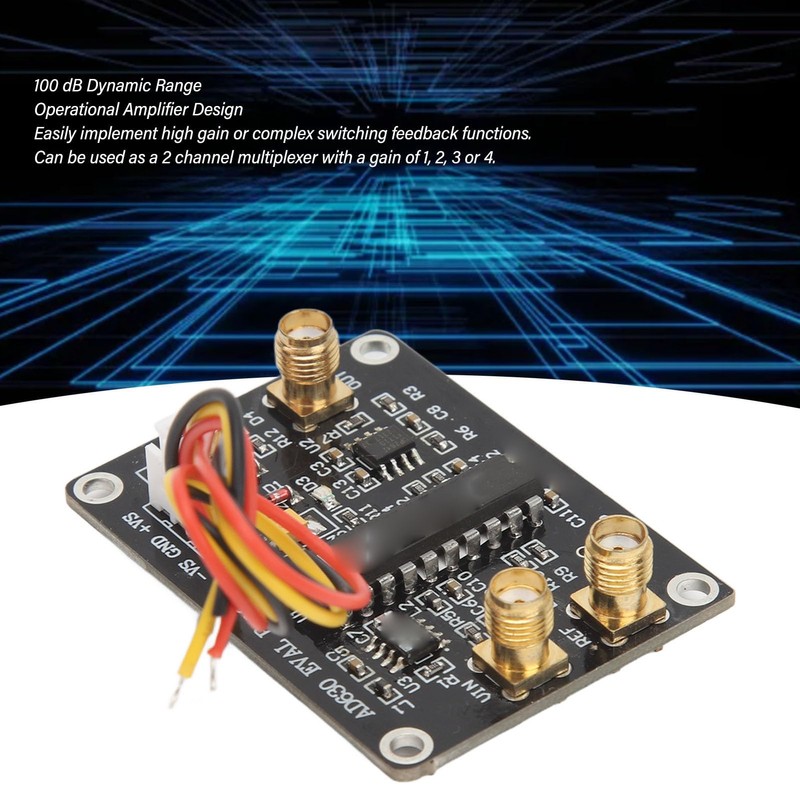

  • [Outstanding Dynamic Range: ]Boasting a remarkable 100 dB dynamic range, the AD630 outperforms typical hybrid or IC balanced modulators and demodulators, providing performance comparable to high-end signal processing instruments.
  • [Easy Implementation with Operational Amplifier Design: ]The AD630's operational amplifier design simplifies installation and is perfect for achieving high gain or complex switching feedback functions.
  • [Dual-Channel Multiplexer Capability: ]This module functions as a 2-channel multiplexer, supporting gains of 1, 2, 3, or 4. With 100 dB channel isolation at 10 kHz, it delivers close to maximum achievable performance for high-channel isolation within an IC package.
  • [No Calibration Needed: ]Designed for user convenience, the AD630 module typically requires no external zero calibration for its laser tuning and amplification channel offsets, allowing for a straightforward setup and efficient usage right out of the box.
Brand: Akozon
Manufacturer: Akozon
Part Number: KQSLRDW
Isin: IOYJRU4ZUY4A

$155.32

$156.02
0% off
  • Free shipping in US
  • Shipping: $14.5 Extended Delivery (Ships from overseas warehouse, 10-15 Business Days)
  • Arrives:

  • Free 30-Day returns

In Stock

Sold by , Fulfilled by IBSPOT
Ships from USA

IBspot Buyer Protection

Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

supported payment methods:Visa, Mastercard, Discover, Amex, Apple Pay, Google Pay

GUARANTEED SAFE CHECKOUT

More seller options

Starting from

Compare all sellers
  • MONEY BACK GUARANTEE

    30 days money back guarantee, no additional fee charged.

  • EXCELLENT SUPPORT

    We provide 24/7 online customer support via email.

  • Fast Shipping

    One week domestic shipping. Global delivery to the US in 2 weeks.

scroll to top arrow
AD630 Module, Balanced Modulation Module, Lock in Amplifier Preamplifier Board Phase Sensitive Detection Weak Signal Conditioning Module

AD630 Module, Balanced Modulation Module, Lock in Amplifier Preamplifier Boar...

$155.32 $156.02 (0% off)

Specification:
Item Type: AD630 Module
Model: AD630
Can Recover Signal From 100 dB Noise
Channel Bandwidth: 2 MHz
Slew Rate: 45 V/μs
Low Crosstalk: -120 dB (1 kHz), -100 dB (10 kHz)
Pin Programmable, Closed Loop Gain: ±1 and ±2
Closed Loop Gain Accuracy and Matching: 0.05%
Channel Offset Voltage: 100 μV (AD630BD)
350 kHz Full Power Bandwidth

How to Use
Installed and ready to use.

Package List
1 x AD630 Module
