Access Control Keypad, Universal 12V 24VDC All Metal Case Digital Password PIN Code ID Keyfob Wired Door Keypad, IP68 Weatherproof, Backlight for Garage Door, Gate Opener and Access Control System
Access Control Keypad, Universal 12V 24VDC All Metal Case Digital Password PIN Code ID Keyfob Wired Door Keypad, IP68 Weatherproof, Backlight for Garage Door, Gate Opener and Access Control System
Access Control Keypad, Universal 12V 24VDC All Metal Case Digital Password PIN Code ID Keyfob Wired Door Keypad, IP68 Weatherproof, Backlight for Garage Door, Gate Opener and Access Control System
- 【Universal for Garage Opener and Gate Opener】Wired keypad is a smart access control keypad with contactless proximity card technology. Simply enter a short password or tap the card (incl. 5 fobs) to open the gate without carrying a key. No need to worry about forgetting to key or losing the key. Greatly improves the experience of keyless operation and brings high convenience for controlled access. Easy DIY installation & programming within minutes.
- 【Safe to Use】Support up to 2000 standard users, and this access control keypad can hold up 2000 access codes & cards. Three different open modes are for your selection: only card; only password; card + password. The card type is 125KHz EM or ID card / tag (incl. 5 fobs). Full programming from the keypad, don't need to connect to computer. With the anti-dismantle function, the built-in buzzer will alarm if anyone disassembles the keypad.
- 【Ideal for Outdoor Use】Coming with zinc alloy housing and metal buttons, internal epoxy to potting, IP68 weaterproof, allowed to work outdoors long-term use in rain and sunlight. The LED backlight illuminates the keypad at night for easy to find and enter the password correctly, useful. The durable sturdy zinc alloy material cover protects the keypad for longer operating life.
- 【Wide Compatibility】Universal keypad compatible with most third party swing or sliding gate opener whose control board accepts “Normally Open Dry Contact” signal. It can be powered by the control panel of the access control system or by the external DC 12V-24V power source. Compared with a wireless keypad, Perfect solution in locations where frequency interference is occurred or where the control box is installed far away from the gate operator.
- 【Multiple Applications】This keyless entry device is designed for the household, courtyard, warehouse, school, office building and other commercial sites. Suitable to operate the magnetic lock (normally close signal) or electric strike door lock (normally open signal). Door time adjustable from 0 to 99 seconds. Standard Wiegand 26 output, work as an extra card reader, compatible with the DC 12-24V access control system. Provided with door bell button(not incl. bell).
| Brand: | AMOCAM |
|---|---|
| Color: | K10ID |
| Manufacturer: | AMOCAM |
| Part Number: | 93KVR4N |
| Isin: | IV99O9QWUOWE |
Out of Stock
In Stock
Backordered
Out of Stock
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.

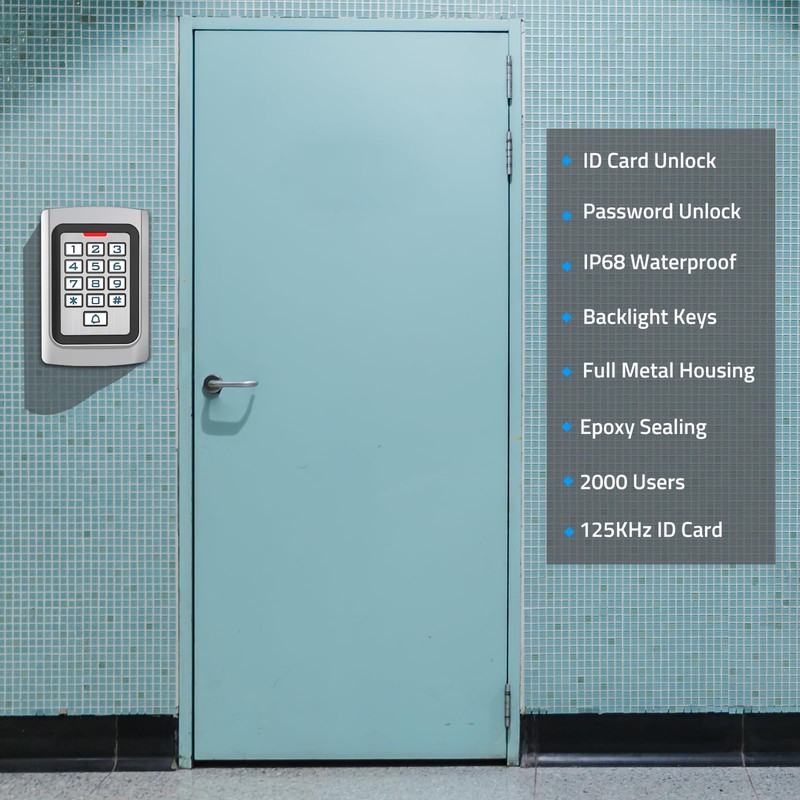

Completely weather resistant and waterproof, and able to work in almost any condition, this advanced access control system is easy to install, programmable, Protect personal property, businesses, or off-limit areas.
Features:
Important Notice: Compatible EM standard card (Can't support some encrypted cards,such as HID, Cobra, APCiK, etc)
Specifications:
Package includes:
1 x Metal Access Control
5 x 125kHz RFID Keyfobs 1 x Installation Fixed Label
1 x Installation Kit
1 x User Manual
Features:
- Strong Zinc Alloy Electroplated anti-vandal case, IP68 Waterproof, high security.
- 125kHz RFID Proximity ID Token Tag Key keyfobs for Access Control.

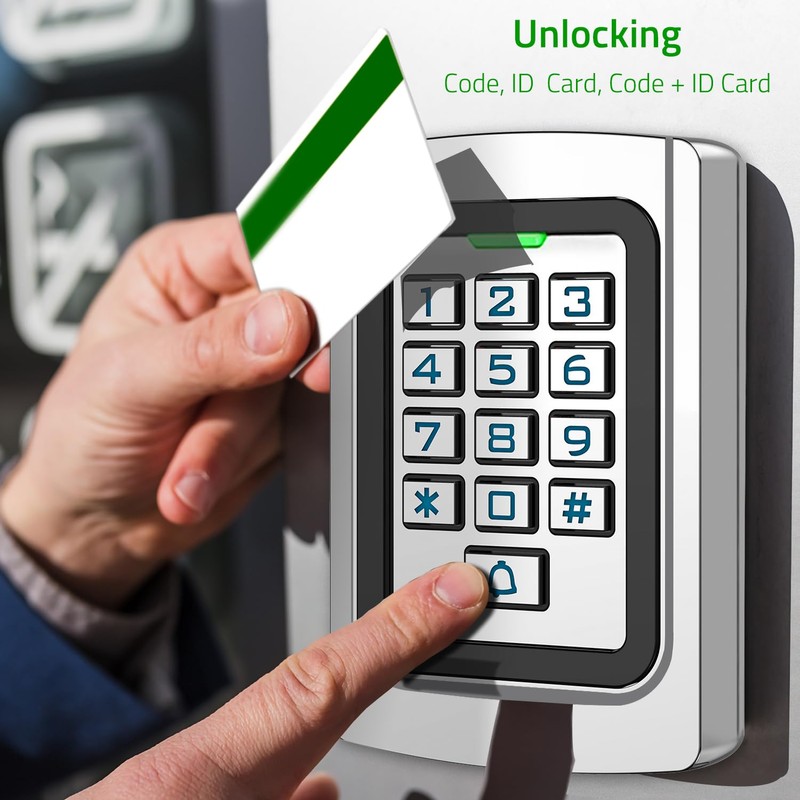

- Support 2000 standard users, Supports ID Card, Password, ID Card + Password, Can add user and delete user as your requirement.

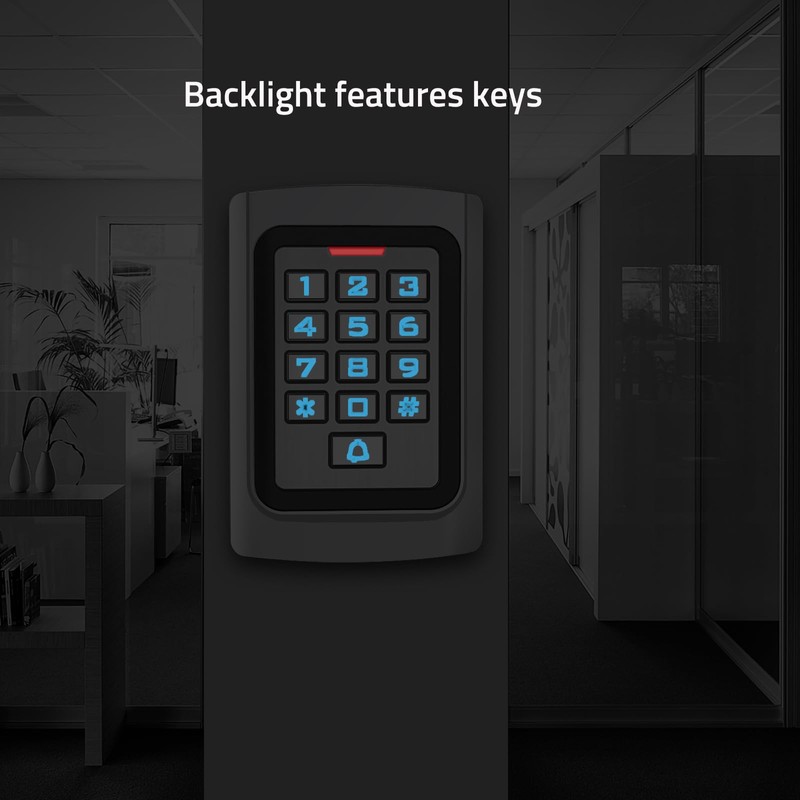

- Full programming from the keypad, Built-in proximity card reader, Built-in keypad for PIN code entry, Backlight keys.
- With lock relay output, Lock output current short circuit protection, Very low power consumption.
- Secure / normal Mode, NO / NC output, Build-in buzzer, Built-in light dependent resistor (LDR) for anti tamper.
- Red, Yellow and Green LEDs display the working status.
- Built-in bell button can connect a external bell, Wiegand 26 output for connection to a controller.

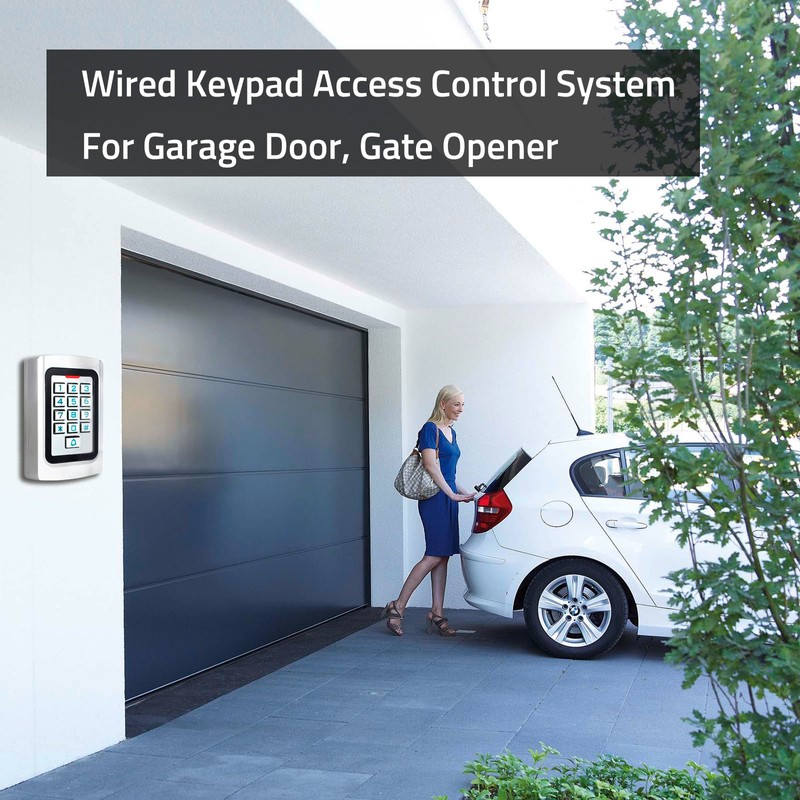

- Supports Home, Garage, Office, or Gate Use.
Important Notice: Compatible EM standard card (Can't support some encrypted cards,such as HID, Cobra, APCiK, etc)
Specifications:
- Input Voltage :DC 12V
- Frequency: 125khz
- User Capacity : 2000
- Card Reading Distance : 1 ~ 8 cm
- Operation Temperature: -45℃~60℃ / -49℉~140℉
- Input Current : Standby : < 30mA (not including attached devices)
Package includes:
1 x Metal Access Control
5 x 125kHz RFID Keyfobs 1 x Installation Fixed Label
1 x Installation Kit
1 x User Manual
