AC Digital LED Temperature Controller Thermostat with Air Sensor TMC-6000
AC Digital LED Temperature Controller Thermostat with Air Sensor TMC-6000
AC Digital LED Temperature Controller Thermostat with Air Sensor TMC-6000
1、One-way 10K NTC temperature sensor input 2、 One-way NO & NC output 3、Temperature display 4、 Shifting between the refrigerating and heating modes 5、Delay protection of compressor
| Isin: | IEQSSOJKW11R |
|---|
Out of Stock
In Stock
Backordered
Out of Stock
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
1、One-way 10K NTC temperature sensor input 2、 One-way NO & NC output 3、Temperature display 4、 Shifting between the refrigerating and heating modes 5、Delay protection of compressor
More Information
Product function introduction:
The one-way temperature controller can set as "refrigerating" or "heating", using 10K general NTC thermistor to control temperature, control the one-way relay (NO, NC) output. The temperature range controlled is -45℃-110℃. It is used extensively in various refrigerating and heating situations.
Under refrigerating mode, the output opens when the temperature is above (temperature control value + backlash), and stops when temperature is the at temperature control value.
Under heating mode, the output opens when the temperature is below (temperature control value - backlash), and stops when temperature is the at temperature control value.
The temperature control value and backlash are adjustable. Correction function for temperature deviation is also available.
DIN rail-type installation is adopted which is easy and fast for installing.
The advanced design of isolating power supply is adopted, which can ensure the controller work steadily, reliably, and continuously when the power supply changes between 100V and 240VADC.
Main Features:
- One-way 10K NTC temperature sensor input
- One-way NO & NC output
- Temperature display
- Shifting between the refrigerating and heating modes
- Delay protection of compressor
- Correction of measured temperature deviation
- Power-down memory protection function

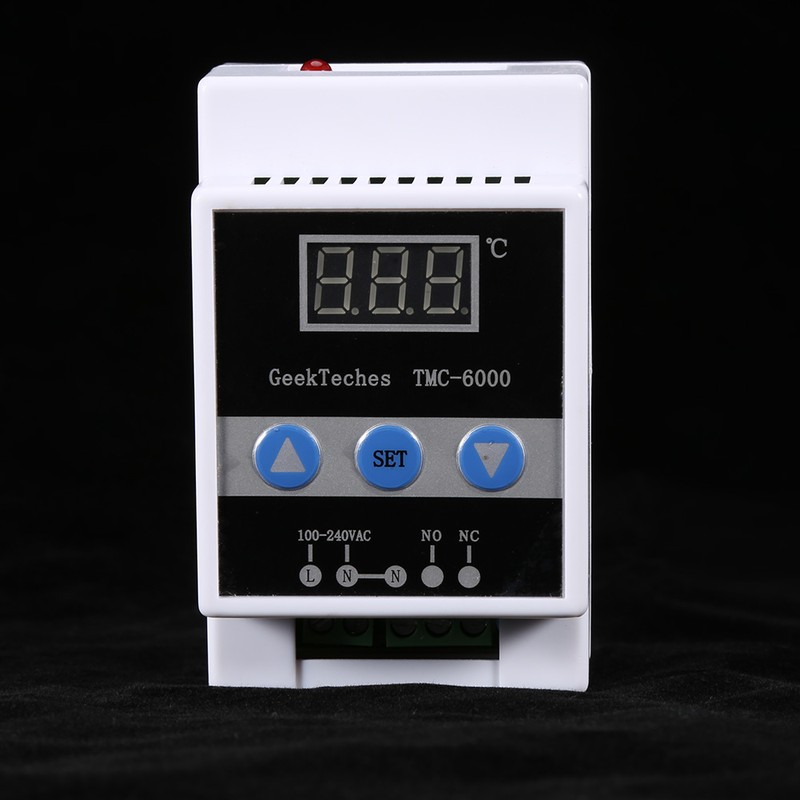

Panel introduction
1.The indicator light is lit when the relay NO pulls-in.
2. LED display window: temperature is displayed during work (T temperature = T temperature measured + T deviation)
3. (erected triangle)is parameter plus adjust key under set state; Under work state, press it for long to check the temperature control value set.
4. (SET) set key, press it to start the parameter set state and press one by one to shift to display each parameter.
5. (Inverted triangle)is parameter minus adjust key under set state.
6. If no action is conducted in 3 min after adjusting, the interface will return to the main interface automatically, displaying current temperature.
Detailed introduction of the control function:
|
Short name of control function |
Control function introduction |
Other introduction |
|
Temperature measuring correction |
Displayed T temperature = T measured temperature + T deviation |
|
|
Temperature control output |
1. Under H mode, when T temperature≥T temperature control, the relay NO is off, output stops; when T temperature is＜(T temperature - T backlash), the relay NO pulls-in again, heating output starts; 2. Under L mode, when the T temperature≤T temperature control, the relay NO is off, output stops; when T temperature is＞(T temperature + T backlash), the relay NO pulls-in again, refrigerating output starts; |
The time for relay output open-- close or close-- open shall not be shorter than the Pt set value. |
Operation guide:
Press(SET)to start setting parameter, press one by one to shift to display each parameter; (erected triangle)(Inverted triangle )is used to adjust the value. After setting, press continuously the(SET) key until the main interface is get.
|
Times pressing(SET) |
Display |
Parameter explanation |
Function introduction and short name |
Parameter set range |
Factory setting |
|
1 |
-H- |
HL |
Selection of heating/refrigerating (H is heating mode, L is refrigerating mode) |
H/L |
H |
|
2 |
-1- |
Parameter 1 |
|
|
|
|
3 |
|
Upper limit of temperature control |
Temperature control value when relay NO output stops |
-45-110℃ |
25℃ |
|
4 |
-2- |
Parameter 2 |
|
|
|
|
5 |
|
d |
Temperature control backlash value |
1-30℃ |
2℃ |
|
6 |
-3- |
Parameter 3 |
|
|
|
|
7 |
|
|
Delay time, controlling the minimum delay time of the relay output open-- close or close-- open (the delay time should be set as 2-3 min for refrigerating compressor for protection) |
0-300 S |
1S |
|
8 |
-4- |
Parameter 4 |
|
|
|
|
9 |
|
SC |
Correction of measured temperature deviation |
-25-25℃ |
0℃ |
Technical Parameter:
External dimension (mm):L 93 x W 55 x H 44
Installation mode:The controller installation could be standard DIN rail installation or fixed installation
Power supply and consumed power at work:ADC(100-240)V,2W
Application environment:-10℃-50℃
Display mode:Three LED digit display
Key:Press-type membrane key
Input:One-way (10K)NTC thermistor temperature sensor output, measuring range of -50℃-120℃
Output:
1. One-way relay NO, NC refrigerating/heating output
2. The current capacity of the output contact is 5 ampere of restrictive load and 1 ampere of inductive load. It can control the 1000W electrical heating or electrical motor or water pump of 200W. A.C. contactor is needed to enlarge the capacity for more load.
Measurement range:-50℃-120℃
Set range:
Minimum limit: -45℃-controlled temperature
Maximum limit: controlled temperature-110℃
Control range:-45-110℃
Other parameter:
1. The temperature sensing line could be connected with general wire for 100 meters
2. Set the parameter to conserve long-term memory of power-down
3. Temperature control backlash is 1-30℃
4. Delay time: 0-300 S
5. Deviation correction: -25 -25℃
Remark:The max load current of this product is 10A, so please ensure an allowance (around 6A) during long-term using to increase the using time. The parameters and set in this guide are those when the load connects onto the NO end. If connection onto the NC end is required, please set accordingly.

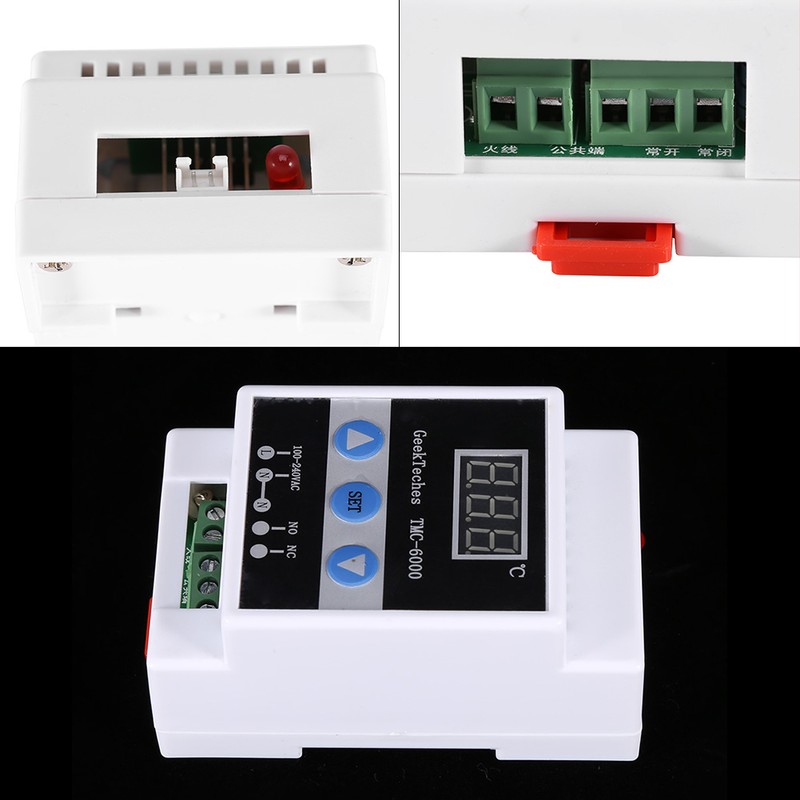

Connection and installation:
L (firing line), N connects power supply: 100-250VAC
N: common terminal, connecting one end of the load
NO: normally open, connecting the other end of the load
NC: normally close
Safety precautions
1. The temperature sensor is easily damaged if it touches water, so please keep sealing with no water leakage after the (sensor probe) is inserted into the (waterproof blind tube).
Do not directly put the (sensor) into the water for measuring temperature.
3.The temperature sensor can be connected with two-core electrical wire for prolong.
The temperature sensor is a 10K thermistor restrictive sensor where B=3950 with many advantages of high accuracy of temperature measuring, excellent steadiness and very low temperature drift. The user can prolong the sensor by connecting with two-core wire with an effective extension of 100 meters.
Temperature sensor probe needs to measure the water temperature in a waterproof blind tube for isolation, so that the sensor can be durable in use. Direct measuring in the water shall damage it easily.

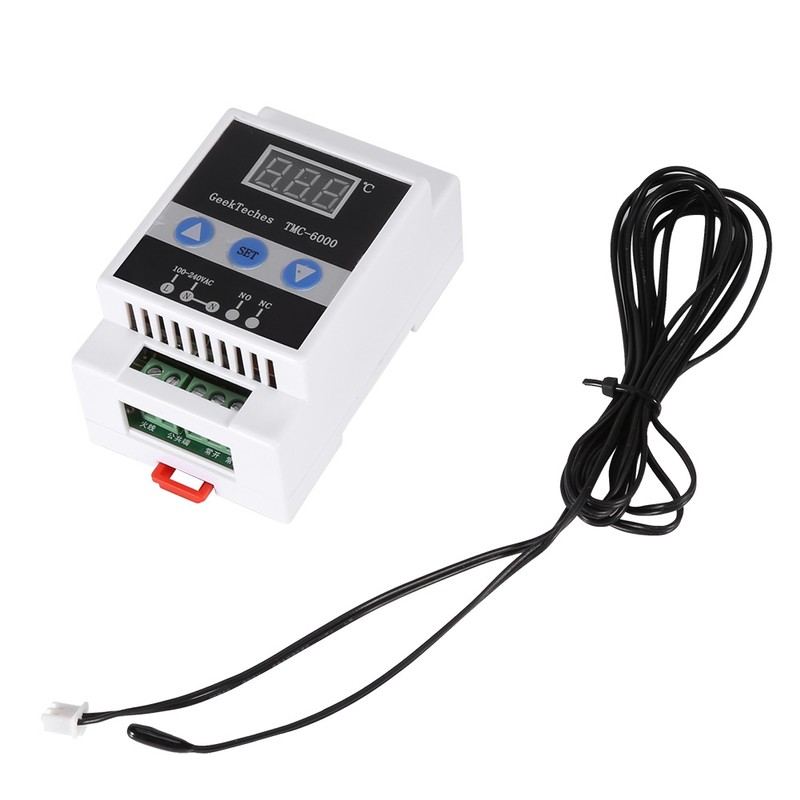

Package Included:
1 x Main frame
1 x NTC (10K) one temperature sensing line
1 x Instructions
