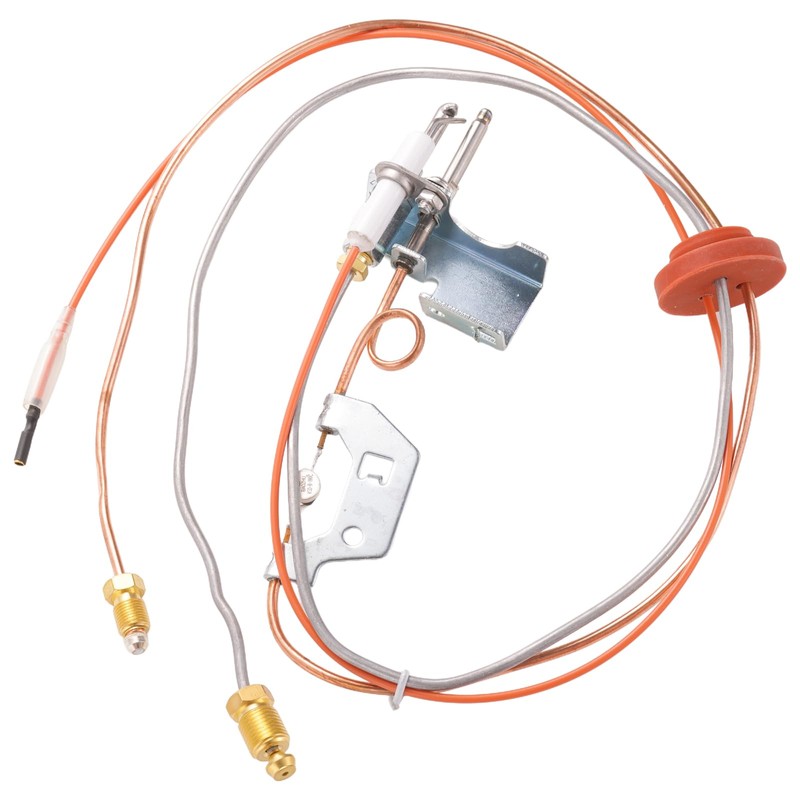

9003542 Pilot Assembly, Natural Gas Pilot Assembly Compatible with A.O.Smith, Kenmore, State GS and GSX Natural Gas Water Heater, Replace 100109295,9003542005,18324-190

$60.89

  • ๐๐š๐ซ๐ญ ๐๐ฎ๐ฆ๐›๐ž๐ซ: 9003542 pilot assembly replacement for natural gas water heater replace part number are 9003530,100109295,9003542005,18324190, 18324-190, compatible with Reliance, A.O.Smith, Kenmore, State GS and GSX natural gas water heater.

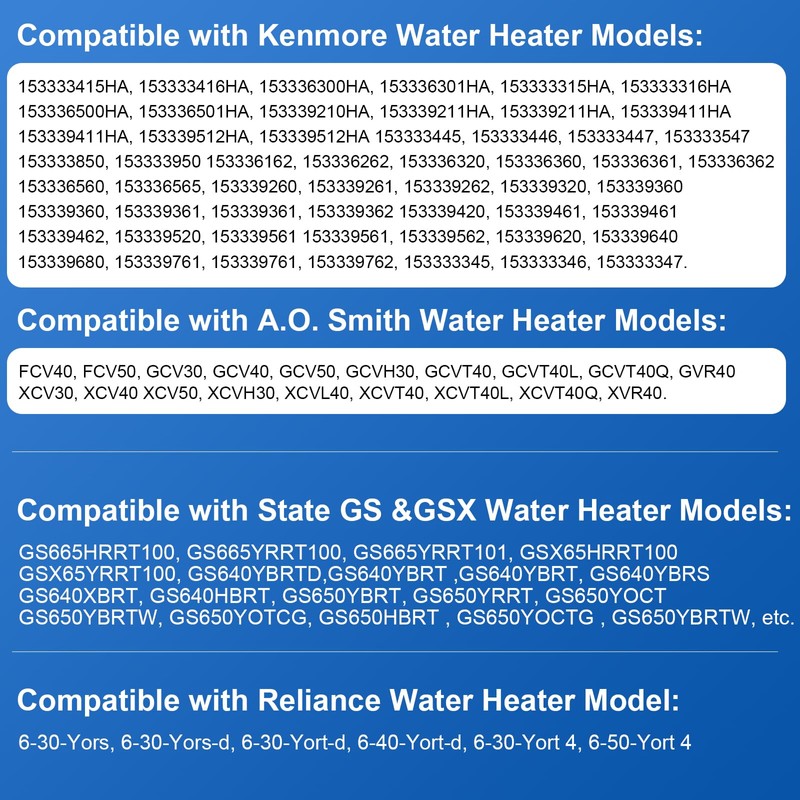

  • ๐‚๐จ๐ฆ๐ฉ๐š๐ญ๐ข๐›๐ฅ๐ž ๐Œ๐จ๐๐ž๐ฅ๐ฌ: 9003542 Pilot assembly compatible with A. O. Smith : FCV40, FCV50, GCV30, GCV40, GCV50, GCVH30, GCVT40, GCVT40Q, GVR40, XCV30, XCV40, XCV50, XCVH30, XCVL40, XCVT40, XCVT40L, XCVT40Q , GCVT40L, XVR40 etc. The 9003542 Nat gas pilot assembly compatible with Reliance 6-30-yours, 6-30-yours-d, 6-30-yort-d, 6-40-yort-d, 6-30-yort4, 6-50-yort4 etc. Please find more model number in the following description.

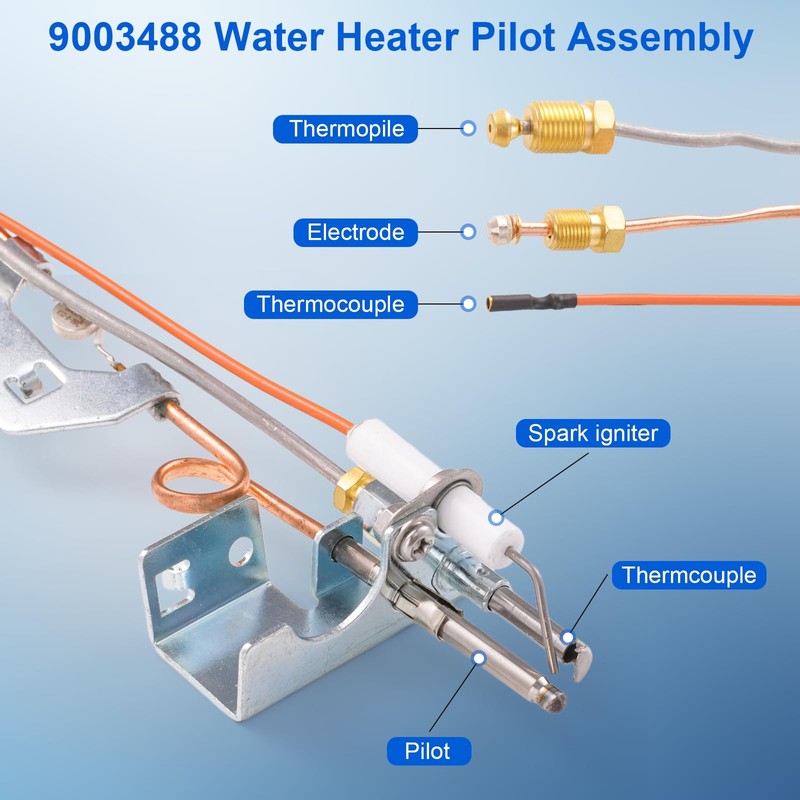

  • ๐‡๐ข๐ ๐ก ๐๐ฎ๐š๐ฅ๐ข๐ญ๐ฒ: 9003488 water heater pilot assembly is made of durable and premium brass and copper materials with aluminum tube with high temperature resistance, durable to use.
  • ๐–๐ž๐ฅ๐ฅ ๐…๐ฎ๐ง๐œ๐ญ๐ข๐จ๐ง: 9003542 Pilot assembly for water heater can fix water heater does not heat up due to damaged thermocouple, gas pilot assembly does not work properly due to other factors, intermittent heating, improper ignition, low efficiency of ignition heating and so on.

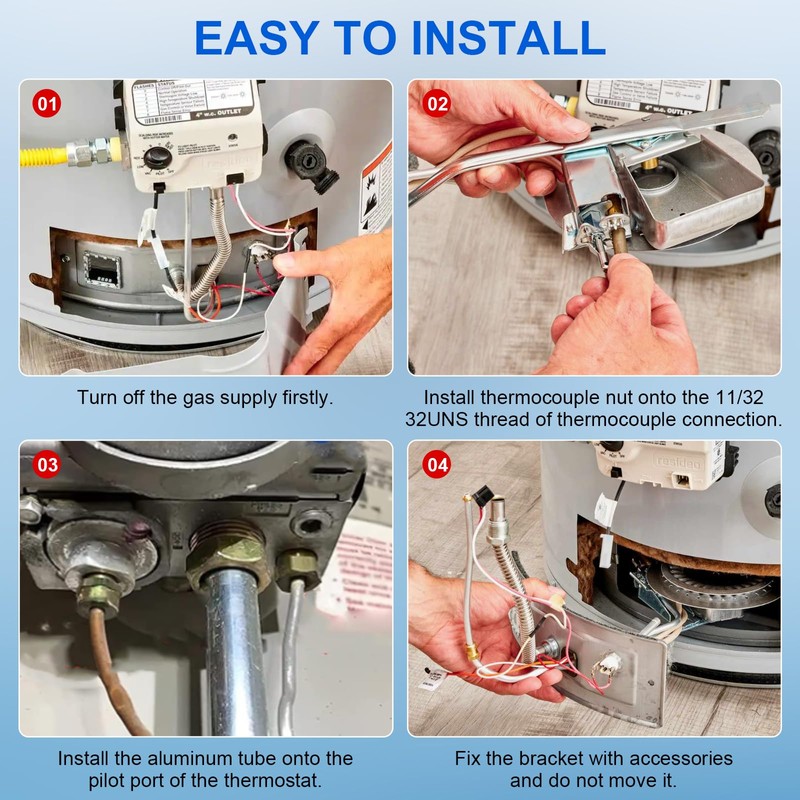

  • ๐–๐ž๐ฅ๐ฅ ๐…๐ฎ๐ง๐œ๐ญ๐ข๐จ๐ง: ๐„๐š๐ฌ๐ฒ ๐ˆ๐ง๐ฌ๐ญ๐š๐ฅ๐ฅ๐š๐ญ๐ข๐จ๐ง: 9003542 Water heater burner pilot assembly is easy to install, designed to be direct replacement for old or damaged parts, featuring quick and easy installation without any additional modifications or tools. Please turn off the natural gas valve before installation.

Color:
Copper
Manufacturer:
Catilon
Part Number:
XB6YJKS
Material Type:
Brass & Plastic
Product Dimensions:
1.54 x 5.59 x 8.39 inches; 4.64 ounces
Isin:
IBKL7L18IAJU

$60.89

In Stock

, Fulfilled by IBSPOT โ€ข Ships from US

IBSPOT Buyer Protection
  • Free 30-Day Returns
  • Full Refund for Damaged or Incorrect Items
  • Guaranteed Delivery or Money Back
  • Secure Checkout & Fast Support
scroll to top arrow
9003542 Pilot Assembly, Natural Gas Pilot Assembly Compatible with A.O.Smith, Kenmore, State GS and GSX Natural Gas Water Heater, Replace 100109295,9003542005,18324-190

9003542 Pilot Assembly, Natural Gas Pilot Assembly Compatible with A.O.Smith,...

$60.89

  • ๐๐š๐ซ๐ญ ๐๐ฎ๐ฆ๐›๐ž๐ซ: 9003542 pilot assembly replacement for natural gas water heater replace part number are 9003530,100109295,9003542005,18324190, 18324-190, compatible with Reliance, A.O.Smith, Kenmore, State GS and GSX natural gas water heater.
  • ๐‚๐จ๐ฆ๐ฉ๐š๐ญ๐ข๐›๐ฅ๐ž ๐Œ๐จ๐๐ž๐ฅ๐ฌ: 9003542 Pilot assembly compatible with A. O. Smith : FCV40, FCV50, GCV30, GCV40, GCV50, GCVH30, GCVT40, GCVT40Q, GVR40, XCV30, XCV40, XCV50, XCVH30, XCVL40, XCVT40, XCVT40L, XCVT40Q , GCVT40L, XVR40 etc. The 9003542 Nat gas pilot assembly compatible with Reliance 6-30-yours, 6-30-yours-d, 6-30-yort-d, 6-40-yort-d, 6-30-yort4, 6-50-yort4 etc. Please find more model number in the following description.
  • ๐‡๐ข๐ ๐ก ๐๐ฎ๐š๐ฅ๐ข๐ญ๐ฒ: 9003488 water heater pilot assembly is made of durable and premium brass and copper materials with aluminum tube with high temperature resistance, durable to use.
  • ๐–๐ž๐ฅ๐ฅ ๐…๐ฎ๐ง๐œ๐ญ๐ข๐จ๐ง: 9003542 Pilot assembly for water heater can fix water heater does not heat up due to damaged thermocouple, gas pilot assembly does not work properly due to other factors, intermittent heating, improper ignition, low efficiency of ignition heating and so on.
  • ๐–๐ž๐ฅ๐ฅ ๐…๐ฎ๐ง๐œ๐ญ๐ข๐จ๐ง: ๐„๐š๐ฌ๐ฒ ๐ˆ๐ง๐ฌ๐ญ๐š๐ฅ๐ฅ๐š๐ญ๐ข๐จ๐ง: 9003542 Water heater burner pilot assembly is easy to install, designed to be direct replacement for old or damaged parts, featuring quick and easy installation without any additional modifications or tools. Please turn off the natural gas valve before installation.

Color:
Copper
Manufacturer:
Catilon
Part Number:
XB6YJKS
Material Type:
Brass & Plastic
Product Dimensions:
1.54 x 5.59 x 8.39 inches; 4.64 ounces
Isin:
IBKL7L18IAJU

Specification:

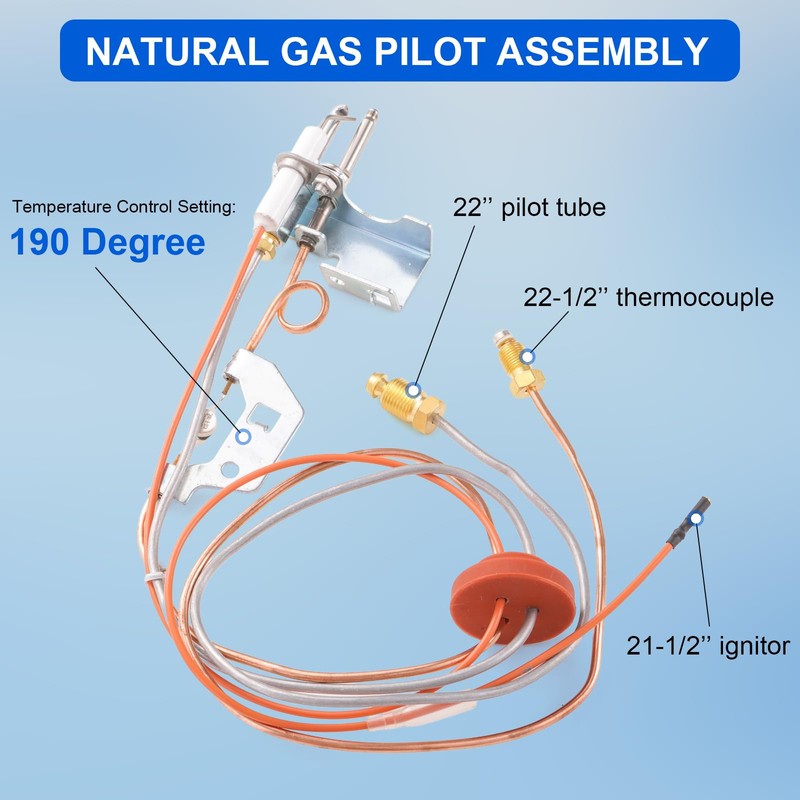

Item: 9003542 Water Heater Pilot Assembly
Application: NG
Material: Brass & Copper & Aluminum
Temperature Control Setting: 190 Degree
Pilot Tube Length: 22โ€™โ€™
Ignitor Length: 21-1/2โ€™โ€™
Thermocouple Length: 22-1/2โ€™โ€™
