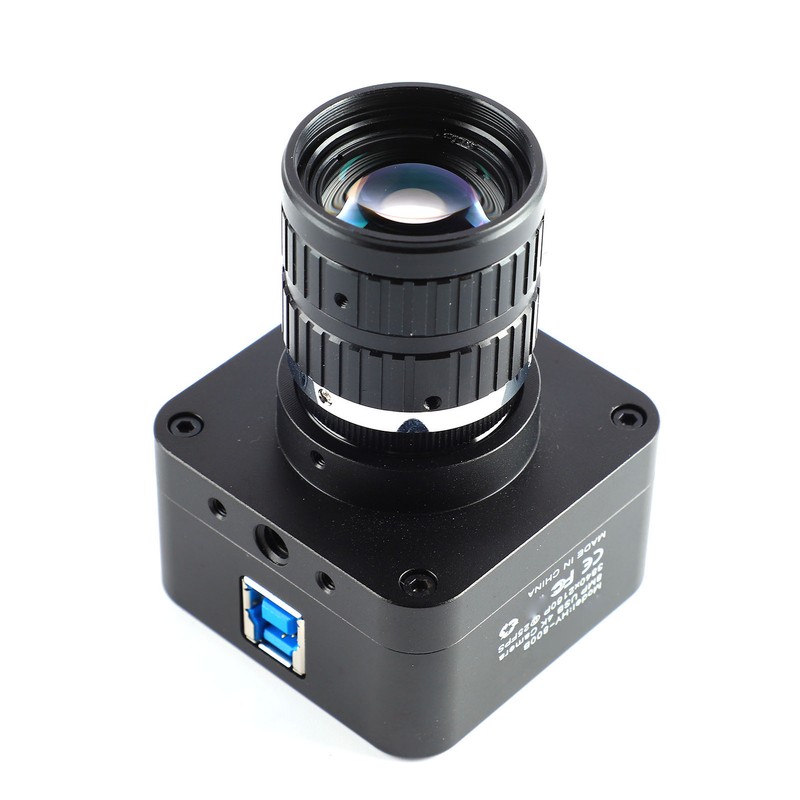

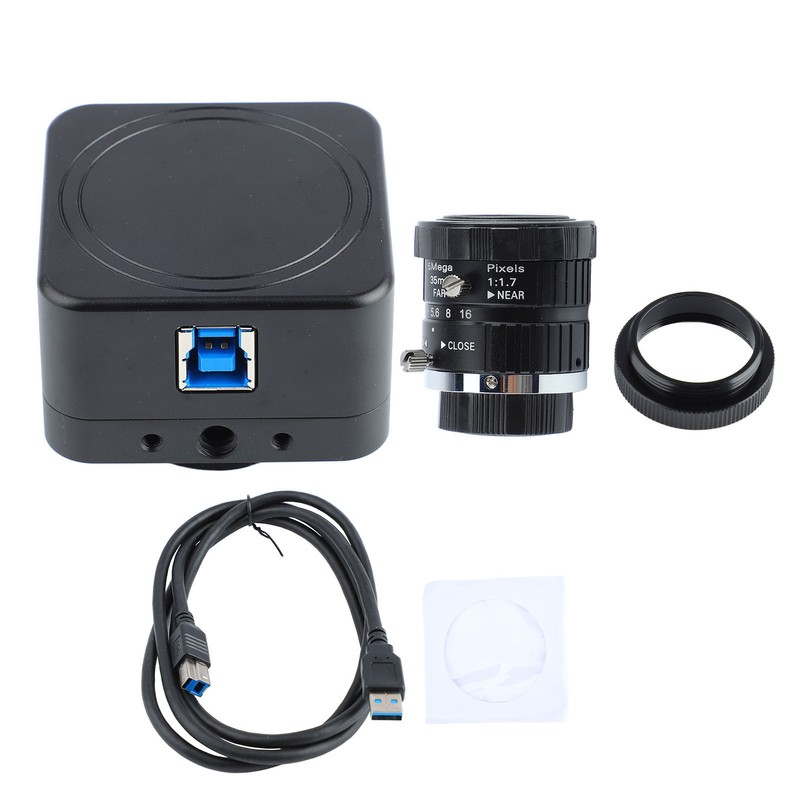

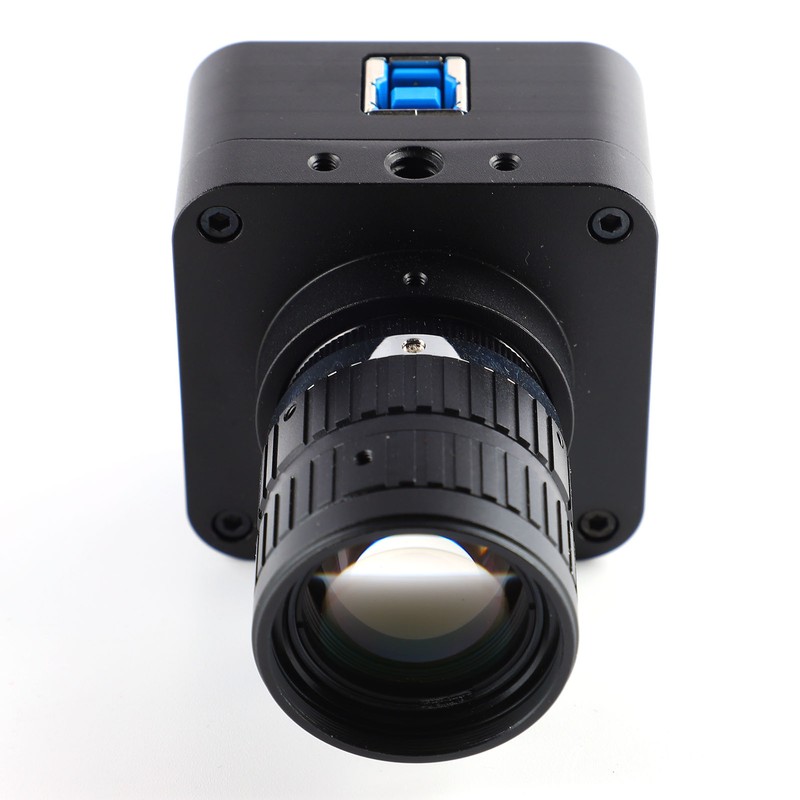

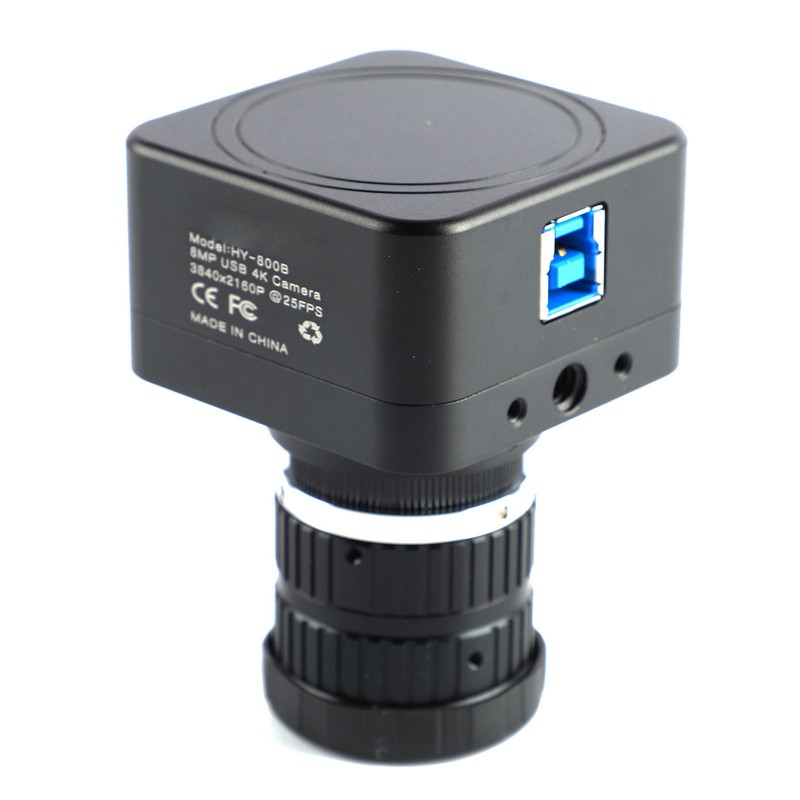

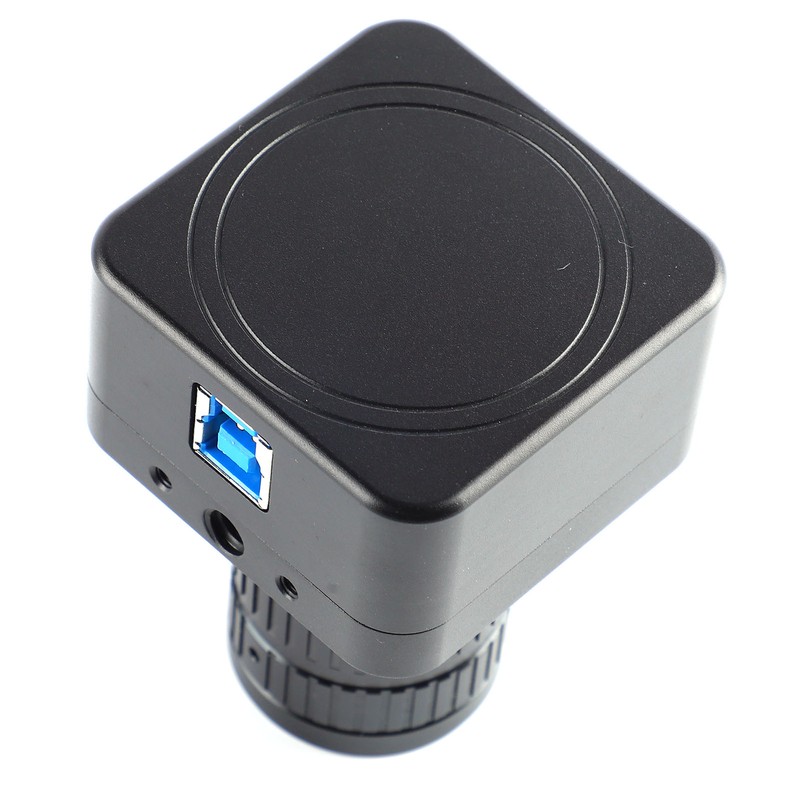

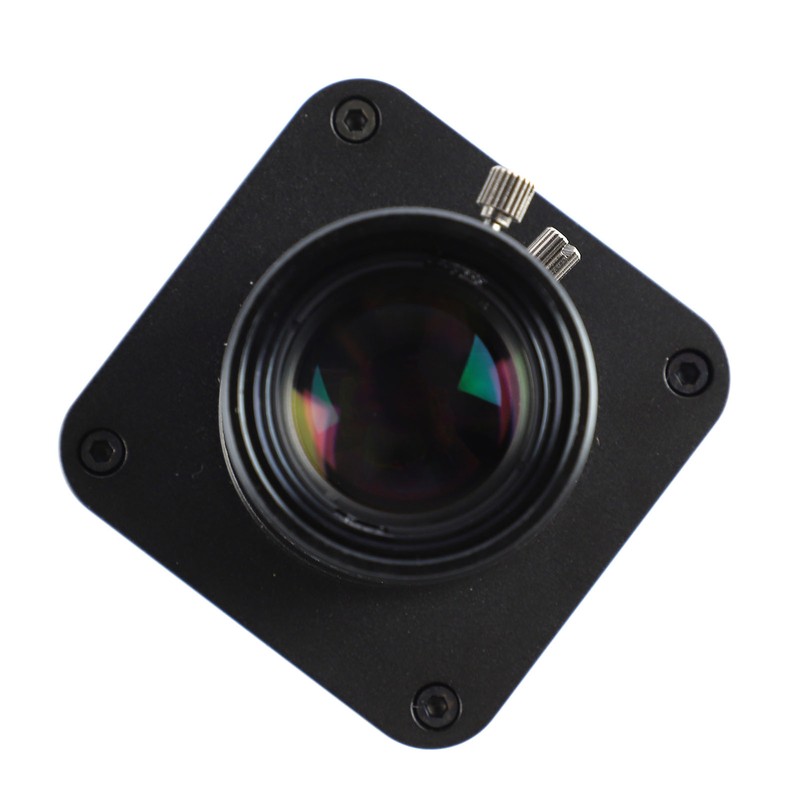

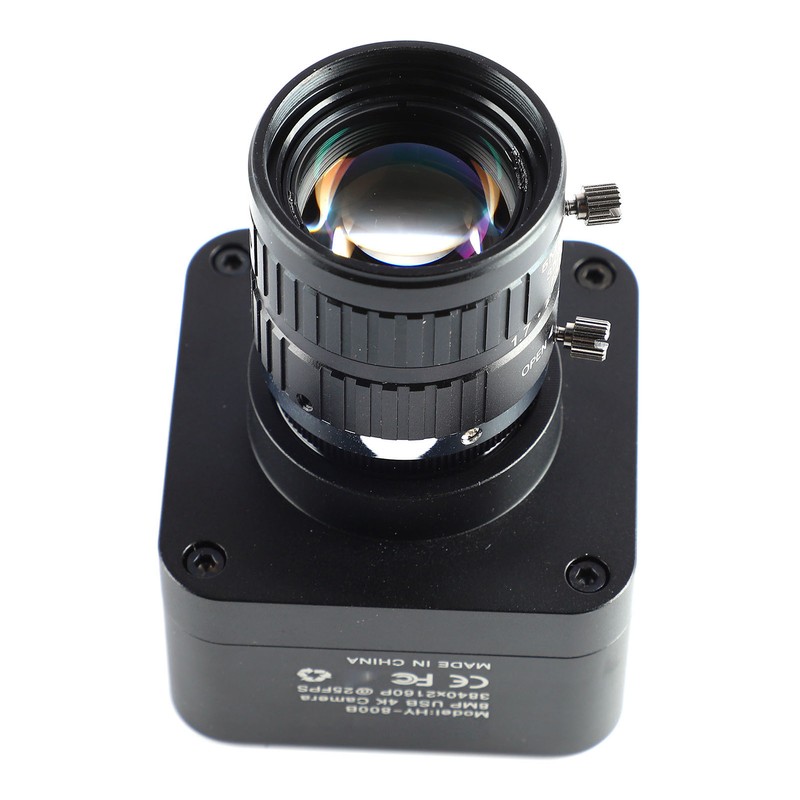

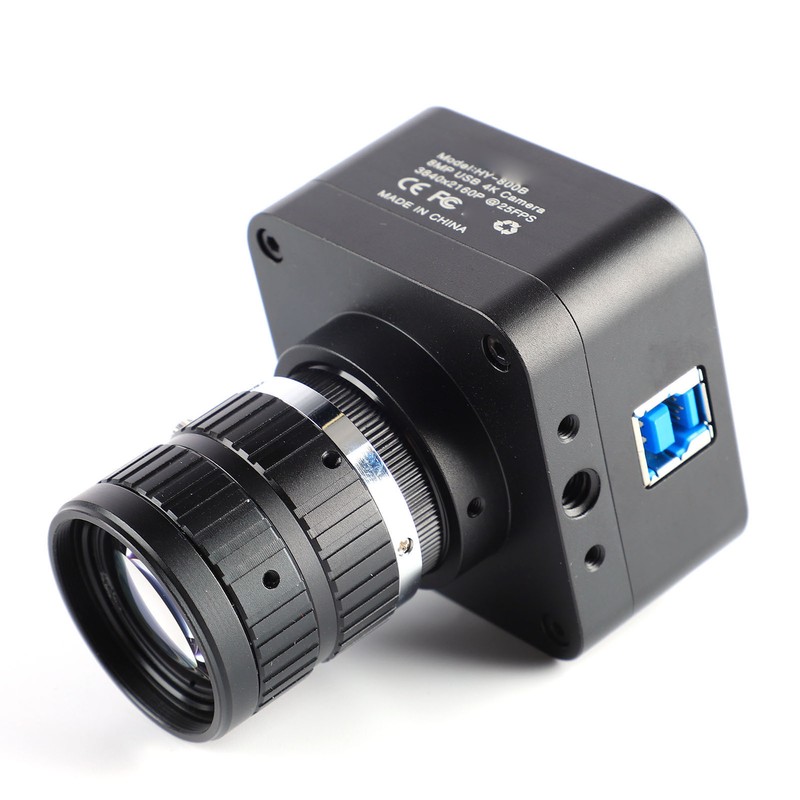

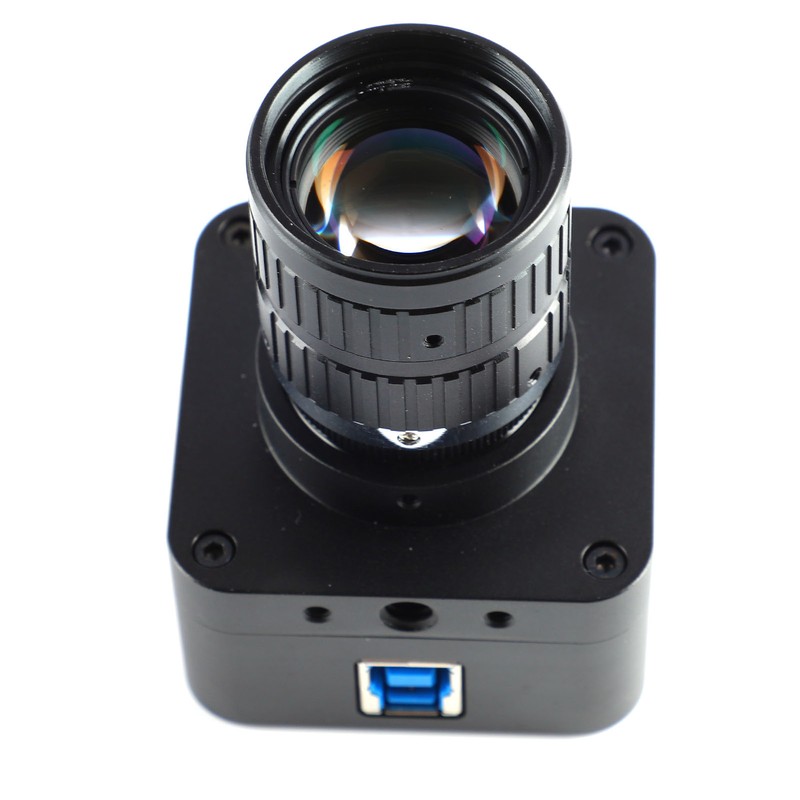

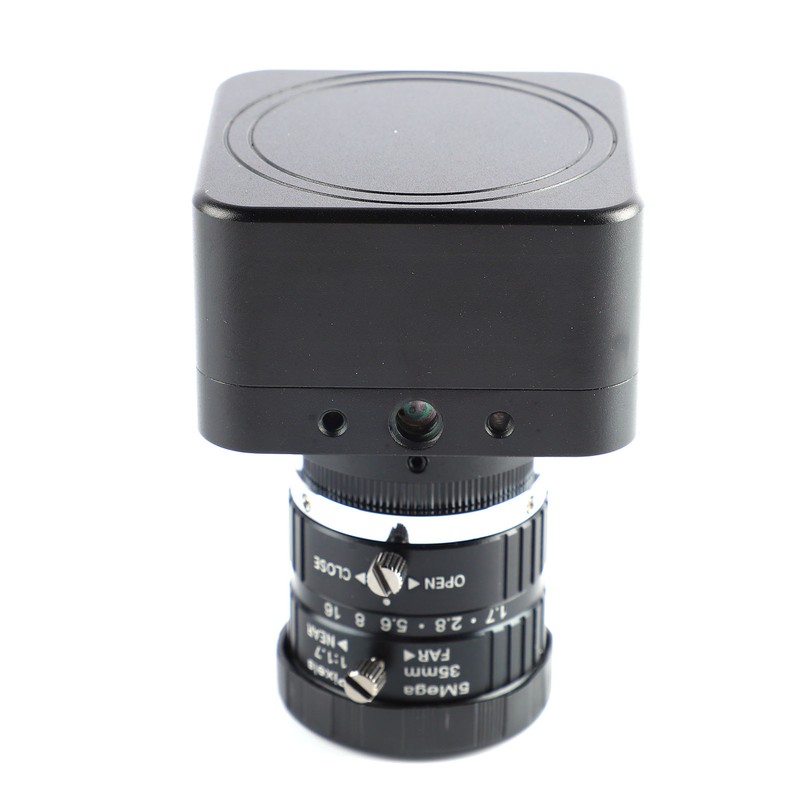

8MP 4K USB Webcam with 35mm C Type CCTV Zoom Lens HD Live Video Streaming Webcam for Industrial Testing Machine Vision
$195.45
- $14.50 shipping from United States View details
-
Arrives

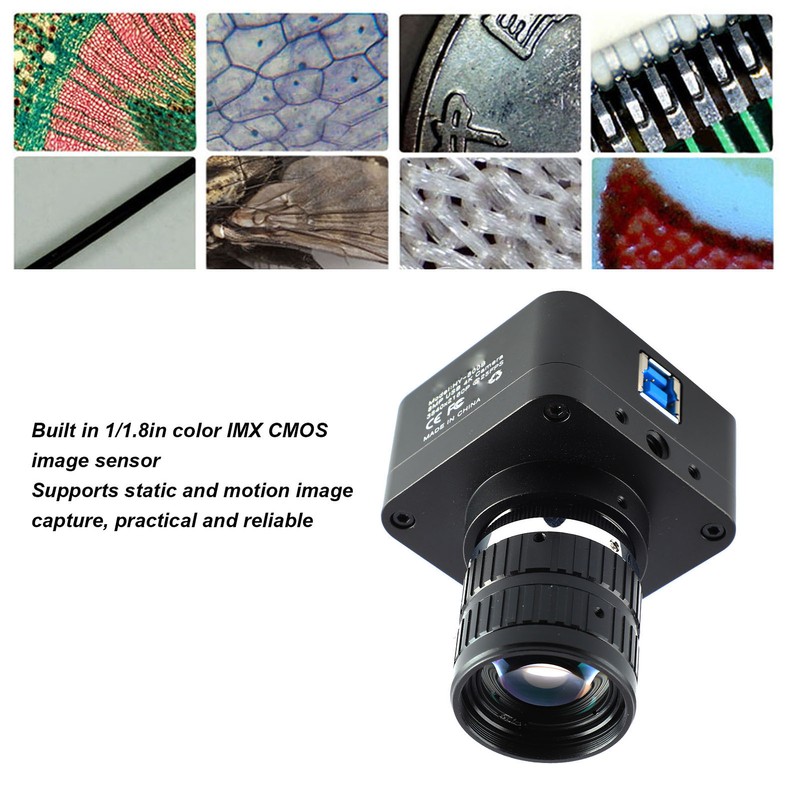

1、HD Webcam: Built in 1/1.8in color IMX CMOS image sensor, supports static and motion image capture, professional and reliable. 2、Performance: Webcam supports microscope imaging, general image acquisition, macro imaging, etc, providing you excellent use experience. 3、Advantages: High speed USB2.0 interface with up to 480Mb/s, low distortion for more stable work and better images. 4、Application: Widely used in pattern recognition, industrial testing, medical microscopy and traffic management as well as machine vision. 5、Professional: After a long period of rigorous performance index testing, the image is stable, also is your live and video recording practical item.
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
1、HD Webcam: Built in 1/1.8in color IMX CMOS image sensor, supports static and motion image capture, professional and reliable. 2、Performance: Webcam supports microscope imaging, general image acquisition, macro imaging, etc, providing you excellent use experience. 3、Advantages: High speed USB2.0 interface with up to 480Mb/s, low distortion for more stable work and better images. 4、Application: Widely used in pattern recognition, industrial testing, medical microscopy and traffic management as well as machine vision. 5、Professional: After a long period of rigorous performance index testing, the image is stable, also is your live and video recording practical item.
1、HD Webcam: Built in 1/1.8in color IMX CMOS image sensor, supports static and motion image capture, professional and reliable. 2、Performance: Webcam supports microscope imaging, general image acquisition, macro imaging, etc, providing you excellent use experience. 3、Advantages: High speed USB2.0 interface with up to 480Mb/s, low distortion for more stable work and better images. 4、Application: Widely used in pattern recognition, industrial testing, medical microscopy and traffic management as well as machine vision. 5、Professional: After a long period of rigorous performance index testing, the image is stable, also is your live and video recording practical item.
More Information
Item Type: USB Webcam
Material: ABS, Metal

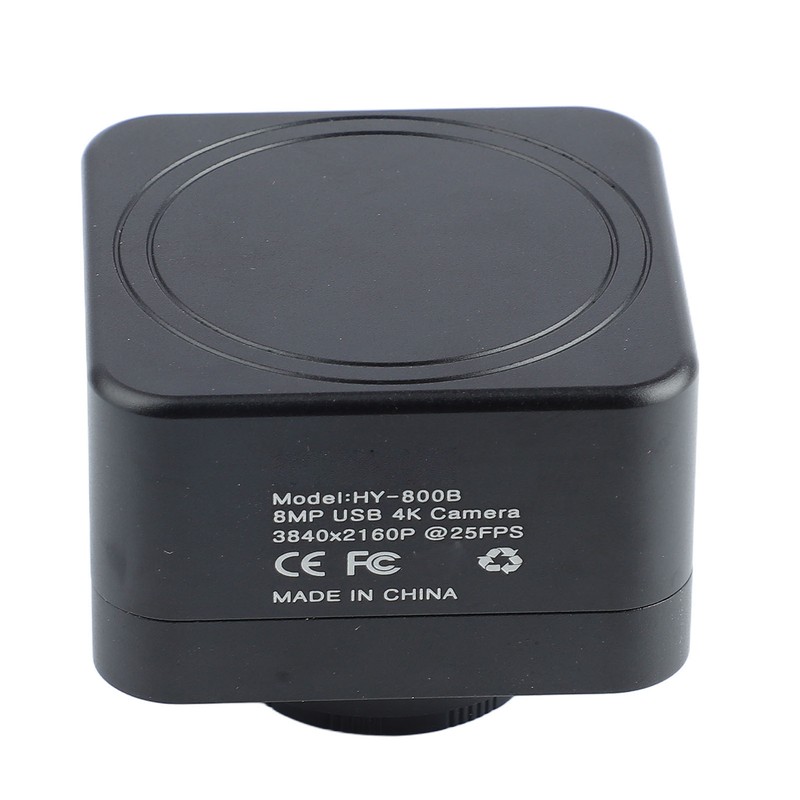

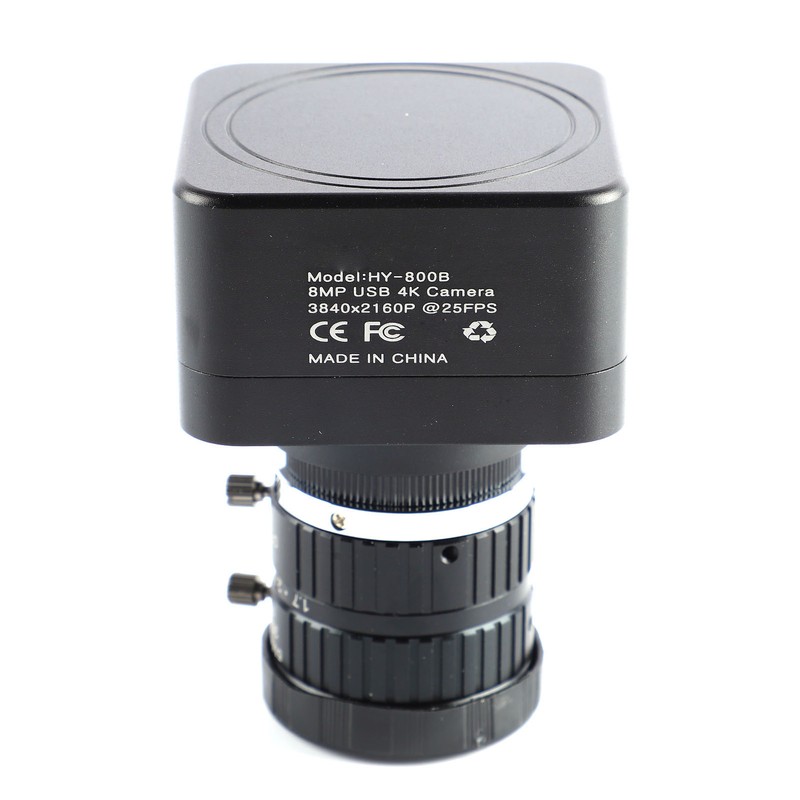

Model Number: HY-800B
Image Sensor: 1/1.8in color IMX CMOS image sensor
Resolution: 3840x2160; 2592x1944; 2560x1440; 1920x1080; 1280x720; 640 x 480
Shutter: Digital Shutter
Signal to Noise Ratio: 39dB
Pixel Size: 2um x 2um
Shutter Type: Rolling Shutter
Scanning: Progressive Scanning
White Balance: Automatic/Manual
Operating Temperature: 0°C-50°C

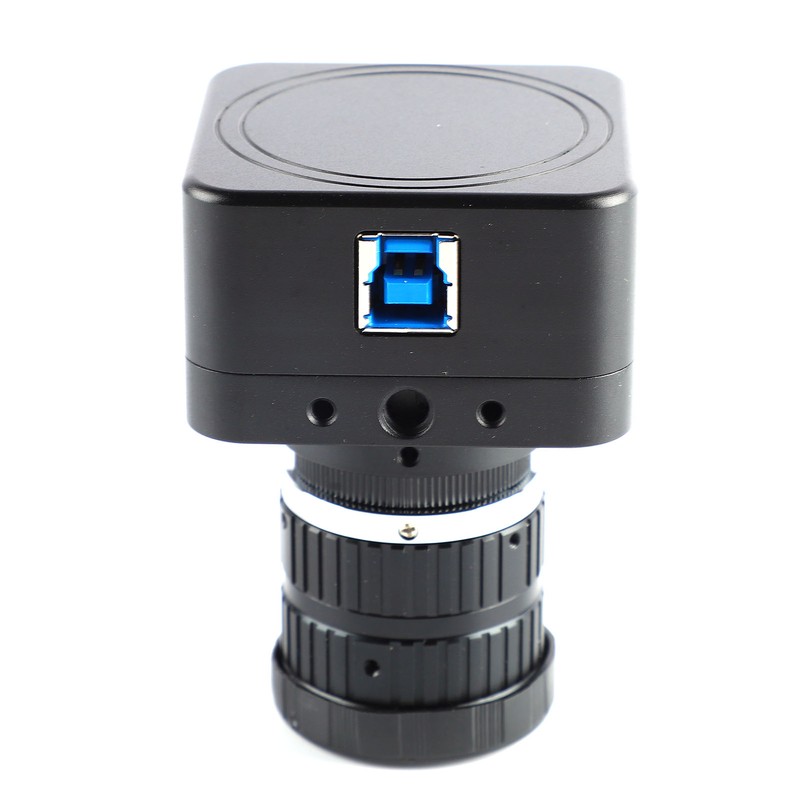

Interface: USB 2.0 (480 Mbit/s)
Sensitivity: 18.8 ke-/lux xsec
Pixel Bit Depth: 10 bits
Exposure Time Range (ms) : 0.02 - 155.5ms
Filter: Standard 650nm infrared cut off filter
Software Functions: Image display, image capture, video recording, measurement, etc.
Operating Current: ≈200mA

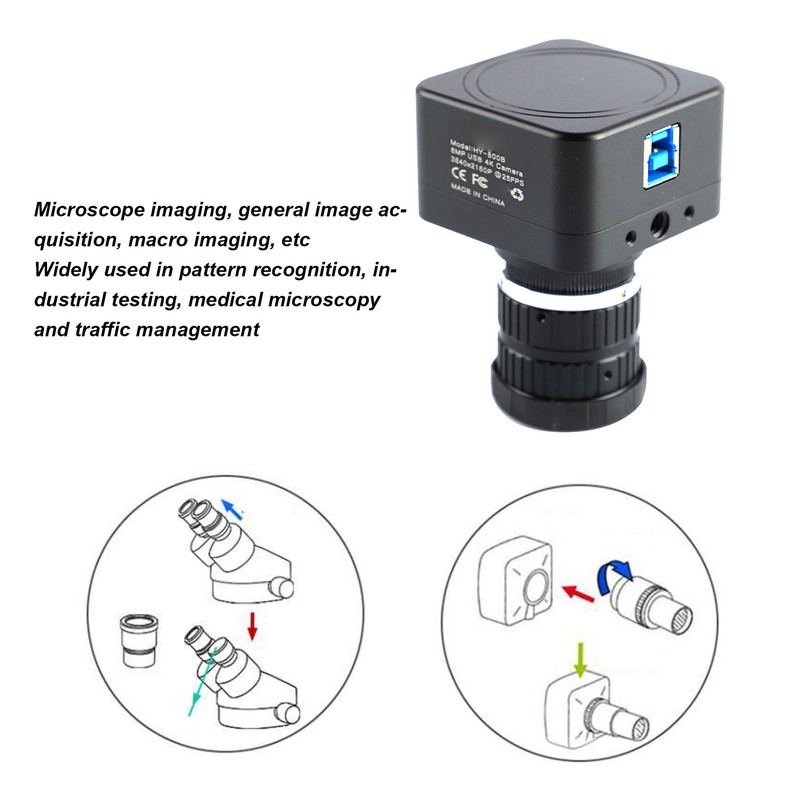

Applications: Microscope imaging, general purpose image capture, macroscopic imaging, etc.

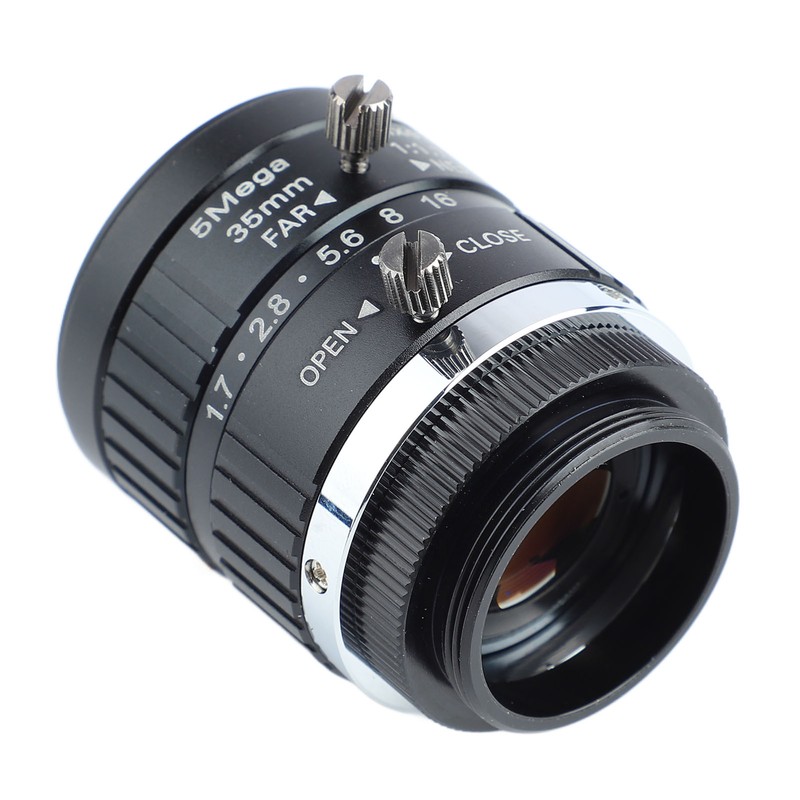

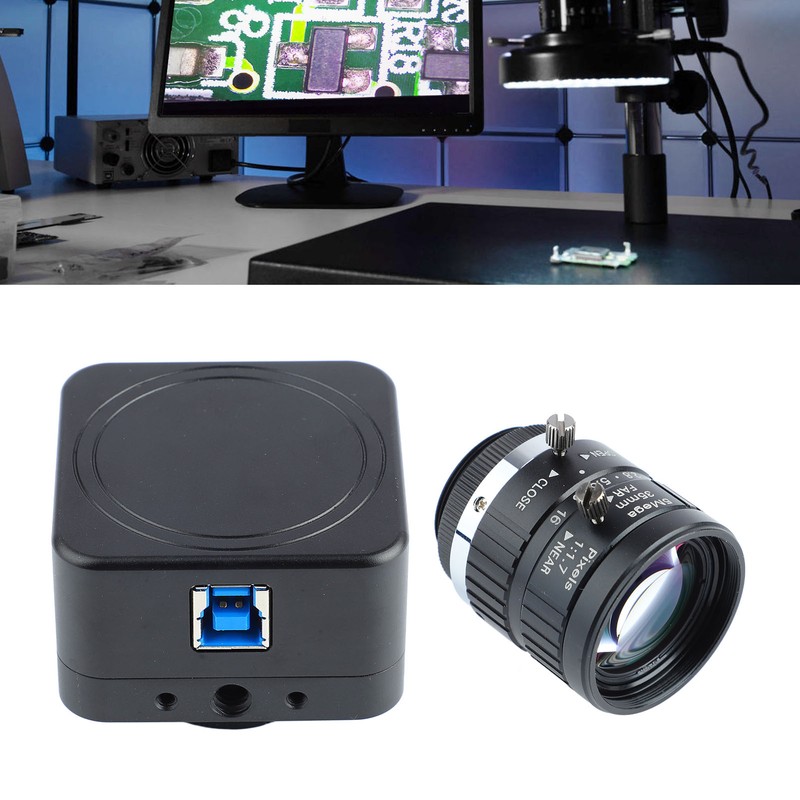

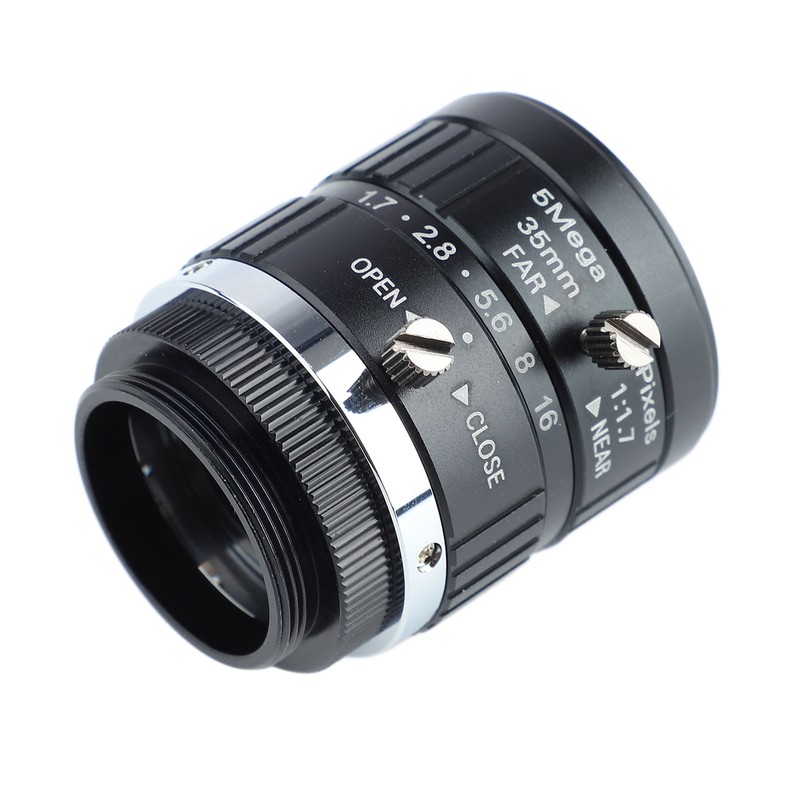

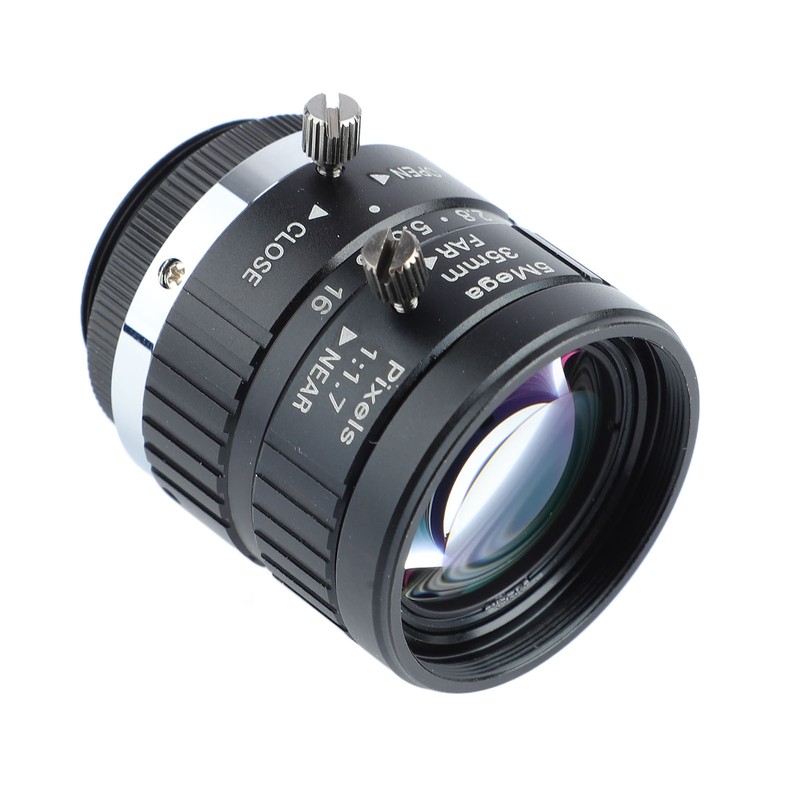

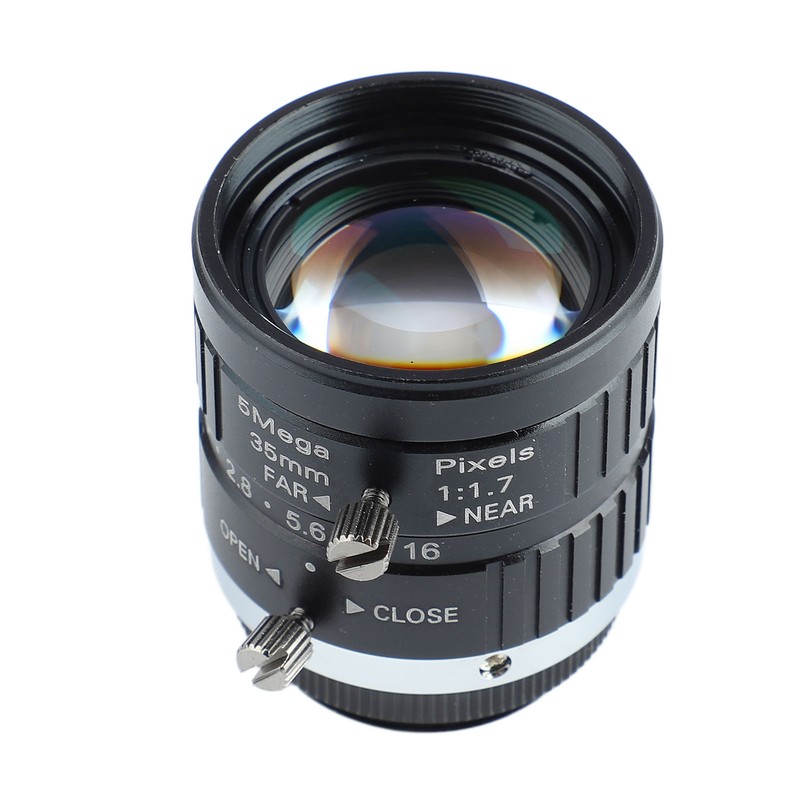

35mm F1.7 Lens Specifications:
Focal Length: 35mm
Relative Aperture D/f':F1.7
Installation: C
Image Format: 1/1.8 inch
Field of View: W14.8°xT10.8°
Size: About 35 x 22 mm
Resolution: 8MP
Flange BFL:17.53
High Resolution: 5MP, 5MP and 1080P
Large Format: 1/1.8 inch, covering 1/1.8 inch and 1/2 inch cameras
Large Aperture: F1.7 Large aperture makes for better imaging
Low Distortion: < 0.1% low distortion using machine vision FA automatically
Applications: Biochemistry, monitoring, FA, face recognition, etc.
Lens Function:
1.35mm F1.7 lens
2. Variable focal length CCTV lens, optical lens, CCTV camera lens, CS mount lens
3. focal length function manual iris lens, security lens
4. Low distortion lens for box camera, security camera lens, surveillance lens
5. This high resolution CCTV lens can shoot all resolutions of megapixel cameras, IP cameras and high resolution cameras
6. Suitable for live cameras, surveillance cameras, etc.
