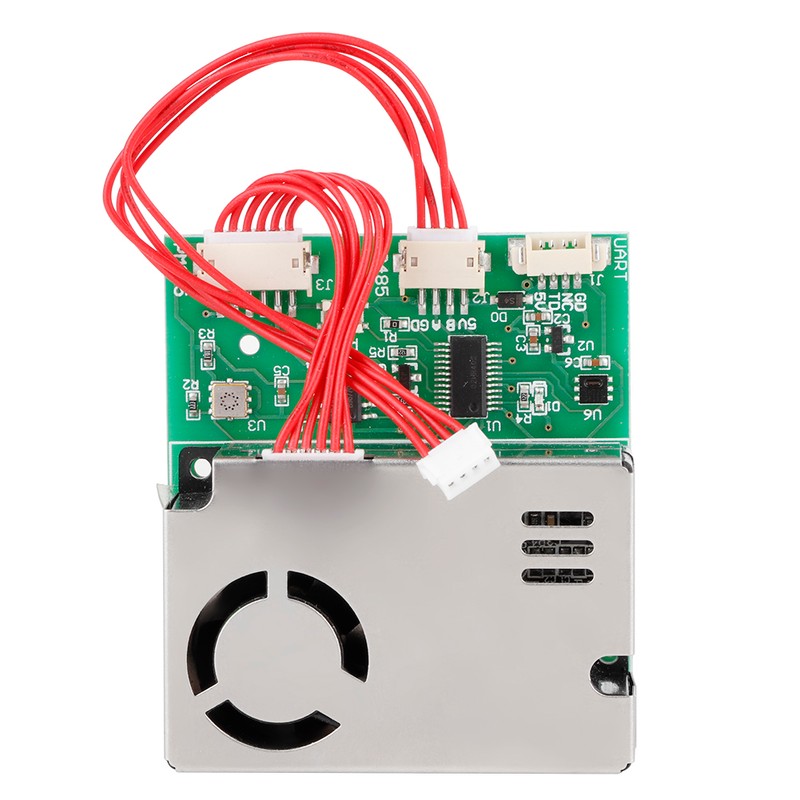

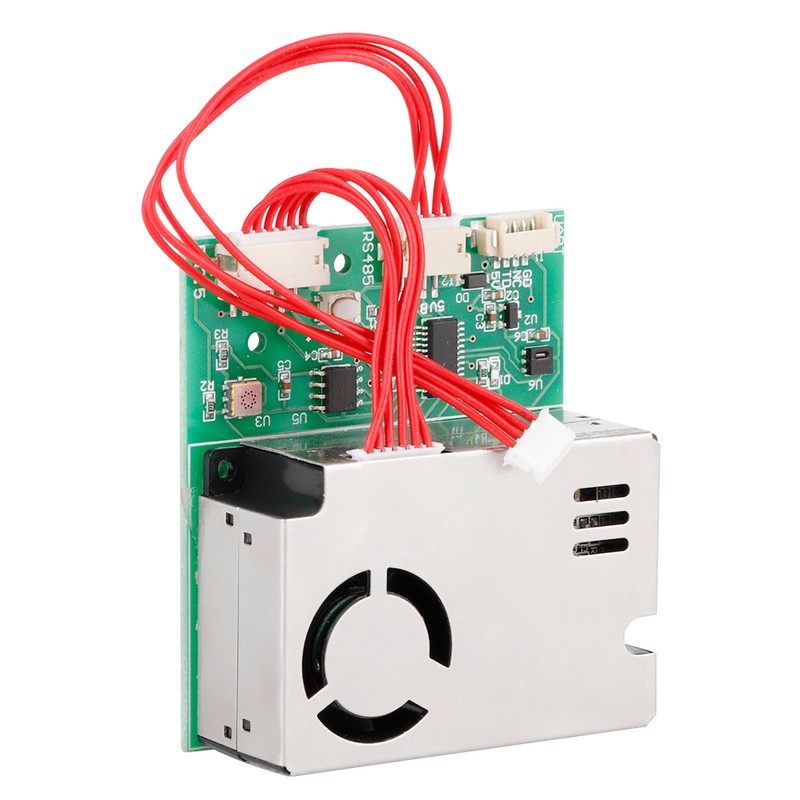

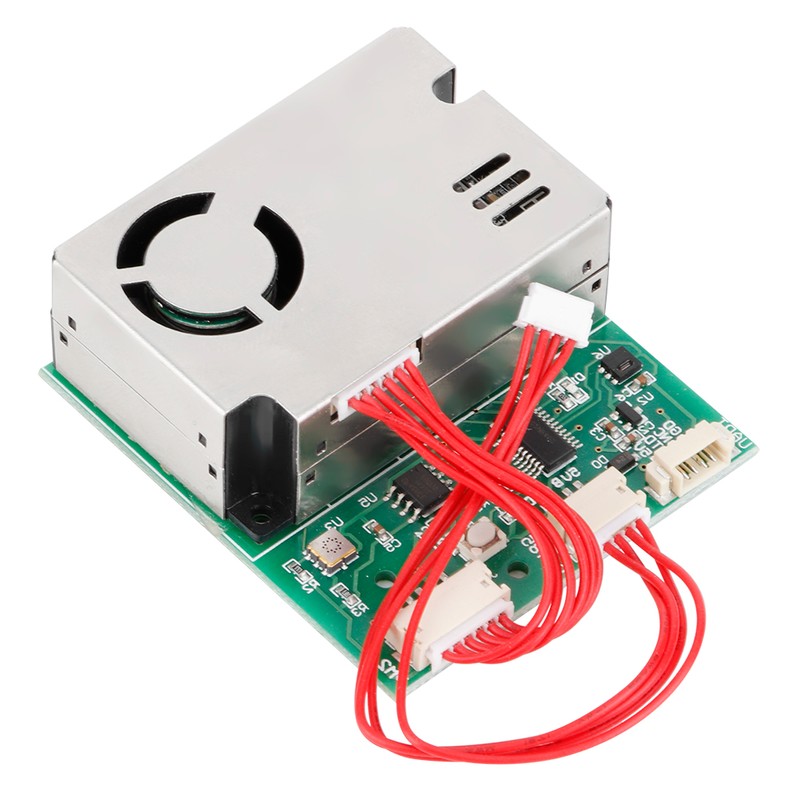

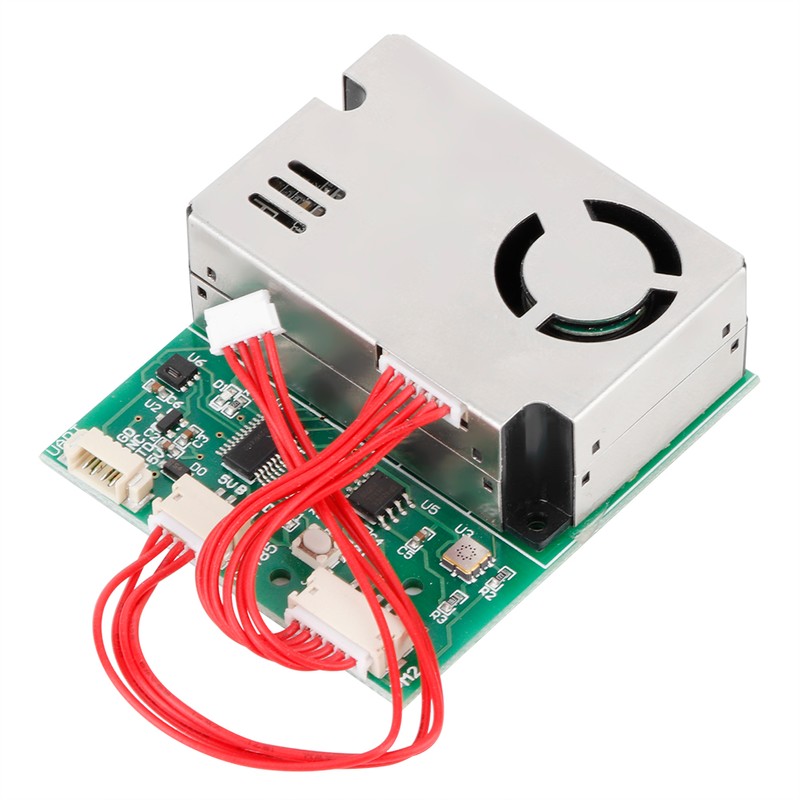

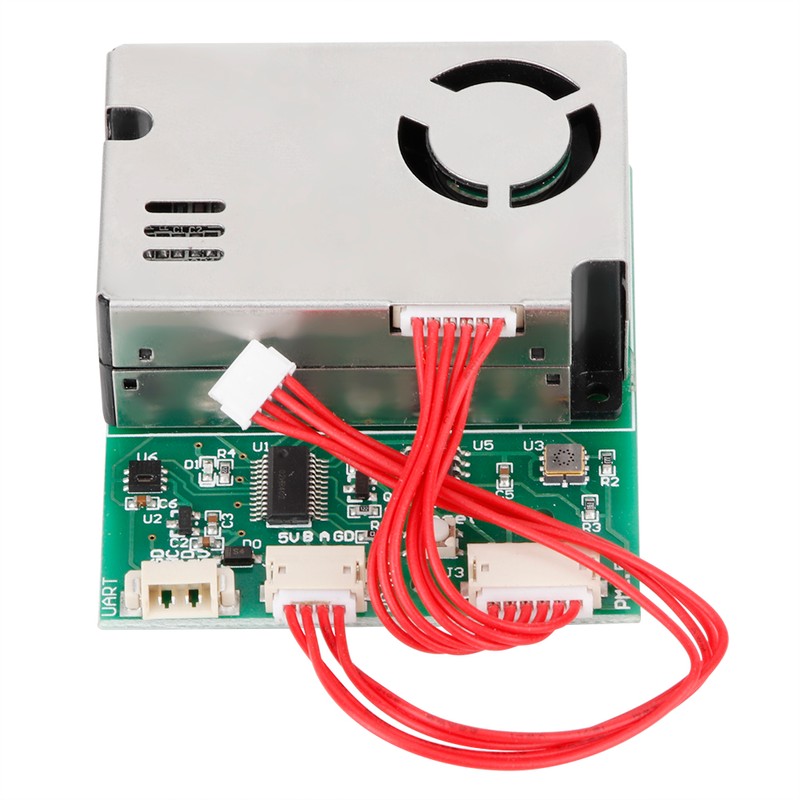

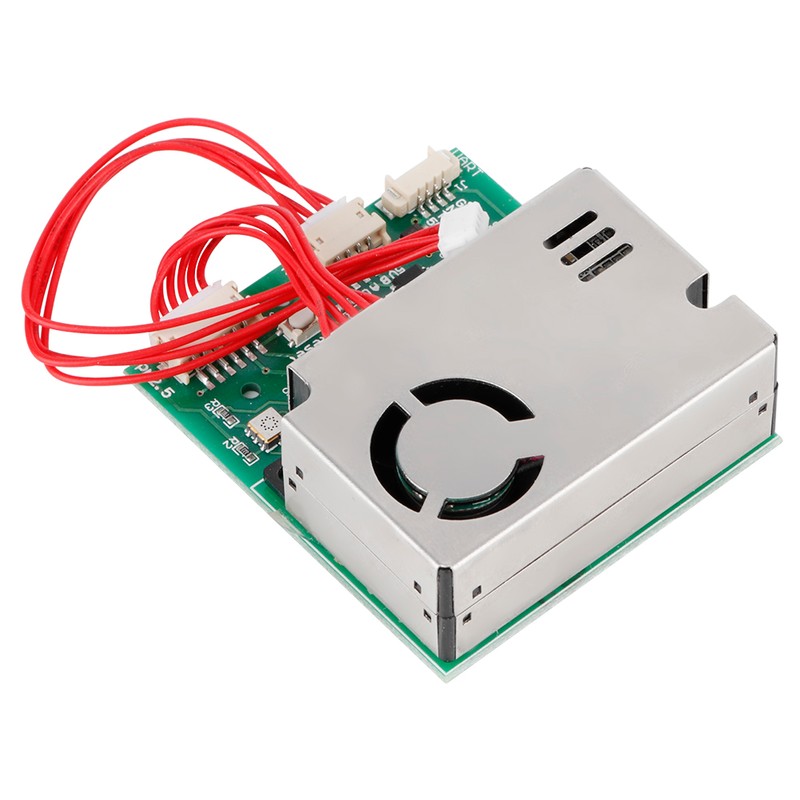

6in 1 Detector Air Dust Sensor Module Smoke Particle Sensor with Cable for Measuring PM2.5 Air Purifier

$81.25

1、The built-in microprocessor MCU optimizes the precise algorithm, standard serial port output, digital PWM pulse width output and standard serial port (USART). 2、Digital output dust concentration signal output, unit is ug/m³. 3、Built-in software self-calibration function, debugging is simple, efficient and accurate, and good consistency. 4、Light particle counting principle, digital output, simple application, general interface. 5、High sensitivity can detect particles with a diameter of more than 1uM. 6、Compact structure, light weight, easy installation, adopts embedded installation. 7、Adopts active airflow structure, real-time data characteristics. 8、Can be used for air purifier, air purifier air dust detection, indoor air dust quality detection, suitable for household appliances, air conditioner, hvac, new fan, ventilation system, smoke alarm or other dust monitoring equipment detection components.

Isin:
IGFMXLMPVSPK

$81.25

In Stock

Sold by , Fulfilled by IBSPOT • Ships from US

IBSPOT Buyer Protection
  • Free 30-Day Returns
  • Full Refund for Damaged or Incorrect Items
  • Guaranteed Delivery or Money Back
  • Secure Checkout & Fast Support
scroll to top arrow
6in 1 Detector Air Dust Sensor Module Smoke Particle Sensor with Cable for Measuring PM2.5 Air Purifier

6in 1 Detector Air Dust Sensor Module Smoke Particle Sensor with Cable for Me...

$81.25

1、The built-in microprocessor MCU optimizes the precise algorithm, standard serial port output, digital PWM pulse width output and standard serial port (USART). 2、Digital output dust concentration signal output, unit is ug/m³. 3、Built-in software self-calibration function, debugging is simple, efficient and accurate, and good consistency. 4、Light particle counting principle, digital output, simple application, general interface. 5、High sensitivity can detect particles with a diameter of more than 1uM. 6、Compact structure, light weight, easy installation, adopts embedded installation. 7、Adopts active airflow structure, real-time data characteristics. 8、Can be used for air purifier, air purifier air dust detection, indoor air dust quality detection, suitable for household appliances, air conditioner, hvac, new fan, ventilation system, smoke alarm or other dust monitoring equipment detection components.

Isin:
IGFMXLMPVSPK

1、The built-in microprocessor MCU optimizes the precise algorithm, standard serial port output, digital PWM pulse width output and standard serial port (USART). 2、Digital output dust concentration signal output, unit is ug/m³. 3、Built-in software self-calibration function, debugging is simple, efficient and accurate, and good consistency. 4、Light particle counting principle, digital output, simple application, general interface. 5、High sensitivity can detect particles with a diameter of more than 1uM. 6、Compact structure, light weight, easy installation, adopts embedded installation. 7、Adopts active airflow structure, real-time data characteristics. 8、Can be used for air purifier, air purifier air dust detection, indoor air dust quality detection, suitable for household appliances, air conditioner, hvac, new fan, ventilation system, smoke alarm or other dust monitoring equipment detection components.

More Information

Condition: 100% Brand New
Item Type: Dust Sensor
Material: Stainless Steel+ABS
Color: As shown in the picture

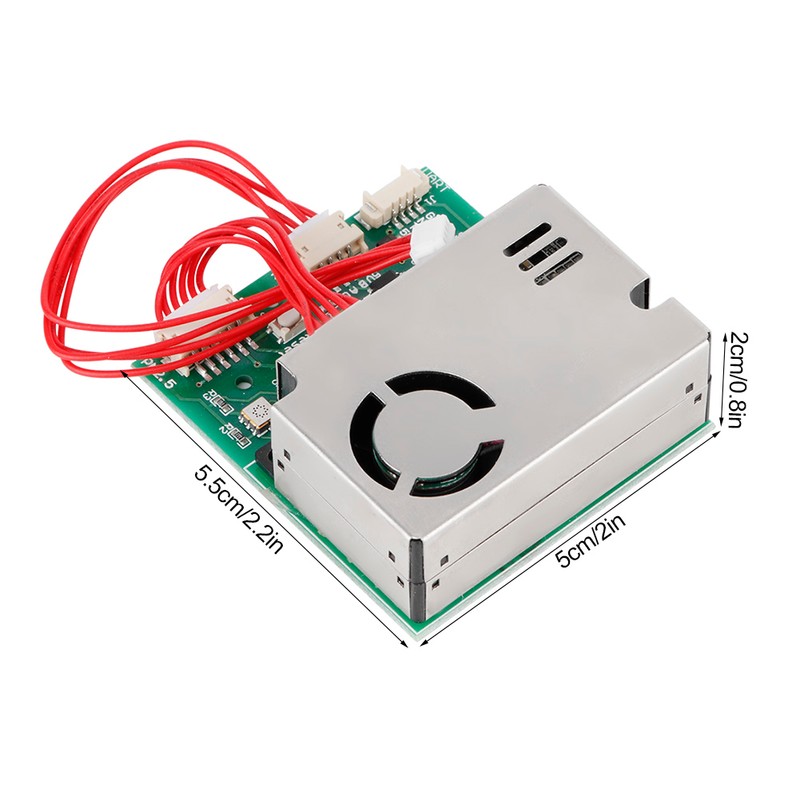

Size: Approx.5.5x5x2cm / 2.2x2.0x0.8in
Weight: Approx.42g/1.5oz
Measurement Object: Particle
Flow Range: 0-999 (L/min)
Power: 1w
Voltage: 5V
Power Consumption: 50mA ± 10%
Working Temperature and Humidity: -10~55°C, below 95%RH (no condensation)
Storage Temperature: -30 ° C ~ 60 ° C
Detection Particle Diameter: 1um or more
Detecting Dust Particle Concentration Range:
5~990ug/m³ (PWM output mode)
5~4000ug/m³ (serial USART output mode)
Signal Output:
PwM output, unit ug/m³/USART serial output
Output Level: LOW=0V, HI=4.0V
Application: Can be used for air purifier, air purifier air dust detection, indoor air dust quality detection, suitable for household appliances, air conditioner, hvac, new fan, ventilation system, smoke alarm or other dust monitoring equipment detection components.

Notice

1. After long-term storage, the first power-on use needs to be warmed up for more than 10 minutes, and the module can be put into working state by warming up for 1 minute in the normal working mode.
2. Do not apply this module to systems that involve physical safety.
3. Do not leave the module in a high concentration of organic gas for a long time.
4. Do not install the module in a position where the negative ions are emitted. The high-voltage ions generated by the negative ion generator can cause fatal damage to the sensor.
5. Do not install the module in a strong air convection environment (inlet and outlet). Do not let the device wind affect the sensor. It is recommended to seal the sensor module only when the sensor surface is in contact with the external environment.
6. This product is only used for air quality monitoring in the limited installation area of the module, and relatively quantitatively reflects the air quality pollution level of the area, and is not used for accurate concentration measurement of a specific gas.
