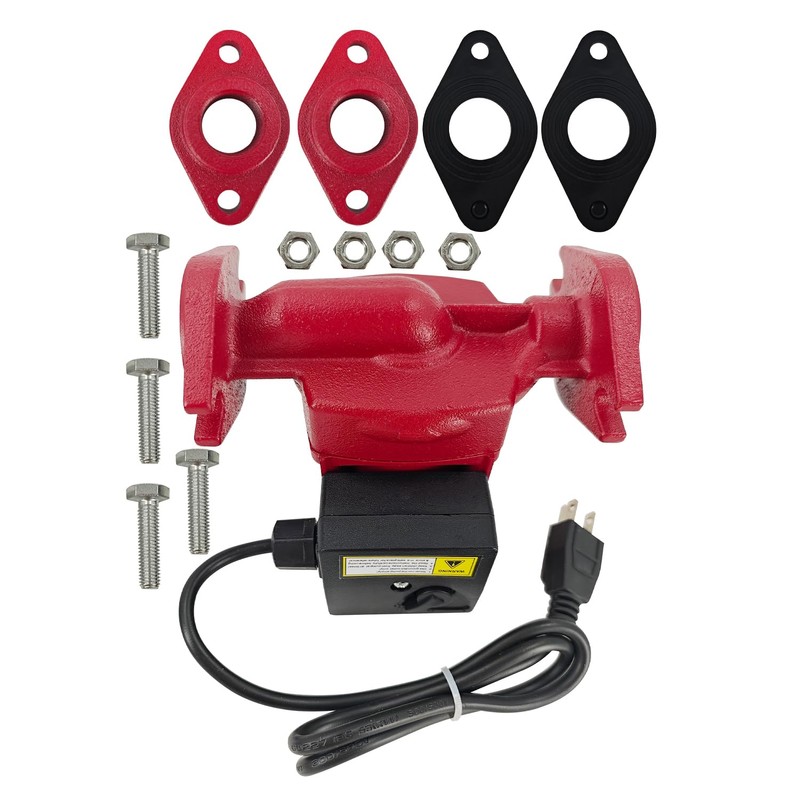

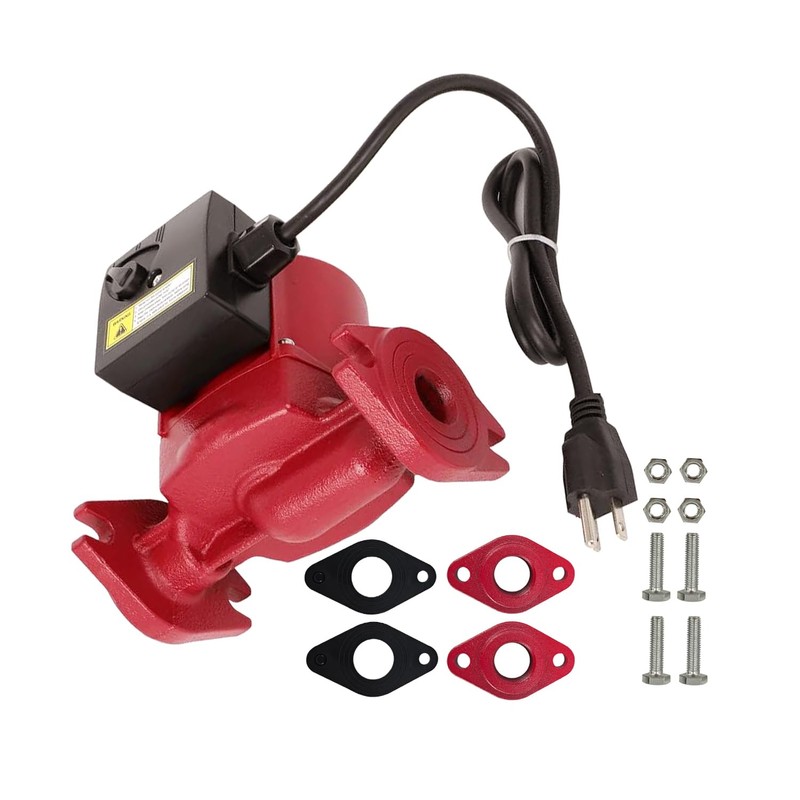

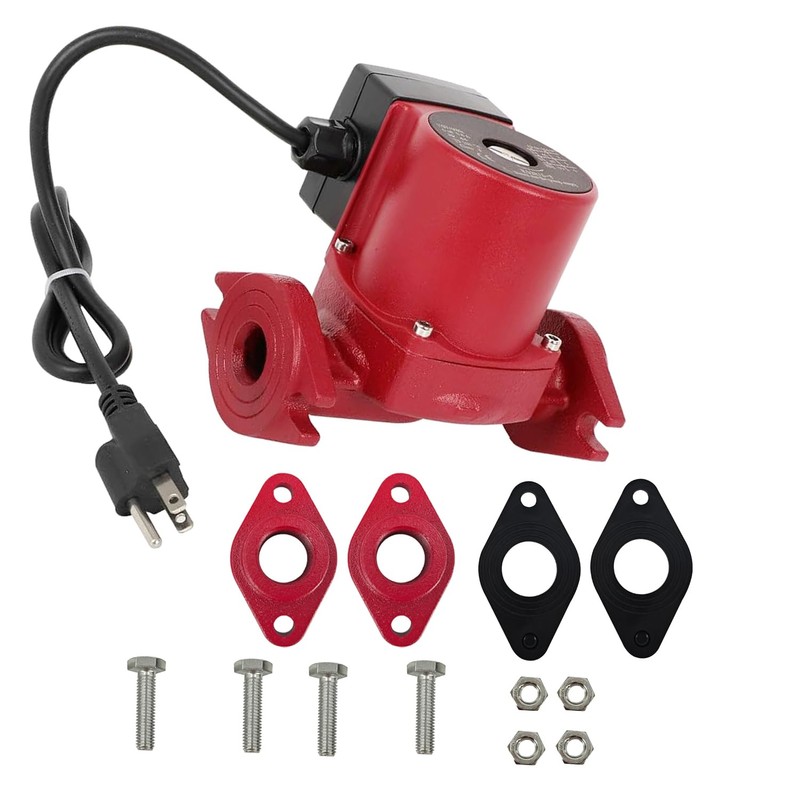

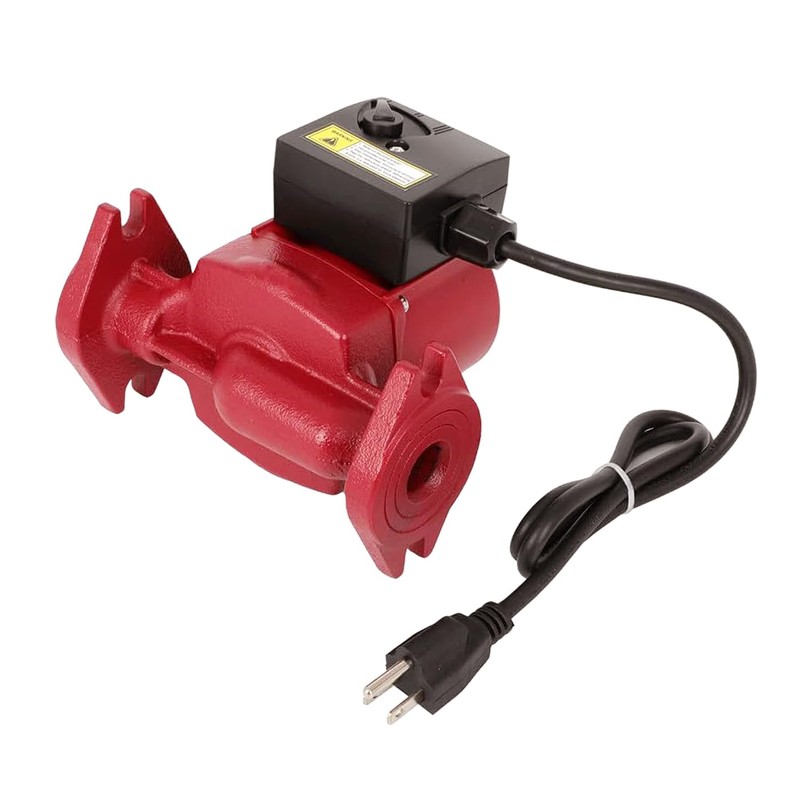

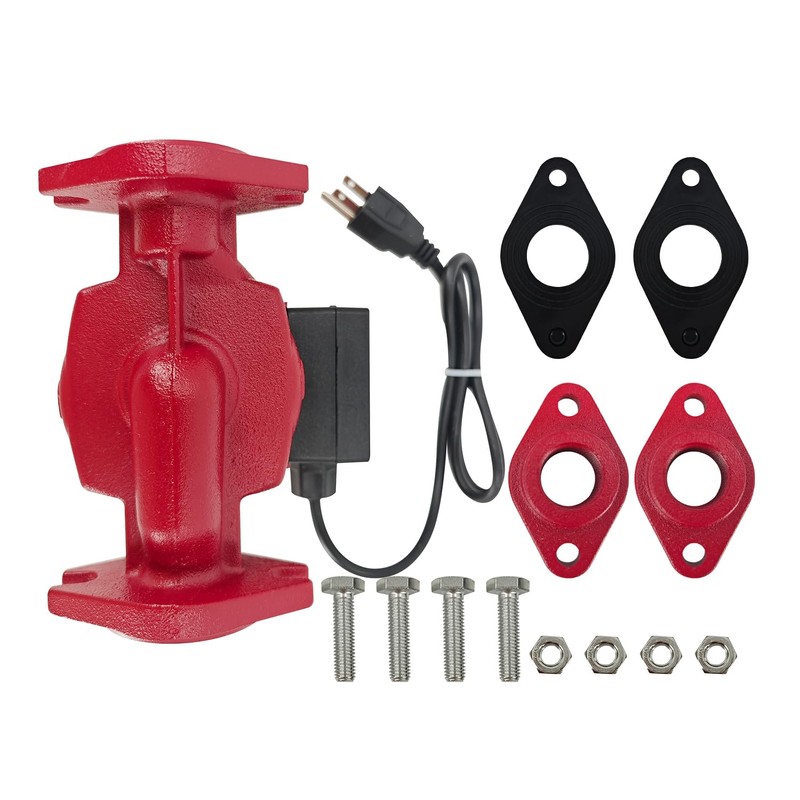

59896773 UPS15-55SFC 3-Speed Circulator Pump 58/77/87w 1/8HP 1/10HP 1/12HP 115V 60 Hz hot water circulation pump
$287.89
- $5.99 shipping from United States View details
-
Arrives
- Part Number:UPS15-55SFC;59896773;ups15 55sfc
- Three Adjustable Speeds:UPS15-55SFC Circulator Pump features a three-power control switch in 58/77/87W. It is convenient for you to adjust the flow rate as your different requirements boiler pump
- High Quality :59896773 Circulator Pump body is made of Stainless Steel, which is high-temperature resistance and corrosion-resistant. Powerful circulator pump has max 25.1 US GPM water flow, works efficiently, the pump is quiet and low-noise, giving you a quiet environment

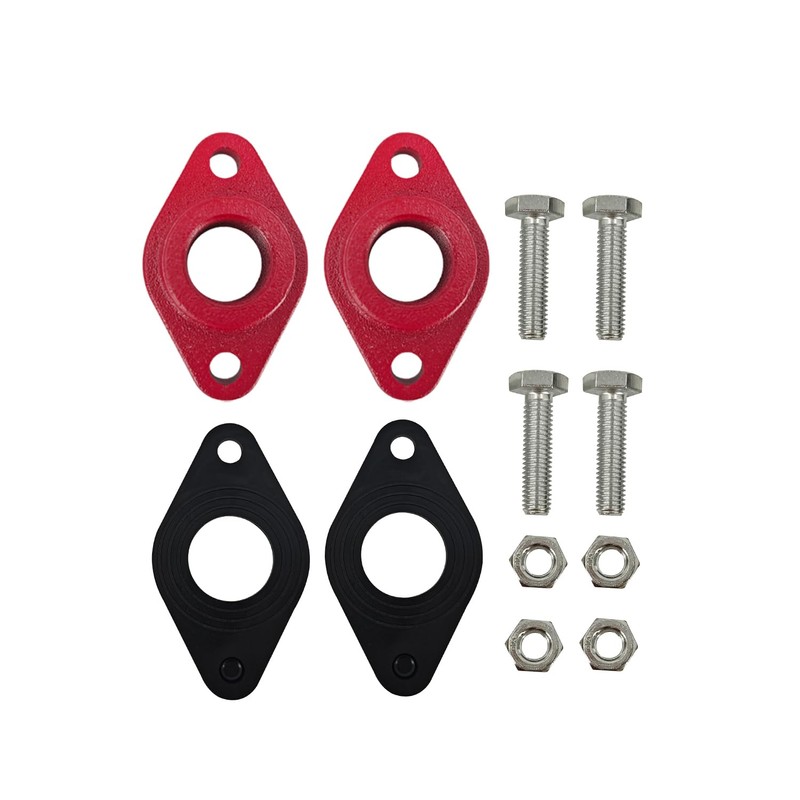

- Easy Installation:59896773 Circulator Pump is designed with cast iron flanges and inset check valve. Just need a wrench to connect the pump to the existing plumbing
- Application:59896773 Circulator Pump Suitable for a wide range of applications, including radiant heating, hydronic heating, fan coil heating, solar and other system types.
- Part Number:UPS15-55SFC;59896773;ups15 55sfc
- Three Adjustable Speeds:UPS15-55SFC Circulator Pump features a three-power control switch in 58/77/87W. It is convenient for you to adjust the flow rate as your different requirements boiler pump
- High Quality :59896773 Circulator Pump body is made of Stainless Steel, which is high-temperature resistance and corrosion-resistant. Powerful circulator pump has max 25.1 US GPM water flow, works efficiently, the pump is quiet and low-noise, giving you a quiet environment
- Easy Installation:59896773 Circulator Pump is designed with cast iron flanges and inset check valve. Just need a wrench to connect the pump to the existing plumbing
- Application:59896773 Circulator Pump Suitable for a wide range of applications, including radiant heating, hydronic heating, fan coil heating, solar and other system types.
The Part Number:
UPS15-55SFC
59896773
Features:
Ceramic shaft and radial bearings
Carbon axial bearing
Corrosion-resistant impeller, Composite, PES
Check valve
Specifications:
Speed Number: 3
Max flow: 25.1 US gpm
Head max: 18 ft
Liquid temperature range: 35.6 .. 230 F
Maximum operating pressure: 145 psi
Impeller: Composite, PES
Maximum ambient temperature: 104 F
Ambient max at 176 F liquid: 176 F
Maximum operating pressure: 145 psi
Flange standard: USA Oval
Type of connection: S.S. Flange
Pipe connection: 2 - Bolt Flange (GF 15/26)
Pressure stage: 10
Port-to-port length: 6 1/2"
Number of poles: 2
Power input in speed 1: 58 W
Power input in speed 2: 77 W
Max. power input: 87 W
Rated power in speed 1: 1/8HP
Rated power in speed 2: 1/10HP
Rated power in speed 3: 1/12HP
Main frequency: 60 Hz
Voltage: 115V
Current in speed 1: 0.53 A
Current in speed 2: 0.69 A
Current in speed 3: 0.75 A
Capacitor size - run: 10 mF/180 V
Insulation class (IEC 85): F
It is designed for efficient water circulation in solar power systems.
For Residential and Light Commercial Heating Systems.
Features
This stainless steel pump can be used in both open and closed systems
UPS pumps are of the canned-rotor type, i.e. pump and motor form an integral unit without a shaft seal and with only two gaskets for sealing
The bearings are lubricated by the pumped liquid
This pump is comparable in size to Taco 007 and Bell & Gossett NRF-22 pumps
3 Speed pump for extreme flexibility
Removable check valve eliminates need for an in-line flow check valve
Ceramic bearings ensure years of quiet, trouble-free operation
Electronic starting unit provides the highest starting torque of any circulator in its class

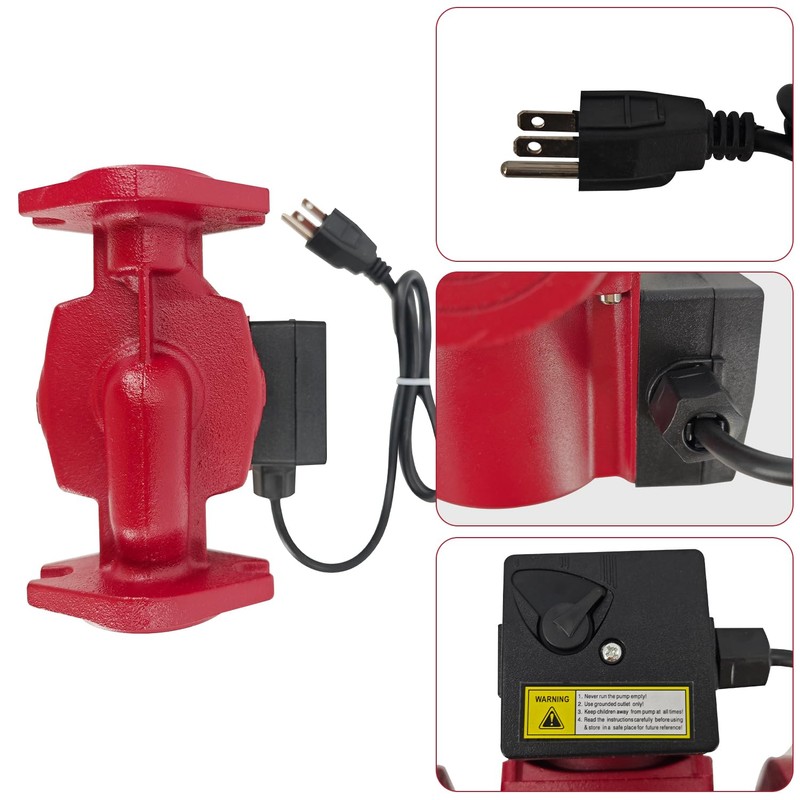

Quick connect terminals for easy installation
1 year warranty
Applications
One and two-pipe heating systems
Main pumps
Zone pumps
Boiler shunt pumps
Pumps for heating surfaces
Calorifiers
Radiant heating systems
Solar heating systems
Heat pump systems
Geothermal heating systems
Heat recovery systems
Two-pipe air-conditioning systems
Pumps for refrigeration units
Operating data
Maximum Liquid Temp: 2C to 110C (36F to 230F)
Maximum Operating Pressure: 10 bar (145 psi)
