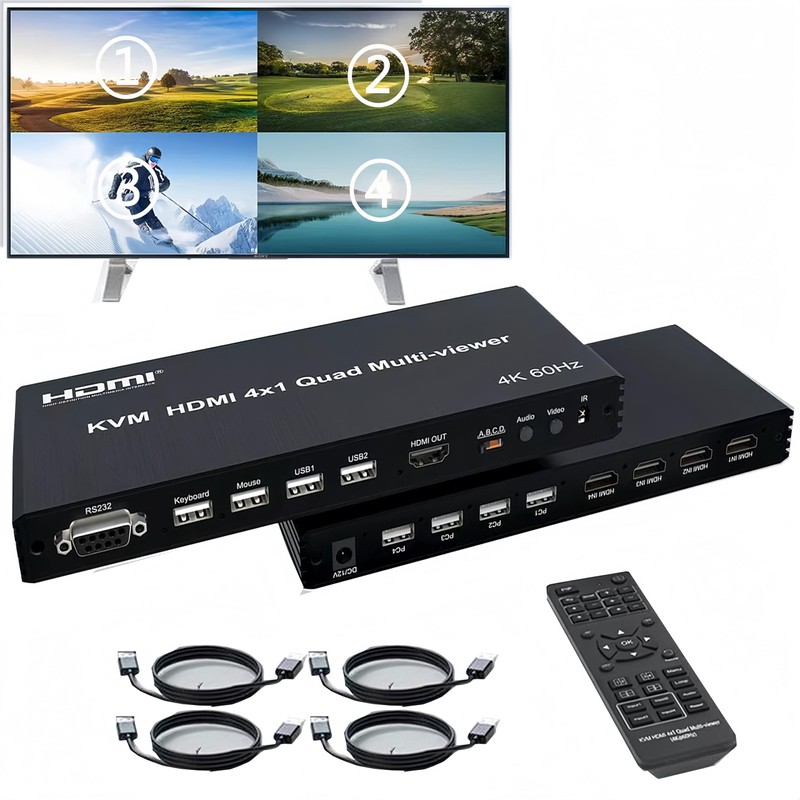

4K HDMI Multiviewer 4X1 with KVM PIP,4HDMI/4PC in 1 Out Seamless Switch 1 2 3 4 Screen Supports 4K30Hz Input and 4K60Hz ouput KVM(Keyboard&Mouse Control Computer) IR RS232 8Modes 1×1 2×1 3×1 4×1 etc
4K HDMI Multiviewer 4X1 with KVM PIP,4HDMI/4PC in 1 Out Seamless Switch 1 2 3 4 Screen Supports 4K30Hz Input and 4K60Hz ouput KVM(Keyboard&Mouse Control Computer) IR RS232 8Modes 1×1 2×1 3×1 4×1 etc
4K HDMI Multiviewer 4X1 with KVM PIP,4HDMI/4PC in 1 Out Seamless Switch 1 2 3 4 Screen Supports 4K30Hz Input and 4K60Hz ouput KVM(Keyboard&Mouse Control Computer) IR RS232 8Modes 1×1 2×1 3×1 4×1 etc
- ▶【HDMI 4 in 1 out/PC 4 in 1 out】This KVM HDMI Multiviewer 4X1 Supports 4 HDMI inputs 1 HDMI output or 4PC inputs 1 HDMI output ;It can display 4HD digital video signal on the same screen.
- ▶【8 display modes】This KVM HDMI Multiviewer 4X1 device Supports 8 modes for switching:① Single screen modes② Picture in Picture modes ③Three pictures modes④Left and right dual picture----stretch modes ⑤Left and right dual picture----proportional ratio modes ⑥Up and down dual screen----stretch modes ⑦ Up and down dual screen----proportional ratio modes ⑧ Four pictures modes
- ▶【4 control methods】This KVM HDMI Multiviewer 4X1 Support Mouse&Keyboard Connection Controls(Only applicable when 4 computers are used as input sources)/RS232 serial port /IR Remote control/Panel key control, Meet different occasions control, convenient, improve work efficiency!
- ▶【KVM Exclusive Features】This HDMI Multiviewer 4X1 Support KVM Features（Keyboard and Comeputer and Mouse ) connection operation：4 computers can be controlled using one set of keyboard/mouse (When 4 computers as input source).
- ▶【KVM synchronization function】Mouse and Keyboard can control the PC on the 4 ports at the same time (Such as a computer)，【Note：Only applicable when 4 computers are used as input sources】
- ▶【Mouse through function】Keyboard Click ‘*’+’S’ to move the mouse through PC1-PC4 【 Note: The Multiviewer's Keyboard/Mouse port is connected to the mouse and keyboard】，Realize cross-screen operation, freedom and convenience!
- ▶【Supports 4K@30Hz input 4K@60Hz ouput】This HDMI Multiviewer 4X1 Supports up to 4K@30Hz resolution input, backward compatible; Output resolution support 4K@60Hz, 4K@30Hz, 1080P@60Hz, 2560×1600@60Hz( A/B/C/D resolution dial code. Note: After each resolution dial code, the power needs to be restarted to access the new resolution).
- ▶【Wide compatibility】This HDMI Multiviewer 4X1 with KVM PIP Device supports Windows、Linux、 MAC OS and Android operation system,etc;No driver installation required,Plug and play; Supports USB 2.0.
- ▶【Note:】 For all functions, please read the instruction manual in detail to ensure the correct connection and operation steps of the device in order to get a better experience effect, thank you!
| Brand: | SIGRAPID |
|---|---|
| Size: | KVM HDMI Multiviewer 4X1 4K@60Hz |
| Color: | KVM HDMI Multiviewer 4X1 |
| Manufacturer: | SIGRAPID |
| Part Number: | 28STC9X |
| Isin: | I0WZYQBHYTTC |
Out of Stock
In Stock
Backordered
Out of Stock
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
Introduction：
KVM HDMI 4x1 Quad Multi-viewer is a high performance with four HD screen segmentation.
It can display 4HD digital video signal on the same screen, and has a variety of video segmentation.
The control methods of the switch is flexible, it can be switched via button and IR control.
It’s a very practical and stable switch and easy to install, can be used in the major projects, meeting halls and other places
Switching Modes:
8 modes for switching:
（1） Single screen
（2） Picture in Picture
（3） Three pictures
（4） Left and right dual picture----stretch
（5） Left and right dual picture----proportional ratio
（6） Up and down dual screen----stretch
（7） Up and down dual screen----proportional ratio
（8） Four pictures
KVM (mouse and keyboard) connection operation:
1.1: Connect PC1-PC4 ports on the switcher and signal source (such as USB port on the computer) with 4 USB 2.0 cable .
1.2: Connect to Keyboard/Mouse ports on the switcher with USB mouse and keyboard .
2.1: KVM synchronization function mode, click'*'+'A' to enter the synchronization mode, and the 4 LEDs on the 'PC1-PC4' port will all light up, then the mouse and keyboard can control the PC on the 4 ports at the same time (Such as a computer);
if you want to exit the synchronization function, click '*'+'A' or enter other switching modes to exit.
2.2: Kvm function switch:PC1: click ‘*’+‘F1’
PC2: click ‘*’+‘F2’
PC3: Click ‘*’+‘F3’
PC4: Click ‘*’+‘F4’
2.3: Mouse through mode: Click ‘*’+’S’ to move the mouse through PC1-PC4.
Note: The Keyboard/Mouse port is connected to the mouse and keyboard.
After the switch is powered on, it is connected to the ‘PC1’ port by default.
When the LED of that PC port is on, it is switched to the corresponding PC.
It takes a certain amount of time (usually a few seconds, depending on the operating system) when each PC port is connected to the signal source for the first time, and the control can be quickly switched after connection.
Keyboard hotkey:
‘*’+‘1’：Choosing HDMI IN1 signal; ‘*’+‘2’：Choosing HDMI IN2 signal;
‘*’+‘3’：Choosing HDMI IN3 signal; ‘*’+‘4’：Choosing HDMI IN4 signal;
‘*’+‘5’：Switching to quad multiviewer mode； ‘*’+‘F5’：Left and right dual picture(In1/In2);
‘*’+‘F6’：Left and right dual picture(In3/In4); ‘*’+‘8’：Up and down dual screen(In3/In4);
‘*’+‘9’：Up and down dual screen(In3/In4); ‘*’+‘F7’：PIP mode;
‘*’+‘F8’：Screen flip 180 degrees;
Specifications：
HDCP version .......................................................................................................... HDCP 1.4
Color format ........................................................................ RGB 4:4:4; YUV 4:4:4; YUV 4:2:2
Audio format ................................................................................................................... Stereo
Max bandwidth ............................................................................................................ 600MHz
Max baud rate ............................................................................................................ 6x3Gbps
Maximum working current ................................................................................................ 0.8 A
Power adapter format ........................ Input AC (50 hz, 60 hz) 100V to 240V; Output: 12V DC
Operating Temperature range ............................................................................ (10 ~ + 45 ℃)
Dimension ..................................................................................................... 226x105x24(mm)
Weight ............................................................................................................................... 507g
The Package includes:
1. KVM HDMI 4x1 quad multi-viewer 1PC
2. 12V/ 2A power adapter 1PC
3. A type USB extension cable 4PCS
