433 MHz RF Wireless Remote Control Switch 12 V Wireless Light Switch DC 5 V 12 V 24 V 10 A Relay Receiver with 4 Transmitters, 100 m Long Distance, 4 Way Remote Switch for Motor, LED Light, Gate Door
$60.10
- $9.99 shipping from Germany View details
-
Arrives
- 433MHz Radio Frequency, Stable Signal: 433MHz RF Radio Relay Remote Switch Stable and reliable performance with high reception sensitivity (>97dBm). Strong signal can penetrate walls, floors, doors, boards, etc. It can be controlled in open terrain at a distance of 100 m. You can remotely control any machine connected to the relay receiver via the remote control.

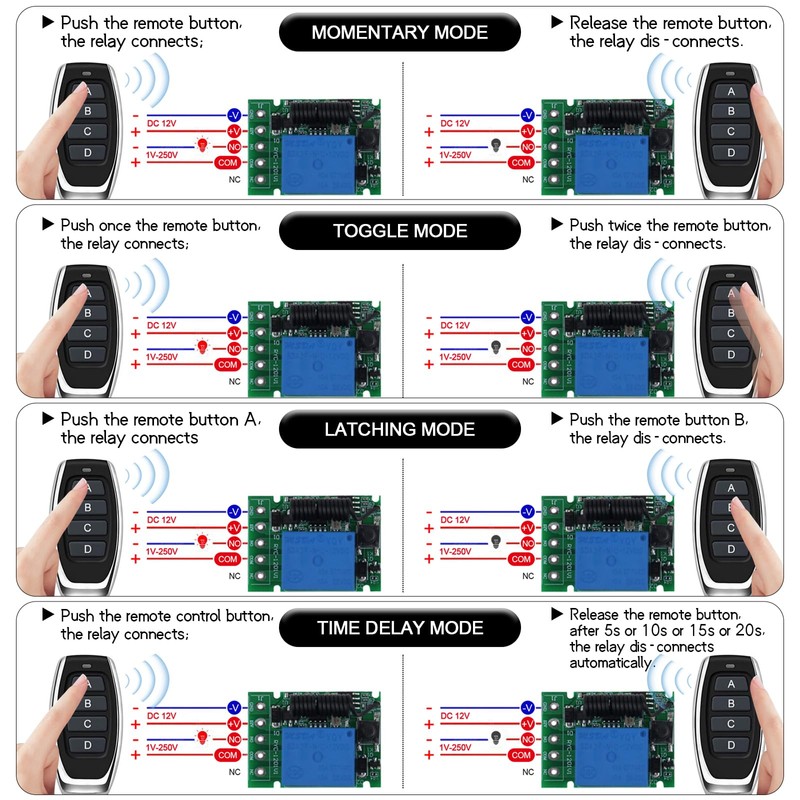

- Multiple Modes: 1. Momentary mode: press or release the button that connects or disconnects relay. 2. Switch mode: press once, connect the relay, press twice, disconnect the relay 3. Locking mode: press the A button to connect the relay, press the B button to disconnect the relay. 4. Time delay mode: press the button that connects relay, release the button, after 5s or 10s or 15s or 20s, the relay will automatically disconnect.
- Erase function, learn code: after pressing the receiver's learning button 9 times, the receiver will delete all remote control data in its memory. When the LED flashes 5 times, it indicates that the extinguishing function is complete. After the code in the receiver has been deleted, all remote controls must be learned again by the receiver to be restarted. Note: The system can store 20 remote controls.
- Compact size, more flexibility: this relay switch fits easily into limited spaces such as canopies, junction boxes or switch boxes. The size of the receiver kit is 2.2 x 4 x 2.5 cm. DC 5V ~ 24V safety receiver with wide voltage range. Therefore, 5V/12V/24V voltage can work well. The maximum current can be up to 10A. 2 wiring clamps that facilitate wiring. (The factory default mode is the switch mode. You can delete it and re-learn the code.)

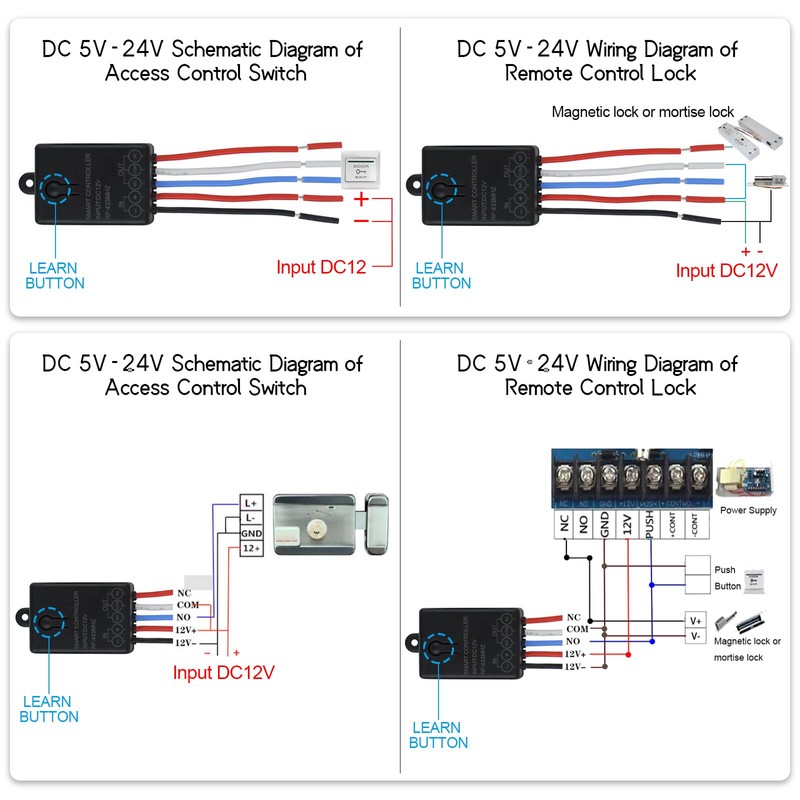

- Easy to install, wide range of applications: no app, no setup. Simply wire the receiver between the devices to be controlled and the power supply. You can turn your device on and off from anywhere via the remote control panel. This mini switch for wireless receiver modules with low power consumption can be used for remote control of water pumps, motors, lamps, fans, vehicle equipment, wireless security alarms and video equipment, etc.
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- 433MHz Radio Frequency, Stable Signal: 433MHz RF Radio Relay Remote Switch Stable and reliable performance with high reception sensitivity (>97dBm). Strong signal can penetrate walls, floors, doors, boards, etc. It can be controlled in open terrain at a distance of 100 m. You can remotely control any machine connected to the relay receiver via the remote control.
- Multiple Modes: 1. Momentary mode: press or release the button that connects or disconnects relay. 2. Switch mode: press once, connect the relay, press twice, disconnect the relay 3. Locking mode: press the A button to connect the relay, press the B button to disconnect the relay. 4. Time delay mode: press the button that connects relay, release the button, after 5s or 10s or 15s or 20s, the relay will automatically disconnect.
- Erase function, learn code: after pressing the receiver's learning button 9 times, the receiver will delete all remote control data in its memory. When the LED flashes 5 times, it indicates that the extinguishing function is complete. After the code in the receiver has been deleted, all remote controls must be learned again by the receiver to be restarted. Note: The system can store 20 remote controls.
- Compact size, more flexibility: this relay switch fits easily into limited spaces such as canopies, junction boxes or switch boxes. The size of the receiver kit is 2.2 x 4 x 2.5 cm. DC 5V ~ 24V safety receiver with wide voltage range. Therefore, 5V/12V/24V voltage can work well. The maximum current can be up to 10A. 2 wiring clamps that facilitate wiring. (The factory default mode is the switch mode. You can delete it and re-learn the code.)
- Easy to install, wide range of applications: no app, no setup. Simply wire the receiver between the devices to be controlled and the power supply. You can turn your device on and off from anywhere via the remote control panel. This mini switch for wireless receiver modules with low power consumption can be used for remote control of water pumps, motors, lamps, fans, vehicle equipment, wireless security alarms and video equipment, etc.
Strong signal
The 433 MHz radio frequency signal works and can penetrate through walls, floors and doors without obstacles. 100 m (328 feet) range, you can turn the device on and off from any position.
Low current.
10A small current, DC 5V~24V wide range voltage safety receiver. Therefore, 5V/12V/24V voltage can work well. Perfect for DIY projects.
Small size, easy to install.
Compact size and easy to hide. Increases comfort for life. The device can be remotely controlled with simple wiring. No WiFi, no app required, no setup required.
More flexibility

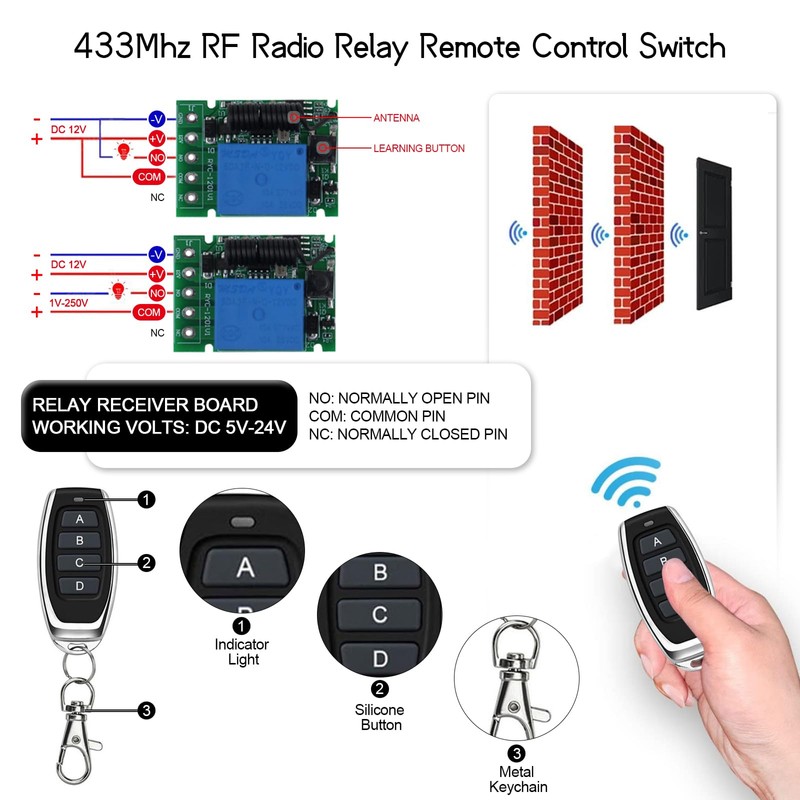

The 4 independent relay channels can work either together or separately. Each relay has 5 ports (normally open, common, normally closed, power positive, power negative).
Wide range of uses:
The applications for wireless remote controls range from simple household remote controls to automation functions such as electric curtains, garage doors, motors, LEDs, alarm systems, lighting, etc.
Specifications:
Input voltage: DC 5V - 24V
Output voltage: DC 5V - 24V
Maximum current: 10 A.
RF Frequency: 433MHz
Reception sensitivity: > 97 dBm.
Working distance: 100m/328ft
Decoding mode: MCU software decoding
Remote memory: 20 pieces.
Multiple modes: instantaneous mode, switching mode, lock mode, time delay mode, automatic activation when power is supplied.
Wiring type: fixed connection
Code type: Learning code
Factory setting: switch mode
Operating temperature: -20°C to 80°C.
Note: The system can store 20 remote controls. If more than 20 remote controls are stored, the original remote control will be lost.

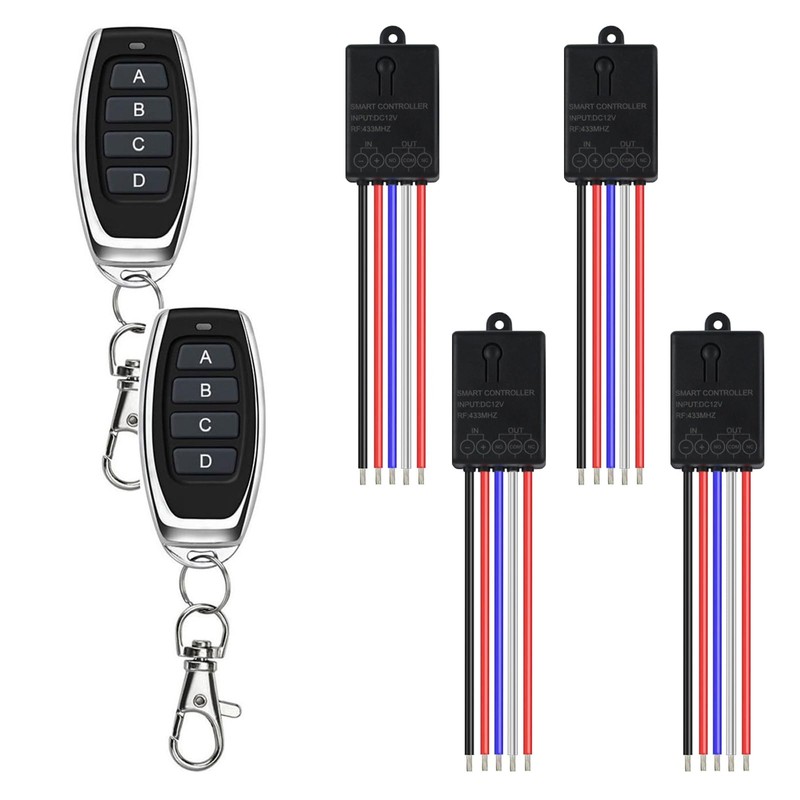

Package includes:
2 x remote control.
4 x relay switches.
1 x user manual (English language not guaranteed)
