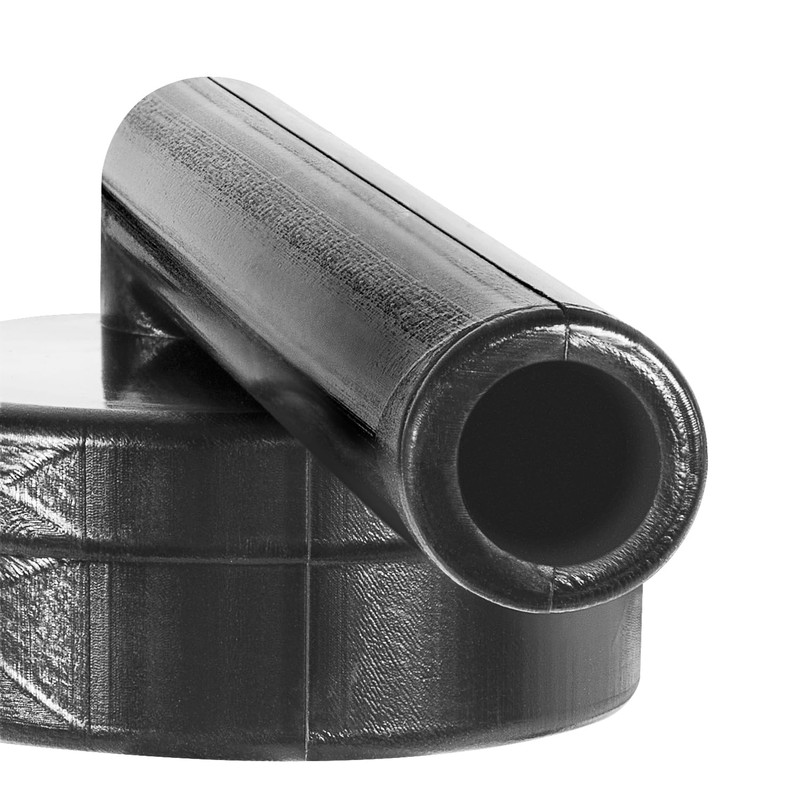

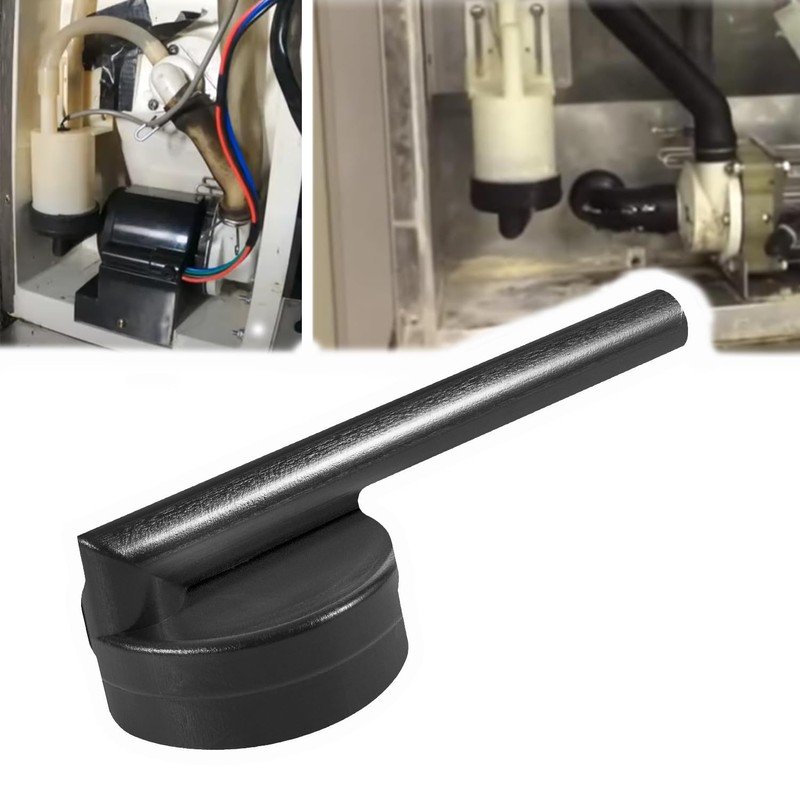

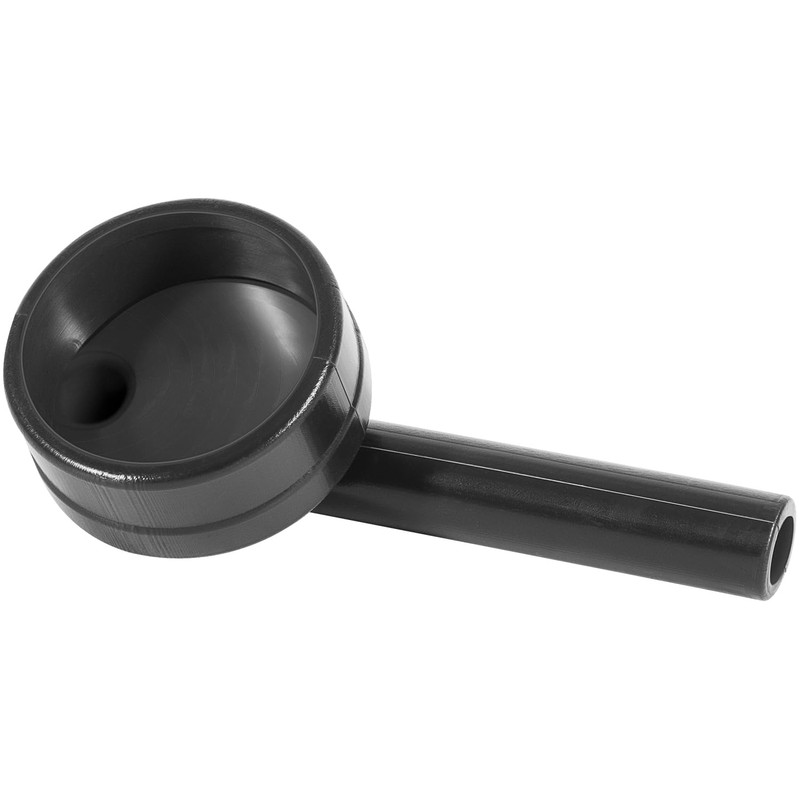

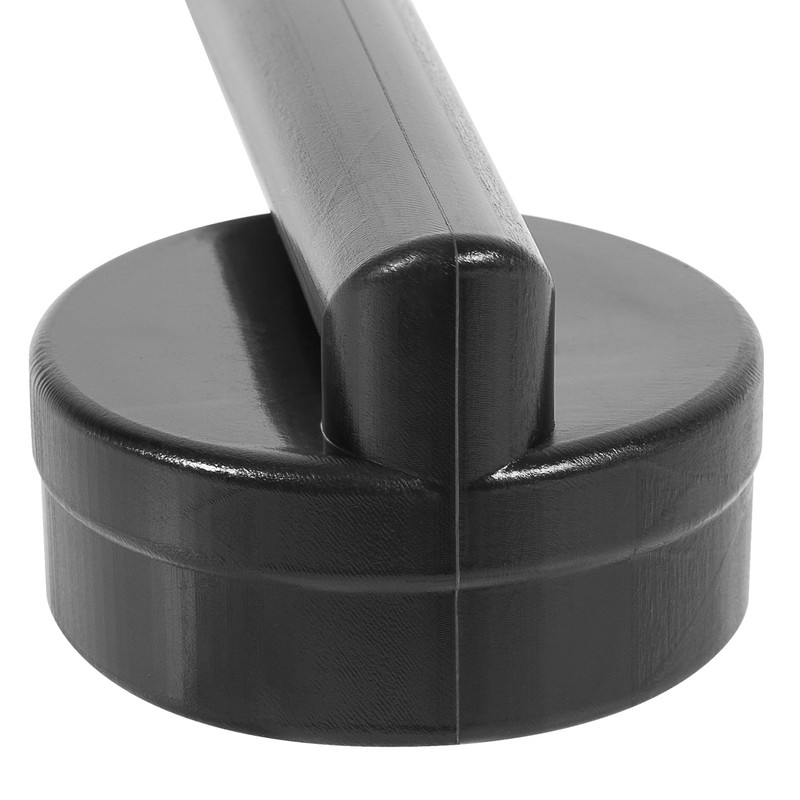

426799-01 Float Switch Connector, Rubber Sleeve and Hose, Suitable for Hoshizaki Ice Maker Machine

$23.74

  • $5.95 shipping from United States
  • Arrives

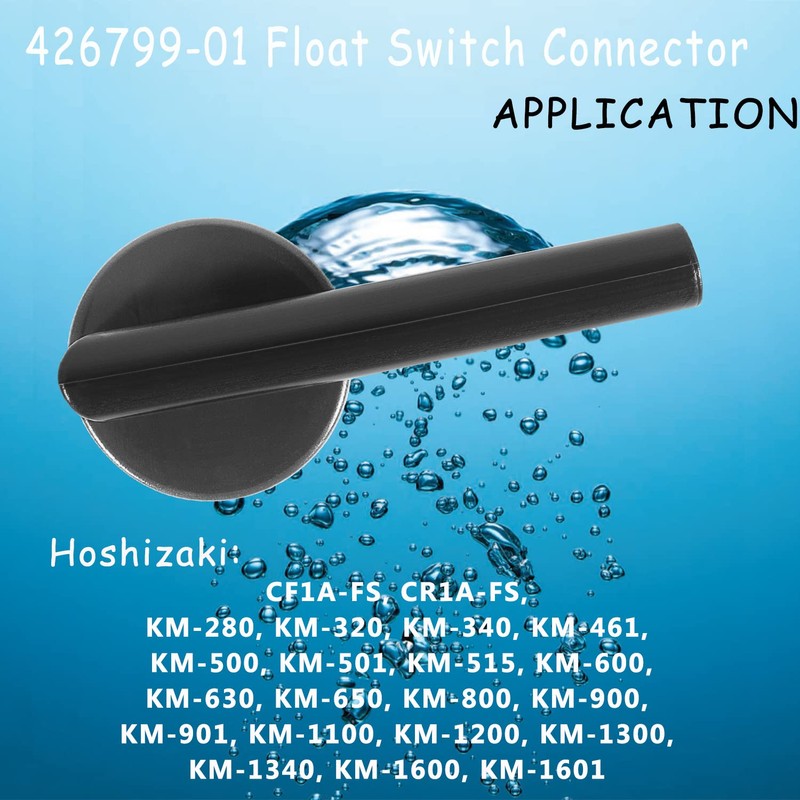

  • [Applicable] 426799-01 Float switch connector for Hoshizaki CF1A-FS, CR1A-FS, KM-280, KM-320, KM-340, KM-461, KM-500, KM-501, KM-515, KM-600, KM-630, KM-650, KM-800, KM-900, KM-901, KM-1100, KM-1200, KM-1300, KM-1340, KM-1600, KM-1601 and other models of ice machine.

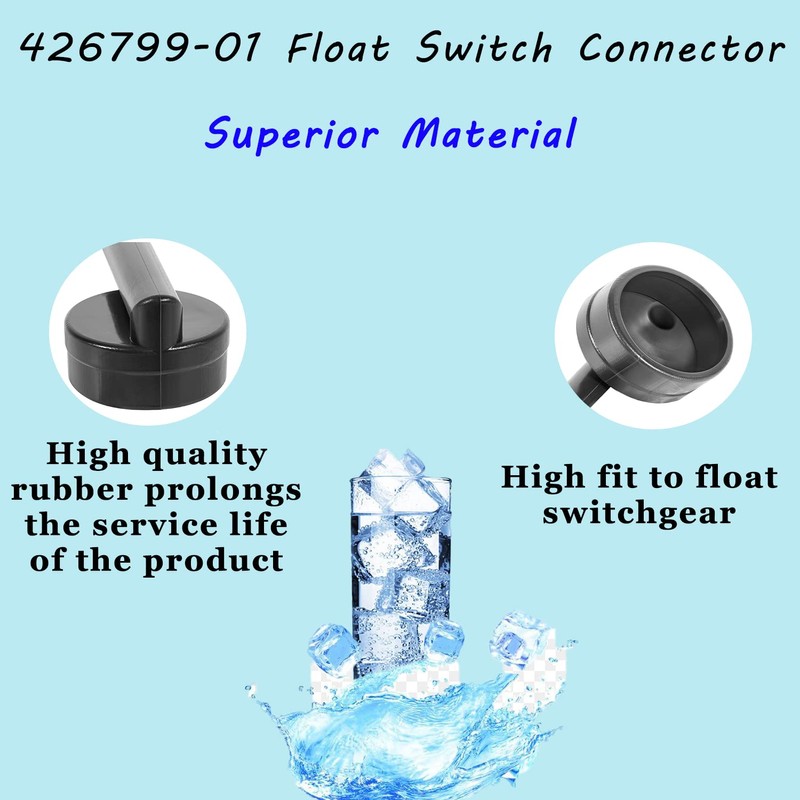

  • [Superior Material] Made of rubber, good quality rubber has good corrosion resistance and prolongs the service life of the product.
  • [Function] 426799-01 Float switch connector to control the storage capacity of the tank to prevent overflow due to more water intake than storage capacity.
  • [Easy installation] Please install it according to the installation steps in the manual.
  • [ Satisfaction Guarantee] If you have any questions about our Ezbzyz products please contact us at first time. We are glad to solve the problem you meet .

Manufacturer:
LeeChung LLC USA
Part Number:
584XZ8X
Model:
‎426799-01
Material Type:
rubber
Isin:
ICVD5UPZ8GYN

$23.74

  • $5.95 shipping from United States
  • Arrives

In Stock

Sold by , Fulfilled by IBSPOT • Ships from US

IBSPOT Buyer Protection
  • Free 30-Day Returns
  • Full Refund for Damaged or Incorrect Items
  • Guaranteed Delivery or Money Back
  • Secure Checkout & Fast Support
scroll to top arrow
426799-01 Float Switch Connector, Rubber Sleeve and Hose, Suitable for Hoshizaki Ice Maker Machine

426799-01 Float Switch Connector, Rubber Sleeve and Hose, Suitable for Hoshiz...

$23.74

  • [Applicable] 426799-01 Float switch connector for Hoshizaki CF1A-FS, CR1A-FS, KM-280, KM-320, KM-340, KM-461, KM-500, KM-501, KM-515, KM-600, KM-630, KM-650, KM-800, KM-900, KM-901, KM-1100, KM-1200, KM-1300, KM-1340, KM-1600, KM-1601 and other models of ice machine.
  • [Superior Material] Made of rubber, good quality rubber has good corrosion resistance and prolongs the service life of the product.
  • [Function] 426799-01 Float switch connector to control the storage capacity of the tank to prevent overflow due to more water intake than storage capacity.
  • [Easy installation] Please install it according to the installation steps in the manual.
  • [ Satisfaction Guarantee] If you have any questions about our Ezbzyz products please contact us at first time. We are glad to solve the problem you meet .

Manufacturer:
LeeChung LLC USA
Part Number:
584XZ8X
Model:
‎426799-01
Material Type:
rubber
Isin:
ICVD5UPZ8GYN

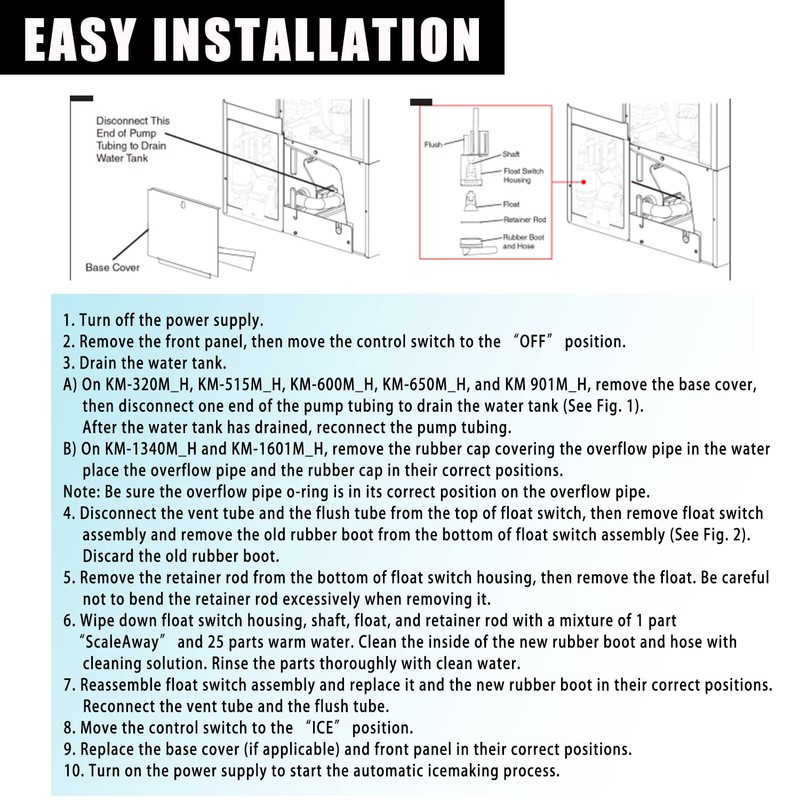

Easy to install:

1. Turn off the power supply.

2. Remove the front panel, then move the control switch to the “OFF” position.

3. Drain the water tank.

A) On KM-320M_H, KM-515M_H, KM-600M_H, KM-650M_H, and KM 901M_H, remove the base cover, then

disconnect one end of the pump tubing to drain the water tank (See Fig. 1). After the water tank has drained,

reconnect the pump tubing.

B) On KM-1340M_H and KM-1601M_H, remove the rubber cap covering the overflow pipe in the water tank.

Remove the overflow pipe by turning it counterclockwise. After the water tank has drained, replace the overflow

pipe and the rubber cap in their correct positions. Note: Be sure the overflow pipe o-ring is in its correct position

on the overflow pipe.

4. Disconnect the vent tube and the flush tube from the top of float switch, then remove float switch assembly and

remove the old rubber boot from the bottom of float switch assembly (See Fig. 2). Discard the old rubber boot.

5. Remove the retainer rod from the bottom of float switch housing, then remove the float. Be careful not to bend

the retainer rod excessively when removing it.

6. Wipe down float switch housing, shaft, float, and retainer rod with a mixture of 1 part “ScaleAway” and 25 parts

warm water. Clean the inside of the new rubber boot and hose with cleaning solution. Rinse the parts thoroughly

with clean water.

7. Reassemble float switch assembly and replace it and the new rubber boot in their correct positions. Reconnect

the vent tube and the flush tube.

8. Move the control switch to the “ICE” position.

9. Replace the base cover (if applicable) and front panel in their correct positions.

10. Turn on the power supply to start the automatic icemaking process.
