40khz, 60W, 및 초음파 회로 기판은 220V로 됩니다. [05 Model8] 40kHz, 60W, and ultrasonic circuit board compatible with 220V. [05 Model8]

$183.23

  • Arrives

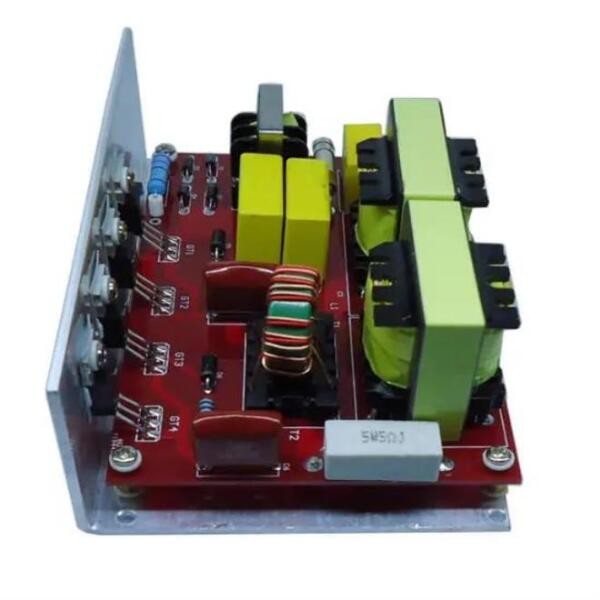

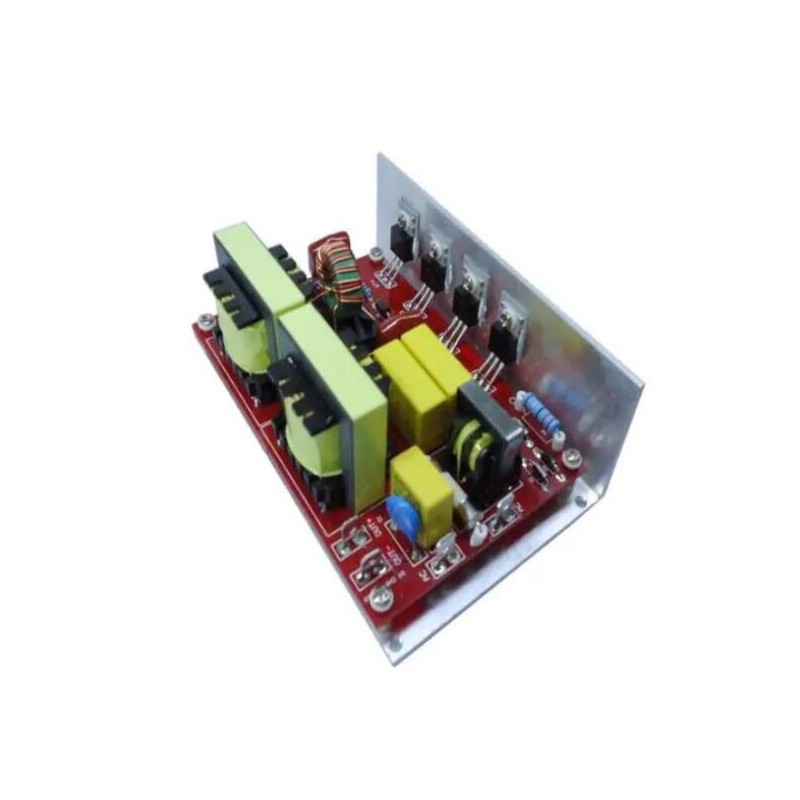

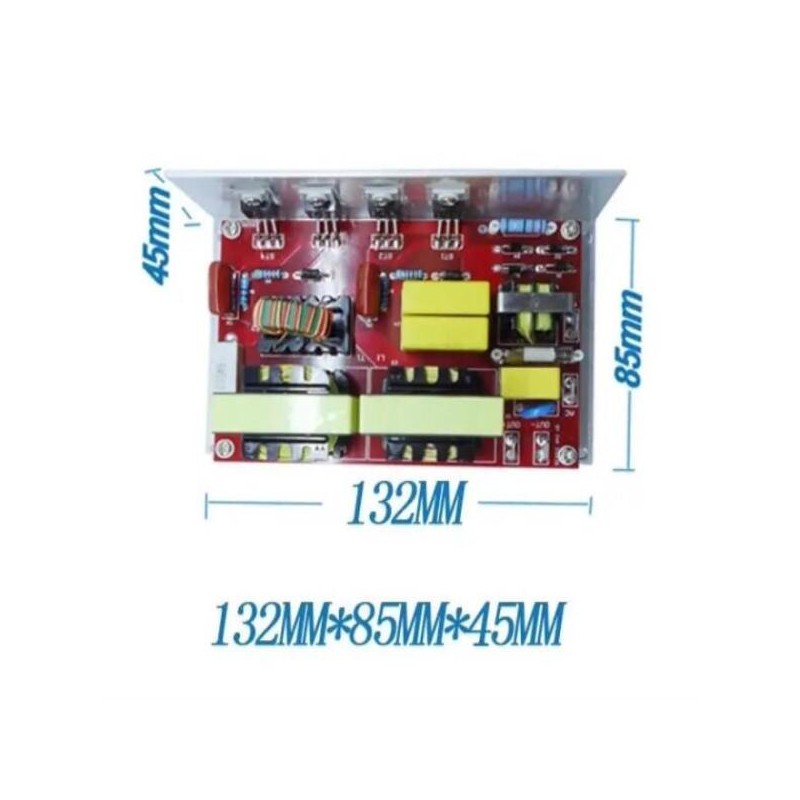

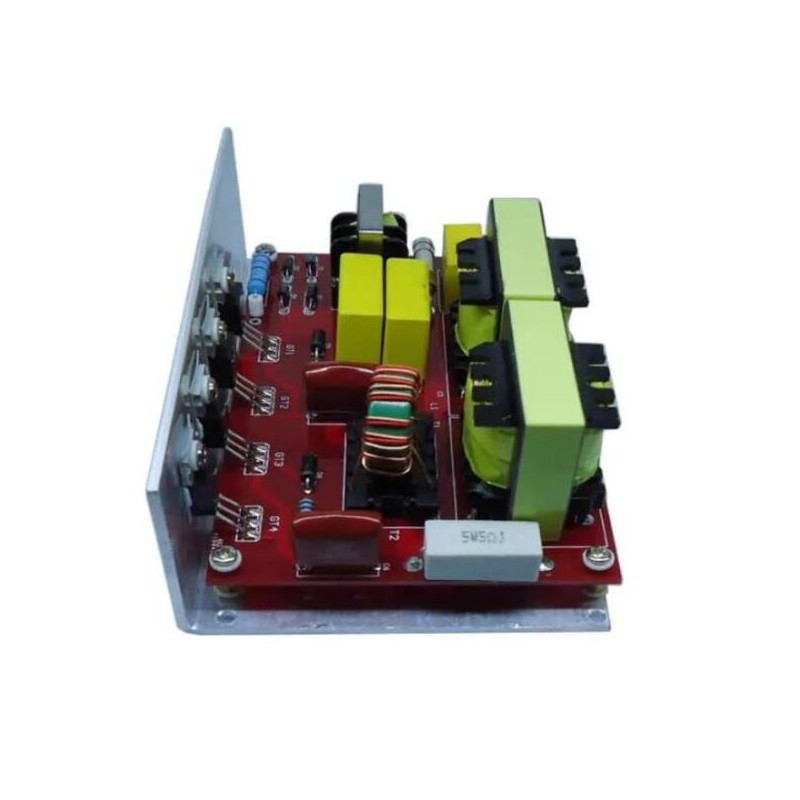

40kHz, 60W, Ultrasonic Circuit Board for 220V

Product Highlights

  • Frequency: 40kHz
  • Power Output: 60W
  • Compatible Voltage: 220V
  • Ideal for various DIY electrical projects
  • Origin: Mainland China

Specifications

Specification Details
Brand None
Hazardous Chemicals None
DIY Supplies Electrical




제목 : 40khz, 60W, 및 초음파 회로 기판은 220V로 됩니다.





상품 기본정보



브랜드 이름: NONE 고농도 화학 물질: 무 DIY 용품: 전기
원산지: Origin: Mainland China DIY Supplies: Electrical
Electronic: No




메인 이미지






상세 페이지
모드명ckeditor
모드명ckeditor









모델 7: 60W 110V 트랜스듀서



모델 8: 60W 220V 트랜스듀서




텍스트 및 이미지의 세부정보


회로 기판 및 진동 헤드(세라믹 플레이트 트랜스듀서) 배선 지침


1.부하 없이는 회로 기판의 전원을 켤 수 없습니다.


2 설치 후 청소 시 세척액 없이 전원을 켜지 마세요.


진동 헤드에는 두 개의 연결 부품이 있습니다.두 세라믹 조각 사이의 연결 부분이 양극이고, 상하 금속 기둥에 가까운 부분이 음극입니다.반대로 연결하지 마십시오.


4 변환기 세라믹 판의 측면이 층으로 완전히 덮여 쪽은 음극이고, 다른 쪽은 두 개의 층으로 구성되어 있으며, 더 큰 쪽은 양극이고 더 쪽은 음극입니다.전원선을 납땜할 때에는 2겹이 면에 납땜해야 합니다.반대쪽 면은 진동면이며, 세척조 아래에 부착할 수 있습니다. (구매하신 세라믹 플레이트 트랜스듀서의 부품 설명입니다.)세라믹 접시의 층은 내열성이 없습니다.전원 코드를 납땜할 때 납땜 인두의 온도는 280도를 초과해서는 안 됩니다.항온 납땜 인두를 사용하고 온도를 250도로 설정하는 것이 가장 좋습니다.


진동 헤드의 더 큰 면(나사 구멍이 면)이 진동면이며, 세척조 바닥에 부착할 수 있습니다.청소용 세면대는 반드시 확실하게 접지되어야 합니다.


진동 헤드 트랜스듀서의 세라믹 플레이트는 진동 헤드 접착제를 사용하여 세척조 바닥에 단단히 부착해야 합니다.AB 접착제도 접착에 사용할 수 있지만 효과는 약간 떨어집니다.에폭시 수지를 사용할 경우 10:4의 비율이면 충분합니다.


진동 헤드는 회로 기판의 단자에 병렬로 연결되어야 합니다. 하나의 회로 기판에는 하나의 진동 헤드를 장착할 수 있으며, 여러 개의 진동 헤드와 함께 사용할 수도 있습니다.














옵션표








Isin:
ICDFTGUMXNY0
