36V Four Wheel Scooter Electric Controller Speed Adjust Hub Single Drive Combination Kit
$59.33
- $14.50 shipping from United States
-
Arrives
1、Four kinds speed modes to choose, four kinds brake force modes selected. 2、Downhill, slide, braking energy recovery, one key forward/reverse switching wireless 2.4G, multi‑point FM. 3、Voltage 10s, battery pack, rated current 16A maximum each motor. 4、Low speed high torques, low speed, fast acceleration, maximum continuous phase current 80A wheel hub 90 motor 3000rpm, maximum 50km/h. 5、Made of high quality plastic material, sturdy, durable and long service life.
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
1、Four kinds speed modes to choose, four kinds brake force modes selected. 2、Downhill, slide, braking energy recovery, one key forward/reverse switching wireless 2.4G, multi‑point FM. 3、Voltage 10s, battery pack, rated current 16A maximum each motor. 4、Low speed high torques, low speed, fast acceleration, maximum continuous phase current 80A wheel hub 90 motor 3000rpm, maximum 50km/h. 5、Made of high quality plastic material, sturdy, durable and long service life.
1、Four kinds speed modes to choose, four kinds brake force modes selected. 2、Downhill, slide, braking energy recovery, one key forward/reverse switching wireless 2.4G, multi‑point FM. 3、Voltage 10s, battery pack, rated current 16A maximum each motor. 4、Low speed high torques, low speed, fast acceleration, maximum continuous phase current 80A wheel hub 90 motor 3000rpm, maximum 50km/h. 5、Made of high quality plastic material, sturdy, durable and long service life.
More Information
Condition: Brand New
Item Type: Single Drive Controller
Material: Plastic
Color: As Pictures Shown

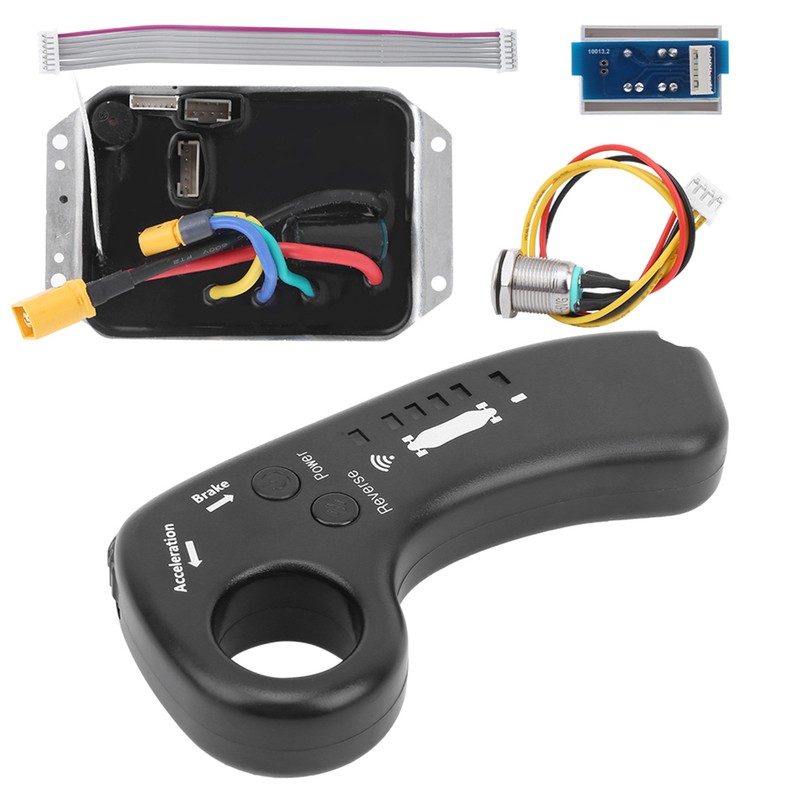

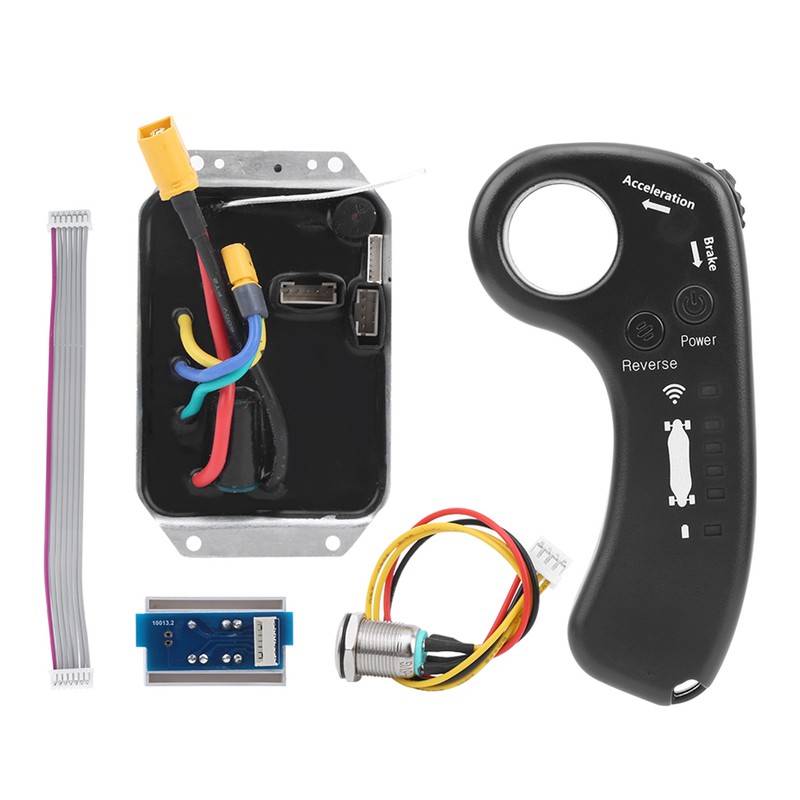

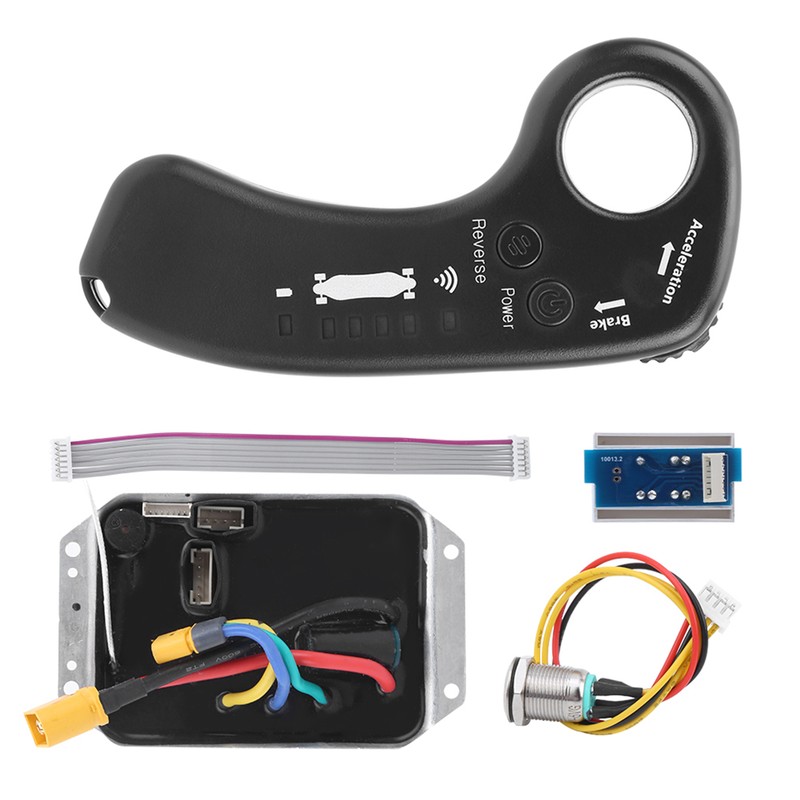

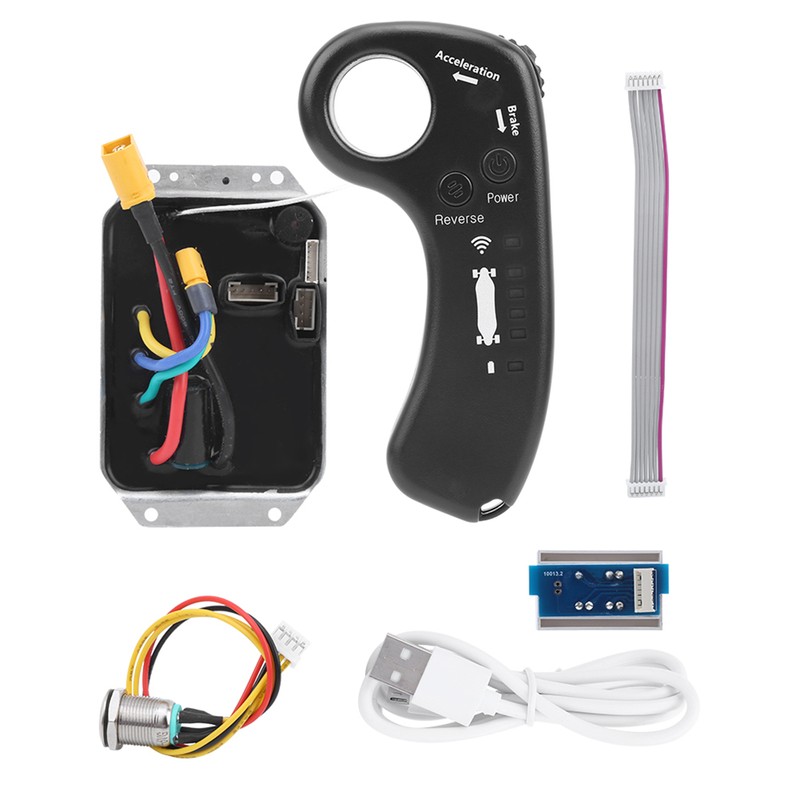

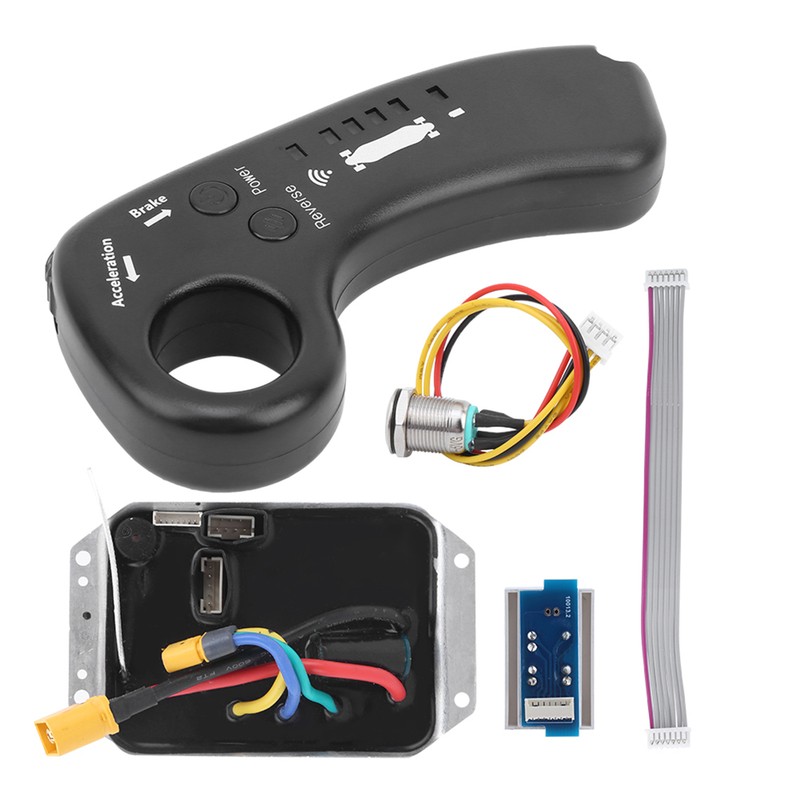

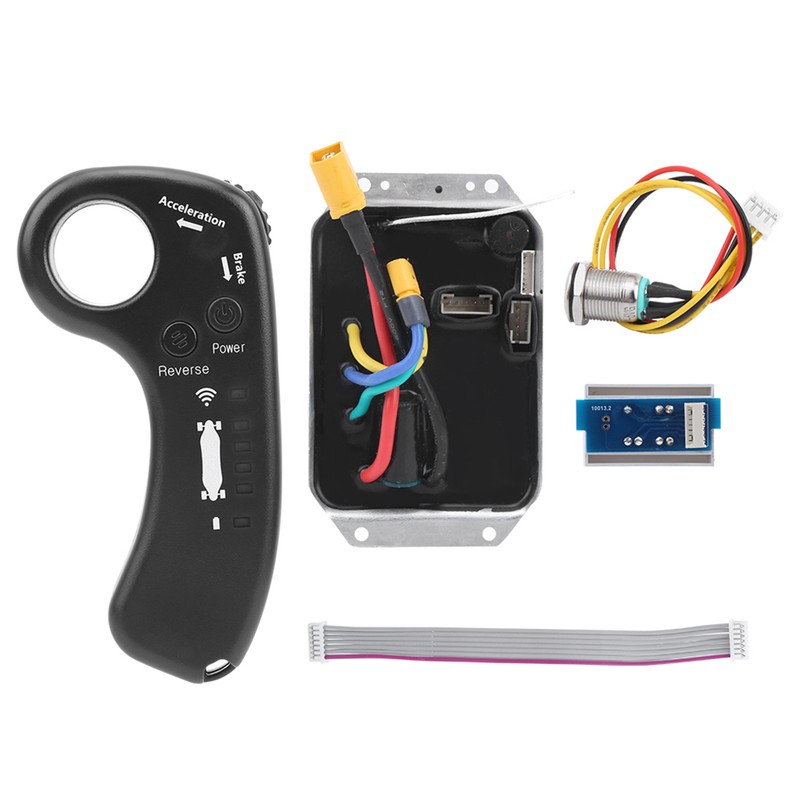

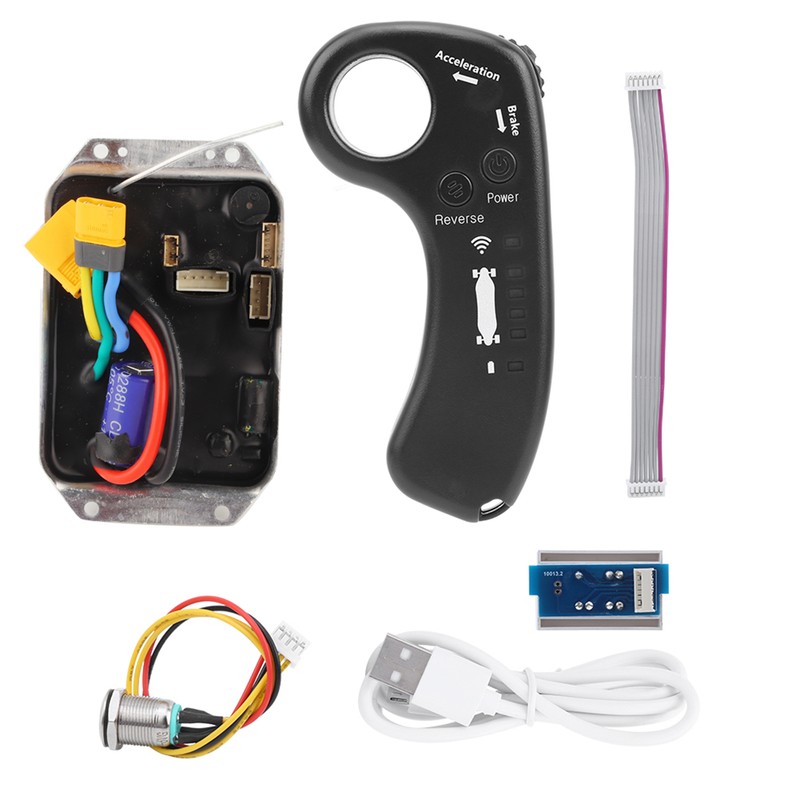

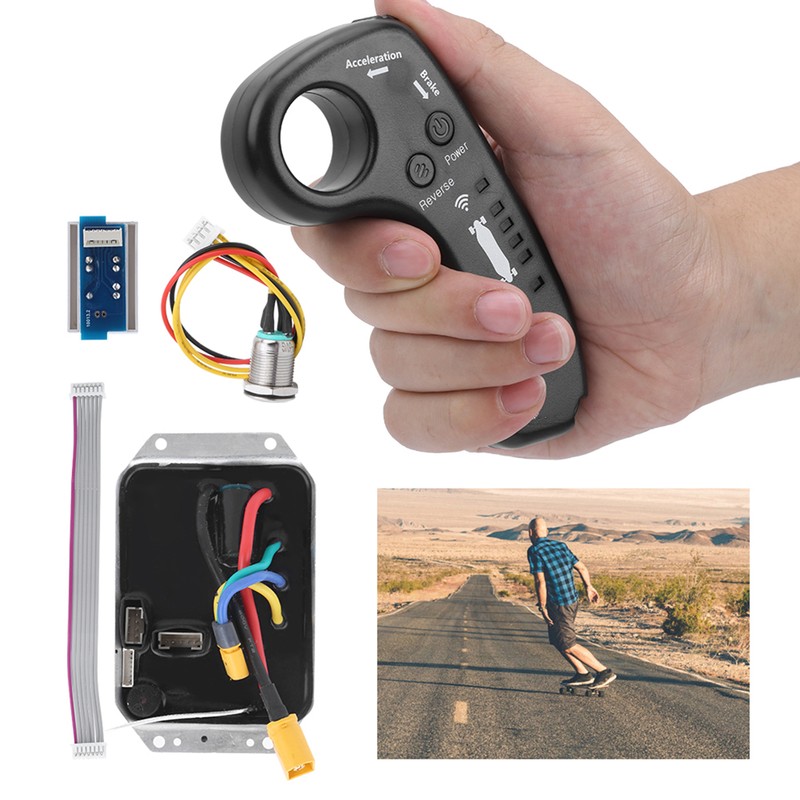

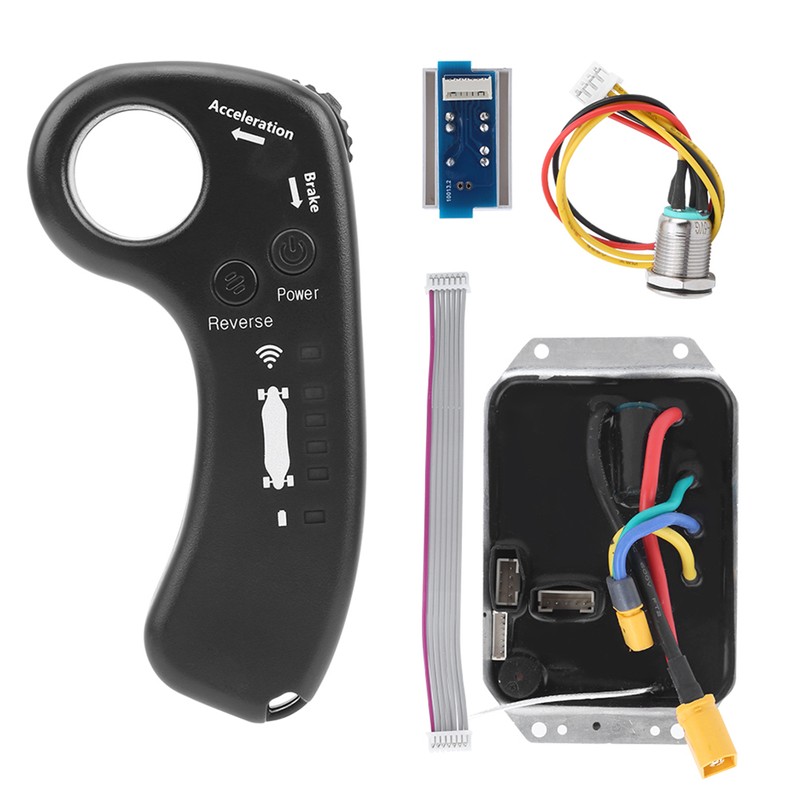

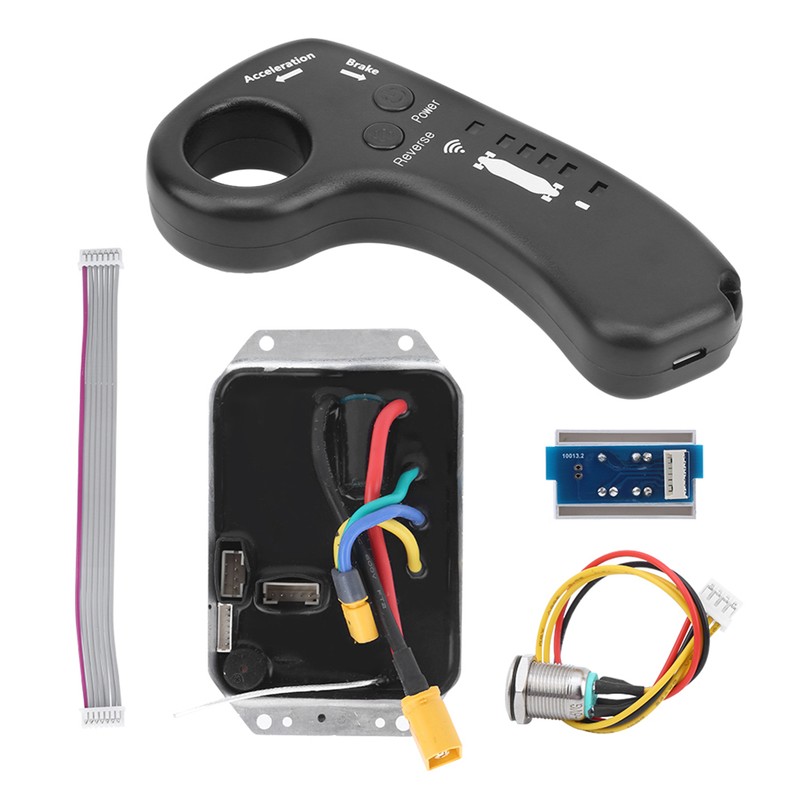

Quantity: 1 Set, Note: Glue Filling Single Drive Controller + Upgrade Remote Control Kit

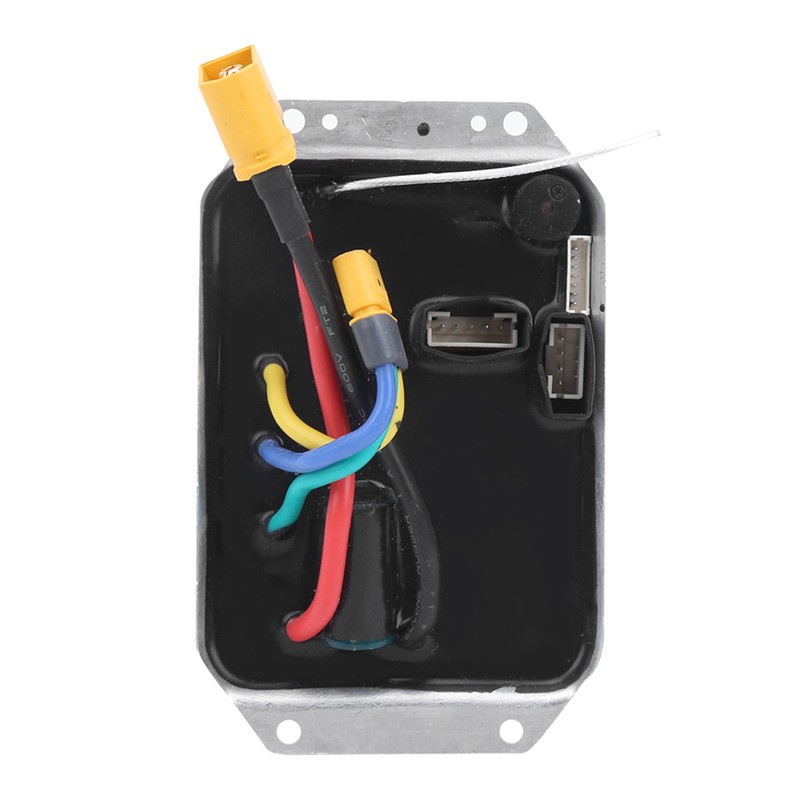

Single Drive Controller ESC:
Current：12A
Power：430W（36V）
Rotate Speed：3000rpm
Maximum Speed：35km/h
Drive Method：FOC
Induction Mode: For Hall
Maximum Load Bearing：120kg
Protection: Overpressure, Underpressure, Overheat, Stall, CW/CCW, Overflow, Speed Control
Product Category: Pedal Scooter
Suitable People: Universal
Remote Control Battery: Built-in Lithium Battery
Capacity: 400MAH
Rated Current: 16A
Using Environment:
Function | Specification | Parameter | Note |
Working Temperature Range | -20°C to +120°C | Normal Working | ±5°C |
Working Humidity Rang | 10% to 95%RH | Normal Working | ±5 RH |
Product Size:
| Item | Specification | Note |

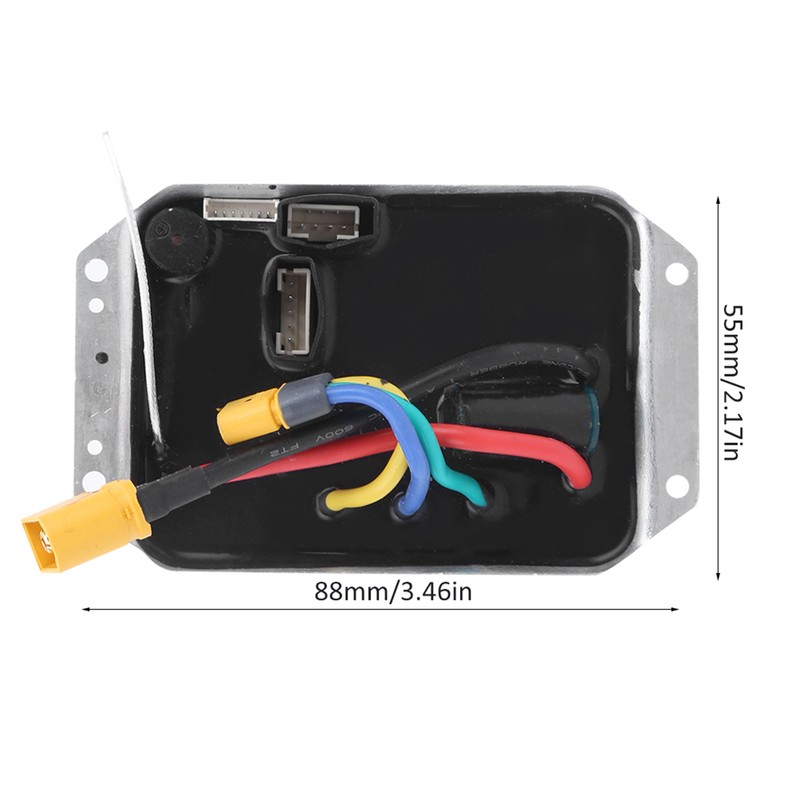

| Glue Filling Shell Size | 88x55mm/3.46x2.17inch | ±0.5mm/0.02inch |
| Main Board Size | 35x20mm/1.38x0.79inch | ±0.5mm/0.02inch |
1. Function description:

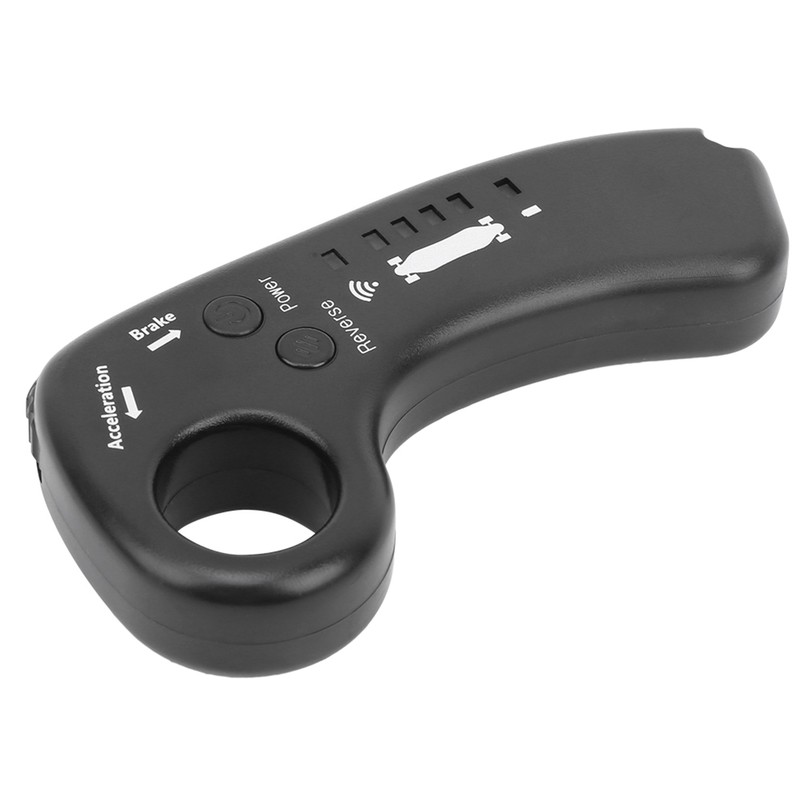

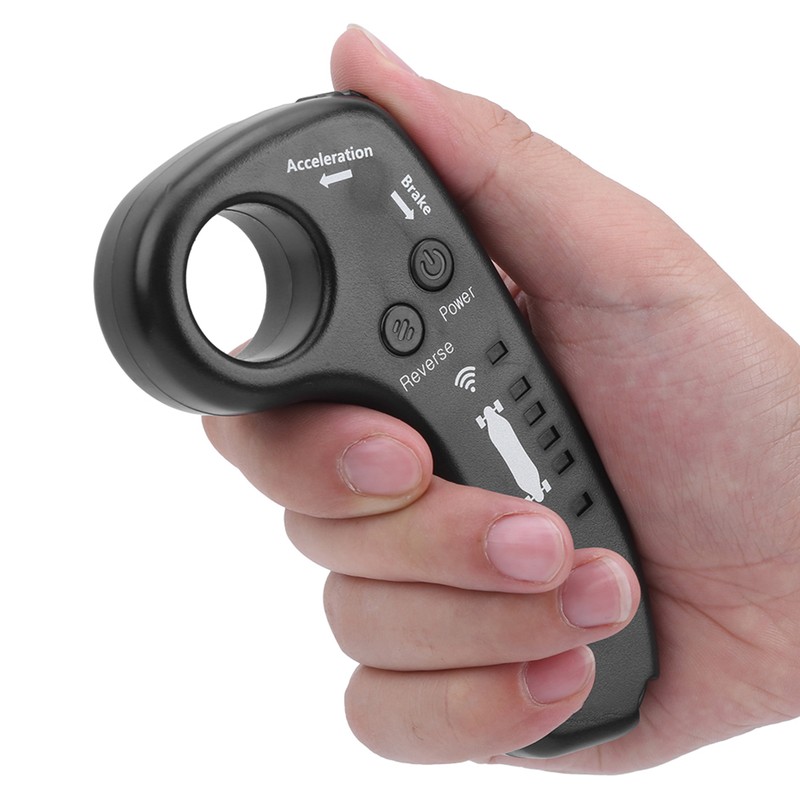

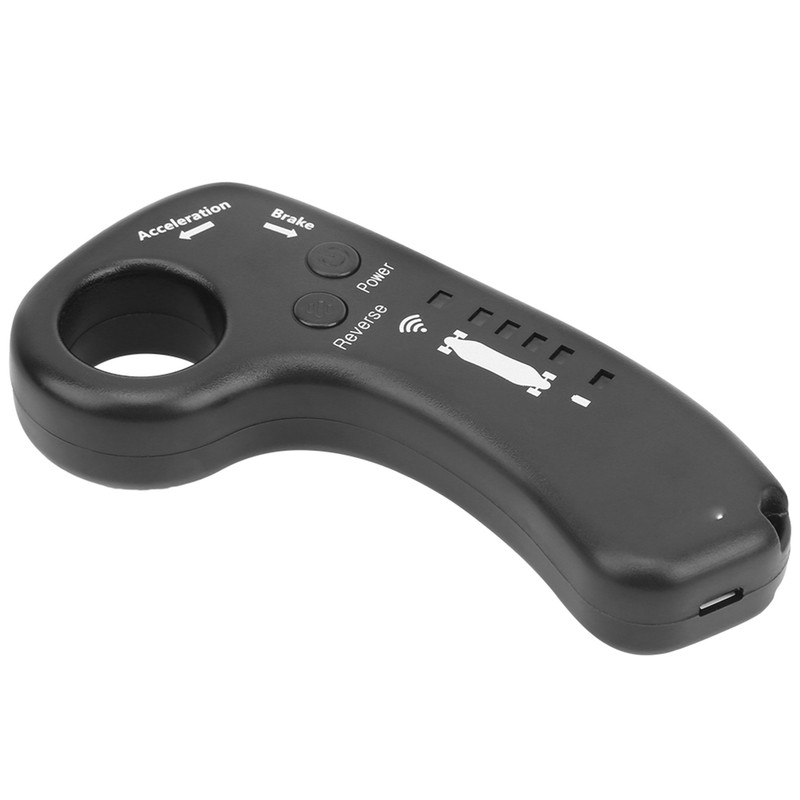

Acceleration putter: Acceleration, braking, reversing, stopping, parking
Speed mode: low Speed, medium Speed, high Speed, motion mode
Brake strength: electronic brake
Brake mode: EBS electronic brake, linear electronic brake, downhill brake to charge the battery, maximum current 10A
Positive and negative switching: Touching button to switch the positive and negative directions
2.4G wireless: 2.4G remote control transmission controls multiple frequency points. Automatic frequency hopping prevents conflicts
Electric quantity instruction: Remote control LED instruction 4 grids scooter electric quantity,10%,25%,50%,75%
Pairing method: When the machine is on, long press the power switch 5S, and the LED indicator flashes once for 0.5s to enter the pairing mode
Control mode: dual mode FOC/sine waves/square waves
2. Using range:

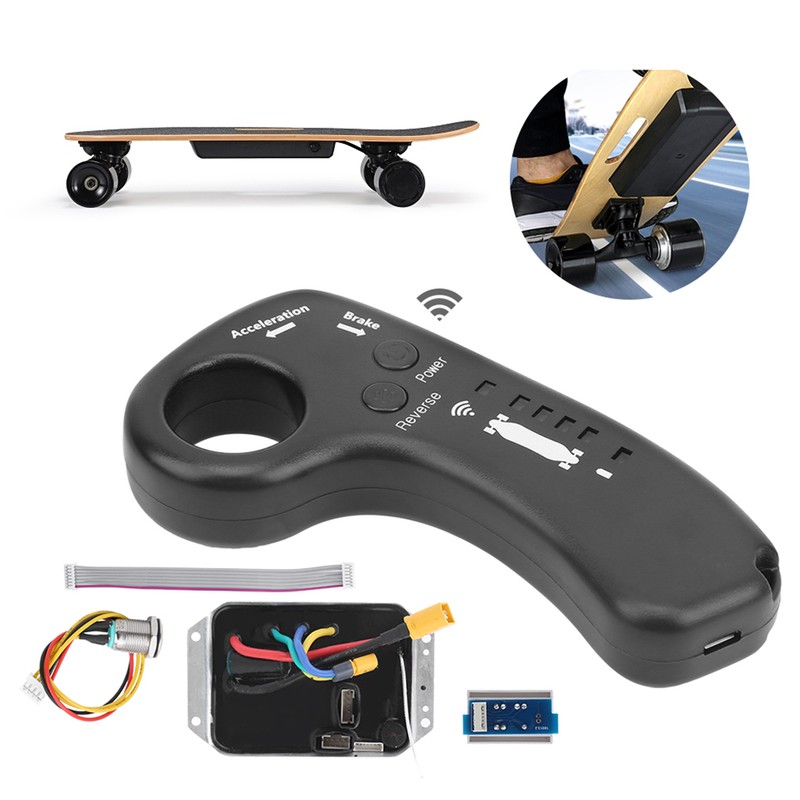

Brushless electric controller can be used in the driving control system of electric four-wheel scooter to match the motor 70.83.90.100.120 hub motor.
Matching remote control mode:
The motherboard is paired with the remote control. There is a button switch on the motherboard. When the mainboard is powered on, briefly press the switch and the LED light beside it flashes for 0.5s once, the motherboard enters the pairing state, and waits for the remote control to be paired. The remote control turns on the power, and short press the hiding button at the bottom of the remote control, and the pairing successful
Matching method of remote control for scooter products:：
When the finished scooter is powered on, long press the power button and the LED indicator flashes once for 0.5s, the motherboard enters the matching state, and waits for the remote control to be matched. The remote control turns on the power, and press the hiding button at the bottom of the remote control. Press the button, and the matching successful
Display screen remote control matching mode:
After the main board of the scooter enters the matching mode, the two buttons of the remote control of the display screen are pressed together at the same time, and the matching successful.
Slide automatic switch machine without key：
1, Every time we play the scooter, we don't have to squat down and press the button to shut down the scooter, scooter will shut down by itself after 10 minutes, and the power consumption of shutdown is 0
2, Every time we play scooter, we don't have to squat down to press a slide car boot button, we gently kick a scooter with our feet,scooter will start up automatically and wait for instructions from the remote control. If there is no instruction from the remote control, the motherboard will not drive or interfere with the motor's sliding, leaving the motor in the mode of powerless scooter
3 If our scooter runs out of power, we kick the scooter and it will still turn on, unless the battery protection plate is protected and no power output, after the scooter starts up, there will be no influence on the user to take the powered scooter as a non-powered scooter. The motherboard will have a low power alarm sound, the motherboard is not connected to the remote control instructions will not drive or interfere with the motor sliding.
(Advantag: Over time, the underside of a scooter can get muddy or dirty, kick automatic boot advantag, want to play to play save boot time)
Function characteristics:
Four kinds Speed modes to choose, four kinds brake force modes selected.
Characteristics：Low Speed high torques, low Speed, fast acceleration, maximum continuous phase current 80A wheel hub 90 motor 3000rpm, maximum 50km/h.
Good applicability, wide range of matching motors, compatible with 90% of motors in the market
Control mode, double mode
Battery undervoltage alarm, total four alarms,(drop one sound 40% electric quantity)(drop two sound 30 % electric quantity)(drop three sound 20% electric quantity)(drop four sound 10% electric quantity) drop four sound goes into undervoltage protection, effectively protect battery from overdischarge and damage battery
Advantage:

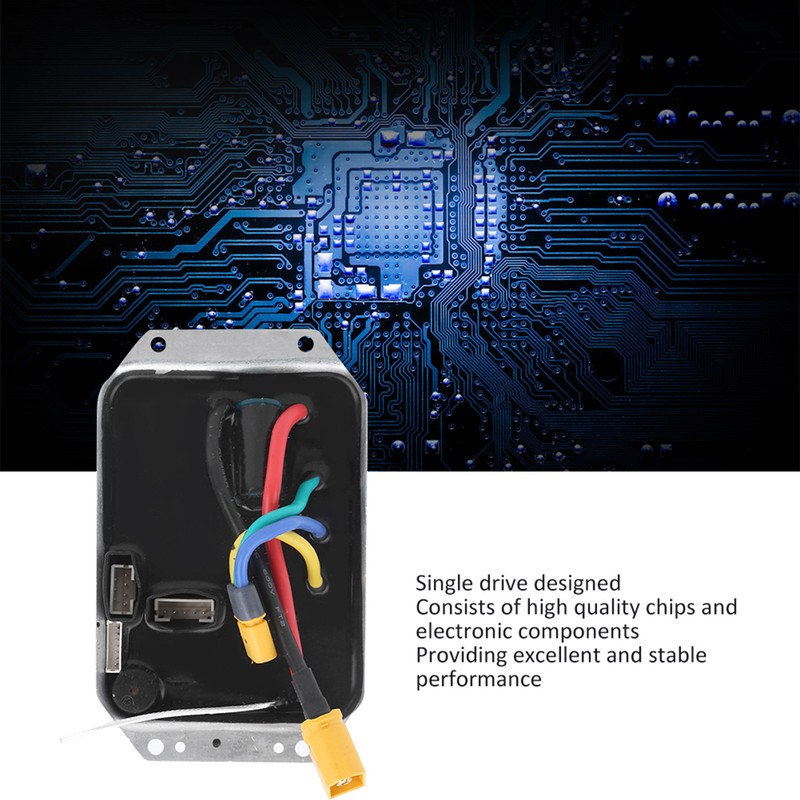

Single drive designed consists of high quality chips and electronic components, providing excellent and stable performance
Sturdy structure of the motherboard can greatly extend the service life
With remote receiver module, it supports remote control
The electric long board control system has EMP control module and remote module, which can be operated like ESC
With overvoltage, undervoltage, overheat, overcurrent, protection function, safe and reliable use, support Speed regulation, easy to use.
