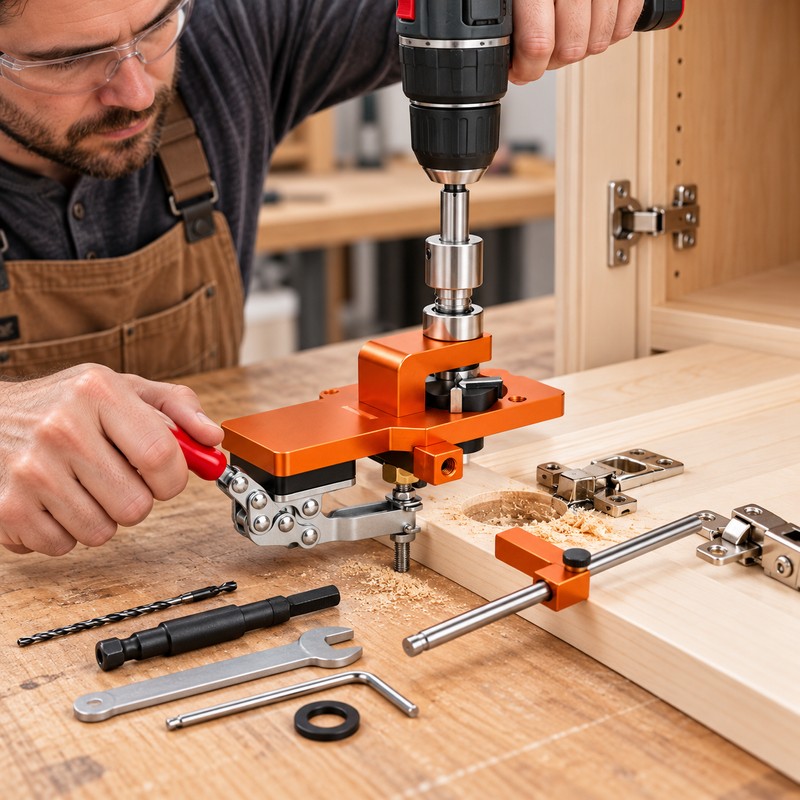

35mm Concealed Hinge Jig Set for Cabinet Doors – Aluminum Drill Guide Kit with Additional 35mm Hole Opener Bit
$59.99
- Free US shipping
-
Arrives

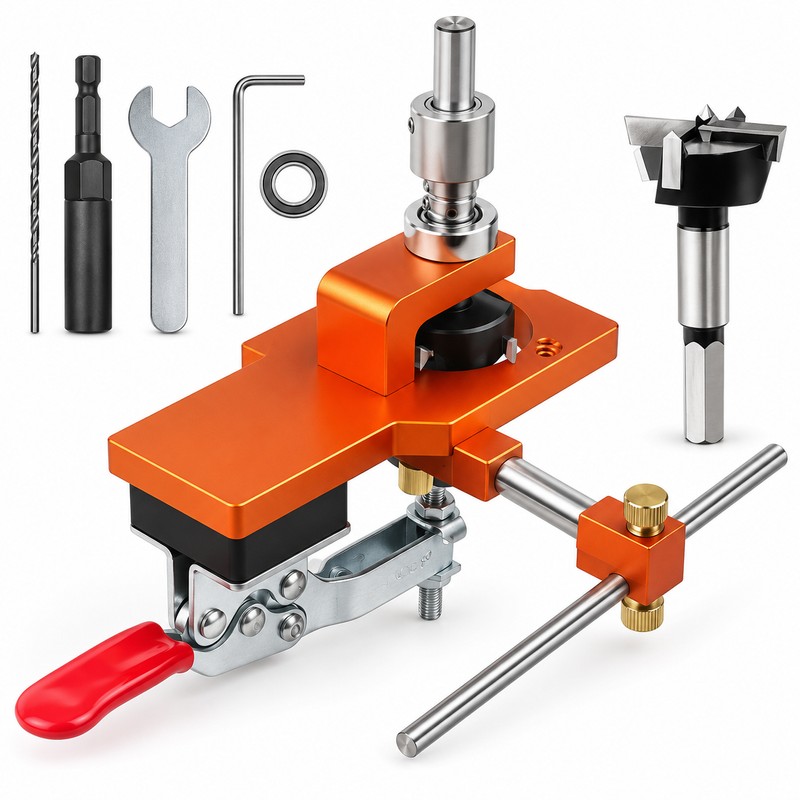

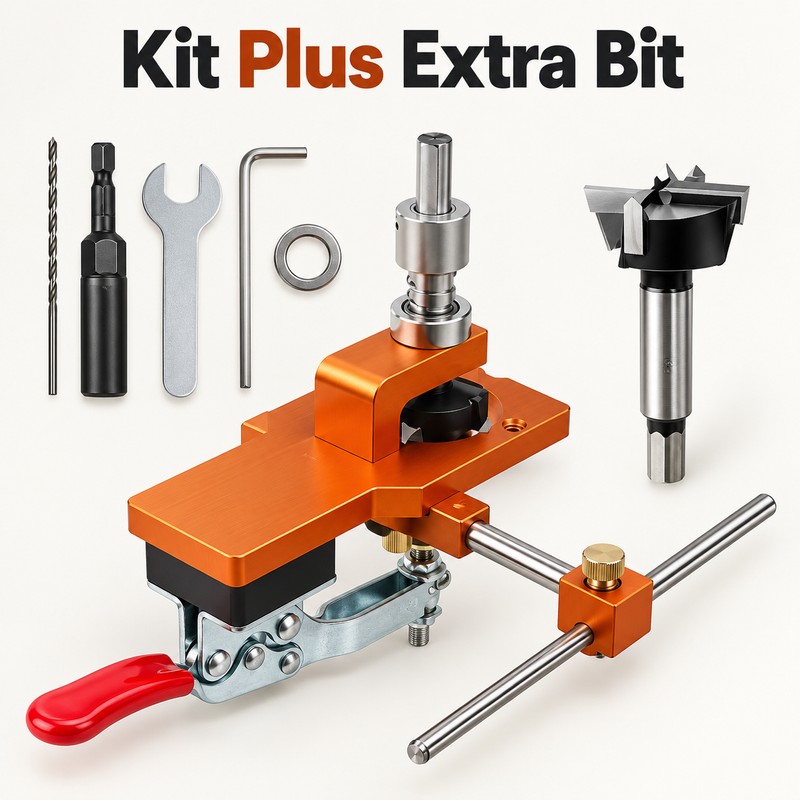

•Complete jig and extra drill bit set– Includes one concealed hinge drilling jig kit plus one additional 1.38-inch / 35mm hole opener bit.
•Designed for 35mm concealed hinges– The guide helps position and drill standard 35mm hinge cup holes in compatible cabinet doors and wood panels.
•Three screw-location settings– Supports confirmed mounting distances of approximately 1.77 in., 1.89 in., and 2.05 in.
•Integrated clamping design– The built-in clamp helps hold the jig securely against the workpiece during positioning and drilling.
•Reusable aluminum alloy construction– The jig body is made from confirmed 6061 aluminum alloy for repeated woodworking and cabinet installation use.
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
What Customers Are Saying
•Complete jig and extra drill bit set– Includes one concealed hinge drilling jig kit plus one additional 1.38-inch / 35mm hole opener bit.
•Designed for 35mm concealed hinges– The guide helps position and drill standard 35mm hinge cup holes in compatible cabinet doors and wood panels.
•Three screw-location settings– Supports confirmed mounting distances of approximately 1.77 in., 1.89 in., and 2.05 in.
•Integrated clamping design– The built-in clamp helps hold the jig securely against the workpiece during positioning and drilling.
•Reusable aluminum alloy construction– The jig body is made from confirmed 6061 aluminum alloy for repeated woodworking and cabinet installation use.
About This Item

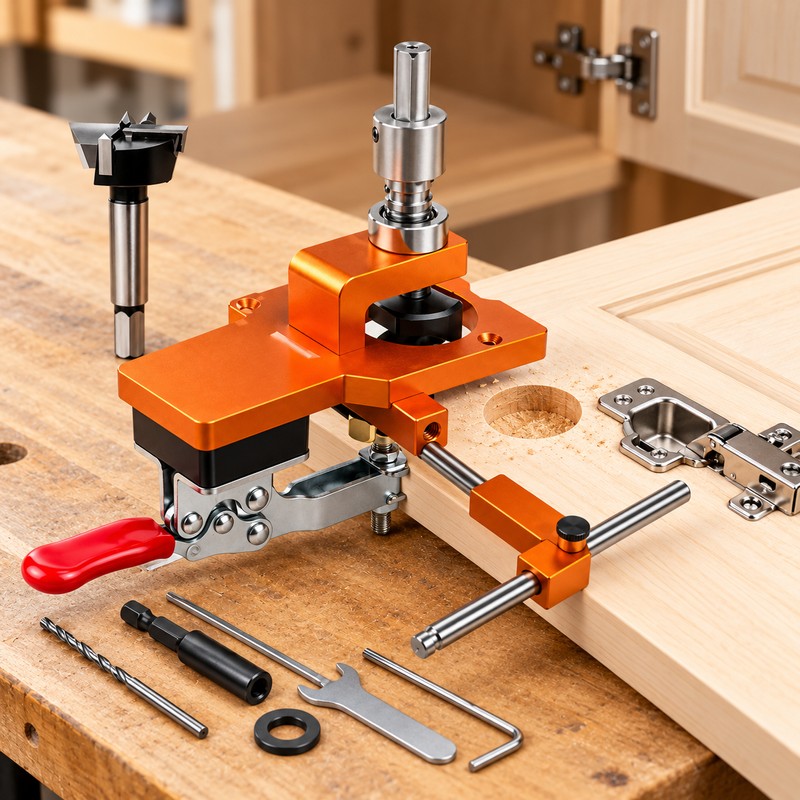

This concealed hinge drilling set combines a 35mm hinge jig kit with an additional 35mm hole opener drill bit. Designed for cabinet doors, cupboards, furniture panels, and compatible woodworking projects, the jig provides a fixed guide for drilling hinge cup holes and positioning mounting screws.
What Problem It Solves

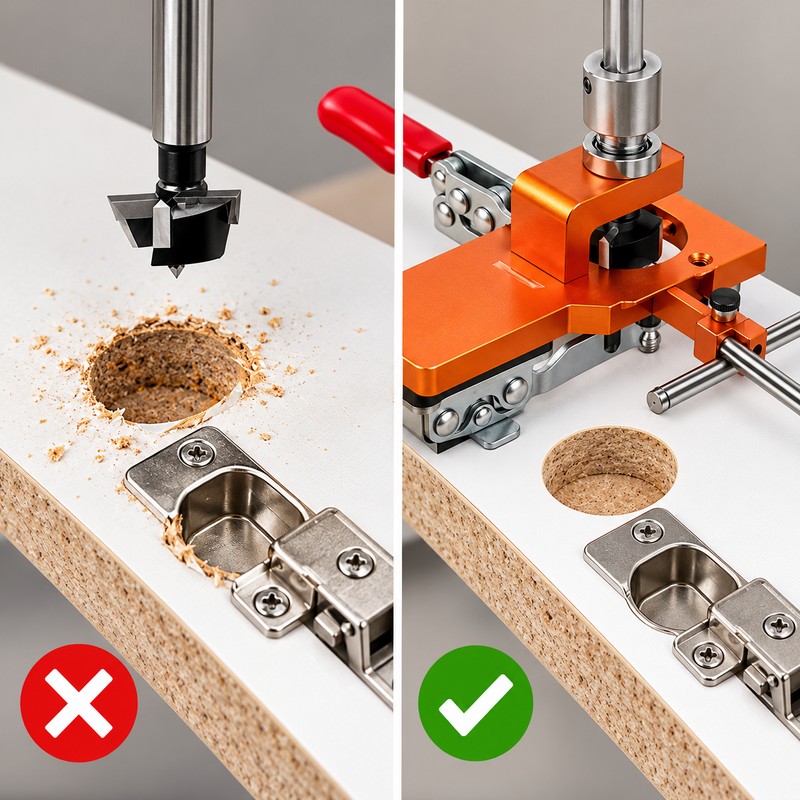

Manually measuring and marking concealed hinge locations can take extra time and may result in inconsistent positioning. This jig provides defined drilling references for the hinge cup and screw locations, helping simplify repeated cabinet hinge installations.
How It Works

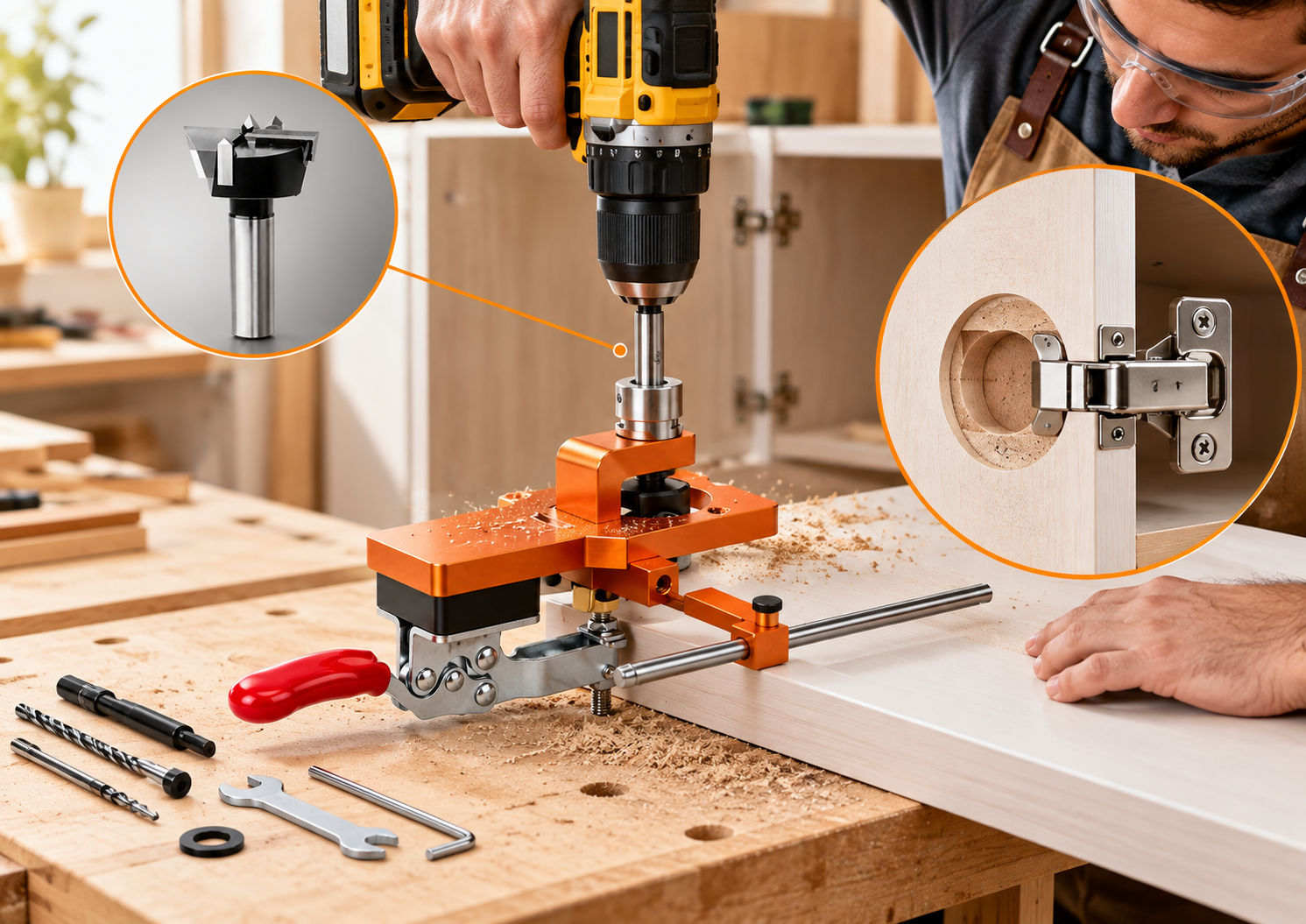

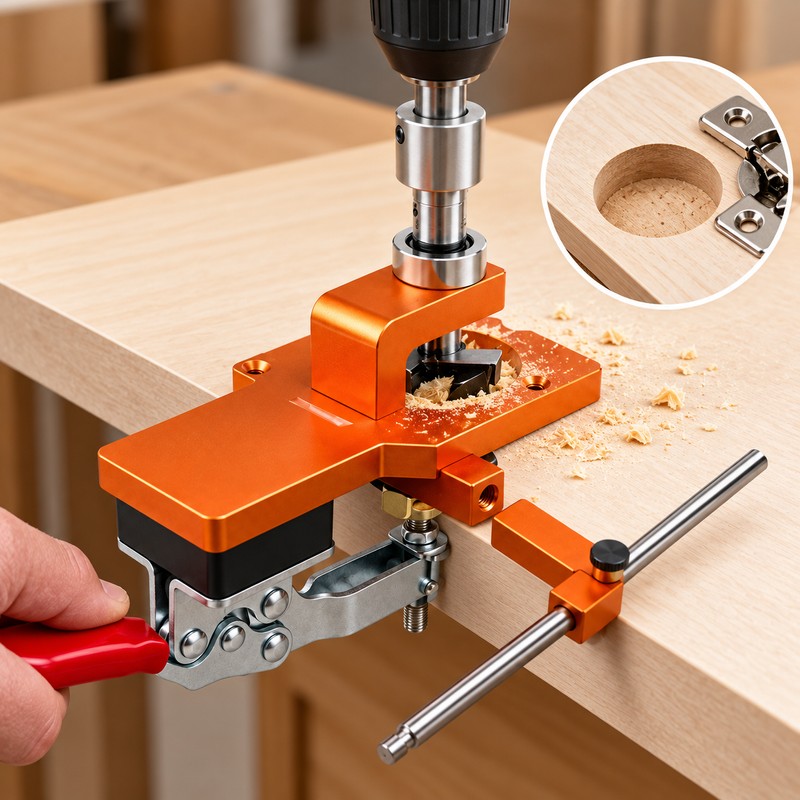

Position the jig against the edge of the wood panel and secure it with the integrated clamp. Select the appropriate screw-position reference, then drill the main hinge cup opening through the central guide using the 35mm hole opener. The included additional 35mm bit can be kept as a spare or used for compatible future drilling tasks.

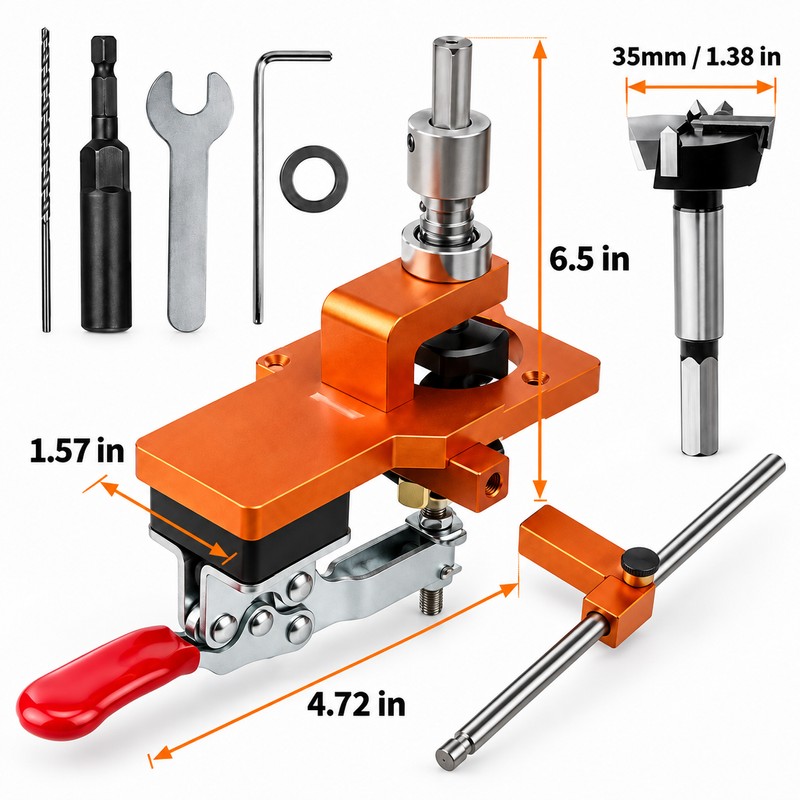

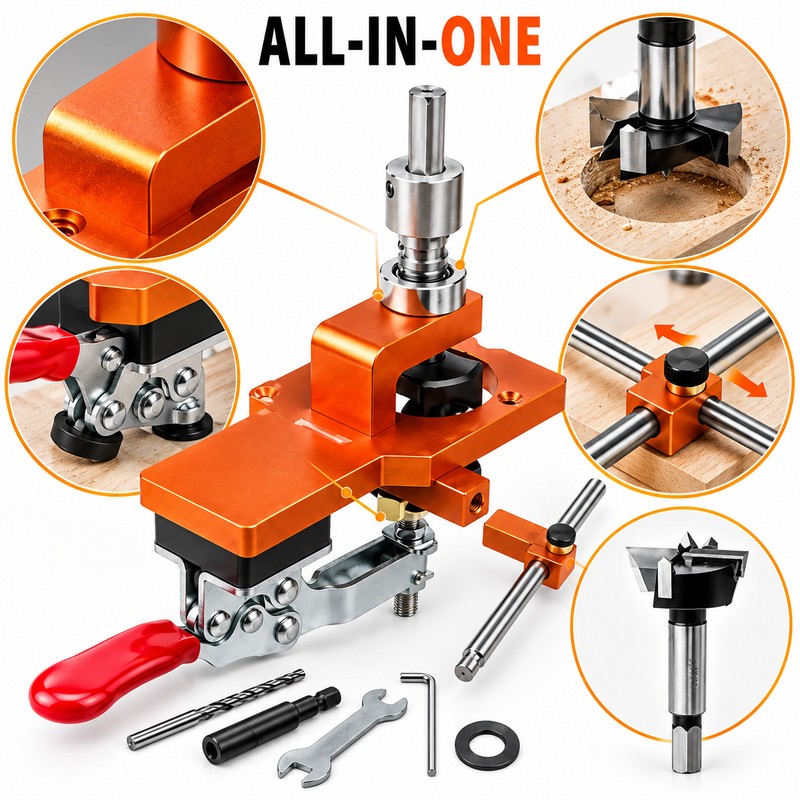

Key Features
• 1.38 in.concealed hinge cup guide
• Additional 35mm hole opener included
• Screw spacing options: 1.77 / 1.89 / 2.05 in.
• 6061 aluminum alloy jig body
• Integrated workpiece clamp
• Hex-shank 35mm drill-bit design
• Suitable for cabinet and furniture woodworking
Why Choose This Set
This package combines the positioning jig and drilling accessories with an additional 35mm hole opener, providing both the installation tool and a spare cutting bit in one set.
Perfect For
Suitable for cabinet doors, cupboards, wardrobes, furniture panels, woodworking projects, and compatible concealed hinge installations using a 35mm cup opening.
Secure the jig, align it to the required position, and drill using a guided setup for more organized cabinet hinge installation.
