3 Pole 40 Amp Contactor 120VAC Coil, Air Conditioner Condenser Compressor Motor Magnetic Contactor, UL HVAC Definite Purpose Contactor, Compatible for Goodman, Carrier, Trane, Daikin, Square D Etc
$70.79
- $5.99 shipping from United States View details
-
Arrives

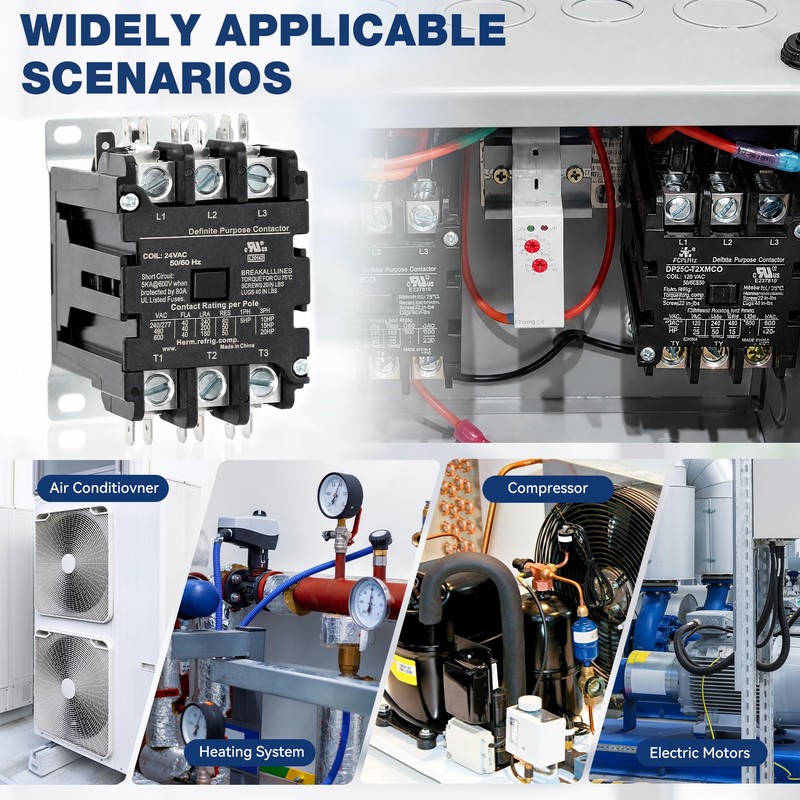

- DEFINITE PURPOSE CONTACTOR WIDELY USED: 3 pole contactor 120v AC coil are commonly used throughout the HVAC and refrigeration industry, where they serve as electrical switching devices for equipment such as heat pumps, air conditioners, chillers, fans, display cases, condensing units, and ice makers. 3 pole contactor 120v coil are compatible for Trane, Carrier, Daikin, Goodman, Rheem, Lennox, York, and AAON
- CONTACTOR 120V COIL: ac contactor 120v coil serves as the bridge between low-voltage control and high-voltage loads in automated control systems. Equipped with a 120V coil and Class F insulation, 40 amp contactor provides excellent thermal resistance and electrical efficiency. 3p 40a 120v contactor Compatible with 50/60Hz systems, it ensures stable performance and safe operation even in demanding installation environments
- 40‑AMP CONTACTOR: is certified for HVAC and A2L refrigerant applications. 40‑AMP air conditioning ac contactor is UL certified and meets UL 508 and UL 60947‑4‑1 standards, making it suitable for UL 60335 HVAC systems as well as systems using A2L refrigerants. 40 amp hvac contactor features 85%/15% silver cadmium oxide (AgCdO) contacts, which provide excellent electrical conductivity and high resistance to arc damage
- ELECTROMAGNETIC INDUCTION: 3 pole 40 amp 120v motor contactors is a device for automatically switching high-current circuits on/off, even frequently. When 3 pole 40 amp 120v motor contactors coil is energized, the resulting magnetic field pulls the moving iron core to the stationary one, closing the contacts to control the main circuit
- HIGH-QUALITY SILVER CONTACTS: 3 pole fla 40 amp 120v coil ac contactor directly withstand the high temperatures and electric arcs generated during current making and breaking. ac power contactor Primarily composed of silver, they incorporate other metals to enhance hardness and arc resistance. Since high-current interruption produces high-temperature arcs, the arc-extinguishing system must rapidly quench them to protect the contacts and ensure safety
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- DEFINITE PURPOSE CONTACTOR WIDELY USED: 3 pole contactor 120v AC coil are commonly used throughout the HVAC and refrigeration industry, where they serve as electrical switching devices for equipment such as heat pumps, air conditioners, chillers, fans, display cases, condensing units, and ice makers. 3 pole contactor 120v coil are compatible for Trane, Carrier, Daikin, Goodman, Rheem, Lennox, York, and AAON
- CONTACTOR 120V COIL: ac contactor 120v coil serves as the bridge between low-voltage control and high-voltage loads in automated control systems. Equipped with a 120V coil and Class F insulation, 40 amp contactor provides excellent thermal resistance and electrical efficiency. 3p 40a 120v contactor Compatible with 50/60Hz systems, it ensures stable performance and safe operation even in demanding installation environments
- 40‑AMP CONTACTOR: is certified for HVAC and A2L refrigerant applications. 40‑AMP air conditioning ac contactor is UL certified and meets UL 508 and UL 60947‑4‑1 standards, making it suitable for UL 60335 HVAC systems as well as systems using A2L refrigerants. 40 amp hvac contactor features 85%/15% silver cadmium oxide (AgCdO) contacts, which provide excellent electrical conductivity and high resistance to arc damage
- ELECTROMAGNETIC INDUCTION: 3 pole 40 amp 120v motor contactors is a device for automatically switching high-current circuits on/off, even frequently. When 3 pole 40 amp 120v motor contactors coil is energized, the resulting magnetic field pulls the moving iron core to the stationary one, closing the contacts to control the main circuit
- HIGH-QUALITY SILVER CONTACTS: 3 pole fla 40 amp 120v coil ac contactor directly withstand the high temperatures and electric arcs generated during current making and breaking. ac power contactor Primarily composed of silver, they incorporate other metals to enhance hardness and arc resistance. Since high-current interruption produces high-temperature arcs, the arc-extinguishing system must rapidly quench them to protect the contacts and ensure safety
📌 What Is This Contactor
This 40/60 Amp 3 Pole Definite Purpose Contactor is an electromagnetic switching device that controls the electrical flow to high‑power HVAC components such as compressors, condenser fans, and heat pump loads. When the thermostat calls for cooling or heating, the low‑voltage coil energizes and pulls the main contacts closed, delivering line voltage to the compressor and fan. When the call ends, the coil de‑energizes and the contacts open, safely cutting off power.
Offered in three common coil voltage options—24V AC, 120V AC, and 208‑240V AC—this contactor serves as a universal replacement for thousands of residential and light commercial air conditioning systems, refrigeration equipment, heat pumps, air handlers, and electric resistance heating units.
If your AC outdoor unit cycles on and off intermittently, fails to start, runs continuously, or produces a loud buzzing or chattering noise, the contactor may be worn, pitted, or stuck. Replacing a failing contactor restores reliable compressor control and prevents more serious system damage.
3 Poles 40/60 Amps 24/120/240V coil voltage 50/60Hz

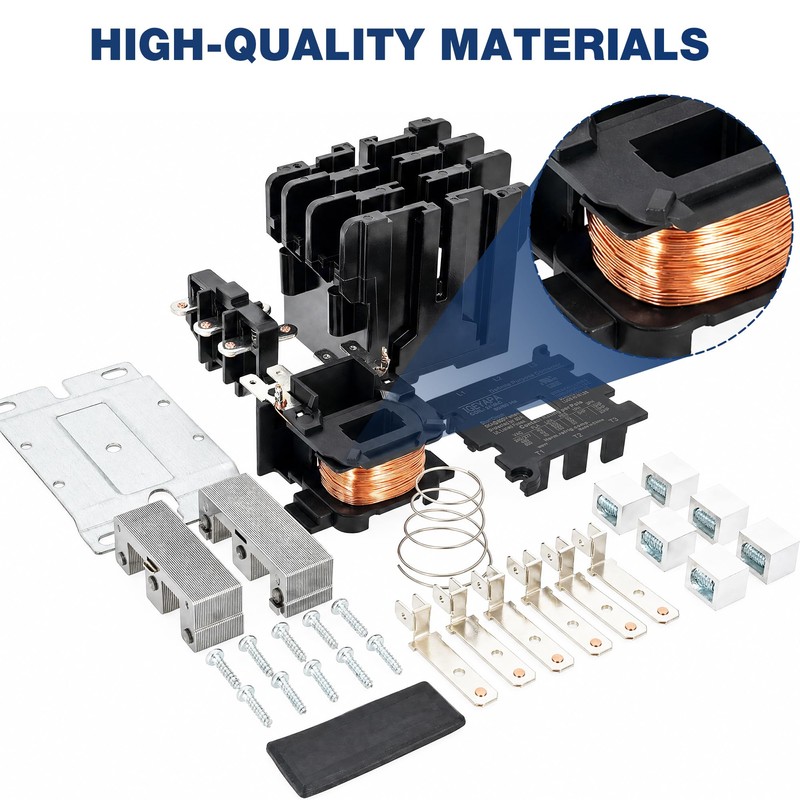

Thicker Silver Contacts, 25% Larger size contacts than competitors
Industrial-Grade Coil: Upgraded Class F (155°C) insulation system prevents coil burnout even in scorching Texas or Arizona attics and outdoor units.
Long Lifespan: 1,000,000 mechanical and 250,000 electrical cycles (UL Tested)
Compatible with snap-on auxiliary contacts (optional).
Number of Poles 3 Poles / Normally Open
Full Load Amps (FLA) 40 Amps (Replace 30A/40A)
Resistive Amps (RES) 50 Amps (Res load)
Coil voltage 120 VAC, 50/60 Hz
Locked Rotor Amps (LRA) 240A @ 240V / 200A @ 480V / 160A @ 600V
Input Voltage (Line/Load) Up to 600 VAC (Rated for 240V/480V/600V)
Contacts Weld-Resistant Silver contacts
Certification UL Recognized / A2L Compliant
Coil Insulation Class F (155°C / 311°F)
Pickup& Drop-out Voltage Range Pick-up ≥90 VAC; Drop-out 24–78 VAC Note: Under/Overvoltage causes coil burnout, chattering, and compressor damage
Nominal Resistance 170 Ohms
SCCR 5kA @ 600VAC with 80A UL-listed fuses
Power terminations Dual: 1/4" Quick Connect Spades / Box lug 14-4 AWG Wire
3-Phase Motor Rating up to 20 HP @ 600VAC
Replacement 42CF35AF / 17436 / DP40C3P-1/ 453AD3ABB/ HCCY3XT04CJ/ C340B/ C25DNF340A
