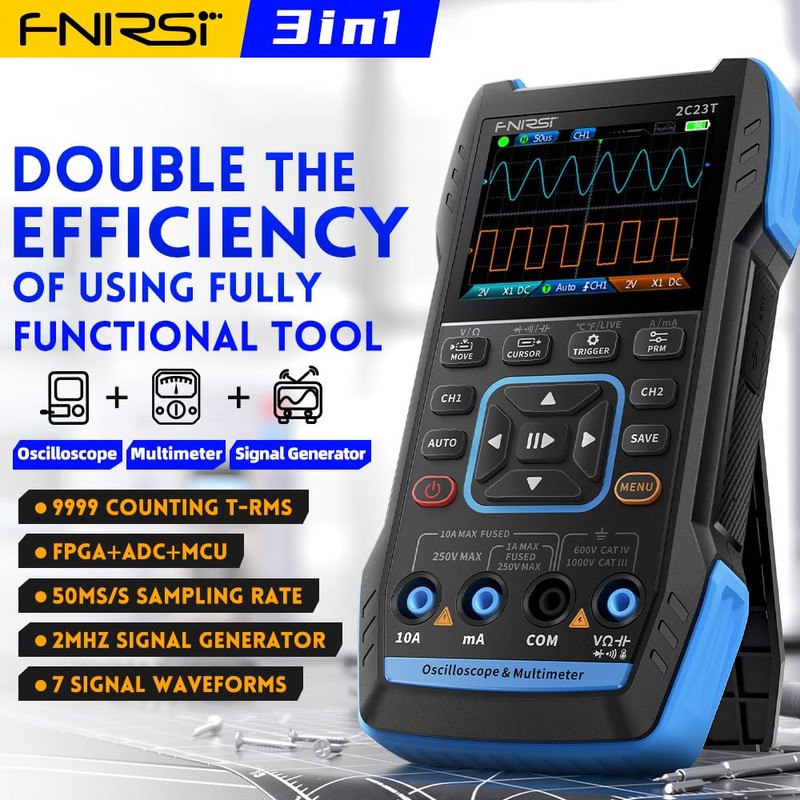

3 in 1 Handheld Oscilloscope, Multimeter, DDS Signal Generator, 2 Channels, 10MHz Bandwidth, 50MSa/s Sampling Rate, 9999 Count, Volt Meter, Current Capacitance Resistance Diode Test (2C23T)
$171.02
- $5.95 shipping from United States View details
-
Arrives

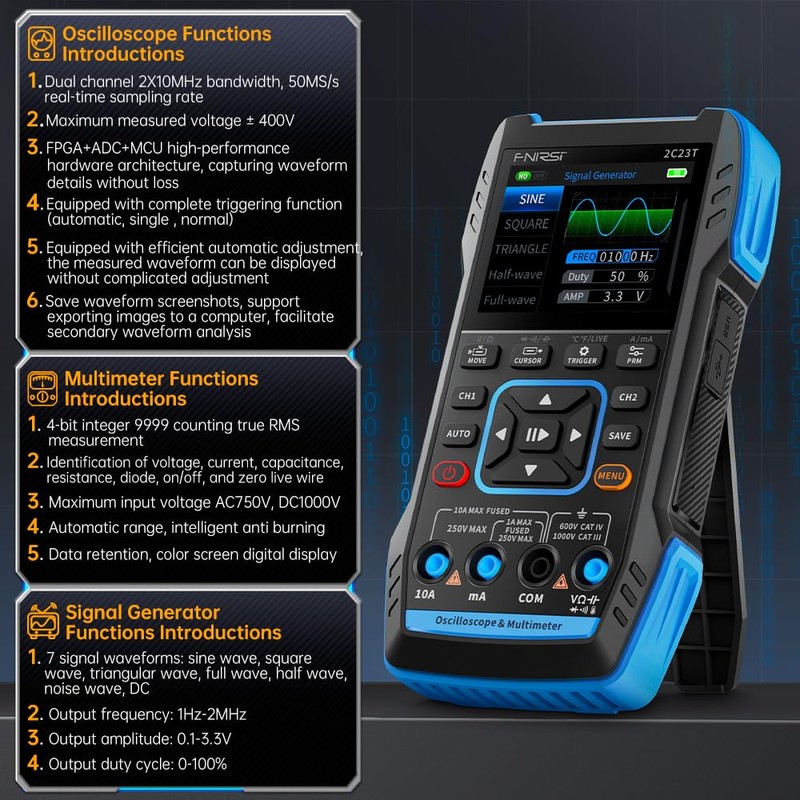

- 3 in 1 handheld device combines oscilloscope, multimeter, and DDS generator capabilities, refer to parameters of each function in the description below

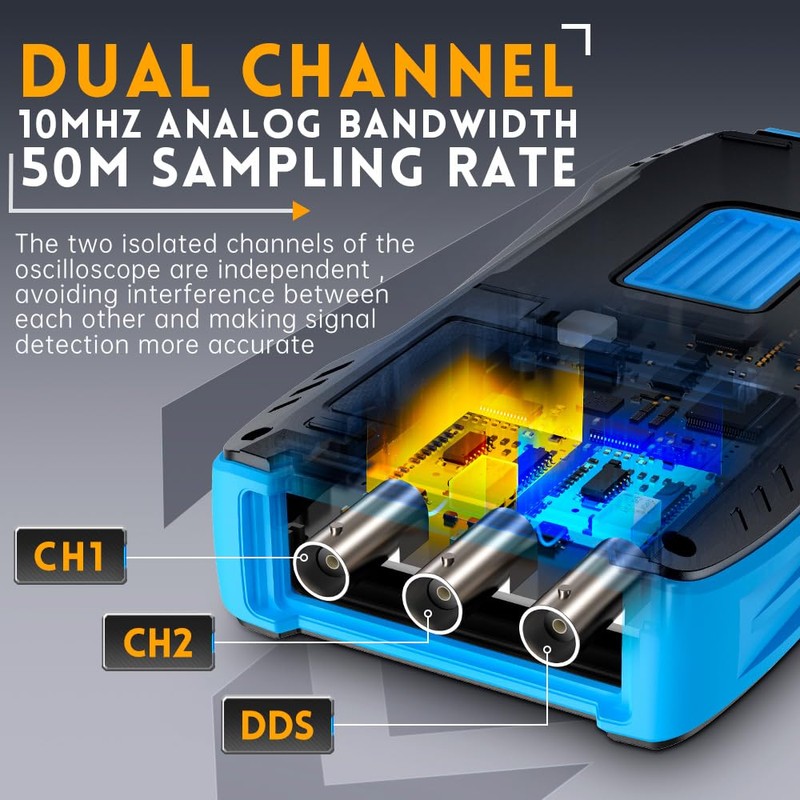

- Oscilloscope has dual channel 2 x 10MHz bandwidth, real-time sampling rate of 50MSa/s, storage depth of 32kb, and vertical sensitivity of 20mv/div-10v/div (x1), and can measure voltage of max. ±400V, 3 trigger mode - auto/normal/single
- Multimeter enables testing of voltage up to 750V AC or 999.9V DC, current (DC/AC), resistance, capacitance, diodes, and continuity with high accuracy, and allows testing of diode and continuity, ensuring quick and efficient component analysis during troubleshooting tasks
- Signal generator has single channel, frequency of 1Hz-2MHz and amplitude of 0.1-3.3V, and offers 7 output waveforms - sine, square, triangular, full wave, half wave, noise wave, DC Output

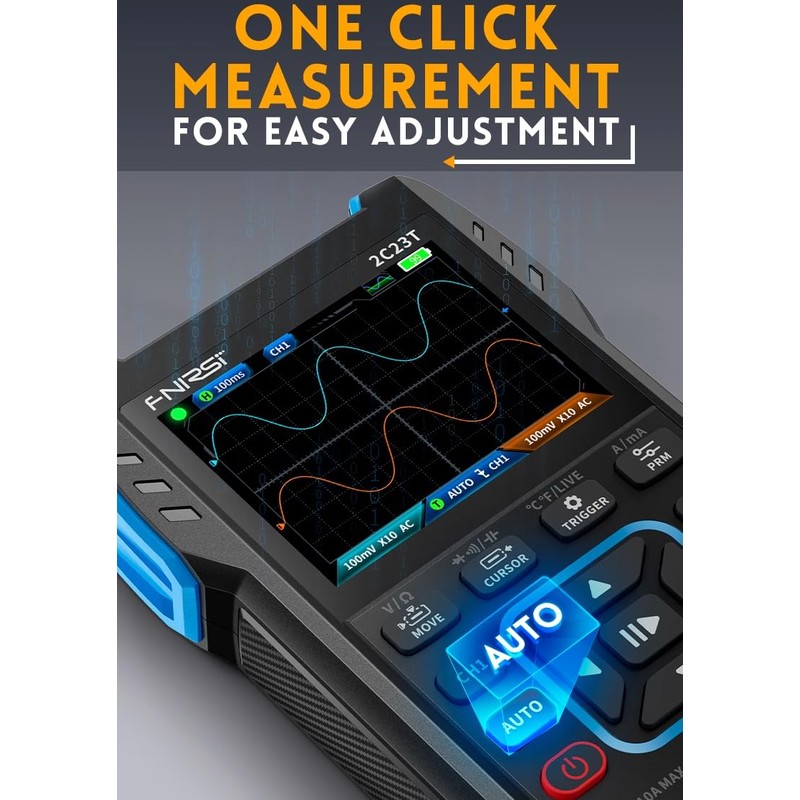

- Multimeter features a 2.8" LCD display, automatic measurement functions, waveform image storage and export capabilities, built-in high-voltage protection, and a rechargeable battery for portability and convenience
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- 3 in 1 handheld device combines oscilloscope, multimeter, and DDS generator capabilities, refer to parameters of each function in the description below
- Oscilloscope has dual channel 2 x 10MHz bandwidth, real-time sampling rate of 50MSa/s, storage depth of 32kb, and vertical sensitivity of 20mv/div-10v/div (x1), and can measure voltage of max. ±400V, 3 trigger mode - auto/normal/single
- Multimeter enables testing of voltage up to 750V AC or 999.9V DC, current (DC/AC), resistance, capacitance, diodes, and continuity with high accuracy, and allows testing of diode and continuity, ensuring quick and efficient component analysis during troubleshooting tasks
- Signal generator has single channel, frequency of 1Hz-2MHz and amplitude of 0.1-3.3V, and offers 7 output waveforms - sine, square, triangular, full wave, half wave, noise wave, DC Output
- Multimeter features a 2.8" LCD display, automatic measurement functions, waveform image storage and export capabilities, built-in high-voltage protection, and a rechargeable battery for portability and convenience
Oscilloscope Parameters
Channel: dual
Analog bandwidth: 10MHz
Sample rate: 50MSa/s
Storage depth: 32kb
Impedance: 1MΩ
Time Base Range: 50ns-10s
Vertical sensitivity: 20mV/div-10V/div (X1)
Maximum voltage measured: ±400V
Trigger mode: AUTO/Normal/Single
Trigger type: Rising edge, Falling edge
Display mode: YT/Scroll
Coupling method: AC/DC

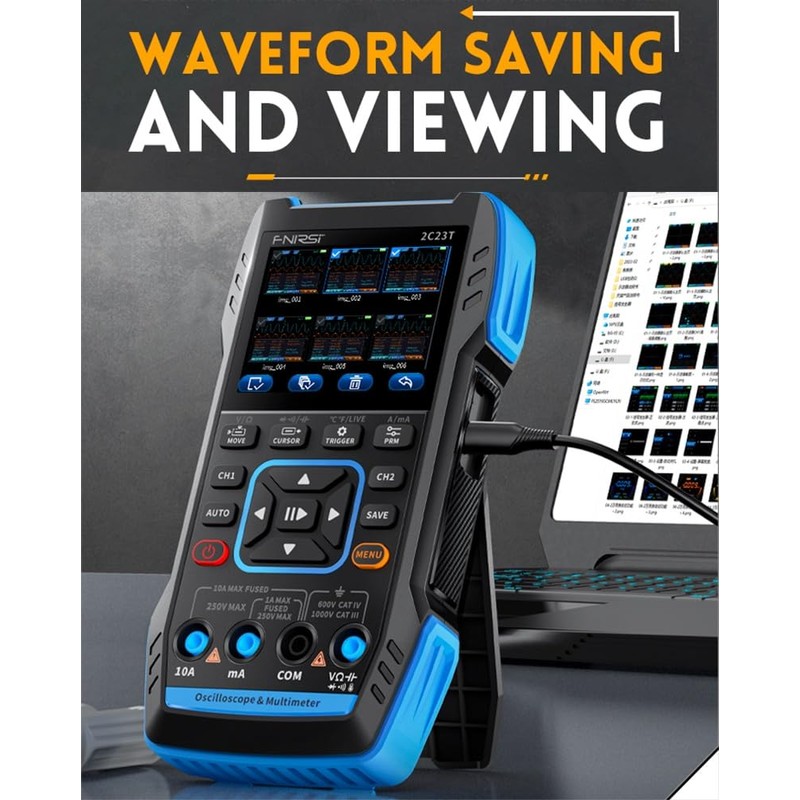

Save waveform screenshot: Yes
Export waveform images: Yes
Multimeter Parameters
DC voltage: 9.999V/99.99V/999.9V, ±(0.5%+3)
AC voltage: 9.999V/99.99V/750.0V, ±(1%+3)
DC current: 9999μA/99.99mA/999.9mA/9.999A, ±(1.2%+3)
AC current: 9999μA/99.99mA/999.9mA/9.999A, ±(1.5%+3)
Resistance: 9.999MΩ/999.9KΩ/99.99KΩ/9.999KΩ/999.99Ω, ±(0.5%+3) / 99.99MΩ, ±(1.5%+3)
Capacitance: 999.9μF/99.99μF/9.999μF/999.9nF/99.99nF/9.999nF, ±(2.0%+5) / 9.99mF/99.99mF, ±(5.0%+20)
Temperature: (-55~1300°C)/(-67~2372°F), ±(2.5%+5)
Diode: Yes
Continuity test: Yes
Live line detection: Yes
Signal Generator Parameters
Channel: single channel
Frequency: 1Hz-2MHz
Amplitude: 0.1-3.3V
Output waveform: sine, square, triangular, full wave, half wave, noise wave, DC Output
Duty cycle: 0-100%
Specification
Model: 2C23T

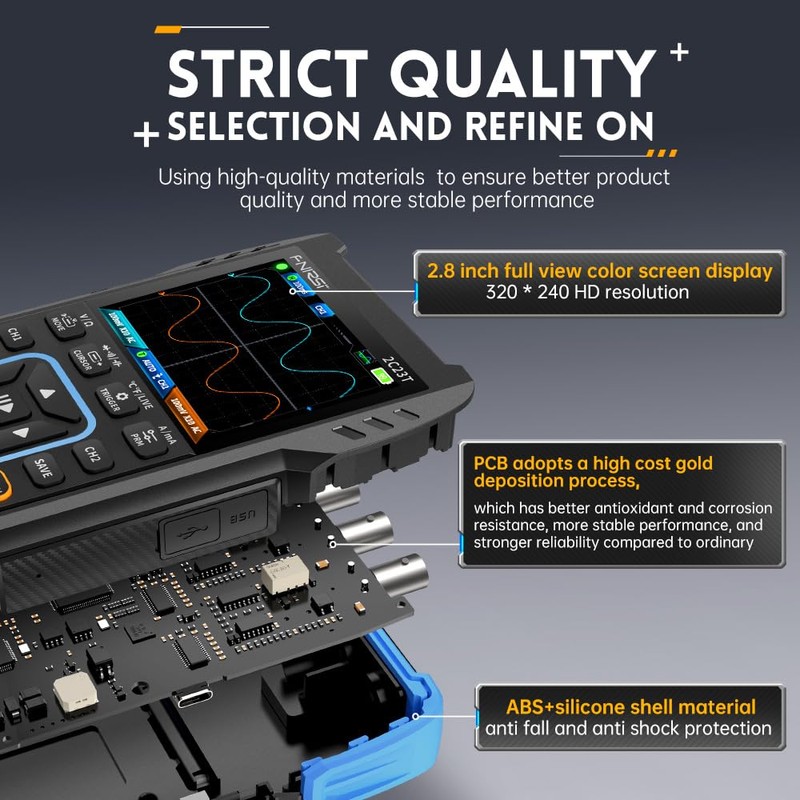

Screen: 2.8” 320x240 color display

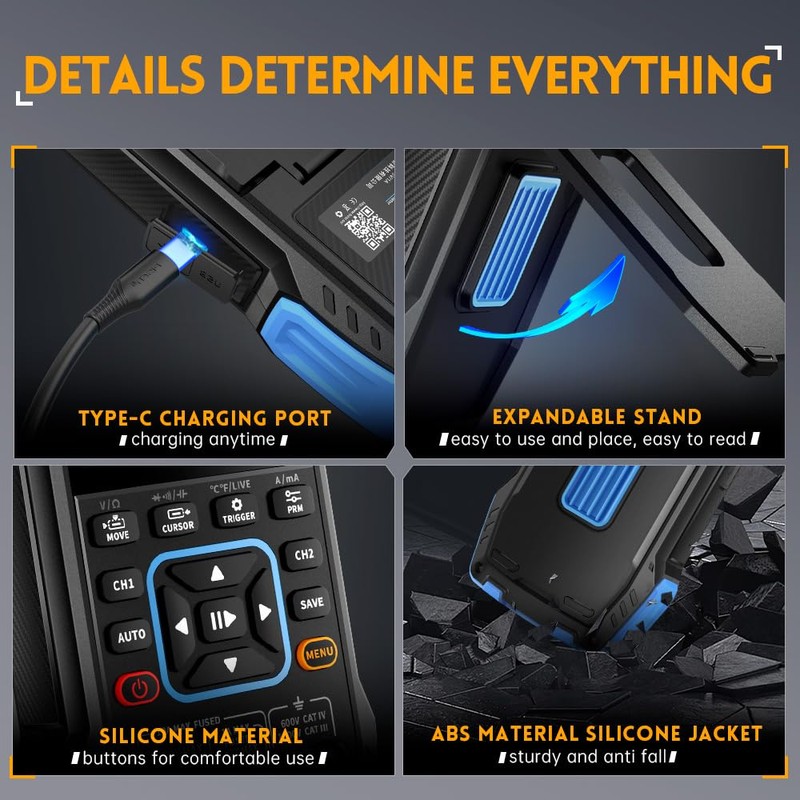

Power supply: built-in 3000mAh li-ion battery, 5V/1A Type-C port
Device size: 6.57*3.5*1.38 in
Device weight: 0.66 lb.

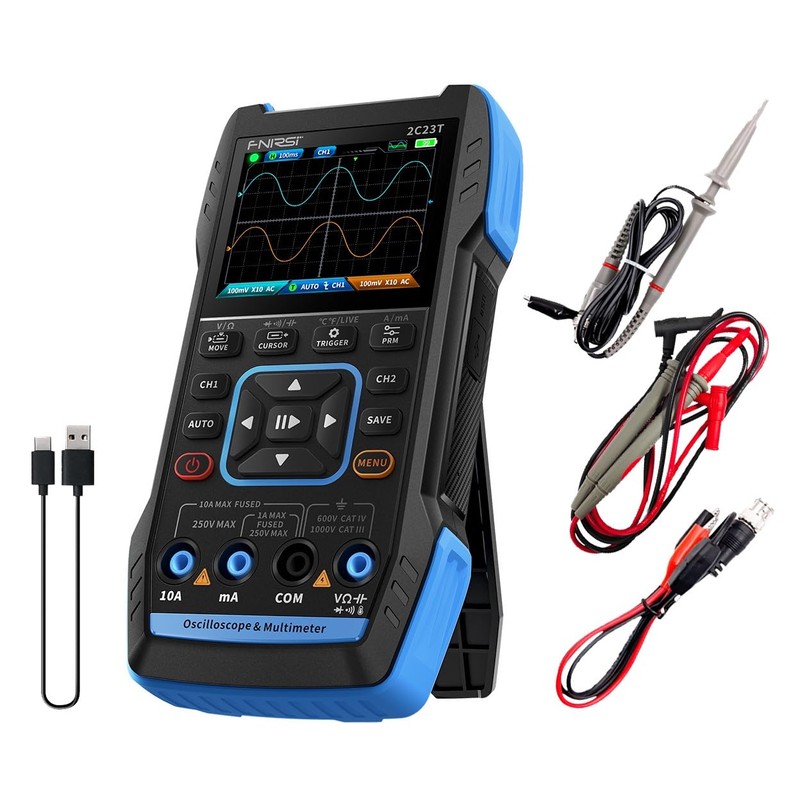

PACKAGE
-1 x Multifunctional Oscilloscope
-1 x 10X Probe
-1 x Crocodile Clips Probe
-1 x Multimeter Probe
-1 x Charging Cable
-1 x Instructions
