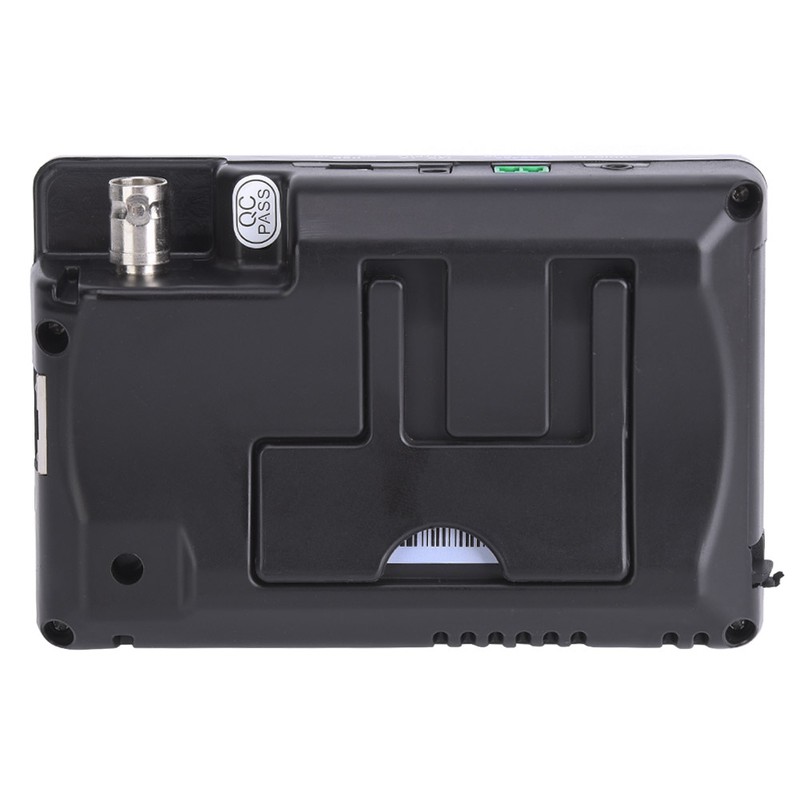

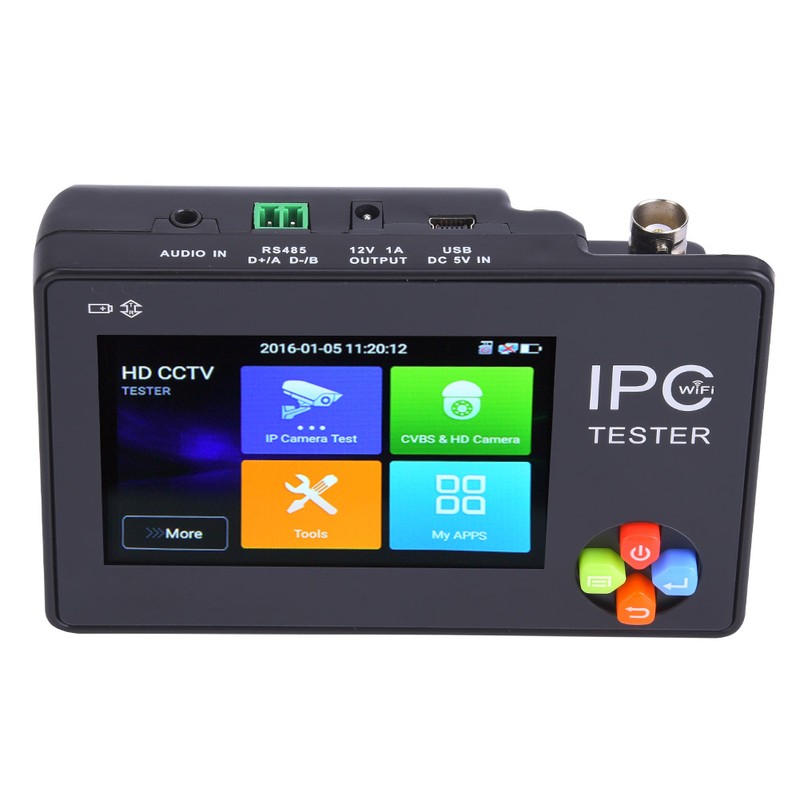

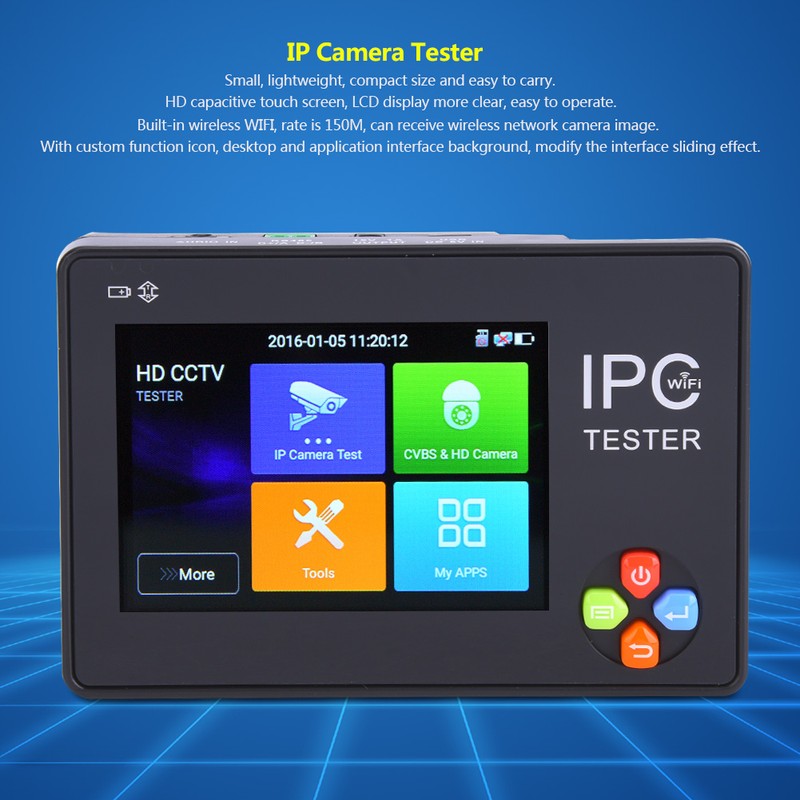

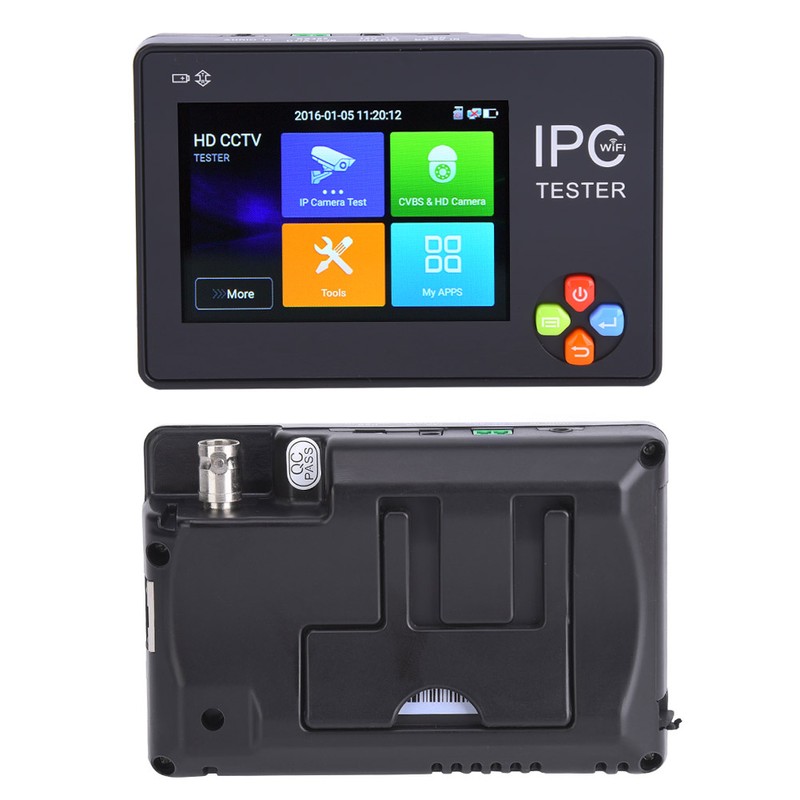

3.5 Inch Touch Screen H.265 4K IPC1600ADHplus IP Camera Tester Monitor AHD CVI TVI Tester

$171.78

1、Built‑in wireless WIFI, rate is 150M, can receive wireless network camera image. 2、New hardware decoding, supporting H. 265/265+/264 main stream playback camera images, the highest resolution 4K. 3、Support topspeed for ONVIF , automatically log in to play the image, can activate the for Haikang camera and modify the IP parameters with one click. 4、Support video photography, video, photo browsing, video playback, can take screenshots and videos on the test screen, support Chinese naming save, photo browsing, and video playback operations. 5、With custom function icon, desktop and application interface background, modify the interface sliding effect. 6、Small, lightweight, compact size and easy to carry. 7、HD capacitive touch screen, LCD display more clear, easy to operate.

Isin:
IJVAKBWAEP0B

$171.78

In Stock

Sold by , Fulfilled by IBSPOT • Ships from US

IBSPOT Buyer Protection
  • Free 30-Day Returns
  • Full Refund for Damaged or Incorrect Items
  • Guaranteed Delivery or Money Back
  • Secure Checkout & Fast Support
scroll to top arrow
3.5 Inch Touch Screen H.265 4K IPC1600ADHplus IP Camera Tester Monitor AHD CVI TVI Tester

3.5 Inch Touch Screen H.265 4K IPC1600ADHplus IP Camera Tester Monitor AHD CV...

$171.78

1、Built‑in wireless WIFI, rate is 150M, can receive wireless network camera image. 2、New hardware decoding, supporting H. 265/265+/264 main stream playback camera images, the highest resolution 4K. 3、Support topspeed for ONVIF , automatically log in to play the image, can activate the for Haikang camera and modify the IP parameters with one click. 4、Support video photography, video, photo browsing, video playback, can take screenshots and videos on the test screen, support Chinese naming save, photo browsing, and video playback operations. 5、With custom function icon, desktop and application interface background, modify the interface sliding effect. 6、Small, lightweight, compact size and easy to carry. 7、HD capacitive touch screen, LCD display more clear, easy to operate.

Isin:
IJVAKBWAEP0B

1、Built‑in wireless WIFI, rate is 150M, can receive wireless network camera image. 2、New hardware decoding, supporting H. 265/265+/264 main stream playback camera images, the highest resolution 4K. 3、Support topspeed for ONVIF , automatically log in to play the image, can activate the for Haikang camera and modify the IP parameters with one click. 4、Support video photography, video, photo browsing, video playback, can take screenshots and videos on the test screen, support Chinese naming save, photo browsing, and video playback operations. 5、With custom function icon, desktop and application interface background, modify the interface sliding effect. 6、Small, lightweight, compact size and easy to carry. 7、HD capacitive touch screen, LCD display more clear, easy to operate.

More Information

Condition: 100% Brand New
Item Type: IPC Tester
Material: ABS
Color: As shown in the picture

Product model IPC-1600ADHPlus

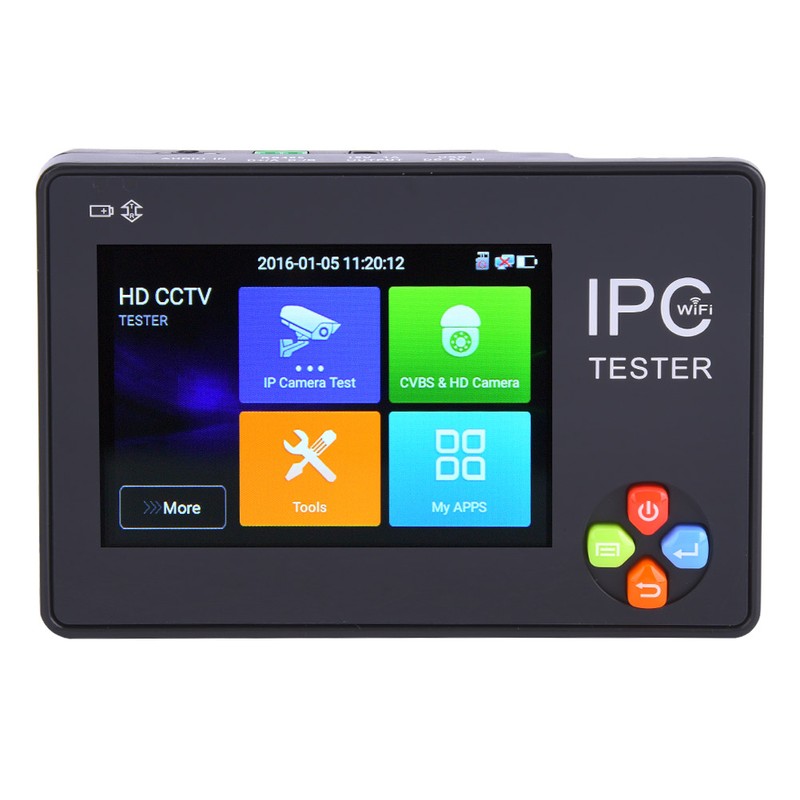

Display screen 3.5in, HD capacitive touch screen, resolution 480x320

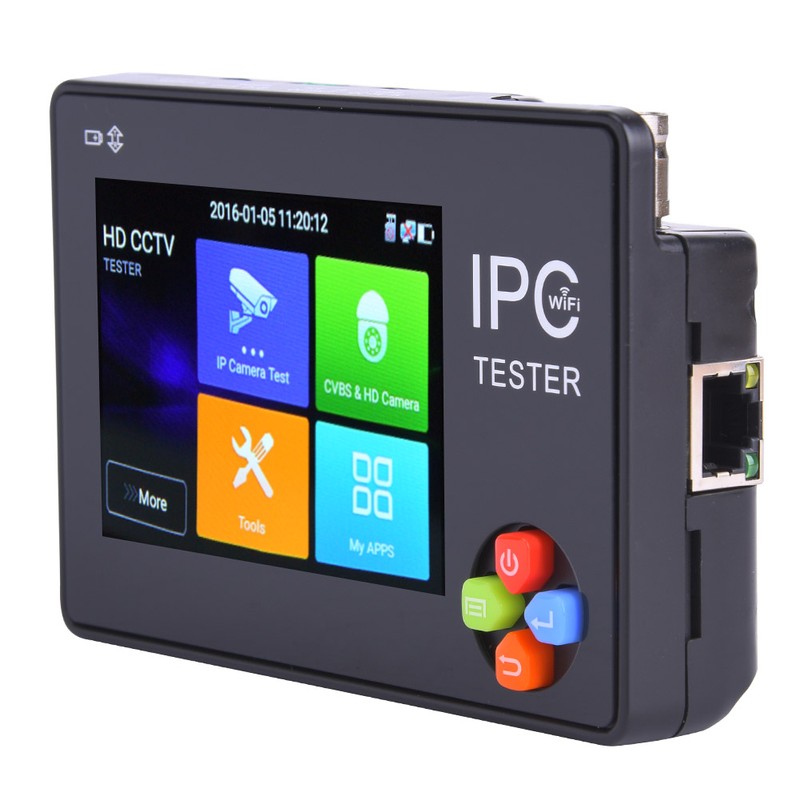

Network port 10/100M/1000M self-adaption, RJ45
 WIFI Built-in wireless WIFI, rate 150M, receive wireless network camera image.
H.265 main stream test New hardware decoding, supporting H. 265/265+/264 main stream playback camera images, the highest resolution 4K.
IP camera test For ONVIF (with PTZ control), for ACTi, for Dahua IPC-HFW2100P, for Haikang DS-2CD864-E13, for Samsung SNZ-5200, for Tiandy TD-NC9200S2, for Kedacom IPC120L, for Honeywell HICC-2300T, for AIPU IP5000-BC-13MP/IRS06-13MP, for FINETIDA IPC, for FINETECH kumkang8900, for Fu Shijie BY-1080Q, for WEISKY IPC, etc.
Focus information test Camera focus information, transmission signal quality, image quality testing.
IP explore Search for camera IP address throughout the network
Topspeed for ONVIF Automatic login to play images, a key to activate for Kaicang camera and modify IP parameters.
For Haikang test tools                                                                                                  For Haikang camera one key activation, batch change IP, change channel name, image test, can change user password and other parameters.
For Dahua test tools For Dahua camera one key activation, batch change IP, change channel name, image test, can change user password and other parameters.
TVI4.0 video signal test 1 channel TVI IN BNC input, the highest resolution support 8MP 3840x2160p 15fps,2592x1944P 12.5/20fps,2688x1520p 15fps, 2560x1440p 18/25/30fps,2048x1536p 18/25/30fps, 1920x1080p 25/30fps,1280x720p 25/30/50/60fps, support coaxial visual control, menu calls.
CVI video signal test 1 channel CVI IN BNC input, highest resolution support 4MP 2560x1440p 25/30fps,1920x1080p 25/30fps,1280x720p 25/30/50/60fps,support coaxial visual control, menu calls.
AHD video signal test 1 channel AHD IN BNC input, the highest resolution support 5MP 2592x1944P 12.5/20fps,2560x1440p 15/25/30fps,2048x1536p 18/25/30fps,1920x1080p 25/30fps, support coaxial visual control, menu calls.
Scene simulation Simulate the display area of "2.8/3.6/4/6/8/12/16/25mm" lens picture (this function is only available in coaxial HD)
Video signal test 1 channel Video IN BNC input, support PAL/NTSC standard
Video photography, video, photo browsing, video playback Test screen screenshot, video, support Chinese naming and saving, photo browsing, video playback operations.

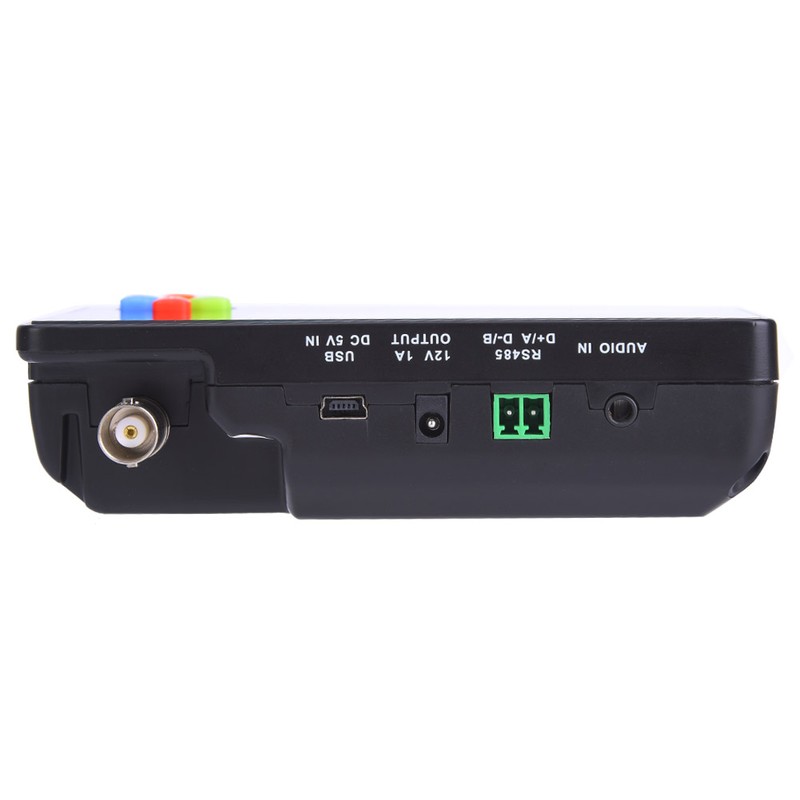

DC 12V power supply output The maximum DC current output of 12V is about 1A, which provides temporary working power for the camera
Screen projection Support mobile phone or PC terminal projection, real-time reception project treasure screen screen.
Theme function Custom function icon, desktop and application interface background, modify the interface sliding effect.
Pull-down menu Drop down shortcut menu, CVBS simulation video monitoring, instrument IP Settings, LAN port flow monitoring and other functions of the shortcut button.
Audio test Input one channel audio signal, test whether the sound is normal, support webcam audio test. Recording can be saved.
PTZ control test Can support for RS485 bus, the rate is 600-115200bps. Supports more than 30 protocols including for Pelco-D/P, for Samsung, for Lilin, and for Yaan
Protocol code capture Built-in serial port tool, can receive, display control device issued by the RS485 protocol code data, can also send hexadecimal code.
Network test function IP address scan, link scan, PING packet test. Quickly find the IP address of the IP camera or other device connected to the meter.
Power supply
External power source DC 5V2A
Battery powered Built-in 3.7v polymer lithium battery, 3000mAh capacity
Charging Charge for 3-4 hours, a charge can be normally used for about 8 hours
System parameter
Operation setting Capacitive touch screen, Chinese, English OSD menu, optional
Automatic standby Close /5-30 minutes
Work environment and specifications
Operating temperature -10-+50
Operating humidity 30%-90%

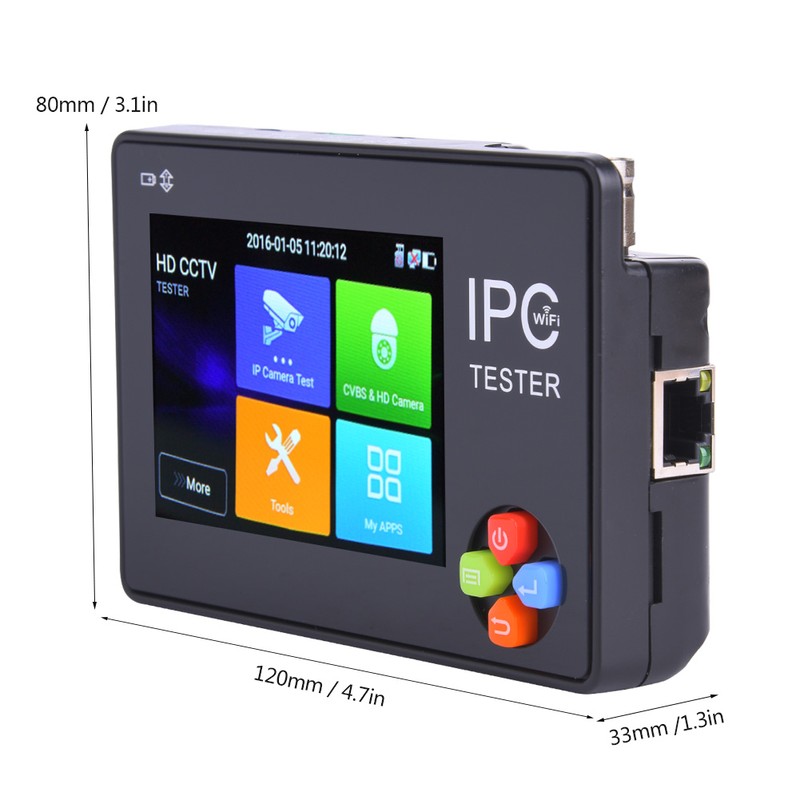

Size&Weight 120x80x33mm / 4.7x3.1x1.3in
Weight: Approx.554g/19.5oz

Notice

1. Please allow 1-2cm error due to manual measurement. Thanks for your understanding.
2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.
